Panasonic Cs-xu9zkh-8 Indoor Air Conditioner Instruction Manual

Operating Instructions
Air Conditioner

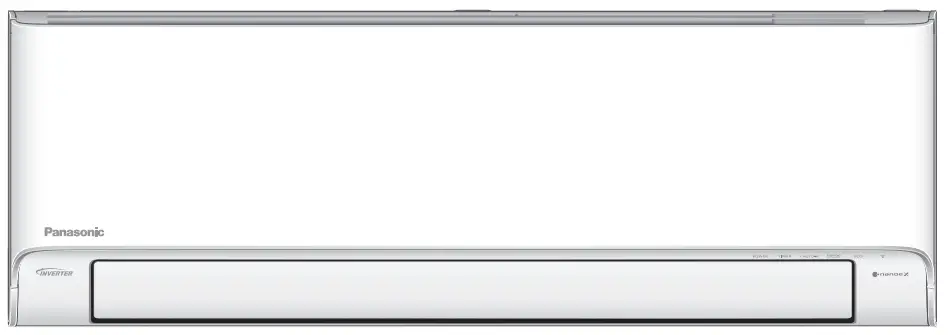

CS-XU9ZKH-8 Indoor Air Conditioner

Operating Instructions Air Conditioner
Before operating the unit, please read these operating instructions thoroughly and keep them for future reference.
Before installation, the installer should: Read the Installation Instructions, then request the customer keep them for future reference.
Remove the remote control packed with the indoor unit.

A new built-in Network Adaptor that allows you to control your air conditioner unit operation from anywhere.

Quick Guide

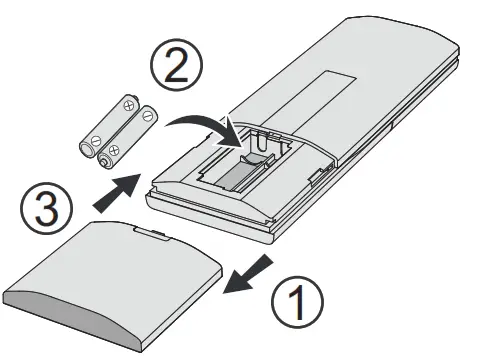

Inserting the batteries

1. Pull out the back cover of remote control.
2. Insert AAA or R03 batteries.
3. Close the cover.

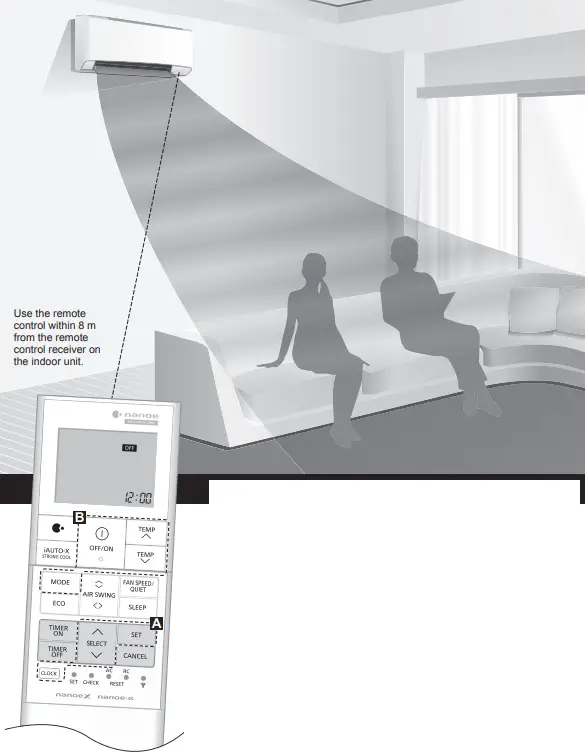

A Clock setting

1. Press , then press to set the time.
   • Press or approximately 5 seconds to show the time as 12-hour (am/pm) or 24-hour
2. Press to confirm.

Thank you for purchasing Panasonic Air Conditioner.
Accessories

• Remote control
• AAA or R03 batteries × 2
• Remote control holder
• Screws for remote control holder × 2

The illustrations in this manual are for explanation purposes only and may differ rom the actual unit. They are subject to change without notice.

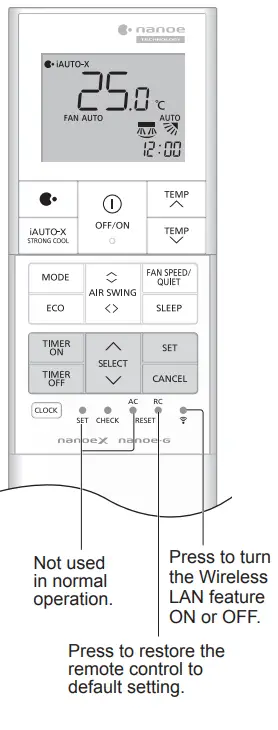

B Basic operation

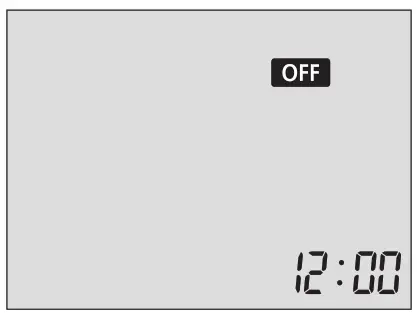

1. Press   to start/stop the operation.• When the unit is ON,   disappears from the remote control display.
2. Press to select the desired mode.
3. Press TEMP UP, TEMP DOWN to select the desired temperature.Selection range:
   16.0 °C ~ 30.0 °C / 60 °F ~ 86 °F.
   • Press for approximately 10 seconds to show the temperature as °C or °F.

How to Use

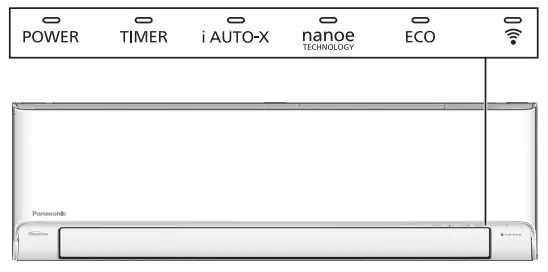

Indicators

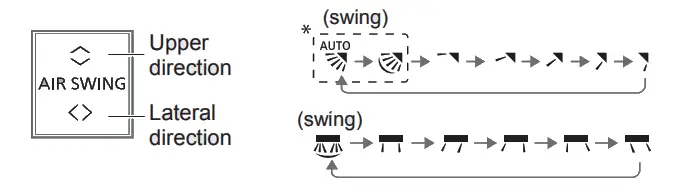

To adjust airflow direction

• Do not adjust the fl ap by hand.
  * For details operation, refer “To Learn More….”

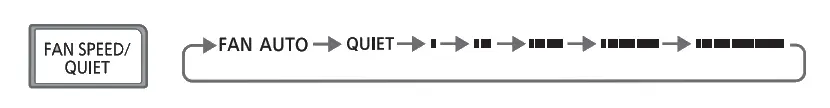

To adjust FAN SPEED and QUIET condition

FAN SPEED:

• When FAN AUTO is selected, the fan speed is adjusted automatically according to the operation mode.
• Select the lowest fan speed ( ) to have a low noise operation.
• When iAUTO-X mode is selected, the fan speed is automatically set to AUTO. To adjust the fan speed, cancel iAUTO-X mode.
  QUIET:
• This operation reduces airflow noise.

To enjoy fresher and cleaner environment

• This operation combines both nanoe™X and nanoe™-G (nanoe™ TECHNOLOGY).
• nanoe™ TECHNOLOGY automatically starts when the unit is turned on.
• Press  to turn ON or OFF this operation manually.
• This operation can be activated even when the unit is OFF. Note that the fl ap and fan speed will operate according to the remote control setting.
• If a power failure occurs during this operation, this operation resumes immediately when power resumes.

To reduce power consumption

• To reduce power consumption for better energy saving without sacrificing comfort.
• ECO function cannot be activated during iAUTO-X mode.
• Press the button again to cancel.

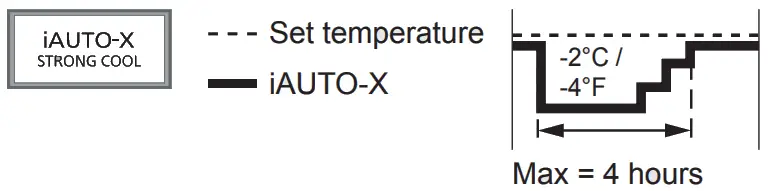

To reach the desired temperature quickly

• When iAUTO-X mode is turned on, the unit automatically reduces the temperature by 2°C (4°F) from the set temperature to accelerate the room cooling effect.
• Fan speed is set to AUTO and you cannot change the fan speed.
• After a maximum of 4 hours, the unit returns to the last set temperature. To extend iAUTO-X operation, press again to reactivate the iAUTO-X.
• When the room has reached set temperature, and room temperature is > 23°C and room humidity is > 60%, iAUTO-X will operate at a predetermined setting.
• When room humidity is high, fan speed will operate at lower speed.
• When the unit is OFF and you want to reach the desired temperature quickly, press  to turn on the unit in iAUTO-X mode.
• To cancel iAUTO-X mode, press  button.

To maximise comfort while sleeping

• This operation provides you with a comfortable environment while sleeping. It will automatically adjust the sleep pattern temperature during the activation period.
• The indoor unit indicator will dim when this operation is activated. This is not applicable if the indicator brightness has been manually dimmed.
• This operation is incorporated with the activation timer (0.5, 1, 2, 3, 4, 5, 6, 7, 8 or 9 hours).
• This operation can be set together with timer. Sleep operation has the priority over OFF timer.
• This operation can be cancelled by pressing the respective button until the sleep timer reaches 0.0h.

To connect to a network

• For Wireless LAN Module operation setup, please refer to Setup Instructions Manual.

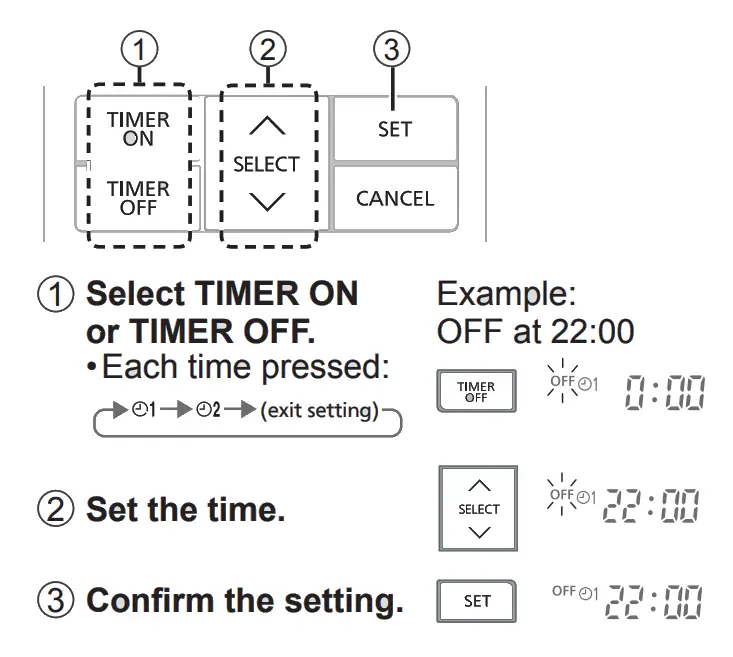

To set the timer
You can set the timer to turn on and off the unit at 2 different preset time.

• To cancel the timer, press or to select the respective setting or , then press .
• If the timer has been cancelled manually or due to power failure, you can restore the timer again. Press or to select the respective setting or , then press .
• The nearest timer setting is displayed and will activate in sequence.
• The timer operation follows the clock setting on the remote control and will repeat daily when timer has been set. For clock setting, refer to Quick Guide.

Note

• Can be selected at the same time.
• Cannot be selected at the same time.

To Learn More…

Operation mode

iAUTO-X : Provides fast cooling operation which is ideal on a hot day.
COOL : Provides efficient comfort cooling to suit your needs.
DRY : Operates at low fan speed for a gentle cooling operation.
When FAN AUTO is selected, DRY mode will operate with humidity control.
Energy saving temperature setting
You may save energy when operating the unit within the recommended temperature range.
COOL: 26.0 °C ~ 28.0 °C / 79 °F ~ 82 °F.
Air flow direction
AUTO
In iAUTO-X mode:
The horizontal fl ap swings up/down automatically at a predetermined position.
Once the temperature is achieved, the horizontal fl ap is fixed at upper position.
In COOL mode:
The horizontal fl ap is fixed at middle position setting.
Once the temperature is achieved, the horizontal fl ap swings up/down automatically.
In DRY mode with Humidity Control:
If FAN AUTO is set, the horizontal fl ap swings up/down automatically.
Once the temperature is achieved, the horizontal fl ap is fixed at the predetermined position.
In DRY mode without Humidity Control:
The horizontal fl ap is fixed at middle position setting.
Once the temperature is achieved, the horizontal fl ap swings up/down automatically.
In iAUTO-X/COOL/DRY mode:
The horizontal fl ap swings up/down automatically.
Auto restart control
When power is resumed after a power failure, the operation will restart automatically with the last operation mode and airfl ow direction.
This control is not applicable when TIMER is set.
Inside Cleaning
This function is to enhance the inside cleaning of the air conditioner indoor unit.
To activate inside cleaning, turn off the unit and press button for more than 3 seconds from remote control. During inside cleaning operation, nanoe™X will turn on and horizontal fl ap is open with low fan speed operation for a maximum of 2.5 hours before the unit is turned off. Do not turn off the power supply during this operation. The inside cleaning operation is completed when the fan stops and the flap is close. When power is resume after failure, this operation will not resume.
Operating conditions
Use this air conditioner in the temperature range indicated in the table.

DBT: Dry bulb temperature, WBT: Wet bulb temperature

Cleaning the Air Conditioner

Cleaning has to be carried out at regular intervals to ensure the unit is at optimal performance. A dirty unit may cause malfunction and you may retrieve “H 99” error code. Consult an authorised dealer.

• Before cleaning, switch off the power supply and unplug the unit.
• Do not touch the aluminium fin as the sharp parts may cause injury.
• Do not use benzine, thinner or scouring powder.
• Use soap ( pH 7) or neutral household detergent only.
• Do not use water hotter than 40 °C / 104 °F.

Indoor unit
( Structure of the unit may vary depending on the model)

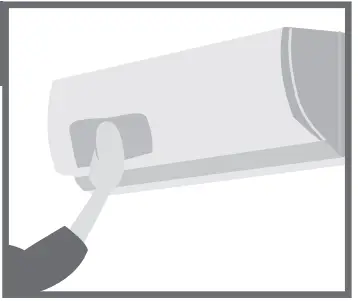

Indoor unitDo handle the unit surface with care to avoid scratches by sharp or rough items (e.g. fingernails, tools, rings, etc). Wipe the unit gently with a soft damp cloth.
The coils and fans should be cleaned periodically by an authorised dealer.
Front panel
Wash gently and dry.

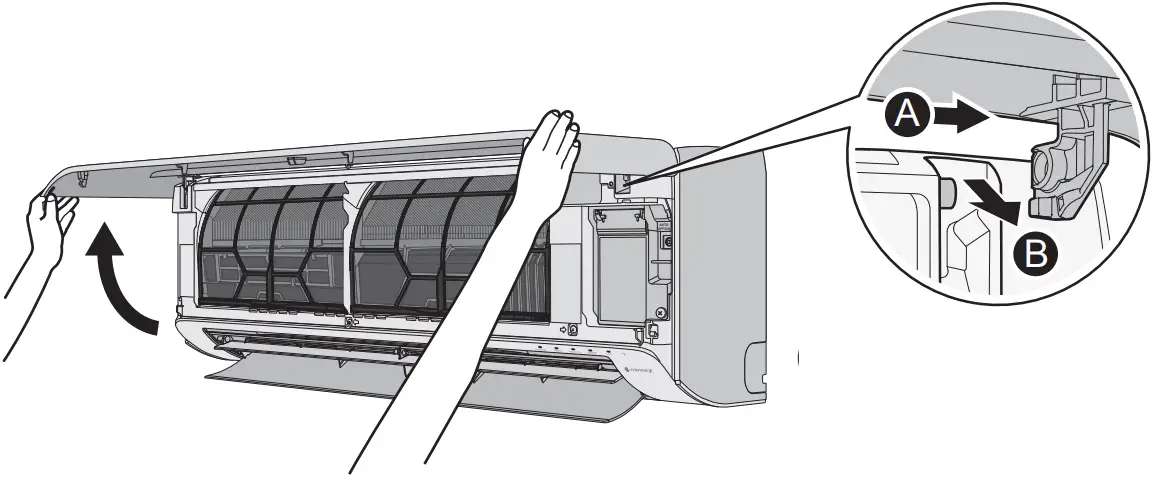

How to remove front panel

1. Raise up.
2. Slide the front panel to right A and pull out B .

Close it securely

1. Hold horizontally.
2. Match andpush in.
3. Close down.
4. Press both ends and center of the front panel.

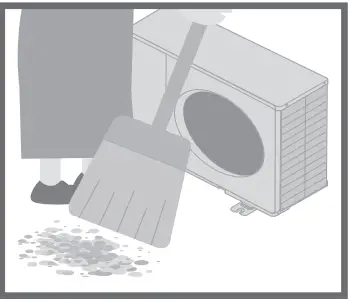

Outdoor unit
Clean the debris that surround the unit.
Clear any blockage from the drain pipe.

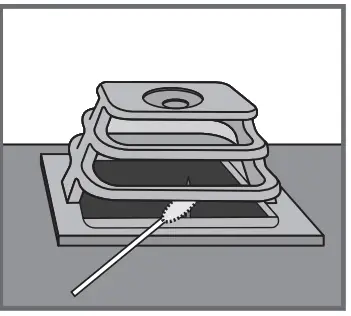

nanoe TM -G Generator Once every 2 weeks

• Clean with dry cotton bud.
• Do not touch during operation.

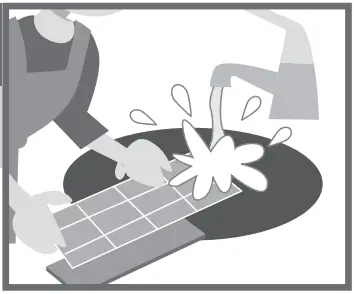

Air fi lters Once every 2 weeks

• ash/rinse the filters gently with water to avoid damaging the surface.
• Dry the filters thoroughly under a shade, away from fi re or direct sunlight.
• Replace any damaged filters.

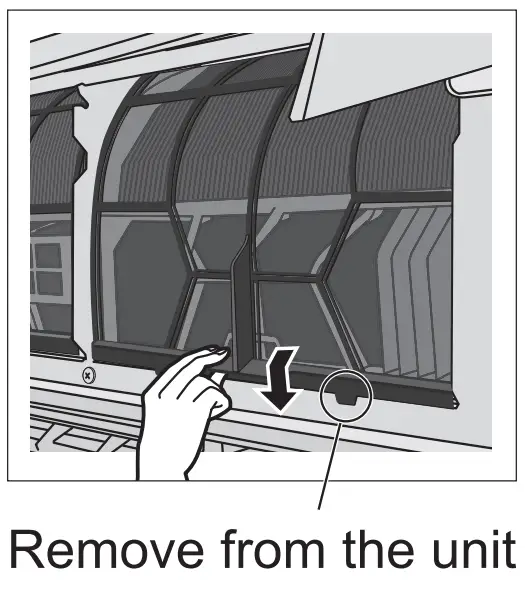

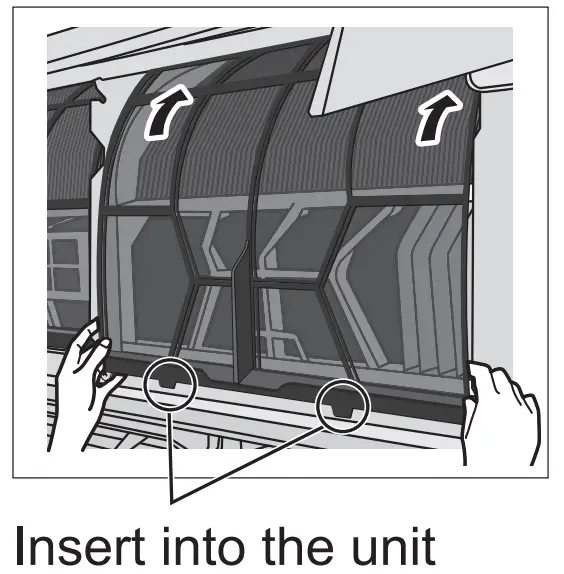

Remove air filterAttach air filter

Troubleshooting

The following symptoms do not indicate malfunction.

Check the following before calling for servicing.

When…

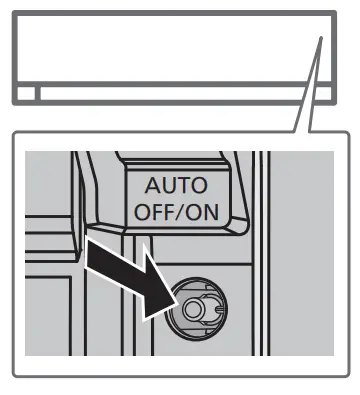

■The remote control is missing or a malfunction has occurred

1. Raise the front panel.
2. Press AUTO OFF/ON once to use in iAUTO-X mode.
3. To operate forced COOL mode, press AUTO OFF/ON hold until you hear 1 beep, then release. (This operation shall be performed by service personnel)
4. Press AUTO OFF/ON again to turn off the unit. ( Structure of the unit may vary depending on the model)

■ The indicators are too bright

• To dim or restore the indicators’ brightness on the unit, press on the remote for 5 seconds.

■ Conducting a seasonal inspection after extended period of non-use

• Check the batteries.
• Check that there is no obstruction around the air inlets and outlet vents.
• Use AUTO OFF/ON on the unit to select COOL mode. For details, refer “The remote control is missing or a malfunction has occurred” above. After 15 minutes of operation, it is normal to have the following temperature difference between the air inlet and outlet vents: COOL: ≥ 8 °C / 14.4 °F

■ The units will be not used for an extended period

• Activate nanoe™ TECHNOLOGY mode for 2~3 hours to remove any moisture left in the internal parts thoroughly. This is to prevent mould growth.
• Turn off the power supply and unplug the unit.
• Remove the batteries from the remote control.

NON SERVICEABLE CRITERIAS
TURN OFF THE POWER SUPPLY AND UNPLUG THE UNIT. Then consult an authorised dealer in the following conditions:

• Abnormal noise during operation.
• Water/foreign particles have entered the remote control.
• Water is leaking from the indoor unit.
• The circuit breaker switches off frequently.
• The power cord becomes unnaturally warm.
• The switches or buttons are not functioning properly.

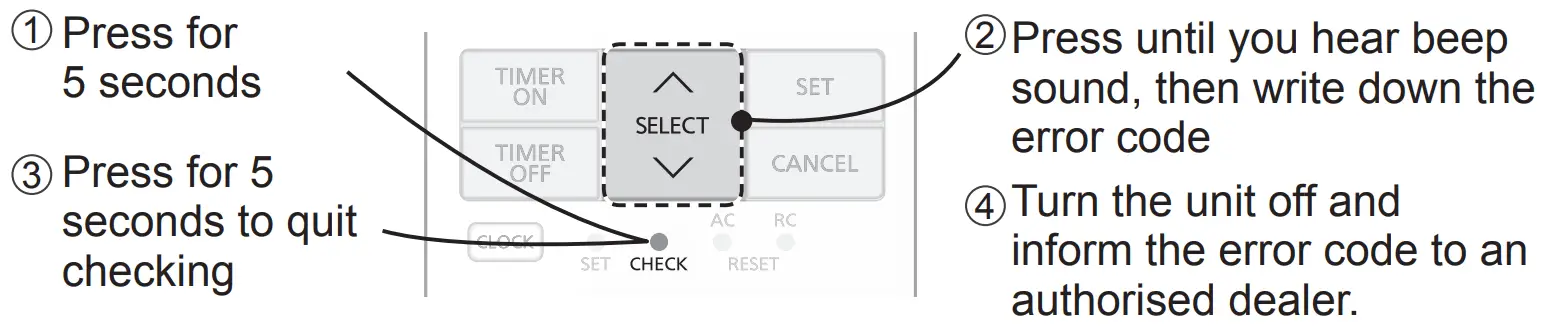

How to retrieve error codes
If the unit stops and the TIMER indicator blinks, use the remote control to retrieve the error code.

• For certain errors, you may restart the unit for limited operation if there are 4 beeps when operation starts.

Panasonic Corporation
1006, Oaza Kadoma, Kadoma City,
Osaka 571-8501, Japan
Website: http://www.panasonic.com
© Panasonic Corporation 2022
Printed in Malaysia
ACXF55-34501
FZ1022-1
