Osram Ledsc03-1 Ledriving Smart Canbus Anti-flicker Adapters User Manual

LEDriving® SMART CANBUS

LEDSC03-1
BMW X3 E1 3543
BMW X3 E1 3543 Facelift

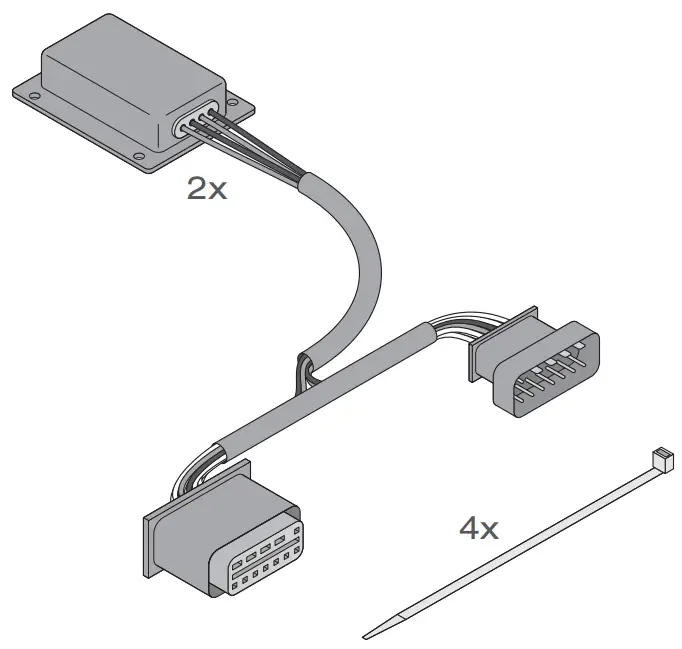

LEDSC03-1 LEDriving Smart Canbus Anti-Flicker Adapters

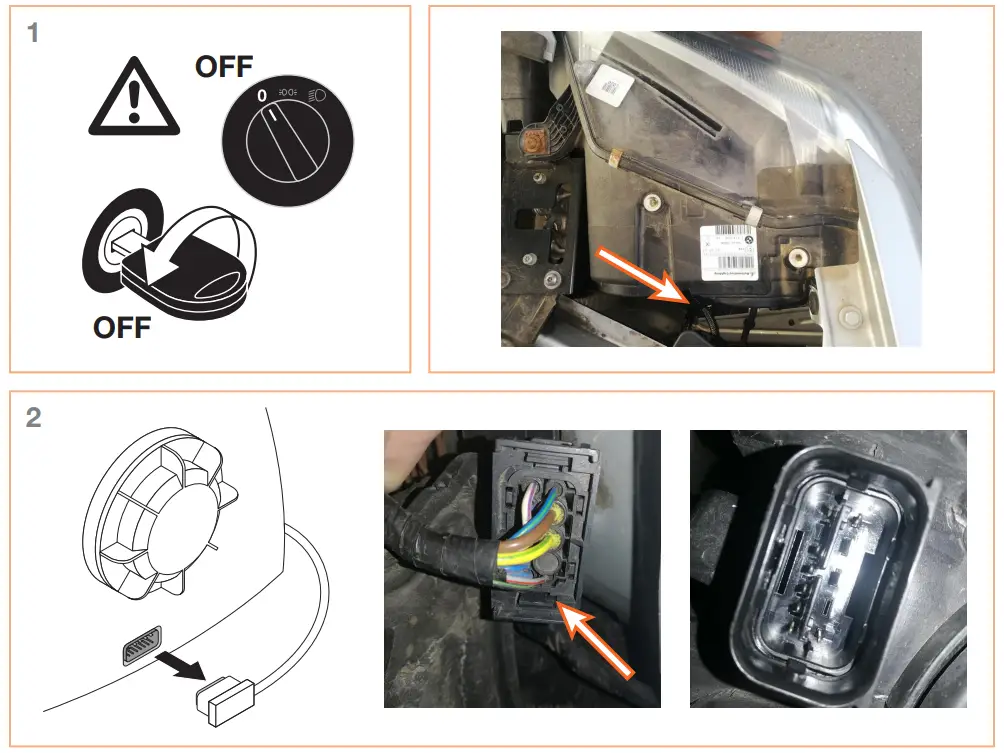

Installation instructions for electronic load resistor LEDSC03-1

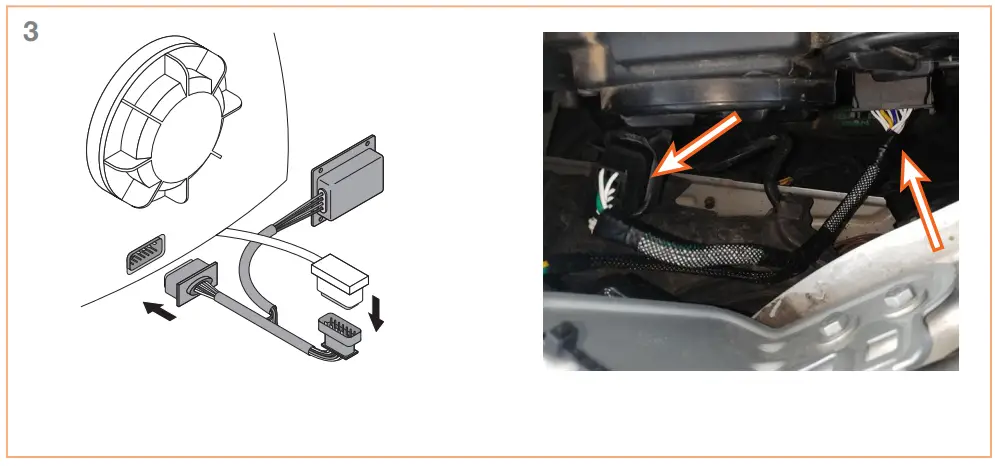

1. Connect the SMART CANBUS (load resistor) plug to the vehicle connector.
2. Connect the SMART CANBUS (load resistor) socket with the headlight.2)

Mount the SMART CANBUS (load resistor) to the vehicle’s body (metal).
Please note: Pull the cable ties until they are taut.3)

For questions regarding maintenance or technical problems, please contact OSRAM customer service via [email protected] .4)
