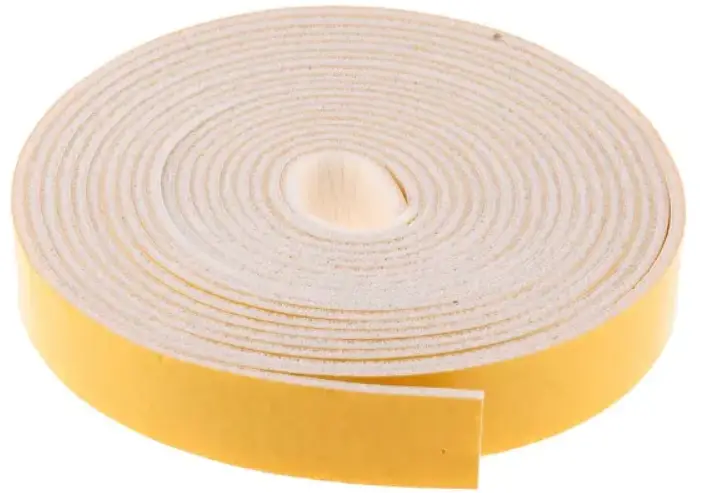

733-6810 RS PRO White Foam Tape
FEATURES
- Easy peel liner prevents stretching during installation
- Excellent for all general sealing needs
- Food grade approved
- High strength adhesive backing to ensure long seal life
- Tape system is versatile, convenient, quick and easy to use
RS Professionally Approved Products bring to you professional quality parts across all product categories. Our product range has been tested by engineers and provides a comparable quality to the leading brands without paying a premium price.
Product Description
This exceptional RS PRO Grey Silicone single-sided foam tape produces a very high cohesive strength which produces a very high bond strength and high load capacities thanks to a general adhesive. It features a strong initial adhesion and great holding power to a variety of materials.
General Specifications
| Backing Material | Silicone Foam |
| Color | White |
| Single/Double Sided | Single Sided |
| Adhesive Material | Acrylic |
| Applications | sound dampening, insulating, gasketing, cushioning/padding, and sealing |
Electrical Specifications
| Dielectric Constant | 1.34 |
| Dielectric Strength | 89V/mm |
| Dry Arc Resistance | 90seconds |
| Volume Resistivity | 10^14ohm-cm |
| Thermal Conductivity | 0.39(0.06) in/hr/ft²/⁰F (-55⁰) |
Mechanical Specifications
| Width | 15mm |
| Thickness | 4.8mm |
| Length | 6m |
| Foam Density | 208kg/m³ |
| Tensile Strength | 35psi |
| Compression Set (25%/22h/23°C) | <5% |
| Elongation | 90% |
| Water Absorption | 3.50% |
| UV Resistance | No Degradation |
| Corrosion Resistance | Pass |
| Ozone Effect Rating | 0 |
| Flame Resistance (>3mm) | Listed UL94 V-0 & UL94 HF-1 |
Operation Environment Specifications
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | 200°C |
Approvals
| Compliance/Certifications | RoHS Certificate Of Compliance |
