Wal-board Tools 051-007 Pro Quick Load Drywall Taper Instruction Manual

PRO “QUICK-LOAD” DRYWALL TAPER
ENCINTADORA DE PANALES DE YESO “QUICK-LOAD” PRO
OUTIL DE RUBANAGE « QUICK LOAD » PRO
Part# 051-007 | EDI# 40204
Part# 051-007-HD | EDI# 40363

LOADING & OPERATING INSTRUCTIONS

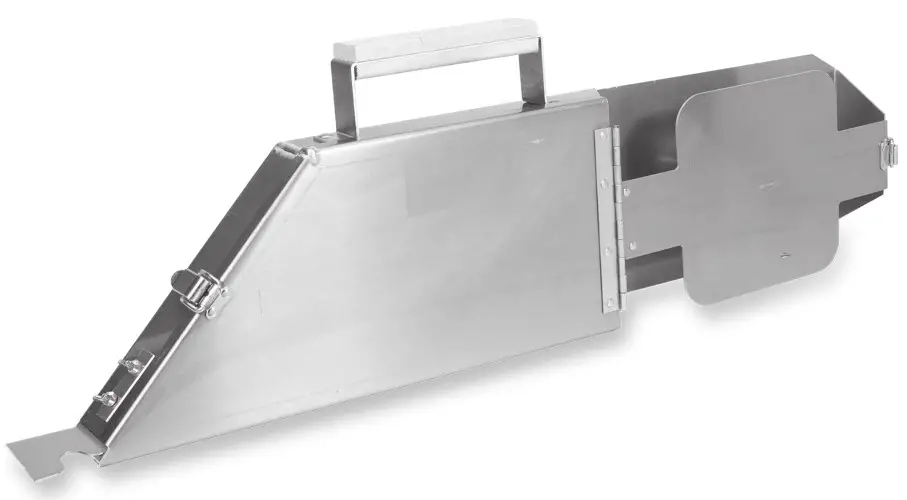

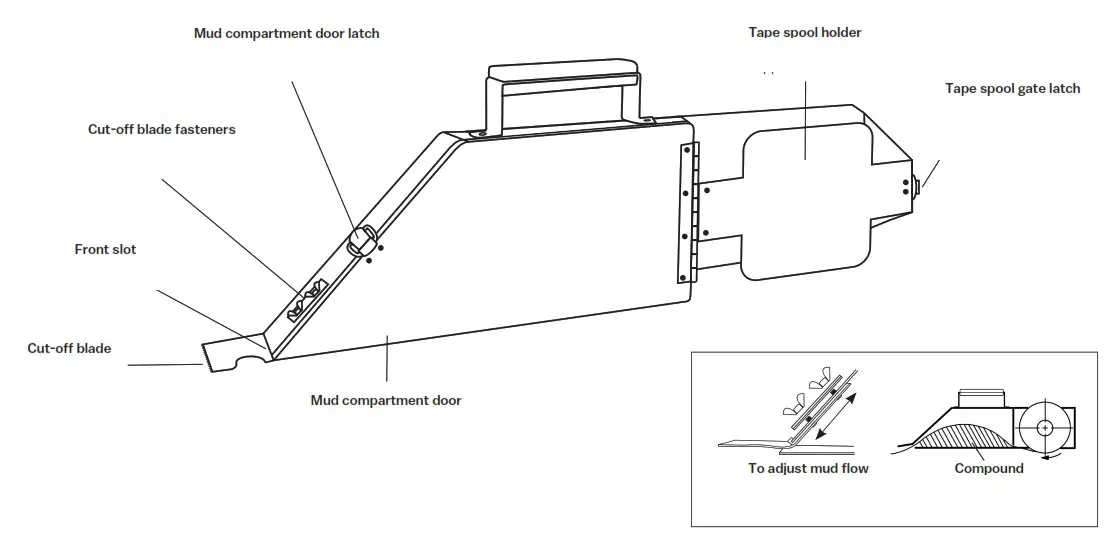

051-007 Pro Quick Load Drywall Taper

• Wood handle
• Lightweight aluminum
• One hand mud loading
• Easy to adjust precision mud flow control
• Latched gate on tape spool holder
• Adjustable web side handle
• Serrated cut-off blade

LOADING INSTRUCTIONS

(Use a 250 – 500′ long, 2″ wide roll of tape)

1. With mud compartment door facing up, lay Pro “Quick-Load” Drywall Taper on side.

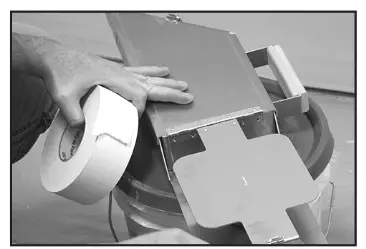

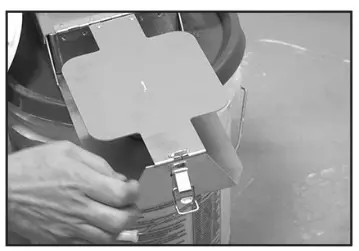

2. Release tape spool gate latch to access tape spool holder.

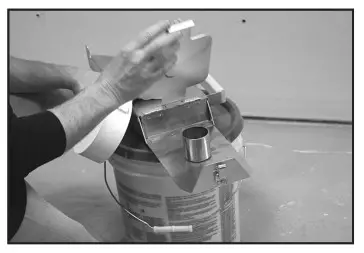

3. Pull tape spool holder up.

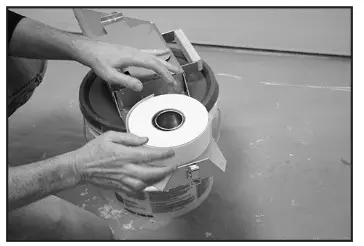

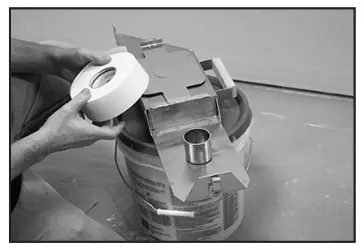

4. Place roll of tape on tape spool, unreeling in clockwise direction.

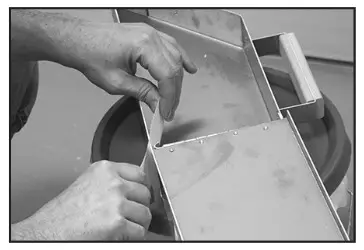

5. Hand feed tape into rear slot of mud compartment, threading 8 to 12″.

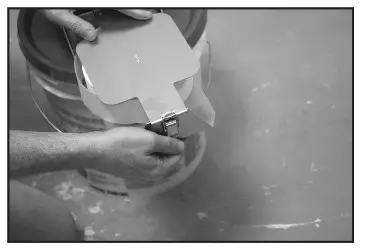

6. Close tape spool gate and re-latch.
7. Release mud compartment door latch and pull door open.

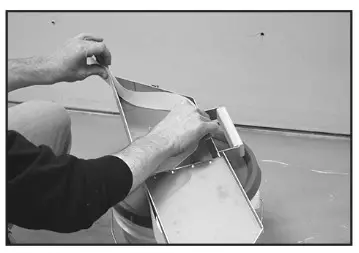

8. Find tape leader and pass tape through front slot of mud compartment, extending tape 6″ beyond cut-off blade.
9. In order for tape to skim across surface of mud, mold tape from bottom to top and along sides of mud compartment.

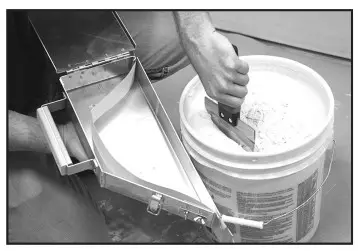

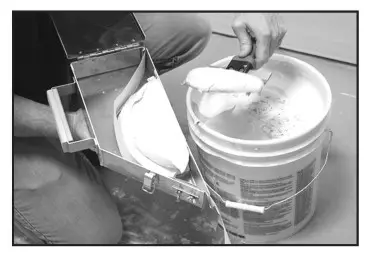

10. Pour mud mixed to manufacturer’s instructions into mud compartment, close door and re-latch.
11. Pull out a few inches of tape from front slot to check amount of mud on tape.

OPERATING INSTRUCTIONS

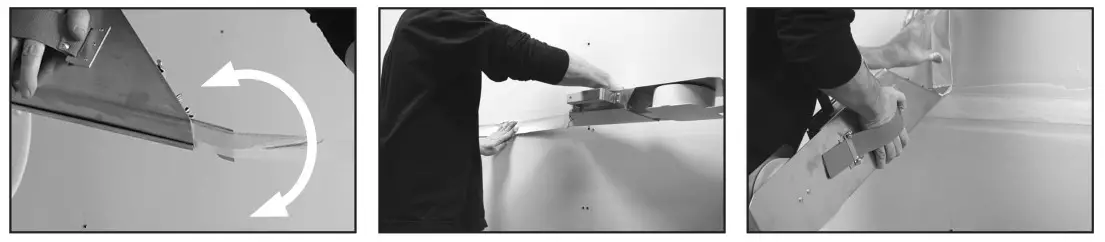

1. Point Pro “Quick-Load” Drywall Taper upright.
2. Briskly swing front slot towards floor to get mud flow started.

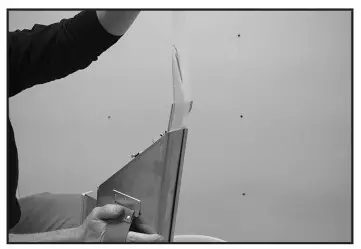

3. Pull out 6″ of tape.
4. Place tape at origin of seam and hold it in position with a 6 or 8″ taping knife.
5. Keep Pro “Quick-Load” Drywall Taper 6″ above seam and pull out 10 to 12″ of tape.
6. Slide taping knife down over tape to new holding point.
7. Slide taping knife down over tape to new holding point.
8. At end, hold tape firmly while pulling through front slot across cut-off blade, then push cut-off blade against tape to cut tape.
9. Use taping knife to flatten tape and remove excess mud from seam.
10. Use taping knife to flatten tape and remove excess mud from seam.
11. When seams are dry, apply fill coat followed by thin blending coat and sand lightly.

PRO “QUICK-LOAD” DRYWALL TAPER REPLACEMENT BLADES AVAILABLE
Replacement Cut-off Blade—RB6025, EDI 16025—packaged 1 per bag.
Replacement serrated cut-off blade is ground to a sharp point.
