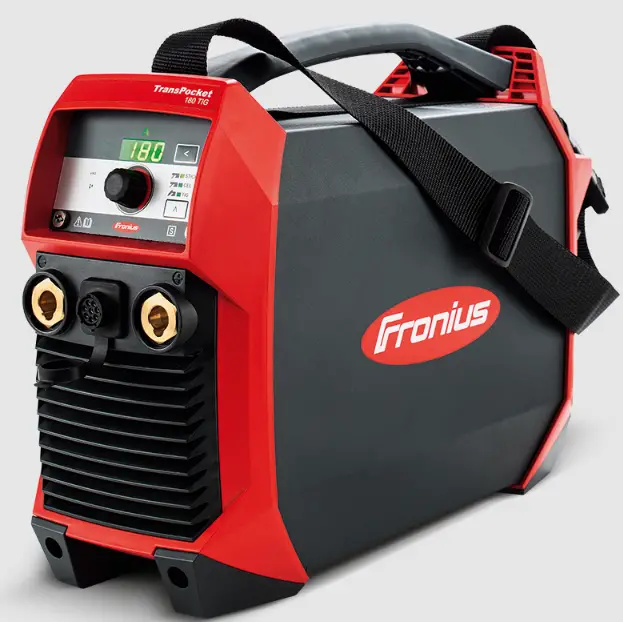

Fronius 180 TIG Transpocket
Safety
Before carrying out any work with the device, ensure that you have read and understood all the documents provided as well as those available online! This document does not describe all the functions of the device. For a complete description of the device, refer to the Operating Instructions.
Welding settings
Setting values:
Dynamic: 0 – 100 | Factory setting = 20
Welding current: TP 150 = 10 – 150 A / TP 180 = 10 – 180 A (STICK), 10 – 220 A (TIG)
SoftStart / HotStart function: 30 – 200 % | Factory setting = 130 %
Pulse welding: OFF / 0.5 – 990 Hz | Factory setting = OFF
Available welding processes:
MMA welding
MMA welding with Cel electrode
TIG welding
Operating Instructions
https://manuals.fronius.com/html/4204260207

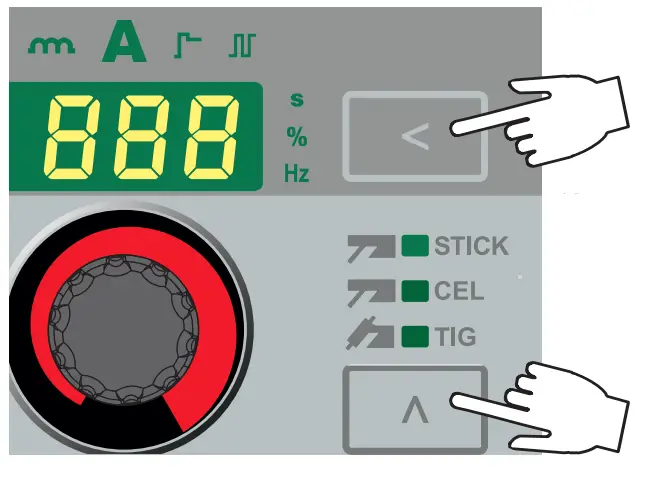

Changing welding parameters

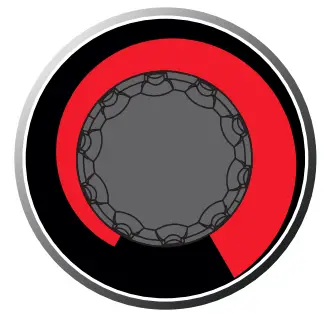

Turn and press the adjusting dial to select and change parameters.
Parameters for MMA welding
Starting current duration: 0.1 – 1.5 seconds | 0.5 seconds*
Anti-stick: On* / OFF
Start ramp: On* / OFF
Break voltage: 25 – 90 V | 45 V*
Factory setting

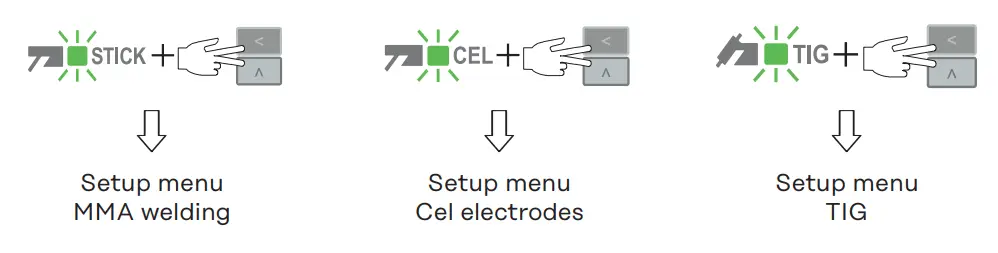

Level 2 Setup menu
Software version
Automatic switch-off: 5 – 60 minutes / OFF*
Fuse: 230 V = 10 A, 13 A, 16 A* / 120 V = 15 A, 16 A, 20 A*Operating time: hours, minutes, seconds
Welding time: hours, minutes, seconds
Parameters for TIG welding
Operating mode: OFF / 2-step* / 4-step
Starting current: 1 – 200 % | 50 %*
Reduced current: 1 – 200 % | 50 %*
Final current: 1 – 100 % | 50%*
Gas post-flow time: 0.2 – 25* seconds
Comfort Stop sensitivity: TP150 = OFF / 0.6 – 3.5 V | 1.5 V* TP180 = OFF / 0.6 – 3.5 V | 1.5 V*
Break voltage: 10 – 45 V | 35 V*
Tacking function: OFF* / 0.1 – 5.0 seconds
Factory setting
Level 2 Setup menu
