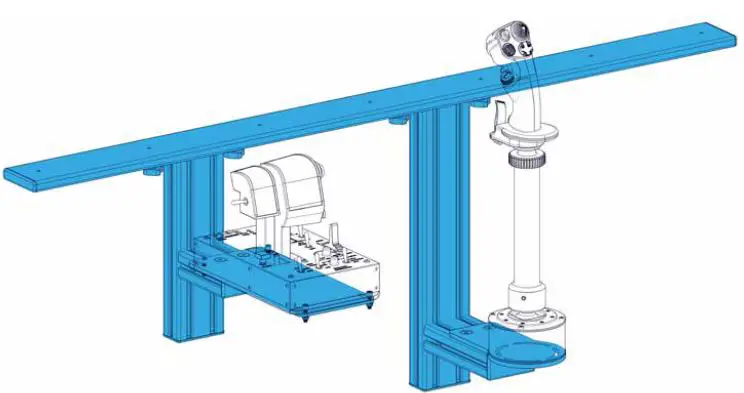

MONSTER Hotas Rail Mount Joystick

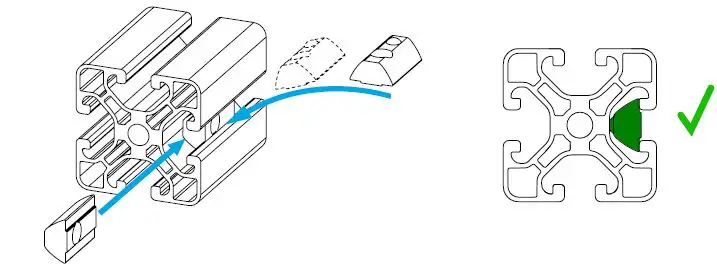

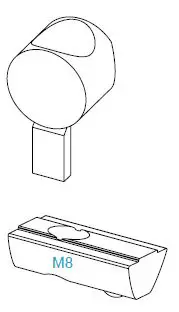

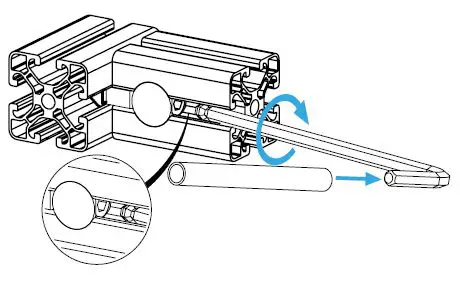

GENERAL ASSSEMBLY INFO AND HOW TO PROFILE NUT

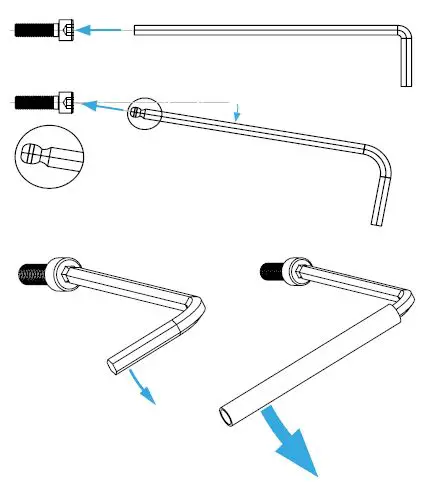

HEX KEY SET WITH BALL HEAD + EXTENSION OR SIMILAR REQUIRED

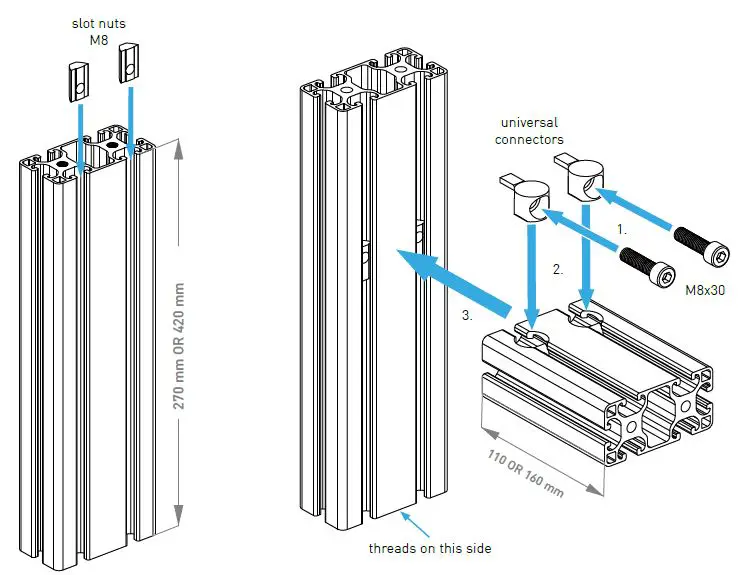

UNIVERSAL CONNECTOR

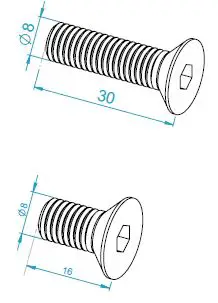

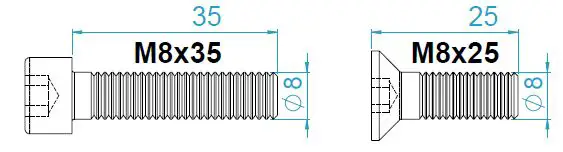

BOLT DIMENSIONS AND HOW TO MEASURE THEM mm

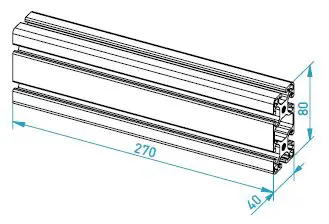

PARTS

Dimensions in mm / different scales.No extra or spare parts listed

MTSIM RAIL MOUNT

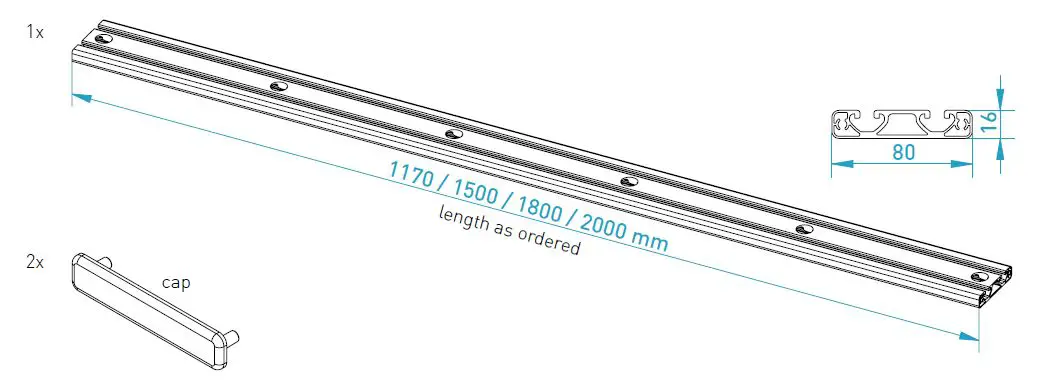

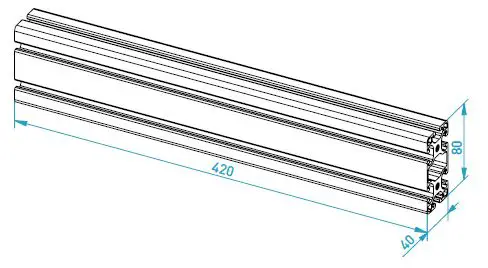

Rail Mount

OR Rail Mount long version

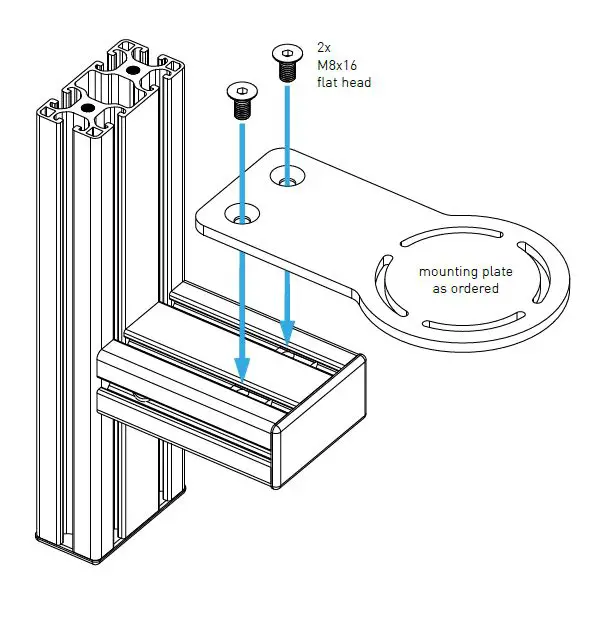

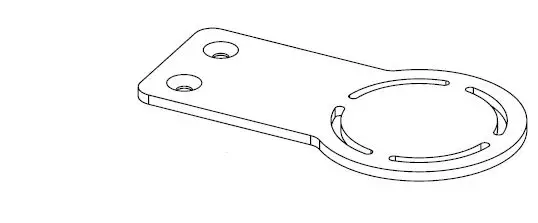

Mounting plate as ordered

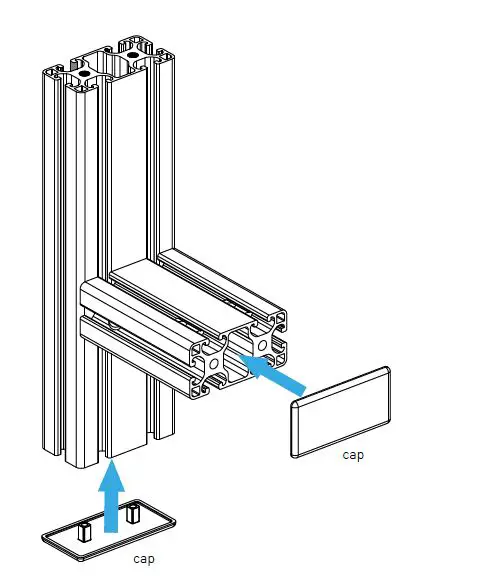

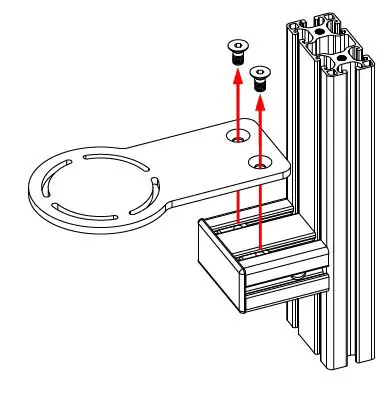

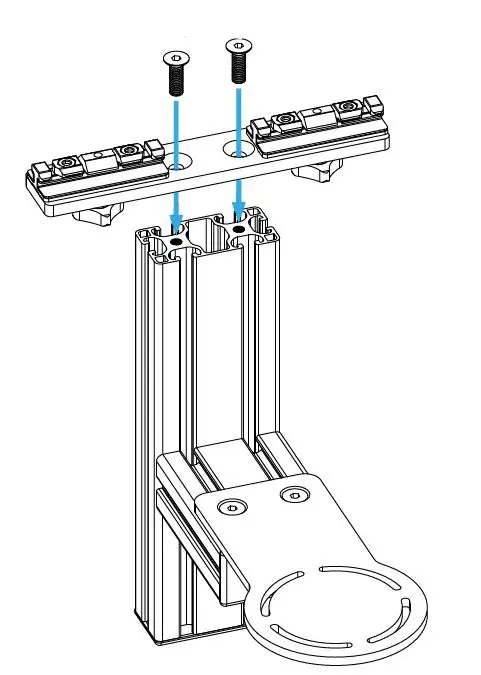

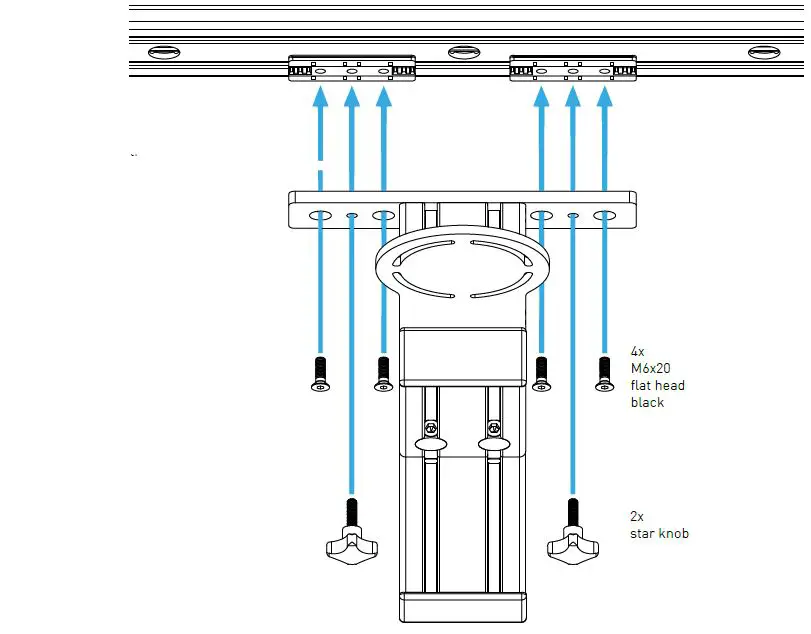

ASSEMBLY

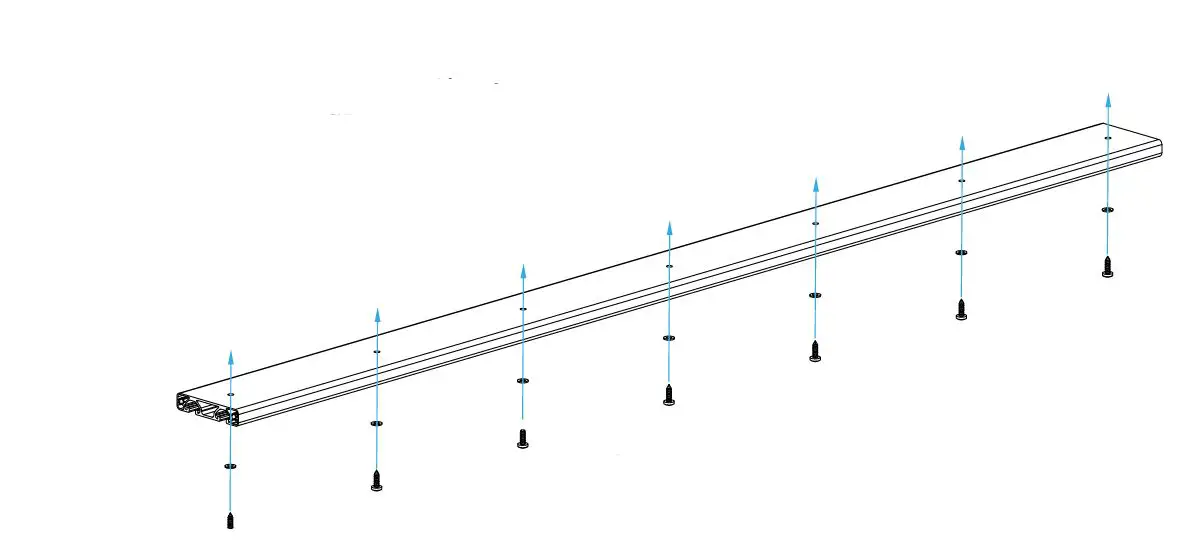

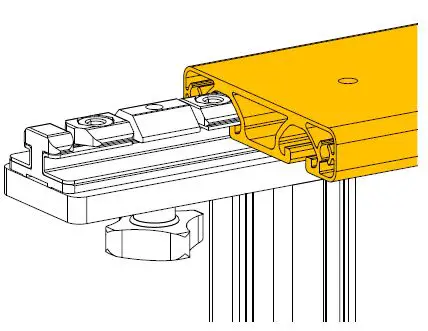

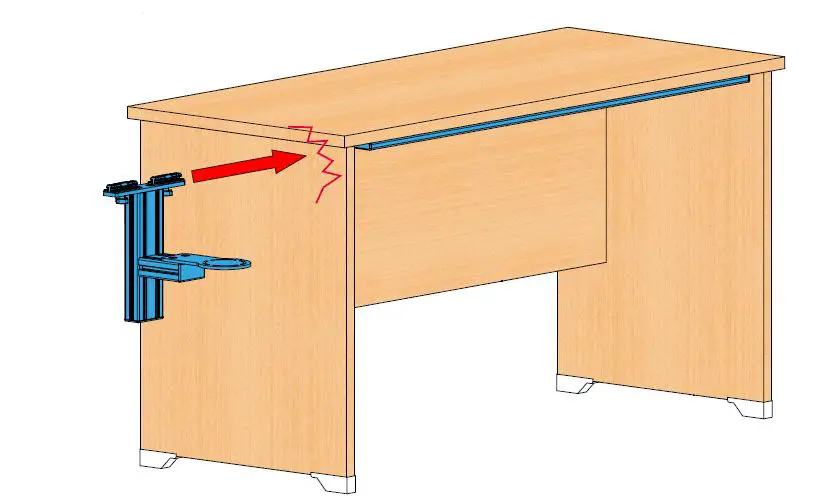

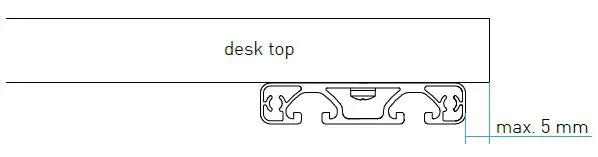

Tsliding rail under the front edge of your desk. Only for desks with a solid wooden top. Please only use screws intended for the specific wood type and thickness. We advise you to ask an expert for installation advice.

Screw not included.

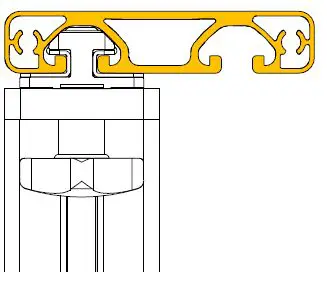

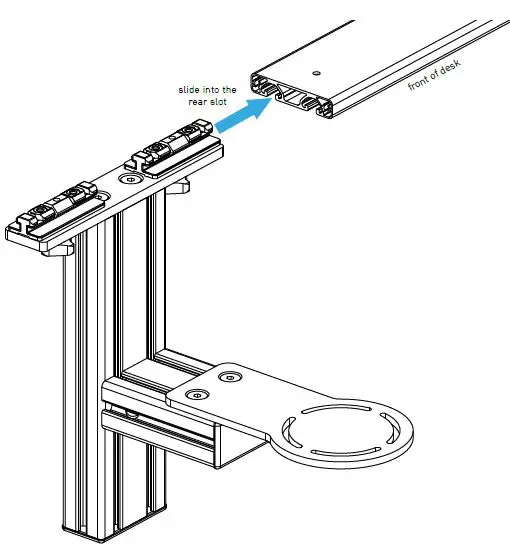

Before attaching the sliding rail to thedesk make sure that it is possible to slide in the mounts in the rear slot.

Details

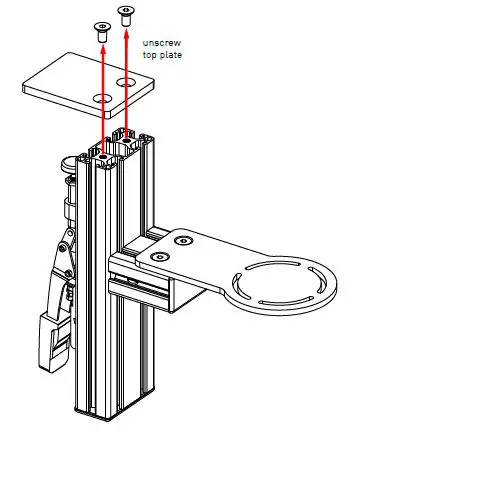

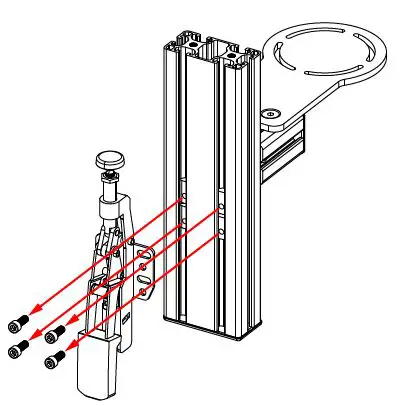

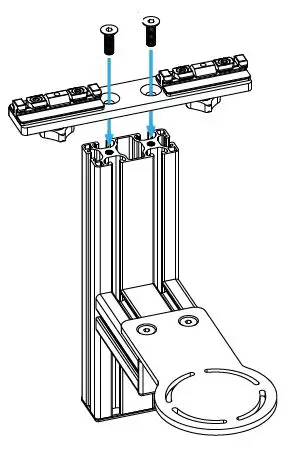

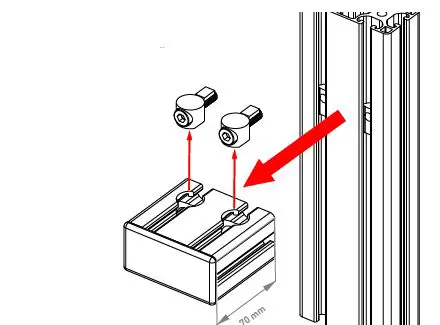

ASSEMBLING AN EXISTING TABLE MOUNT

Remove

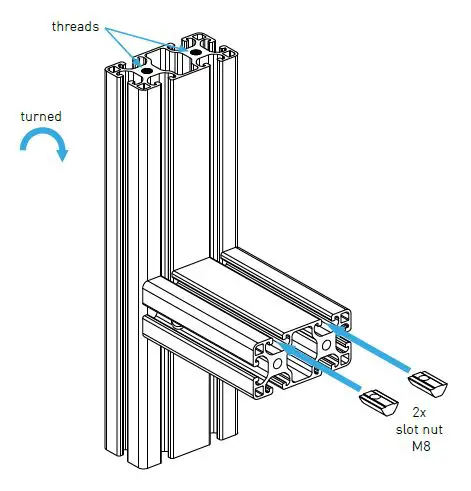

Turned

Replace the 70 mm profile with a 110 mm profile or a 160 mm profile long version.

TROUBLE SHOOTING

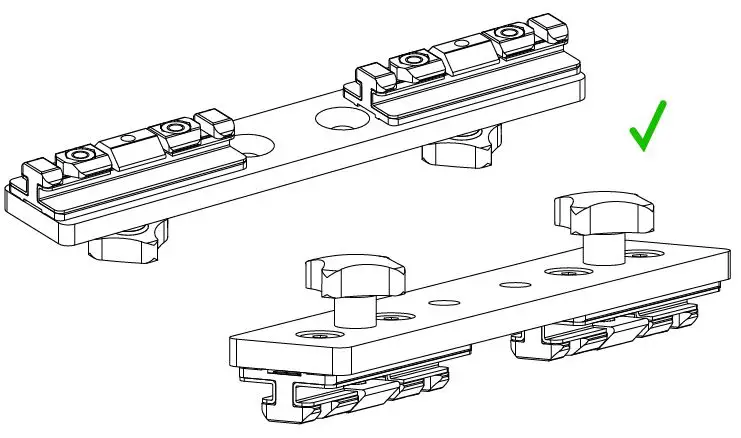

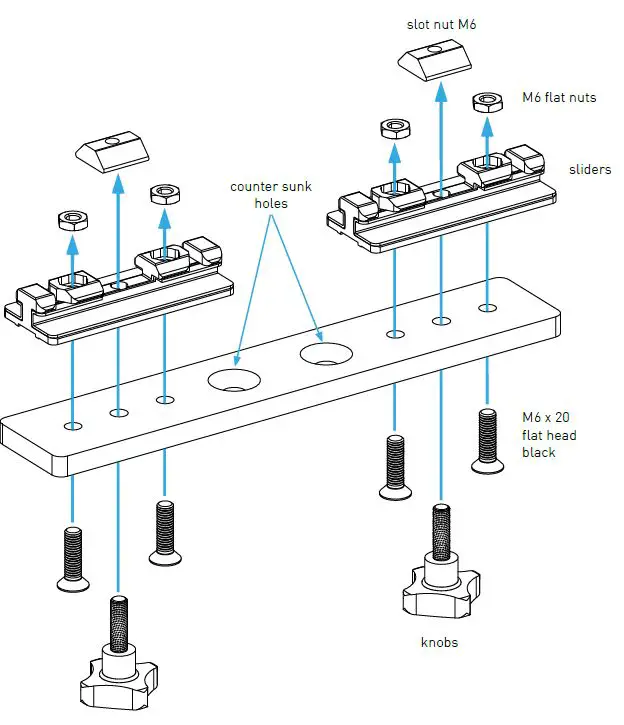

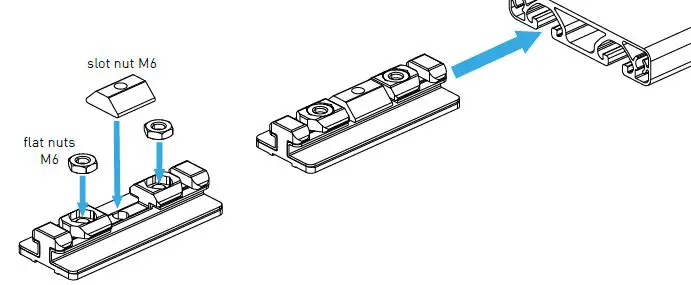

If you can not slide in the mounts after you have attached the sliding rail to your desk try to slide in only the shown parts (possibly before attaching the rail to your desk.

Assembley

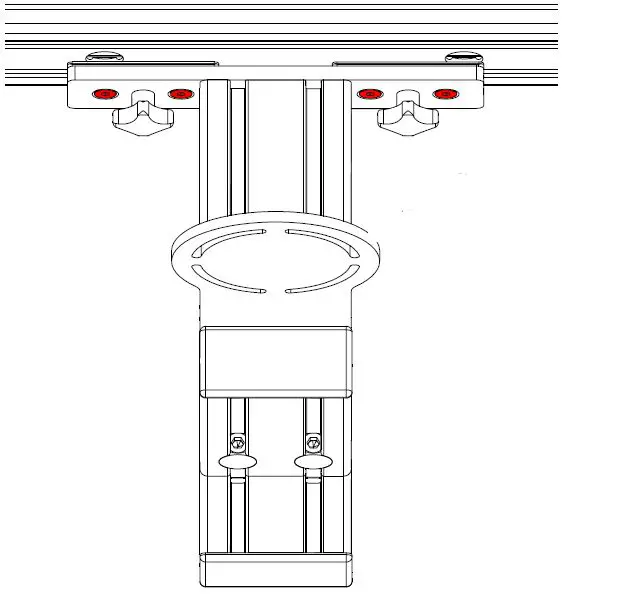

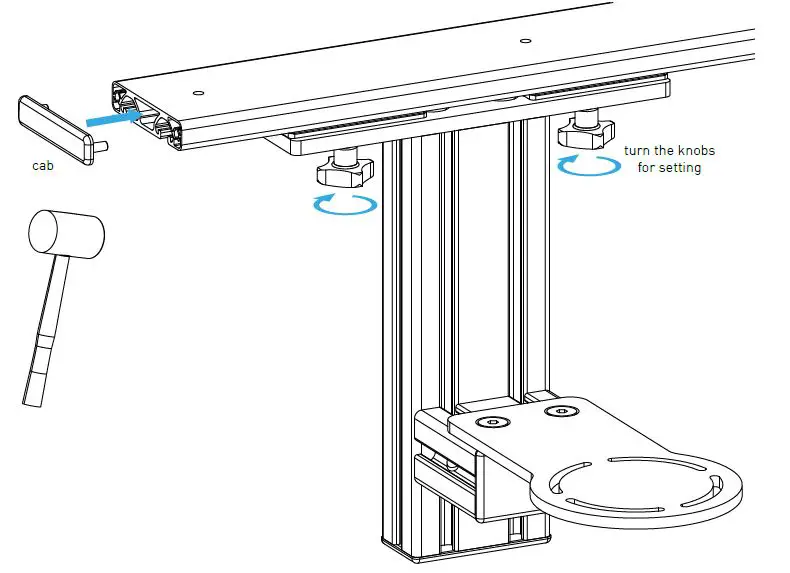

If the Rail Mount does not run smooth loosen and tighten the red marked screws.

WARNING NOTICES

CAUTION
Check before usage if all screws are tightened. Check before usage that the mounting plate is screwed on tight after making height adjustments.

DANGER
Contains small parts not suitable for children under 3 years. Only suitable for children over 12 years and adults. All MTSIM products are hand assembled and quality checked. The mount is designed for usage only with a computer controller i.e. joystick or throttle.We exclude liability if the product is used for purposes other than intended. MTSIM shall be liable for damage arising from causes other than the detriment to life, body and health only to the extent that such damage arises from wilful misconduct, gross negligence or the culpable violation of a fundamental contractual obligation on the part of MTSIM or a vicarious agent e.g. the delivery service of MTSIM. Any further liability for damages shall be excluded. If you have safety concerns or questions regarding assembly, contact us under [email protected] or visit www.mtsim.com/en
