GE 93123570 Direct Wire 59-Watt EQ 96-in Cool White Linear Type B LED Tube Light Bulb

INSTALLATION INSTRUCTION

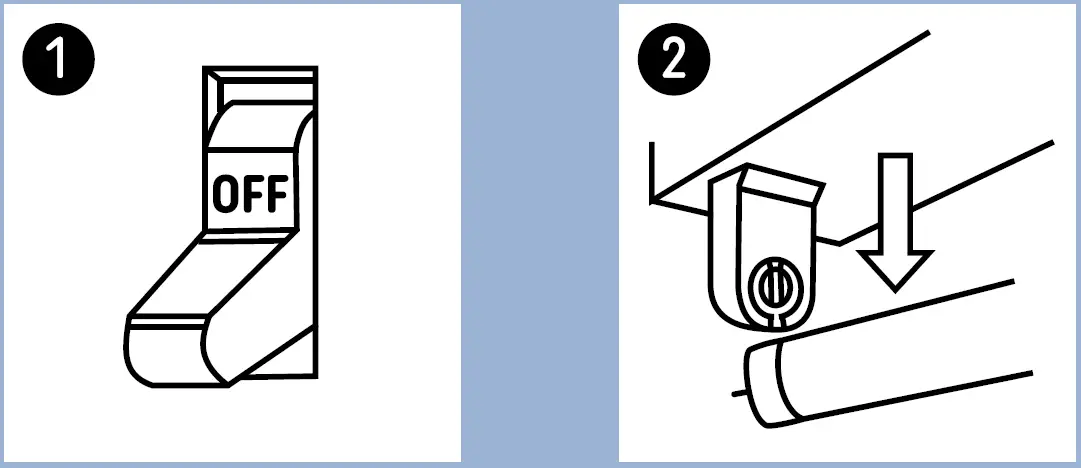

Steps 1-2

1. Ensure power is off to the luminaire by disconnecting the supply voltage.

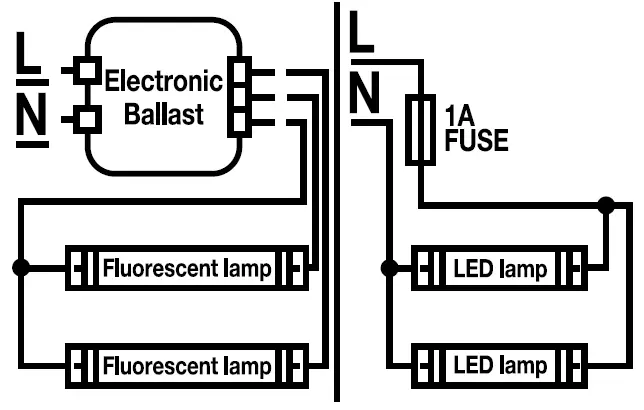

2. Remove all fluorescent lamps and the ballast, clipping the ballast leads wires about 6 inches away from each lamp holder.Steps 3-7
3. If two wires come from an existing lamp holder (rapid start type), these two wires should be wired or shunted together.
4. Connect the recommended fuse and fuse holder (not supplied) to the black (hot) wire from the mains,
5. Connect all the lamp holder leads on one side altogether and connect to the other side of the recommended fuse with a suitable wire.
6. Connect together all of the lamp holder leads on the other side of the fixture and connect to the white or neutral wire from the mains
7. Replace the ballast/wiring area cover, and ensure no wires are pinched between the cover and fixture.

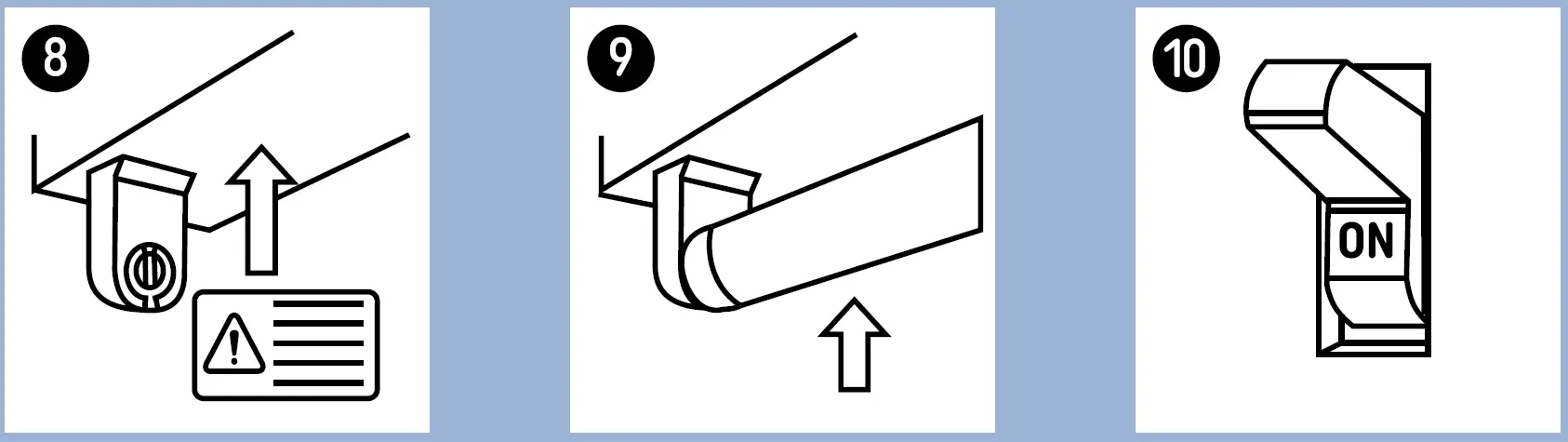

   Steps 8-10
8. Install the warning label in an easy-to-see location to ensure the user understands the system now uses LED Type B double-ended tubes, and that the use of fluorescent lamps may result in damage or injury.
9. Install Type B double-ended tubes.
10. Re-apply power to the fixture and ensure proper operation.
