CB-SERIES BUOY RADAR REFLECTOR
INSTALLATION INSTRUCTIONS
Note: Install the radar reflector and other top-side mounts before installing the solar tower on the buoy.

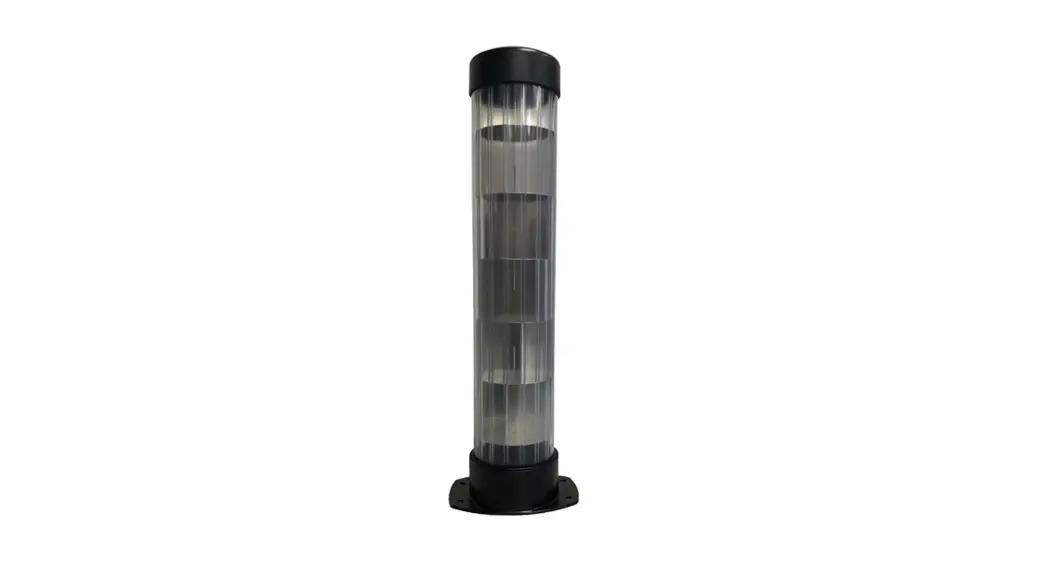

Figure 1: CB-Series Buoy Radar Reflector
Installation on NexSens Solar Tower
1. Locate the (4) threaded inserts on top of the CB series solar tower outlined by the red rectangles in the schematic below.

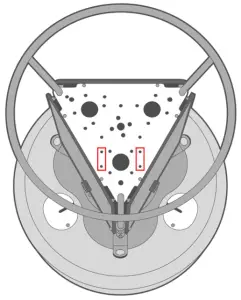

Figure 2: Radar reflector mounting points on the CB-Series solar tower.
2. Align the (4) holes at the base of the radar reflector with the mounting points.

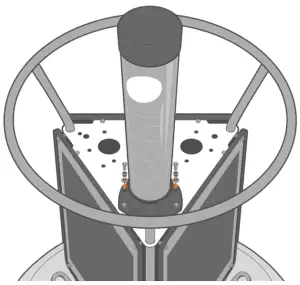

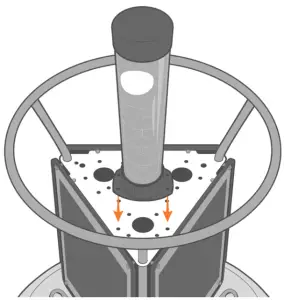

Figure 3: Radar reflector mounting alignment.
3. Place a bolt with a lock washer and flat washer into each mounting point.
a. Tighten down the bolts with a 7/16” socket wrench.
Figure 4: Securing the radar reflector.
