Thinkware Twa-rad-s Radar Module Instruction Manual

THINKWARE TWA-RAD-S Radar Module Instruction Manual

Device Overview

1. 24NHz−based K−band radar
2. Integrated antenna and Small size and low cost
3. Low power operation
4. Provide NPIO interface.
5. Approaching object movement recognition

Basic Specifications

1. Power supply : DC +5V
2. Current consumption : 100mA
3. Operation temperature : −30 ~ +75?
4. Modulation method : CW
5. Antenna gain : 6 dBi (MAX)
6. Detection distance : 10m (MAX)
7. IF output : single−ended
8. Output frequency : 05 ~ 24.25 NHz
9. Interface : 1Port NPIO Output

Product Size

1. Width : 50mm
2. High : 42mm
3. Diameter size : 42mm
4. Cable length : 450mm

Electrical Characteristics

Neneral Specification

Operating Conditions

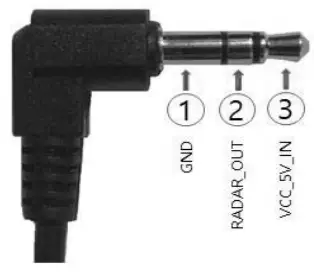

Pin Description

Installation Method of the Device

1. The radar module is installed in the center of top of the car glass
2. Clean the glass of the car to which the module is attached
3. Remove the adhesive tape protective film of the module
4. Level the module and attach it to the mounting position
5. Connect the module’s cable to the dashcam’s radar module connection port
6. Turn on the dashcam and check if the module is working properly

Components

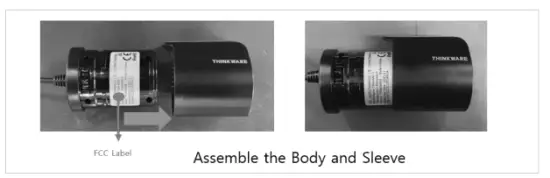

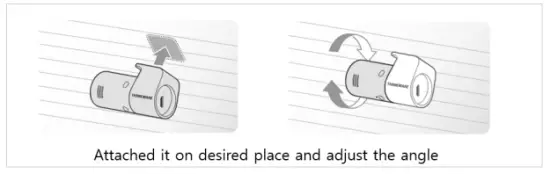

Install Guide

FCC Warning

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

The antenna(s) must be installed such that a minimum separation distance of at least 20 cm is maintained between the radiator (antenna) and all persons at all times.
