ENSTO FIN-06101 HF Radar sensor

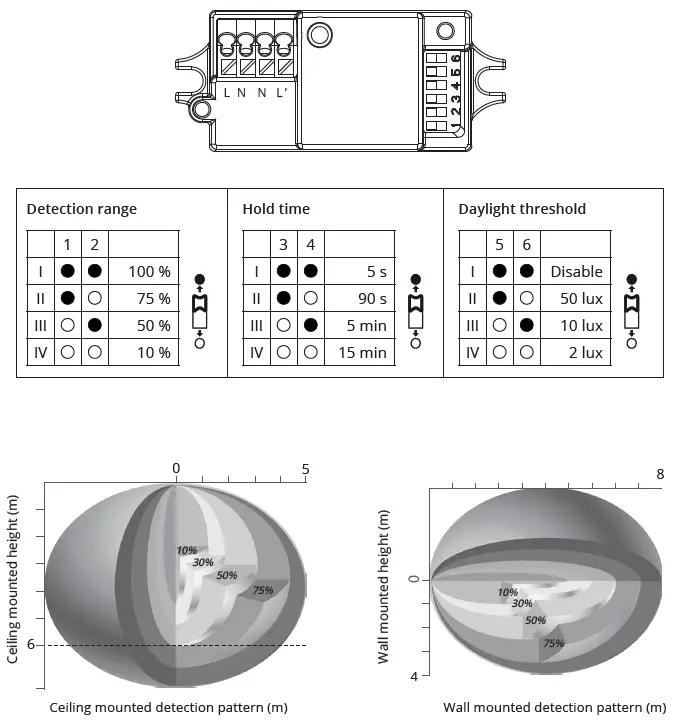

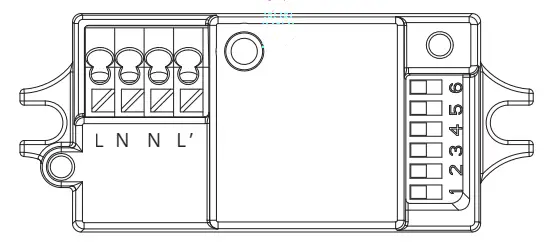

Overview

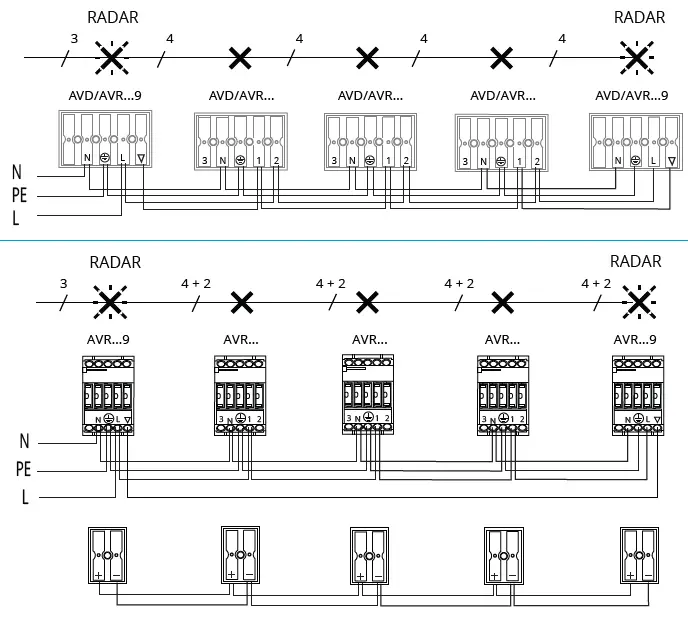

Installation
Choosing the installation location
When choosing the installation location pay attention to the following:
- The radar sensor can detect movements through thin walls and glass.
- The luminaire must be mounted on a stable foundation that does not vibrate.
- Large metal surfaces can affect the size and shape of the detection area.
- The mounting distance between sensors should be more than 2m to prevent the sensors from false triggering.
| Mains voltage | 220-240 VAC, 50/60 Hz |
| Standby power | < 0,3 W |
| Transmission power | < 0,2 mW |
| Operating frequency | 5,8 GHz |
| Max. external load | Capacitive 300VA / Resistive 400W |
| Warming up time | 10 s |
Do not dispose of electrical and electronic devices including their accessories with the household waste.
Ensto Building Systems Finland Oy Ensio Miettisen katu 2, P.O. Box 77 FIN-06101 Porvoo, Finland Tel. +358 204 76 21
