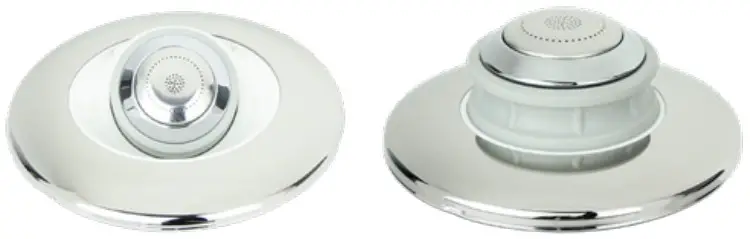

DuoFlo Sprayer
Part#: 97040-XXXYY
INSTALLATION INSTRUCTIONS
PARTS/TOOLS NEEDED:
 | Hole Saw Bit 2”, 23/4”, & 4” | Power Drill w/Phillips Bit | Needle Nose Pilers |
| DuoFlo Includes: Nylon or SS Hose, Mesh bag, zip ties & Mounting Screws | Not Provided | Not Provided | Not Provided |
IMPORTANT SAFETY INSTRUCTIONS.
READ CAREFULLY FOR YOUR PROTECTION AND SAVE ALL INSTRUCTIONS.
- Disconnect power before installing, adding or changing any component.
- To avoid a hazard to children, account for all parts and destroy all packing materials.
- It is recommended that fuse protection be added to the positive (+) input.
- Determine the installation location. Use a hole saw to drill the appropriate hole size.

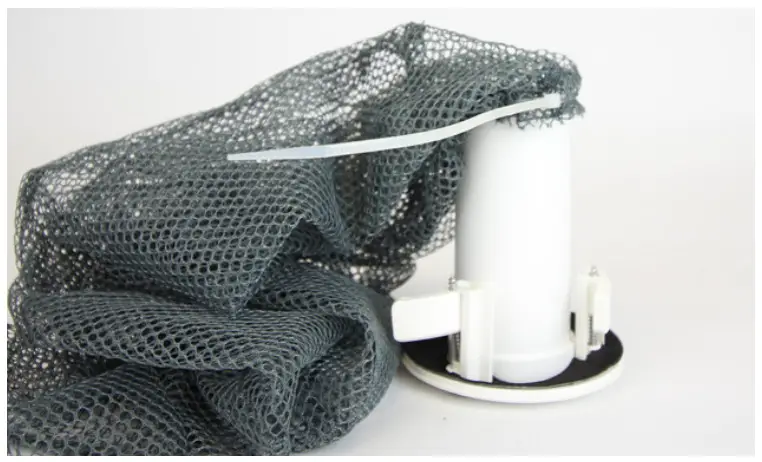

- Attach the mesh bag with the zip tie. Use pliers to tighten zip tie securely to the shower cup. Cut the excess zip tie off with scissors.

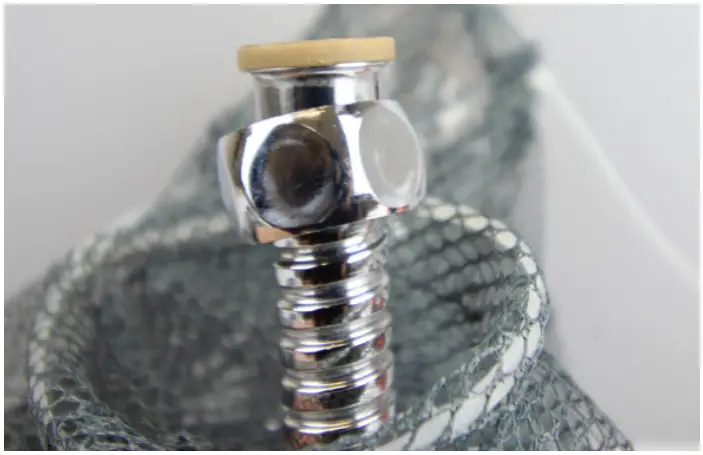

- Fish out the water line in the unit and attach hose to water supply line. Cinch the zip tie to the hose with needle nose pliers.

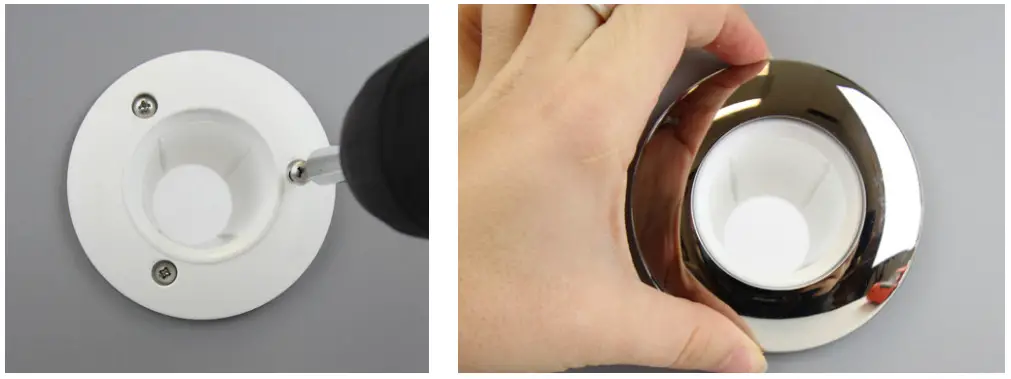

- Screw Mount: Mark the screw holes and pre-drill holes. Insert the holder with the bag into the hole. Screw the holder to the surface. Snap on the bezel to the holder.

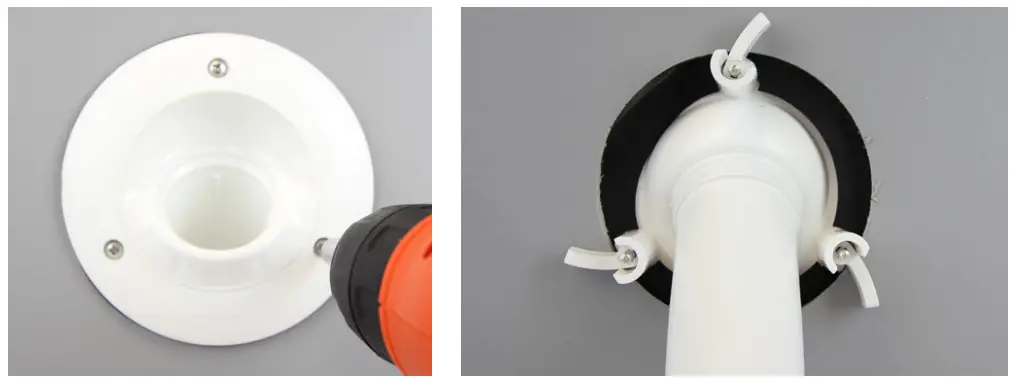

- Toggle Mount: Insert the holder with the bag into the hole. Tighten the toggles by using a drill or screw driver. Snap on bezel to the holder.
3030 Corporate Grove Dr.
Hudsonville, MI 49426
Phone: 616.396.1355
itc-us.com
For warranty information please visit
www.itc-us.com/warranty-return-policy
DOC #: 710-00158 • Rev B •11/16/2022
