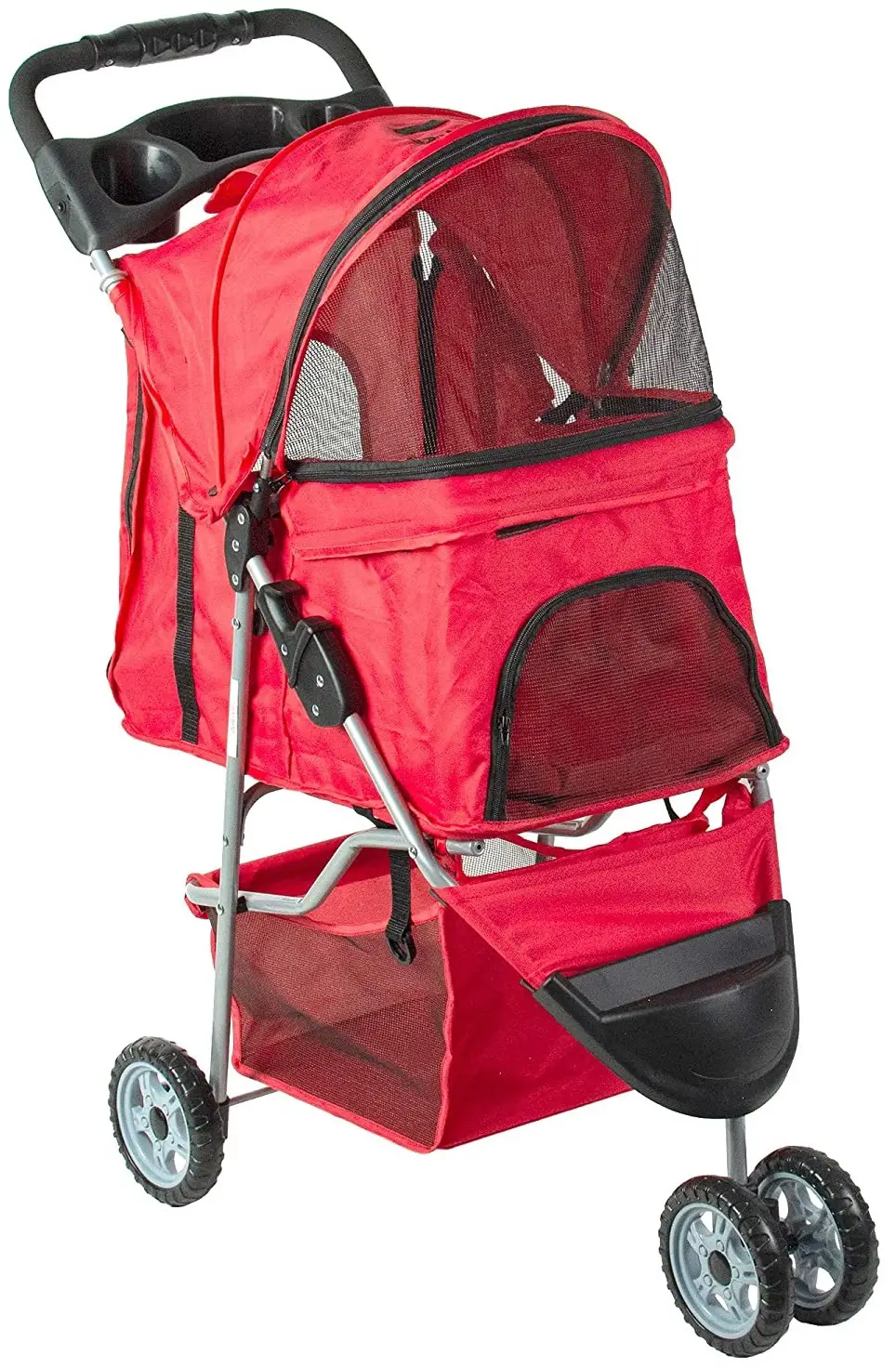

UVAS Pet Stroller Instruction Manual
WARM TIPS:
Please make sure the stroller assemble correctly according to installation manual

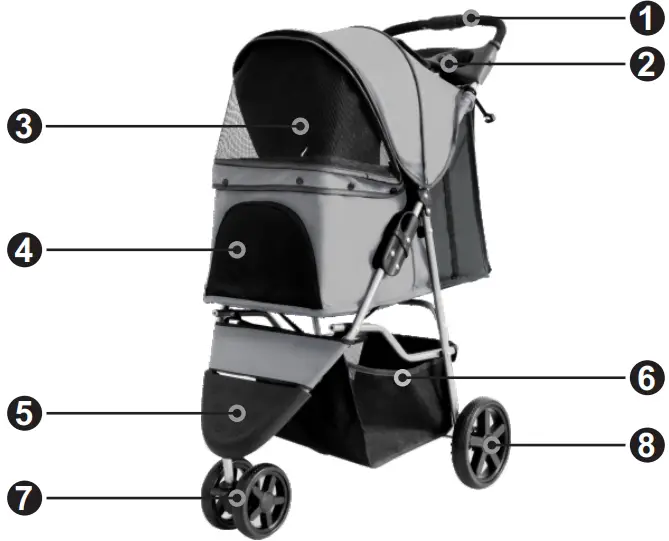

PRODUCT INSTRUCTURE
- Handle
- Cup holder
- Canopy
- The cage body
- Footboard
- Storage basket
- Front wheel
- Rear wheel
ASSEMBLY STEPS
STEP1:
Open stroller until legs lock into place.
STEP2:
Insert front wheels into front legs of stroller until it clicks into place. Use the latch on front wheels to lock orientation.
NOTE: The latch on front wheels must be facing DOWN. Wheels will not sit properly if mounted upside-down.
STEP3:
Insert the accessaries into the rear axle as picturec shown to as semble rear wheel, backward the brake then plug the back tubes into wheel-holders(p.s.: rear wheels with embeded buckle, if assemble incorrect direct or not tightly, it will fall off).
BRAKE
Step on the brake to stop the stroller and lift it up to release the stroller.

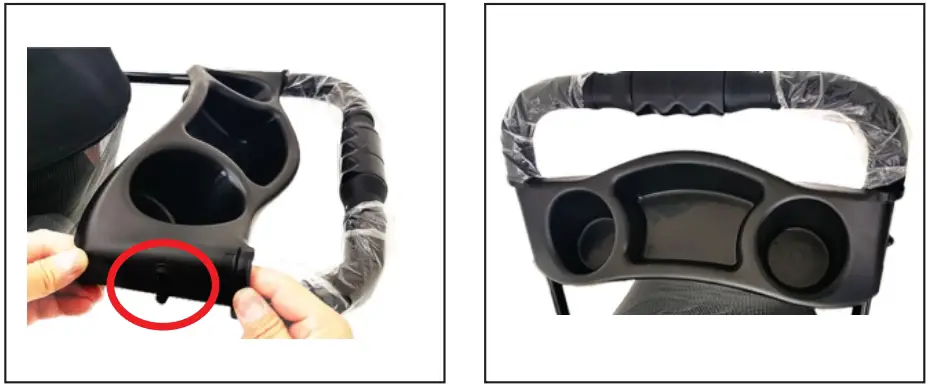

CUP HOLDER
Install cup holder as picture

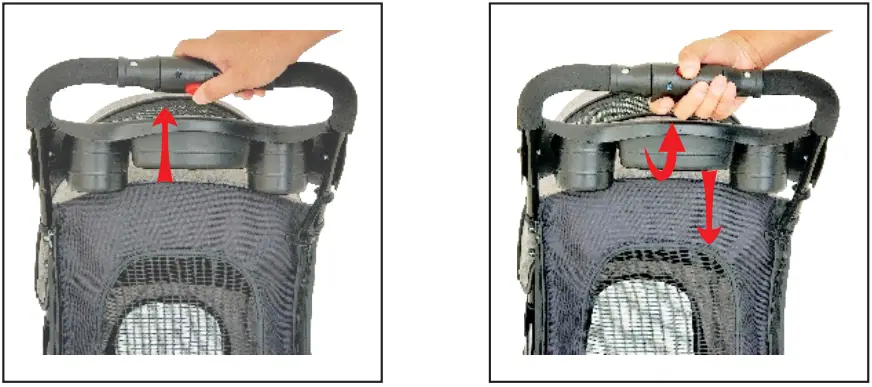

FOLDING
Press the red button and rotate the plastic handle clockwise at the same time, and then press down the stroller to fold it.

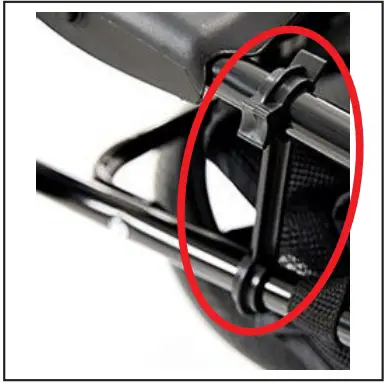

FOLDING HOOK
After folding, the frame is fixed to prevent dispersion, convenient transportation and storage

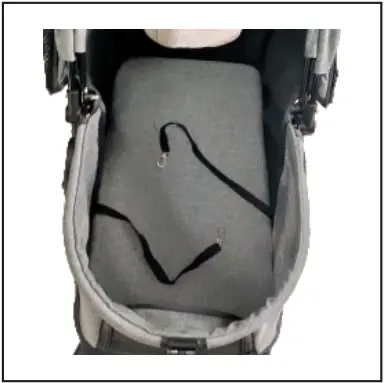

SAFETY BELT
Please tie safety leashes with pet’s chain when pet in the stroller.
