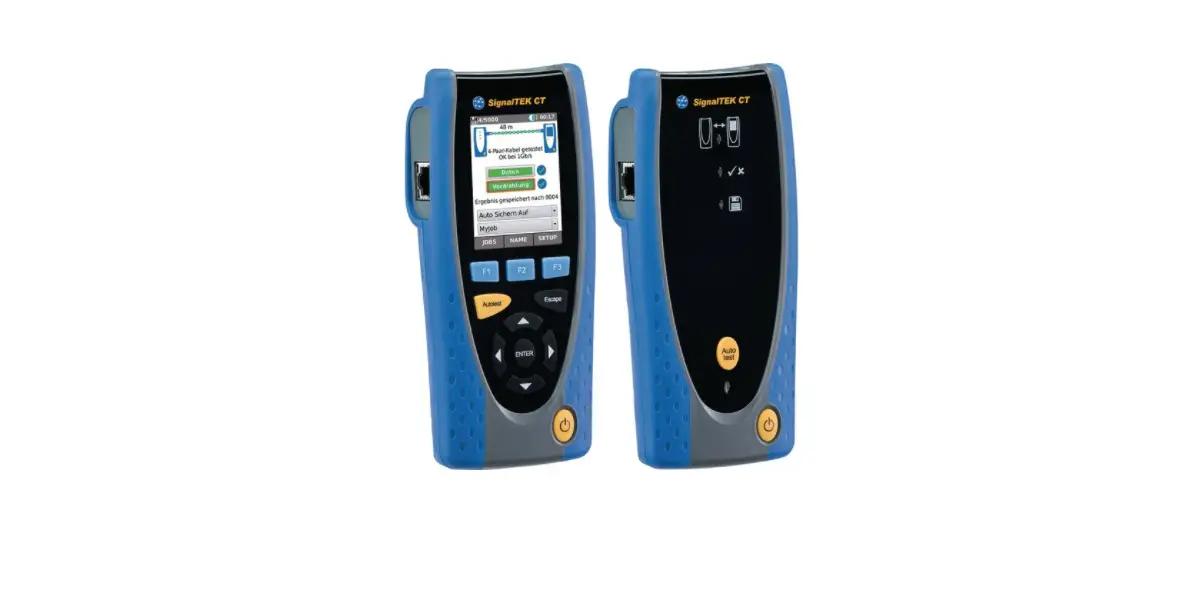

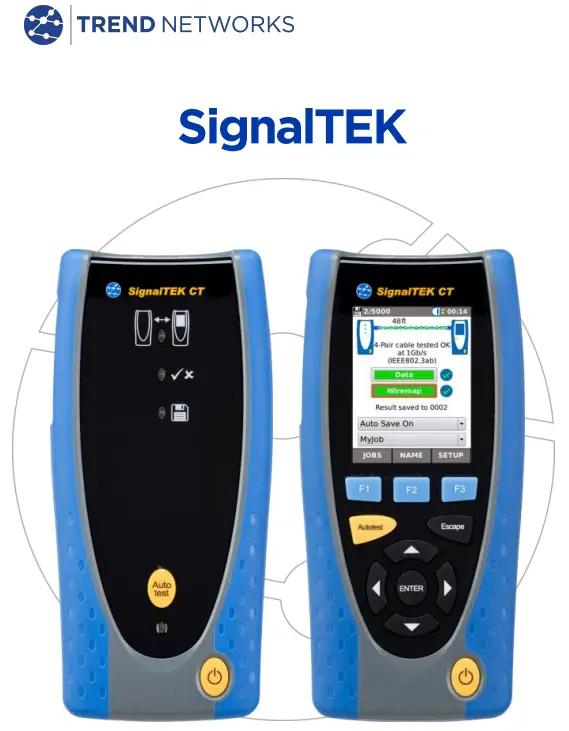

TREND NETWORKS Cat 3 SignalTEK Data Cable Transmitter Tester User Guide
156848 Issue 4
© TREND NETWORKS 2020
TREND NETWORKS
Stokenchurch House. Oxford Road, Stokenchurch,
High Wycombe, Bucks, HP14 3SX, UK.
www.trend-networks.com

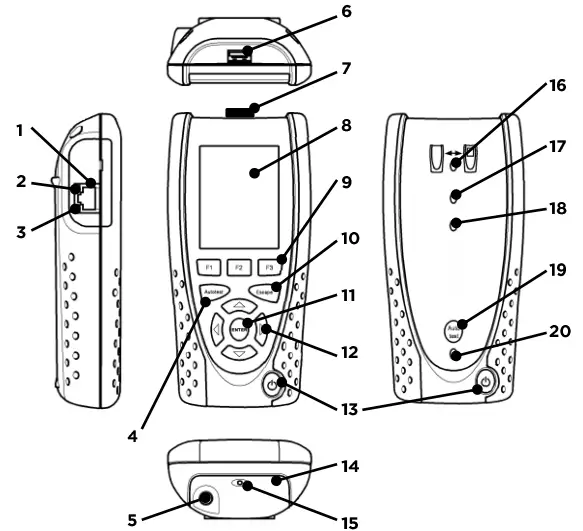

- Cable socket
- Ethernet LED
- Activity LED
- Autotest button
- DC in connector
- USB socket
- Wi-Fi adapter
- Touchscreen display
- Function buttons
- Escape button
- ENTER button
- Cursor buttons
- Power button
- Battery module
- Charging indicator LED
- Link LED
- Pass/Fail LED
- Saved LED
- Remote autotest button
- Battery status LED
| Charging Indicator LED (15) | Status |
| Green | Charging |
| Off | Charging complete |
| Flashing | Not charging |
| Pass/Fail LED (17) | Status |
| Green | Test passed |
| Red | Test failed |
| Battery Status LED (20) | Status |
| Green (Power ON) | Battery level is sufficient for use |
| Red (Power ON) | Battery level is low but still operational |
| Off | Power OFF |

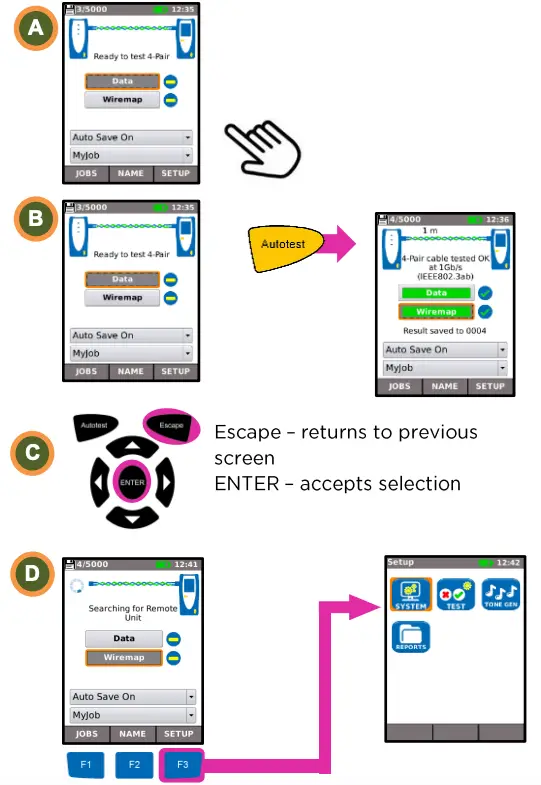

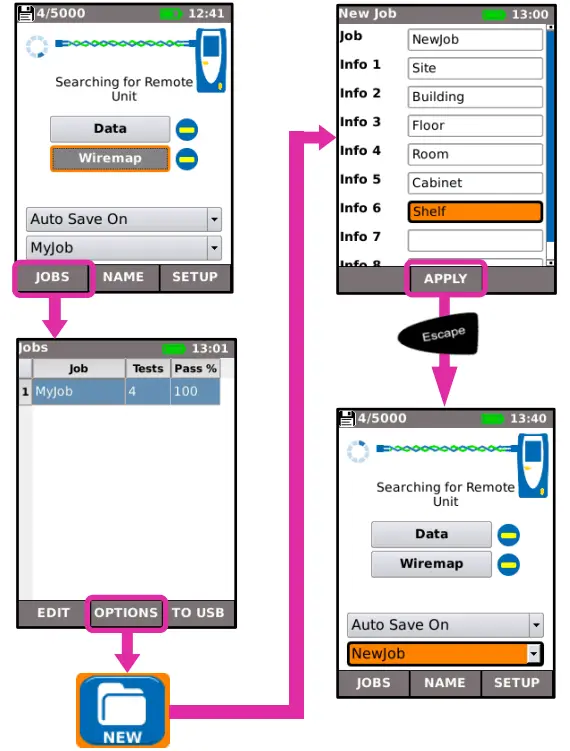

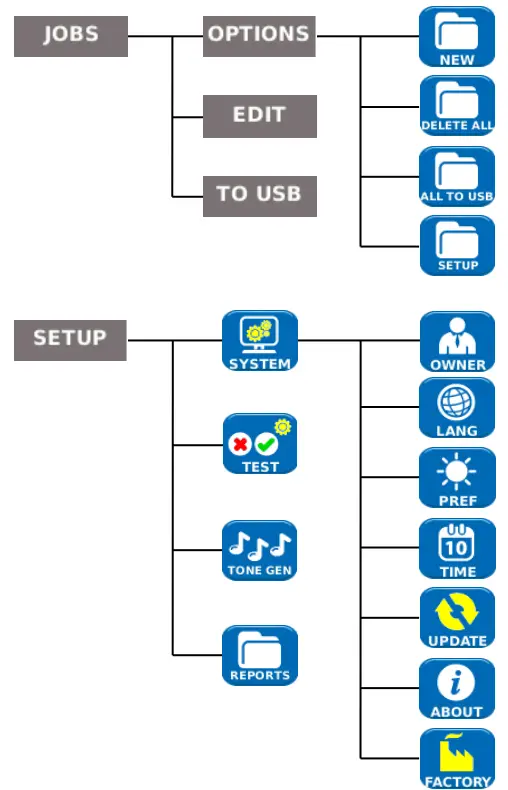

Job Setup

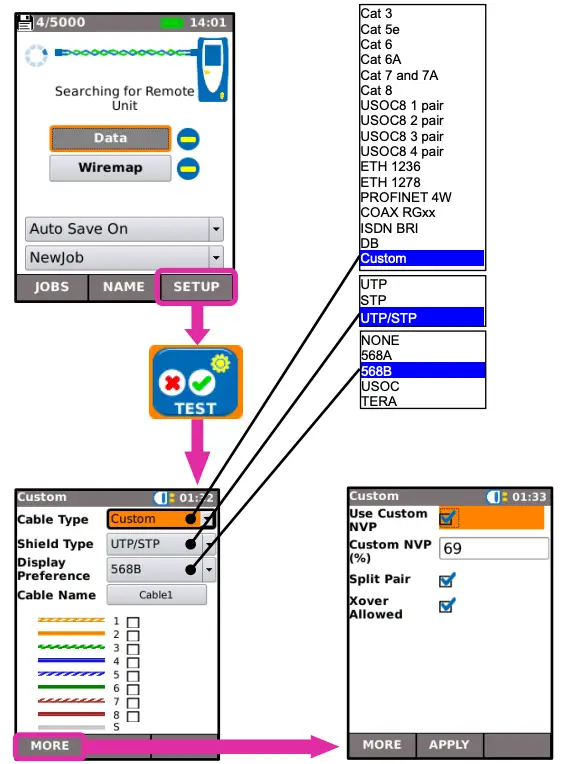

Test Setup
Cable Testing

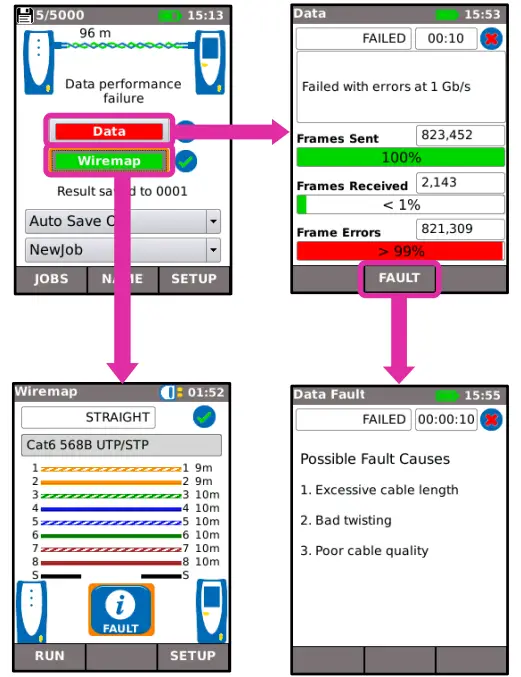

Viewing Test Results

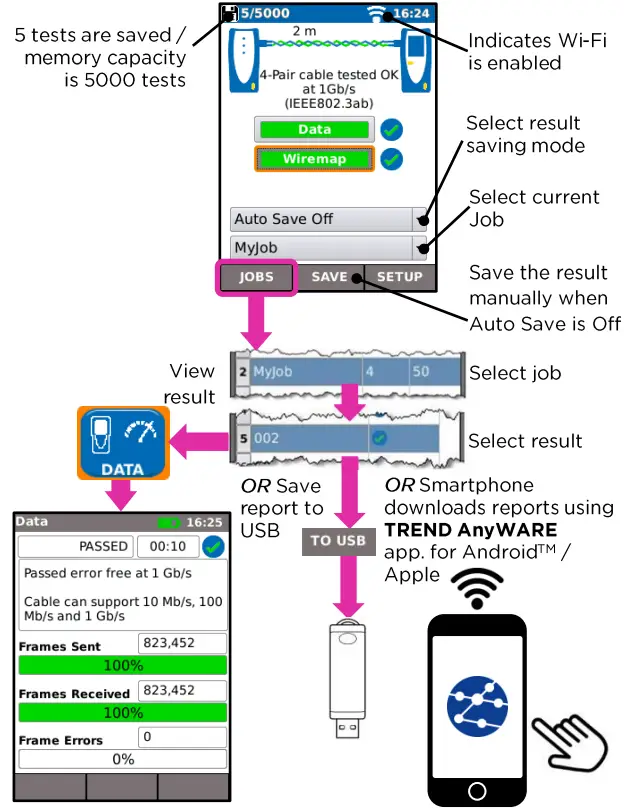

Test Reports
