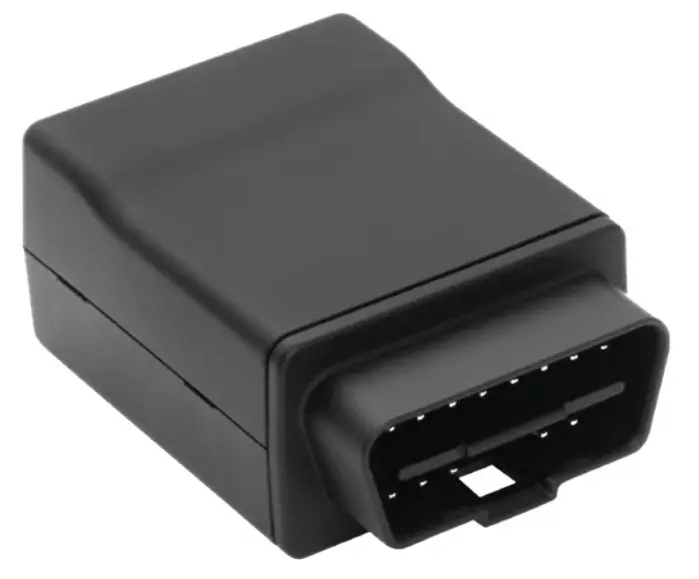

LMU-3030 Versatile OBD-II Telematics Device
Instruction Manual
The LMU-3030™ is an easy-to-install, flexible OBD telematics device designed to meet the needs of the growing connected car economy. It is an ideal solution for passenger or light-duty vehicle applications where access to the vehicle diagnostics interface (OBD-II) is essential for monitoring vehicle health and driver behavior.

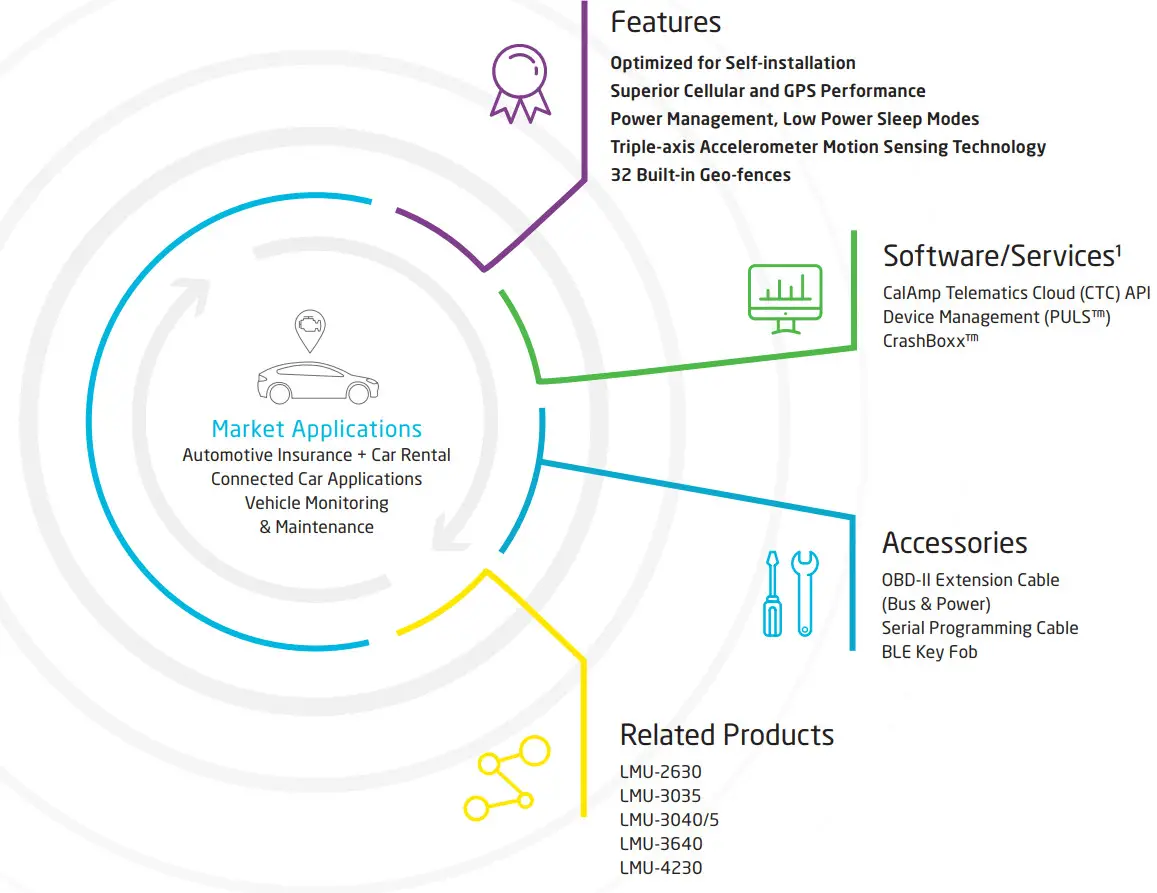

LMU-3030™ Technical Specifications
Cellular/Network
| Americas Variant | |
| HSPA/UMTS | 850 (V)/1900 (II) MHz |
| GSM/GPRS | 850/1900 MHz |
| Global Variant I | |
| HSPA/UMTS | 800 (VI)/850 (V)/900 (VIII)/1900 (II)/2100 (I) MHz |
| GSM/GPRS | 850/900/1800/1900 MHz |
| Global Variant II | |
| GSM/GPRS | 850/900/1800/1900 MHz |
Data Support
SMS, UDP Packet Data, TCP
Satellite Location (GNSS)
| Constellation Support | Hybrid GPS, SBAS Engine (WAAS, EGNOS, MSAS, GAGAN) |
| Channels | 50 Channel |
| Tracking Sensitivity | -162 dBm |
| Acquisition Sensitivity | -148 dBm (cold start) |
| Location Accuracy | ~2.0m CEP Open Sky (GPS SBAS 24 hours static) |
| Location Update Rate | Up to 4 Hz |
| Geo-Fence | 32 PEG-Zones (rectangular/circular) 1024 Geo-Zones (polygon/circular – 5400) |
AGPS Location assistance capable
Comprehensive I/O
| Accelerometer | Built-in, triple-axis (driver behavior, impact detection, motion sensing, tilt detection) |
| Status LEDs | 3 (OBD, GPS, cellular) |
| Serial Interface | 2-wire TTL serial interface (optional fit) |
Certifications
| Industry Certifications | FCC, CE, IC, PTCRB, RoHS |
Cloud/Software Services¹
| PULS™ | Monitor, manage, upgrade firmware, configure and troubleshoot devices remotely |
| CTC | Device data stream via RESTful APIs |
Edge Intelligence¹
| PEG™ | Update device functionality or develop new on-the-edge applications |
Electrical
| Operating Voltage | 9-16 VDC Vehicle Systems 9-30 VDC (start-up, operating) 7-32 VDC (momentary) |
| Power Consumption | Typical 4.9mA @ 13V (deep sleep) Typical 83mA @ 13V (normal operation) Typical 66mA @ 13V (SMS, UDP connection, GPS off) Typical 114mA @ 13V (continuous transmit) |
| Temperature | 30° to +75° C (connected to primary power) 40° to +85° C (storage) |
| Humidity | 95% RH @ 50° C non-condensing |
| Shock and Vibration | SAEJ1455 |
| ESD | CE, GCF, eMark |
Physical/Design
| Dimensions | 1.85 x 2.63 x 1.18” (47 x 67 x 30mm) |
| Weight | 1.83 oz. (52 g) (w/ battery) |
| Enclosure | Rugged textured plastic |
Interface Standards
| Bluetooth | Bluetooth 4.0 Dual Mode (optional fit) |
| OBD-II Interface | J1850 PWM, J1850 VPW, ISO-9141-2, ISO-14230, KWP 2000, ISO15765 CAN |
OBD Data Extraction
| Detection | Automatic detection of vehicle interface services |
| Extraction | Transmission of standard OBD-II codes, plus manufacturer-specific codes which are made available by the embedded OBD firmware stack |
| Scripts | The download of vehicle-specific diagnostic scripts dependent on vehicle model variant |
Mounting
Via built-in OBD-II connector
Self-adhesive mounting with OBD-II extender cable
¹ Subscription service enabled. Contact sales rep for additional details.
