Airpura T700 Tobacco Smoke Air Purifier Instruction Manual

T700 Tobacco Smoke Air Purifier
Instruction Manual

T700 Tobacco Smoke Air Purifier

Inspect the exterior of your Airpura to verify there is no damage from shipping.
If any damage is noted, please follow the instructions from the distributor returns policy.
Wipe the unit with a damp cloth to remove any dust from packaging
Plug the unit into a regular grounded 110-volt outlet
Turn on the unit to MAX and allow it to run for at least 30 minutes

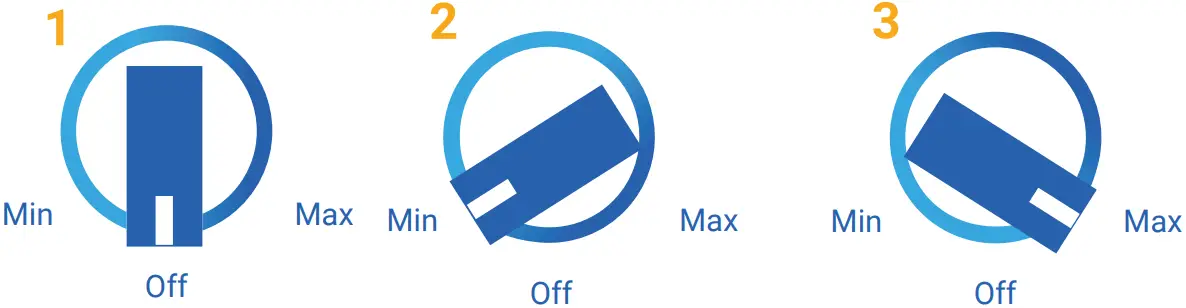

Set the variable speed control to the level you wish
The most efficient way to use your Airpura for regular air quality maintenance is to run it at a low speed 24 hours a day 7 days a week.
Always maintain a humidity level of approximately 40% in your home to ensure the unit is operating at optimal levels. When using a purifier with a dehumidifier please keep the dehumidifier at least 6 feet away.

FILTER MAINTENANCE AND REPLACEMENT

The Prefilter
Can be vacuumed from the exterior of the unit once a month or more often.
Should be replaced at least after 12 months of use
To vacuum the Prefilter
Use the brush attachment on your vacuum cleaner
Vacuum slowly around the mesh surface of the filter chamber
IMPORTANT SAFETY NOTE
Please ensure the air purifier is turned OFF when plugging into a power source.
Failure to do so may result in motor potentially stalling and/or burning.

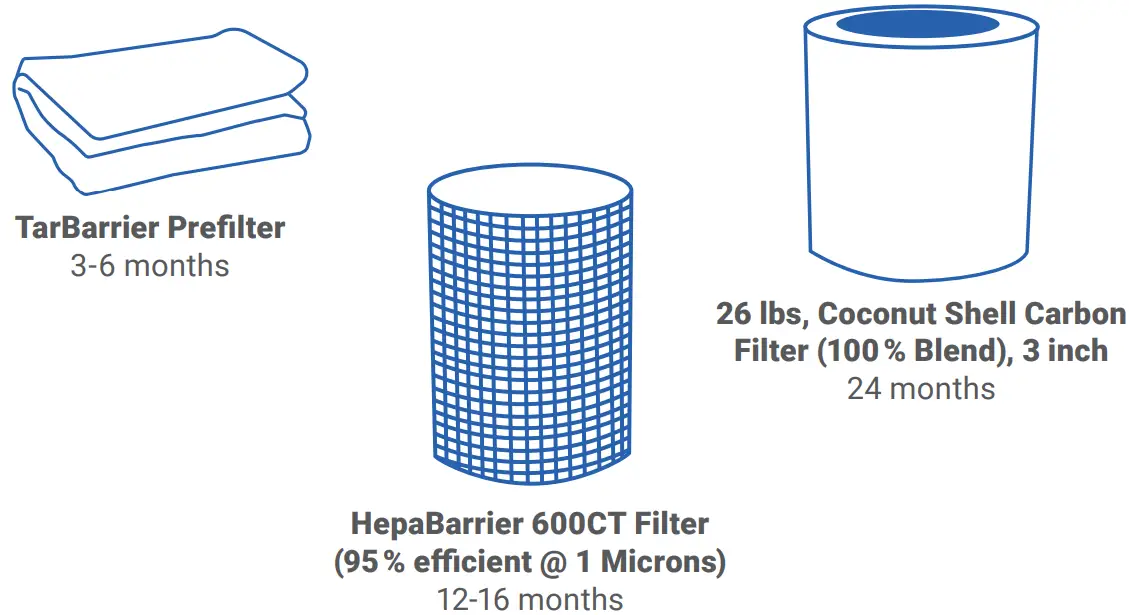

Air purifiers models and filter configurations

Technical specifications

Tobacco smoke odor, and chemical control
26 lbs activated Carbon
13″H x 13.25″OD x 7.5″ID
Carbon bed
3 in deep x 570 in² surface
Tar removal
Special TarBarrier filter
570 in² x 1 in deep
Particle suppression
HepaBarrier
Air Flow 635 cfm
More cfm than any other home unit available
Housing
Powder coat steel
Size
23 in x 15 in
Weight
49 lbs total
Watts
120 on high / 40 on low
Sound Level
30.2* db on low (at 6 feet)
63.0 db on high (635 cfm)
*at test conditions

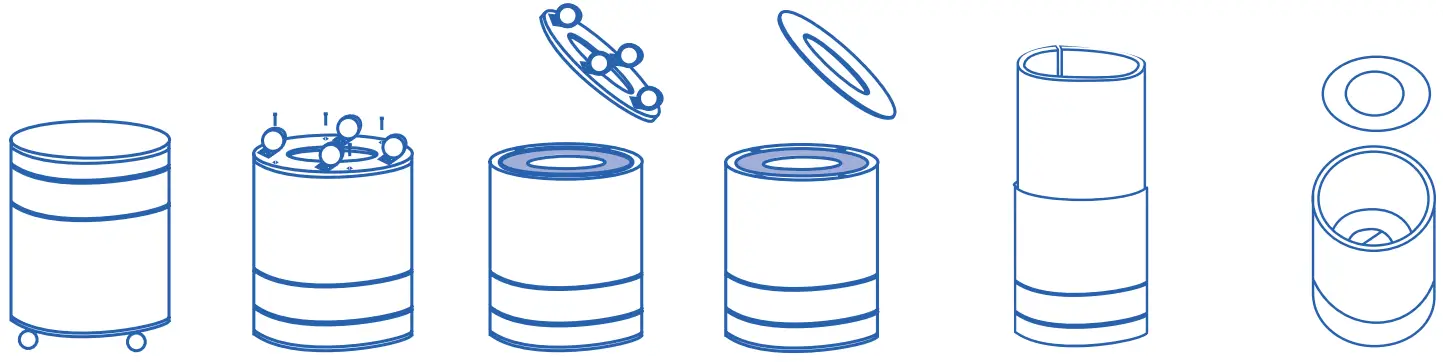

To open the filter chamber

Turn over the Airpura	Remove the 4 retaining screws	Take off the cover	Remove the gasket	Position the Prefilter inside the filter chamber	Place a felt gasket at the bottom of the filter chamber

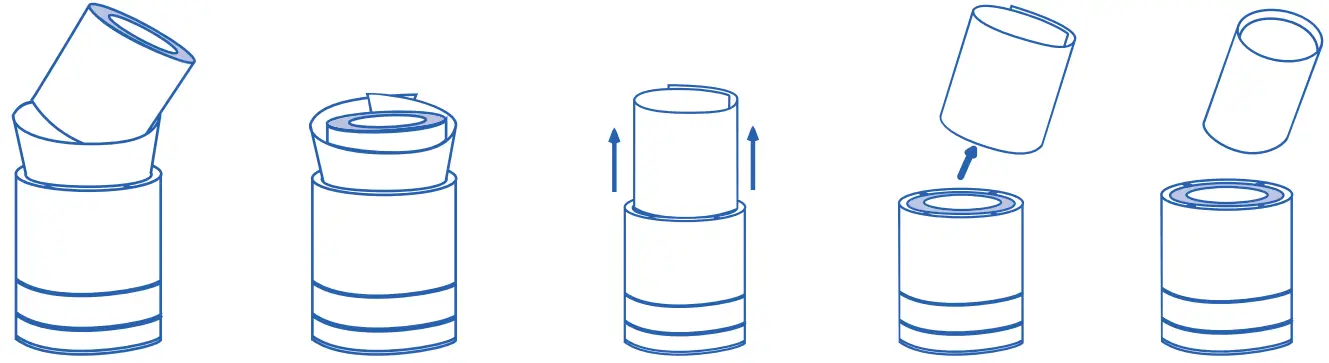

Unfold the filter slider (Supplied with replacement filters or on request Part#6F 001)	Roll it into a spiral	Insert the tube into the filter	Let the spiral open to fill the chamber inside the Prefilter the opening	Open the top of the spiral to make a slight funnel
Insert the Carbon canister into the funnel and hold it straight	Let the canister slide down the filter slider	Pull the filter slider up out of the cavity using both hands and let the canister slide to the bottom of the cavity	Remove the filter slider and fold it for further use	Slide in the Hepa filter

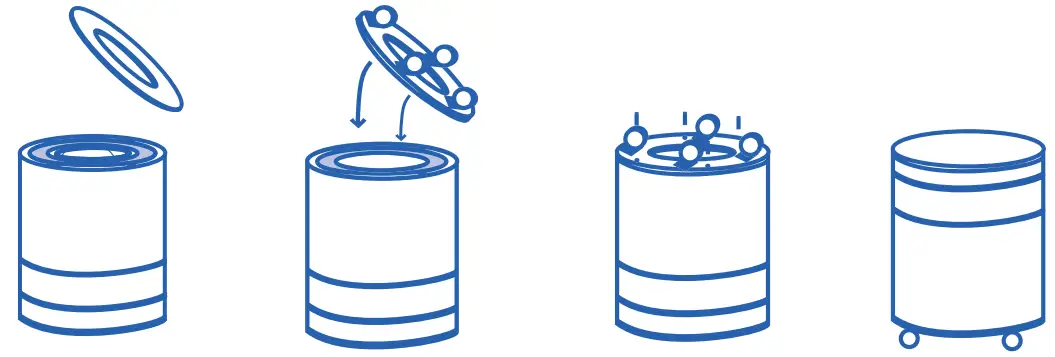

To close the filter chamber

Replace the gasket	Position the indentation in the cover into the center of the HEPA filter	Replace the 4 screws and tighten	Turn the Airpura back on casters
