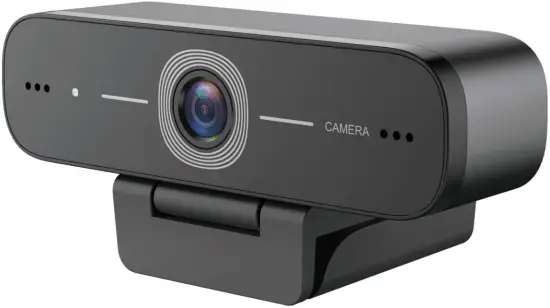

Desktop HD Camera Hyper C104 Pro
The Hyper C104 Pro camera offers perfect functions, superior performance; The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. Working stably and reliably; easy and convenient to install and maintain.
Features
- Wide FOV: 80° / 109° wide angle and small distortion lens for options
- Superb High-definition Image: with high quality CMOS sensor. Resolution is up to 1920×1080 with frame rate up to 30fps.
- Multiple Video Compression: Support H.264/H.265, MJPEG, YUV video compression, to made video play smoothly.
- Stereo sound: Built-in pick-up to present clear stereo sound effect, no need to connect external device.
- USB2.0 interface: Plug and play function is better for power supply and upgrading;
- Multiple installation: Easy to install on any device, say, LCD screen, laptop, table or tripod.
- Wide Application: personal video conferencing, live video conference, collaboration meeting etc
- Convenient to operate: No need to download driving device, see as below:
Technical Specification
| Camera Parameters | ||
| Sensor | High quality HD CMOS sensor | |
| Effective Pixels | 16: 9 2.07 megapixels | |
| Video Format | 960×540/320×180/432×240/640×360/800×448/800×600/864×480/960×720/1024×576/ 1280×720/1600×896/1920×1080/272×144/368×208/384×216/480×272/624×352/ 912×512/424×240/640×480/320×240/160×120/P30 | |
| View angle (default) | 88° (D) / 80° (H) / 50°(V) | |
| Focal length (default) | 3.24mm | |
| Focus | Fixed | |
| Aperture | Fixed | |
| Backlight contrast | On/OFF | |
| Minimum illumination | 0.5 Lux (F1.8, AGC ON) | |
| Exposure | Exposure parameter could be adjusted; support auto exposure | |
| Video Adjustment | Brightness, Color, Saturation, Contrast, White balance mode, Gain, Anti-flicker, Low brightness compensation etc. | |
| SNR | >50dB | |
| Input / Output Interface | ||
| Video Interfaces | USB2.0 (power supply, upgrading available) | |
| Video Compression Format | MJPEG、YUV、H.264、H.265 | |
| Audio Input Interface | Built in omnidirectional high sensitive digital pickup | |
| Other Parameter | ||
| Input Voltage | 5V | |
| Input Current | 500mA (Max.) | |
| Power consumption | 2.5W | |
| Store Temperature and Humidity | -10℃～+60℃ and 20%～95% | |
| Working Temperature and Humidity | -10℃～+50℃、and 20%～80% | |
| Dimension（WXHXD） | 102mm*46mm*30mm | |
| Weight (appx.) | 0.15kg | |
| Application | Indoor | |
| Accessory | User Manual, Warranty card | |

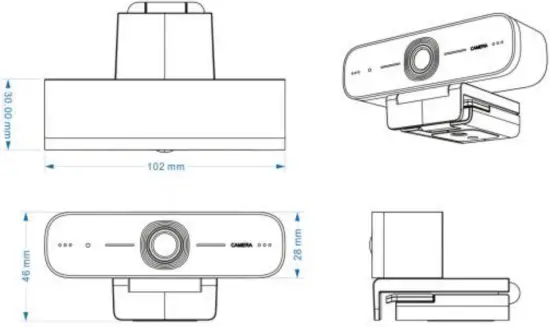

Dimensions (Unit: mm)
