Humantechnik Lh-056tv Tv Headphone User Guide

11/2020
Wireless TV listening systems

Enjoy the sound of your favorite TV show at your own individual volume without reducing quality and not disturbing others.
HUMANTECHNIK – Your partner for audiological products

earis premlum

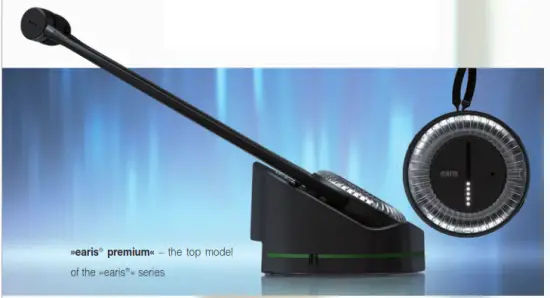

»earis® premium«
opens up a completely new dimension for hearing impaired people listen to and enjoy feature films, speech, and music programs on TV, Radio, or any other audio device. The integrated Dynamic Sound Hearing Support (Dynamic sound HS) offers five selectable basic tone profiles. These five basic tone profiles were derived from research on the needs of hearing-impaired people when listening to the types of programs described above. This research was carried out by the Fraunhofer Institute for Digital Media Technology IDMT in Oldenburg, Germany. Whilst listening with the selected (preferred) tone profile the listened-to program is then continuously and dynamically being altered, by implementing an algorithm developed by the Fraunhofer Institute. This for example keeps any loud sounds from reaching the user’s hearing. This »cushions« the naturally changing levels for the respective listeners when advertisements are displayed or when switching to another channel. It acts as a continuously varying tone control on the listened-to sound to match it to the user’s selected tone profile.

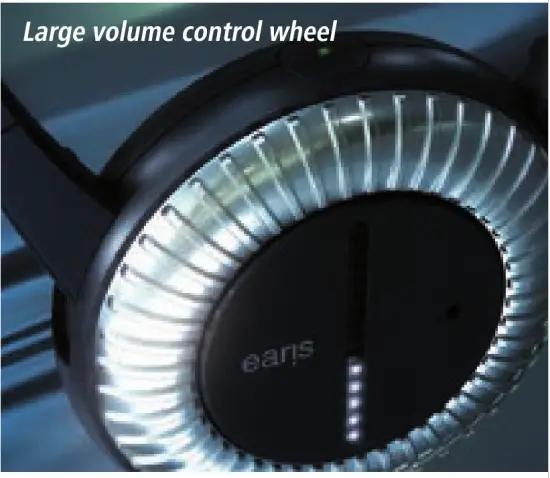

»earis® premium« sets are available with either an under-the-chin receiver or a pocket receiver. The latter allows the connection of different listening options. A large volume wheel is used for overall volume control up to 122 dB (A). Both receivers have exchangeable rechargeable batteries. The TV listening system can also be switched to a  communication amplifier function. The receiver then picks up and transmits the words of the conversation partners in the room.

Headphones not included in the »earis® premium« scope of delivery

»earis® premium«  pocket receiver for connecting the included »Paris«® inductive neck loop or any standard headphones.

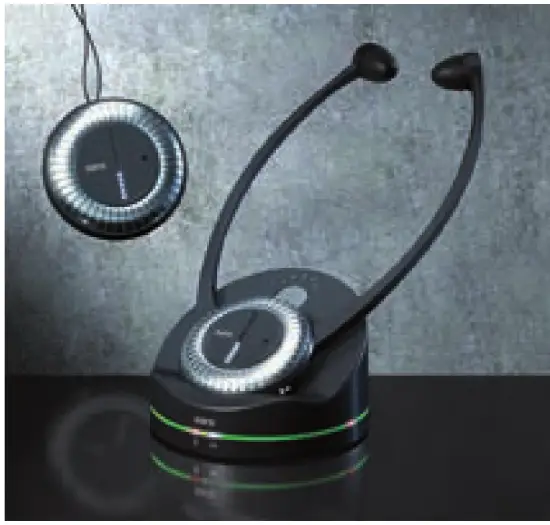

»earis® premium« set with under-the-chin receiver

»Paris ® premium«: Ready-to-connect TV-listening system with transmitter and according to the set with either headset receiver or pocket receiver and inductive neck loop 1 rechargeable battery 1 power supply unit with adapters for various countries 1 pair silicone rubber earpads, small (only included with headset receiver) 1 Toslink-cable 1 audio-connection cable with 3,5 mm stereo jack plugs 1 audio-adapter RCA to 3,5 mm jack 1 quick guide 1 user manual 1 warranty card

»earis ® premium makes your TV sound clear
»earis ® premium« transmits the TV sound wirelessly via the 2.4 GHz digital frequency band and is available with a headset receiver or pocket receiver. The design of the LED status display represents a timeless modern appearance with an elegant high-tech accent. The system opens up a completely new and in this category unique feel-good hearing experience for its users.

»Dynamic Sound HS«: hearing as you like it Humantechnik has integrated the main feature that makes »Paris ® premium« the top model in the premium class on the market under the name »dynamic sound HS«. This provides five-tone profiles that represent different listening preferences. You can select your personal feel-good sound at the touch of a button. A specially developed algorithm continuously adjusts the TV sound so that it always retains the character you have chosen for yourself – even when advertisement blocks or switching to other channels play in completely different sound and volume characteristics. The greater the deviation from the individually selected tone profile, the faster the compensating adjustment takes place.

Thus »Paris ® premium«fulfills a significant wish of all people who would like to enjoy a higher level of sound enjoyment when watching television or listening to other media: Simple and effective self-adjustment. Users of »Paris ® premium« confirm there is a significantly improved understanding of speech in TV dialogues,

even if these are mixed with background noise. Users also report an enormous gain in perceived loudness – even when listening to music with great dynamic range or content.

Communication

When switching to the communication amplifier function, the inbuilt microphone in the »earis ® premium« receiver receives the words of those present in the room and amplifies them for the respective receiver.
»earis ® premium« stores the settings of the communication amplifier. This ensures that the user always returns to the last set volume when switching over.
The »earis ® premium« transmitter The »earis ® premium« transmitter also serves as a charging station for the respective receiver. It also features a charging slot in the side for an additional receiver battery.
The »earis ® premium« headset receiver
The lightweight »earis ® premium« headset receiver with replaceable silicone rubber earpads guarantees maximum wearing comfort and exerts no pressure on the ears. The speaker arms also activate the on/ off-switching mechanism.
The »earis ® premium« pocket receiver
The »earis ® premium« pocket receiver allows for the connection of standard commercially available listening options – from the included »earis« neck loop, which is part of every delivery, to any regular headphones or earphones. A clip on the reverse side is used to attach it to clothing. For using a carrying cord, an appropriate eyelet is also included.

»earis ® premium« gives me my personally preferred sound and thus real listening pleasure. I use the pocket receiver together with my familiar headphones.

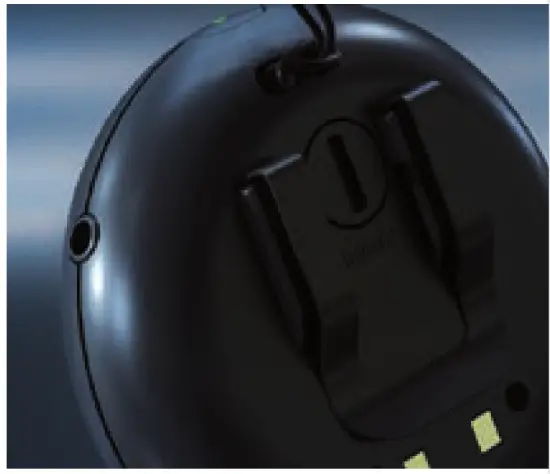

The reverse side of the pocket receiver with balance adjustment (featured on both receiver types), belt clip, and eyelet for a carrying cord
The premium decision for people who want to watch TV undisturbed and who value excellent sound – at individual volume.

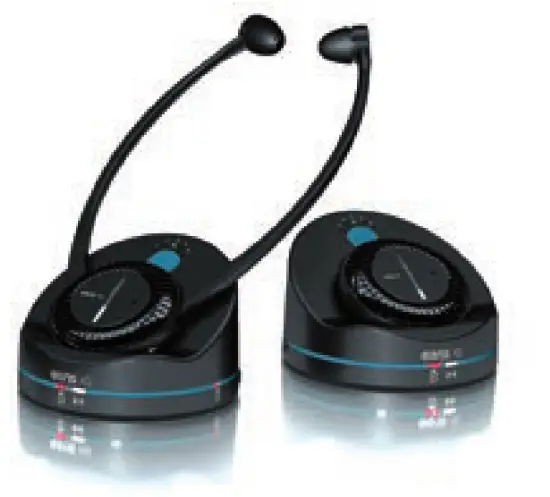

»earis ® XS«, the second system in the »earis®« series, integrates the essential features of the top model and is therefore comparable with TV listening systems from the premium segment of other manufacturers available on the market.

Individual sound patterns

As the top model,» Paris ® XS« offers five presets. These were determined representatively in extensive investigations with normally hearing and hearing-impaired testers. Without exception, users confirm that they see their preferred individual sound pattern represented.
Differences to the »earis ® « top model
Because »earis ® XS« does not feature the »dynamic sound HS« algorithm and the conversation amplifier function, it can be offered at a much lower price, even compared to other premium TV hearing systems. Humantechnik recommends »Paris ® XS« for hearing-impaired people who value their personally preferred sound when watching television and use their TV hearing systems primarily for this purpose. »earis ® XS« sets are available with an under the chin- or pocket receiver. A pair of earphones is included in the standard scope of delivery of the pocket receiver, and the receiver also allows the connection of any commercially available headphones.

I use »earis ® XS« alternately with my wife. She doesn’t want to be disturbed by my sports broadcasts, and I don’t like soap operas. So everyone can watch their favourite shows with the best audio quality, and the other has peace of mind.

The hearing system is set with a transmitter and

• under chin receiver
• or pocket receiver
• 1 rechargeable battery
• 1 AC power supply
• 1 pair of small earbuds (only under the chin receiver)
• 1 earphone (only pocket receiver)
• 1 Toslink cable
• 1 audio connection cable with a 3.5mm stereo jack plug
• 1 audio adapter cinch to 3.5mm jack
• 1 quick reference guide
• 1 user manual
• 1 warranty card

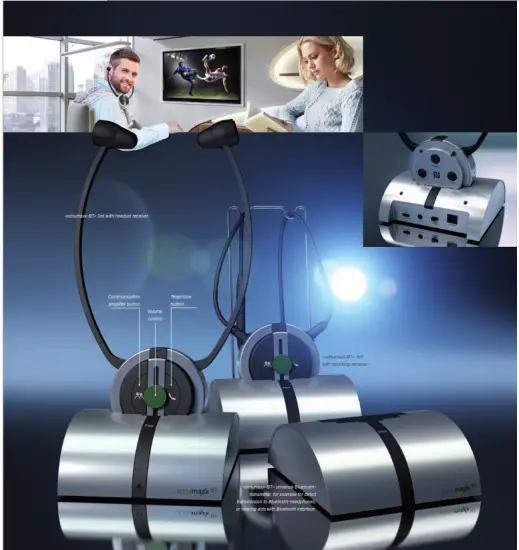

»son Maxx-BT« is the contemporary combination of a TV-listening system, mobile phone headset, and communication amplifier in a single system. Simply switch to the feature you require.
»son Maxx-BT« brings the TV sound directly to your ear, clearly understandable as loud as you like and without disturbing anyone. The tone profile settings give you greater control your listening.

Use »sonumaxx-BT« for phone calls or participate in conversations.
Thanks to Bluetooth technology, your »sonumaxx-BT« is always in touch with your mobile phone. As soon as you receive a call, your mobile phone automatically transmits the ringtone to your» sonumaxx-BT «receiver. By pressing the phone button, you take the call while the reception of the TV sound is muted.
Switch to conversation: If you want to take part in conversations in the room, press the amplifier button on your »sonumaxx-BT« and use it as a sound amplifier.
Bluetooth transmission directly to your hearing aids: If you wear hearing aids with a standard Bluetooth interface, you can purchase

• »sonumaxx-BT« Sets »sonumaxx-BT« Set, transmitter with headset receiver  Item number: A-4107-0

• »sonumaxx-BT LR« Set, transmitter with a neck loop receiver Item number: A-4137-0

• »sonumaxx-BT« transmitter »sonumaxx-BT« universal Bluetooth transmitter: Item number: A-4117-0
  the universal “sonumaxx-BT” transmitter separately and connect it to any audio device. This allows you to comfortably receive any media sound directly in your hearing aids.

Essential features

• Three-tone profiles to enhance your sound experience.
• Variable volume control
• Powerful sound up to 125 dB
• Receiver left/Right Balance control
• Compatible with all TV-sets
• Long-running time per battery charge
• Versatile: The transmitter and receiver of the »sonumaxx-BT« can also be used independently and paired with any other Bluetooth transmitter or receiver
• Separately available: Universal Bluetooth transmitter for people, who already own standard Bluetooth-enabled equipment.

»I listen to my TV as loud as I like. Nobody else is disturbed… … and at the touch of a button I can receive telephone calls or join in conversations.«

»That’s what I call a live experience. My »son Maxx-2.4« takes me into the atmosphere of a football stadium… … and in the halftime break, I can switch to the communication amplifier and talk to my wife.«

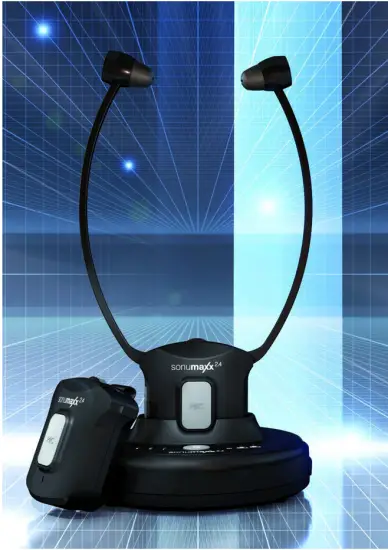

»son Maxx-2.4« sets a new quality position in its class for TV listening systems.

Audiological technology, ergonomically intelligent design, and superior digital 2.4 GHz transmission technology make a significant contribution to ensuring that »son Maxx -2.4«has an all-around convincing quality with powerful amplification, top stereo sound, comfortable operation, and versatility.
Acoustic or inductive listening
»sonumaxx-2.4« is available with two different receiver types: a) with a headset receiver and b) with the compact pocket receiver. The latter, in particular, allows a clear increase in versatility in the choice of listening options – including inductive hearing for hearing aid wearers or CI systems. With an adjustable volume of up to 120 dB the »son Maxx-2.4« also offers a balanced and pleasantly clear sound in the upper amplification range. The transmission between transmitter and receiver via the 2.4 GHz frequency band proves to be resistant to interference and safe.

The »sonumaxx-2.4« transmitter
To connect the transmitter to a TV or other audio system the included connection set has all the common connection cables, including TOSLINK. The transmitter serves as a storage and docking station for the receiver as well the receiver battery charger. A fully charged battery allows an operating time of about 6 to 8 hours. Two receiver batteries are included in the set, one can be used in a receiver whilst the other is being charged in the side charging port. On the front of the »son Maxx-2.4« transmitter buttons allow the user to select from three pre-programmed tone profiles for the one closest to their listening preference.
The »son Maxx-2.4« receivers: listen to TV sound without disturbing anyone and switch to conversation amplifier if needed
The housings for the headset receiver and the pocket receiver as well as their controls are identical. A convenient feature of the »son Maxx 2.4« receiver is the ability to switch from receiving TV sound to communication at the touch of a button. When activated, an integrated microphone picks up the sounds of the surroundings and »son Maxx 2.4« amplifies them.

The headset receiver
The receiver of the »son Maxx 2.4« with its stethoscope design is comfortable to wear without undue pressure on the ears. The replaceable earpads made of soft silicone enhance comfort.
The pocket receiver
The pocket receiver offers more versatility and individuality. It allows the connection of all commercially available listening options, such as headphones, earphones, or headsets. The pocket receiver set includes a neckloop in addition to the standard accessories. For those who prefer inductive ear hooks, they can be obtained from the Humantechnik accessories range.

»sonumaxx-2.4« Sets
»sonumaxx-2.4« set, transmitter with stethoscope receiver  Item number: A-4108-0
»sonumaxx-2.4« PR, set, transmitter with pocket receiver Item number: A-4118-0

The pocket receiver has a clip so that it can be worn comfortably on your clothes
The »sonumaxx 2.4« system set includes a ready-to-connect TV hearing system with a transmitter and either a headset receiver or pocket receiver with clip, as well as
2 rechargeable batteries,
1 power supply,
2 pairs of earpads Audio connector set:
1 Audio-connection cable with 3,5 mm stereo jack plugs,
1 Audio adapter 3,5 mm to 6,3 mm jack,
1 RCA-to-3,5 mm jack adapter,
1 Toslink-cable,
1 microphone with 1m cable is included where a direct audio connection is not available.
The pocket receiver set includes a neck loop.

LH-060TV: Comfortable TV headphones with high sound quality
These deluxe stereo TV headphones with extra-soft earpads provide comfortable wearing – even over many hours. Separate volume adjustment for each side is given and the 5.5-meter long cable provides generous freedom of movement.

LH-056TV: TV headphones (not depicted) Stereo TV headphones with volume control for independent adjustment left and right, five metres of cable for connection to the audio source (e.g. TV set).

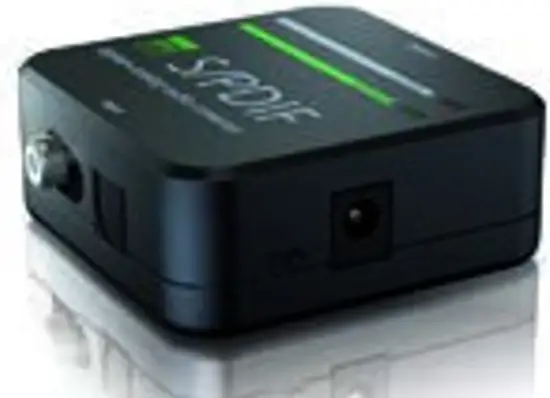

S/PDIF Audio converter, Item no.: A-4963-0
The S/PDIF converter converts digital signals from corresponding audio sources into analog audio signals and makes them available for use by systems with analog audio inputs. Power is supplied via a power supply unit which is included in the set.

Similar images

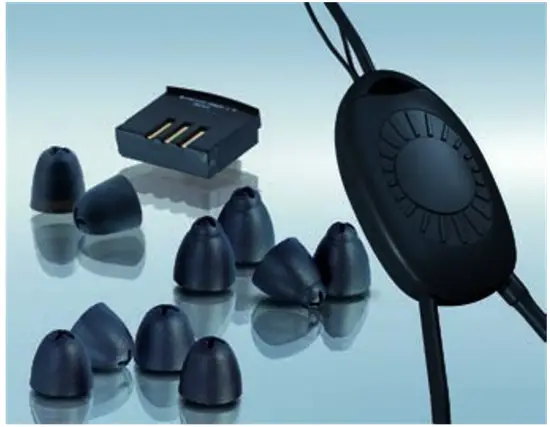

Silicone rubber earpads for headset receiver »earis« Item number

Silicone rubber earpads for headset receiver »sonumaxx-2.4« and headset receiver »sonumaxx-BT« Item number

Replacement batteries Item number

HUMANTECHNIK GmbH
Im Wörth 25 · D-79576 Weil am Rhein
Telefon: +49 (0) 76 21 / 9 56 89 – 0
Fax: +49 (0) 76 21 / 9 56 89 – 70
Internet: www.humantechnik.com
E-Mail: [email protected]
Your specialist dealer will give you comprehensive
and competent advice
