Clean truck bed thoroughly before installation.

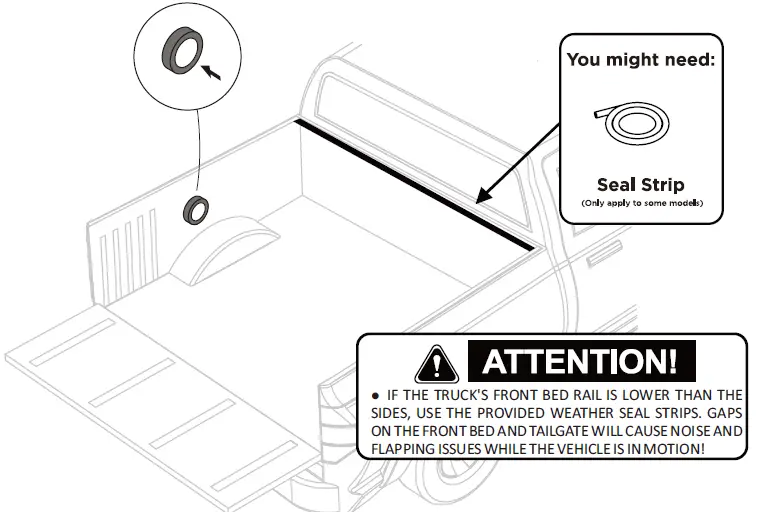

Stick the supplied front seal strip on the front bed rail by aligning it with the outer edge.

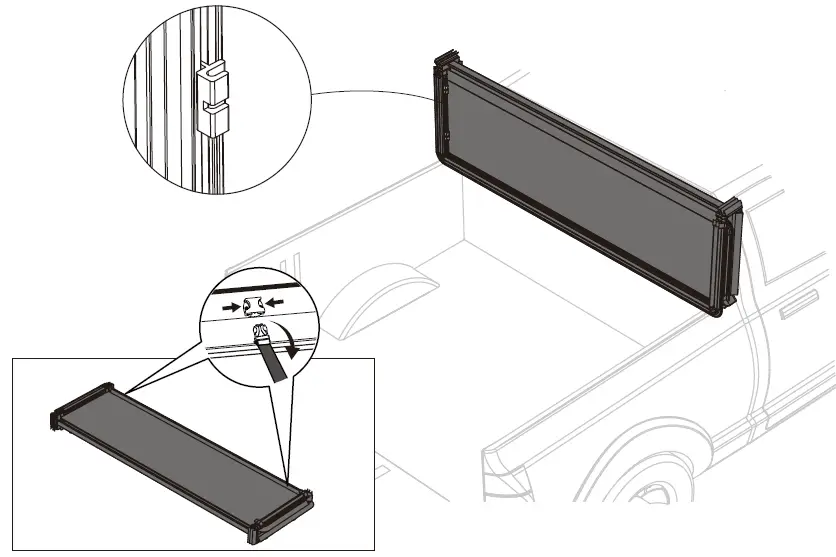

Slide the two aluminum blocks at the front end to the most suitable position.

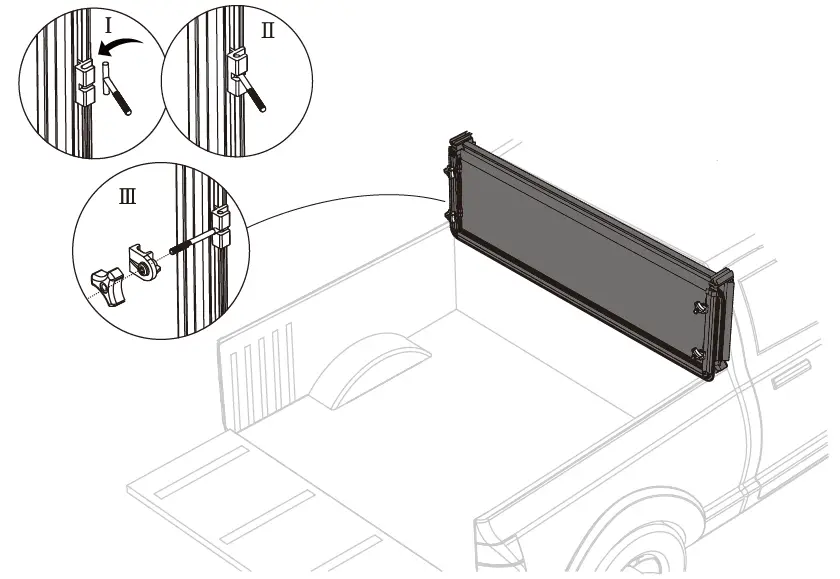

Clamp the T-bar on the aluminum slider of the ﬁrst fold, use Front clamps and a Triangle screw to install it on the T-bar to complete the ﬁrst fold.

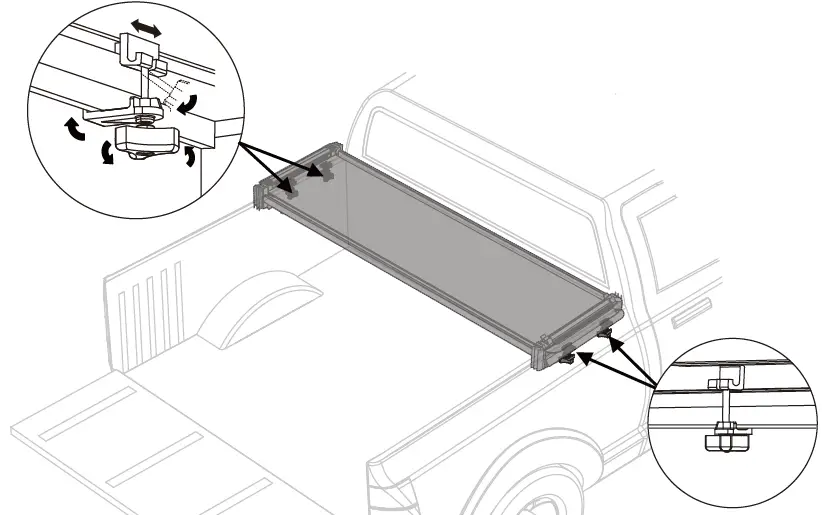

Slide the front clamp to the best position, clamp the interface under the metal bed rail, and then use the Triangle screw to rotate into the metal rod to ﬁx the en re clamp

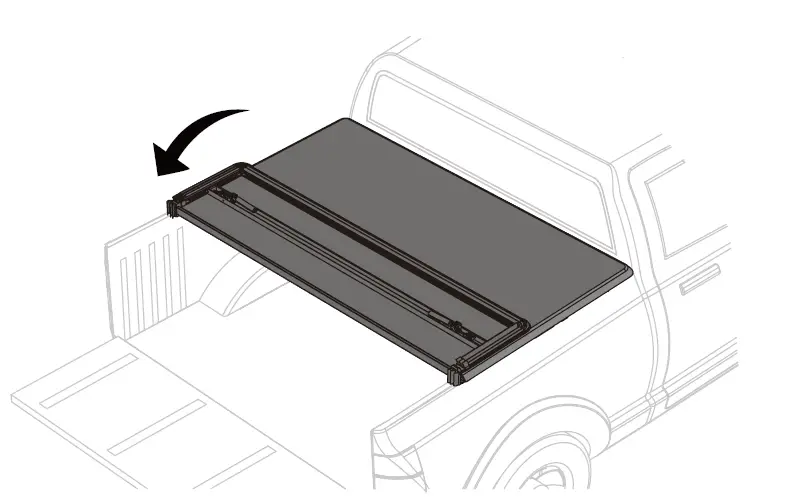

Open the bungee cord at the front end, fully unfold the cover towards the tailgate and ensure the cover aligns on all sides

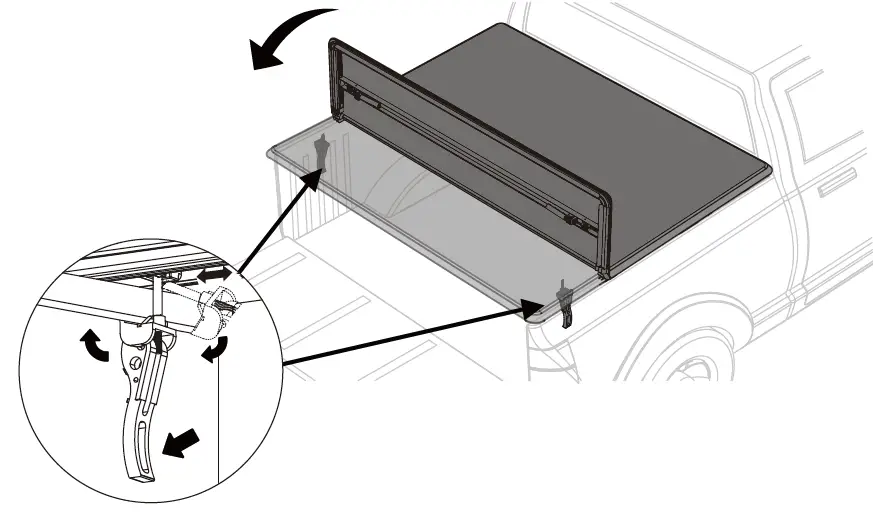

Adjust the connection position of the rear clamp and T-bar according to the actual situation, open the cover and place it on the lathe, and push the rear clamp vertically to ﬁx it to the rails on both sides of the lathe.

After rear clamps have been latched securely, close/lock tailgate and cover cannot be opened from the outside

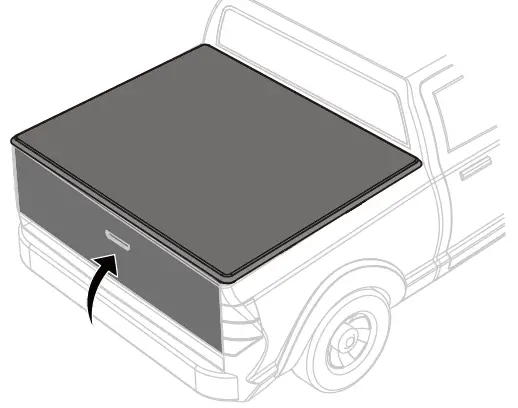

All clamps must be ﬁrmly in contact with the lip of the metal bed rail to ensure a ﬁrm cover. Finally, close the tailgate to complete the installation.
NOTE: COVER MAY NOT COMPLETELY COVER TO THE OUTSIDE EDGE OF THE BED RAILS DUE TO SLIGHT DIFFERENCE IN TRUCK BED SHAPE FOR DIFFERENT YEAR MODELS

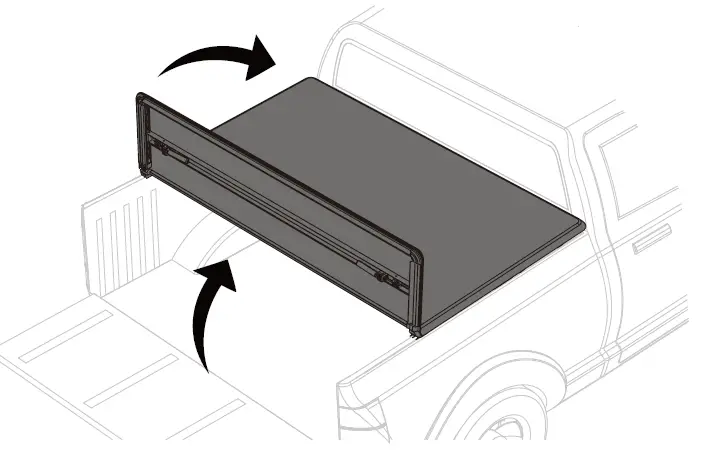

When it is necessary to completely fold the cover, place the rear clamps correctly clamping rubber block, and then fold it.

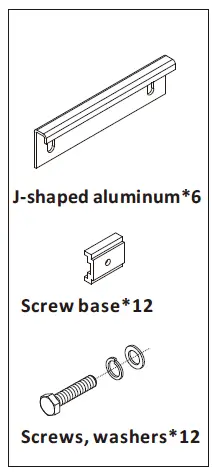

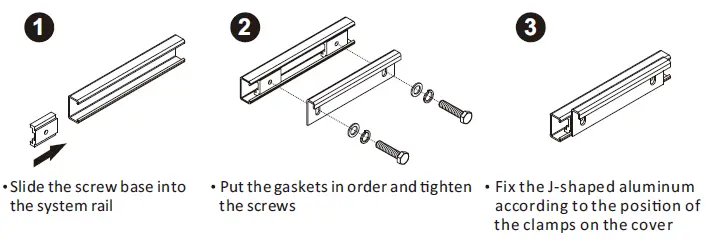

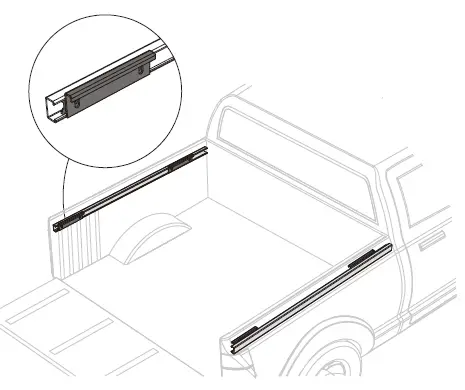

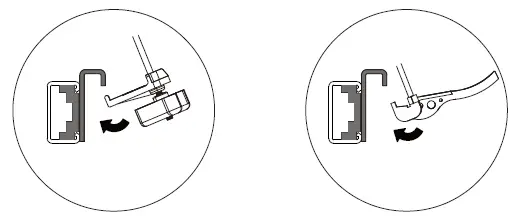

SPECIAL INSTRUCTIONS FOR ALTERNATIVE BRACKETS SUPPLEMENT TO INSTALLATION INSTRUCTIONS (Only for models with system track)
