68065 Folding Steel Profile Camp Bed
Owner’s Manual

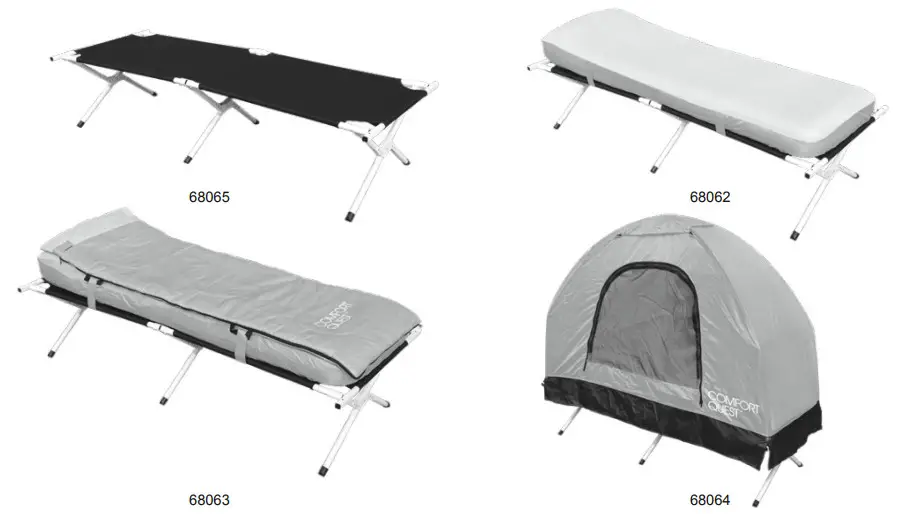

SPECIFICATIONS
Photos for illustration purpose only. May not reflect actual product. Not to scale
| Model No | Name | Contents |
| 68065 | Fold’N Rest Camping Bed | Camping bed |
| 68062 | Fold’N Rest Camping Bed | • Camping bed |
| 68063 | Fold’N Rest Camping Bed | • Camping bed |
| 68064 | Fold’N Rest Camping Bed | • Camping bed |
WARNING:
- The camping bed should be assembled and disassembled by adults only.
- Children should be supervised at all times.
- Do not install or use the camping bed under adverse weather conditions such as rain, hail, sleet, snow, drizzle, lightning, strong wind, etc.
- Place the camping bed on a solid and level ground.
- Keep away from fire and heat sources.
- To avoid finger entrapment, assemble and disassemble the camping bed carefully.
- The camping bed is designed for a maximum load of 110kg (242.5lbs). Do not overload.
- Do not jump on the camping bed. This is not a trampoline.
- Make sure the camping bed is dry before storing it in a safe place indoors.
TO AVOID PROPERTY DAMAGE OR SERIOUS INJURY, FOLLOW ALL THESE INSTRUCTIONS AND USE COMMON SENSE.

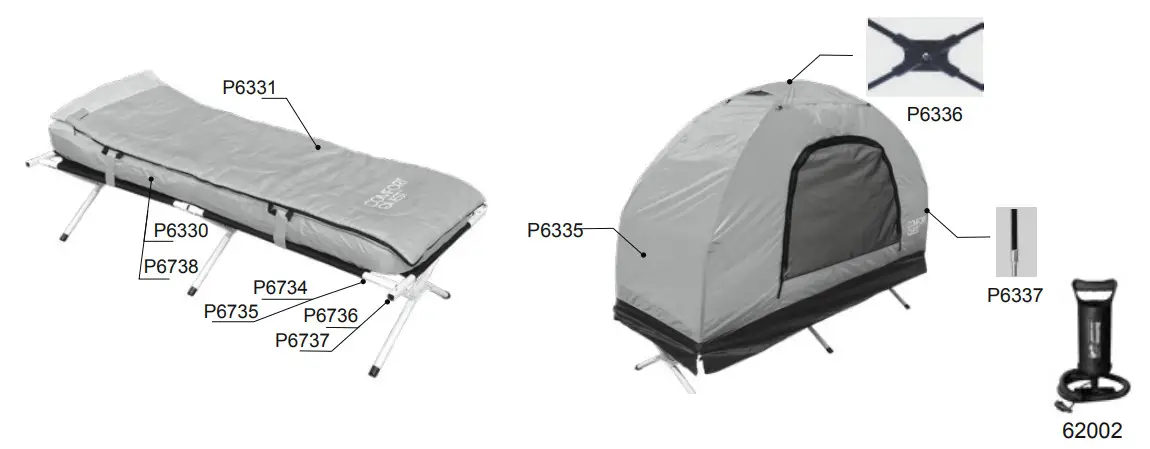

PARTS REFERENCE:
NOTE: Photos are for your reference only.
| Model No | Name | QTY. |
| P6734 | Camping bed (with square legs) | 1 |
| P6735 | Camping bed (with round legs) | 1 |
| P6736 | Bar (Square) | 2 |
| P6737 | Bar (Round) | 2 |
| P6738 | Airbed | 1 |
| P6330 | Airbed cover | 1 |
| P6331 | Sleeping bag | 1 |
| 62002 | Hand pump | 1 |
| P6335 | Tent wall | 1 |
| P6336 | Junction cross | 1 |
| P6337 | Fiber glass pole | 4 |
Note: To order spare parts no. P6734, P6735, P6736 and P6737, please follow the shape (square or round) of your original product.
ASSEMBLY INSTRUCTIONS
WARNING: Be careful during the assembling process, or you may get hurt.
NOTE: Assemble according to the contents of your Fold ’N Rest.

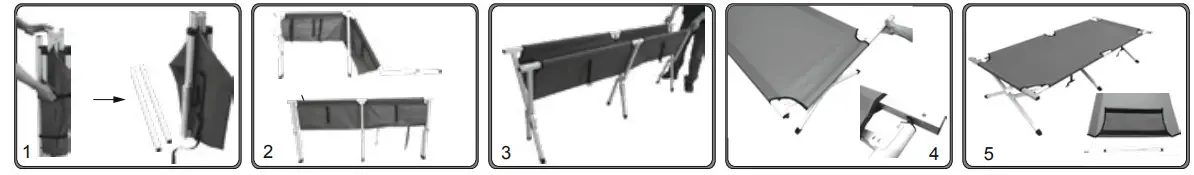

Camping Bed Assembly
- Unfasten the velcro straps and put aside the two bars.
- Unfold the legs of the camping bed and stand them on a solid & level ground.
- Expand the legs.
- Insert the bar into one end of the bed sleeve and follow the picture to insert the end of side frame of the camping bed to the bar.
- Follow the picture to assemble another bar as step 4. Then adhibit the Velcro round the bar (If necessary).

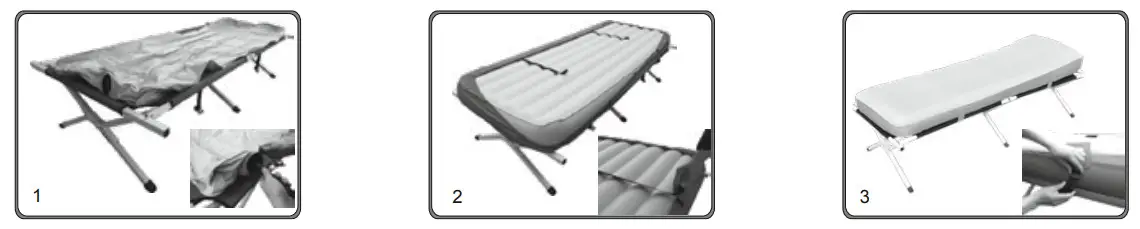

Air Bed Assembly
- Spread out the airbed on the camping bed. Then inflate the airbed with a hand pump.
NOTE: Do not over inflate. - Coat the airbed with the cushion cover and fasten the velcro straps .
- Turn over the airbed. Secure the airbed to the camping bed with the buckles fixed on the sides of the cushion cover and the camping bed.

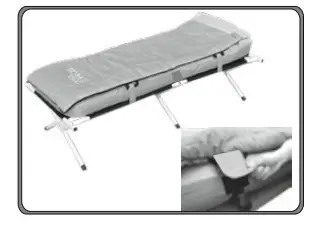

Sleeping Bag Assembly
Spread out the sleeping bag and secure it by the velcros fixed on the sides of the cushion cover through the straps on the sleeping bag.

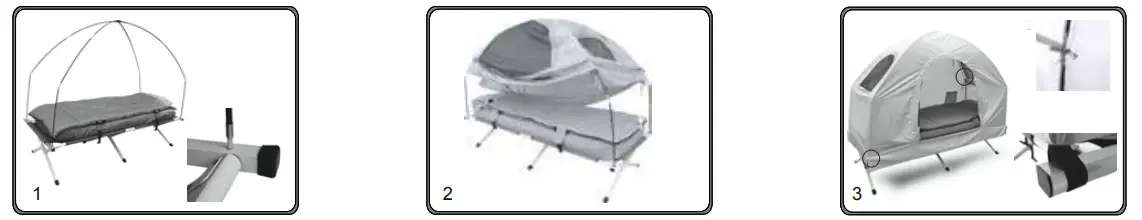

Tent Assembly
- Separately insert one end of the 4 FRP poles into the holes of the camping bed and the other end into the junction cross one by one in a “X” pattern.
- Spread out the tent wall and place it over the FRP poles.
- Adjust the tent wall in place, and then fix the four elastic tapes around the bars. Adjust the tent wall in place.
STORAGE
Unassemble and deflate the product. Carefully fold the product.
Store in a cool, dry location away from chemicals and heavy, or sharp objects.
