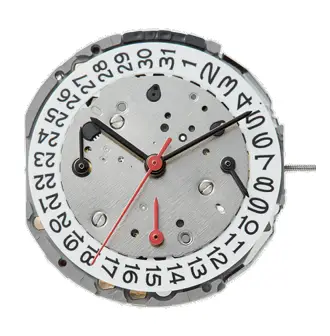

MIYOTA JS05 Small Second Chronograph Instruction Manual
Cal. JS05/JS06/JS15/JS16/JS25/JS26 Instruction manual
STOPWATCH FUNCTION: SMALL SECOND HAND TIME MEASUREMENT UP TO 29min 59 sec

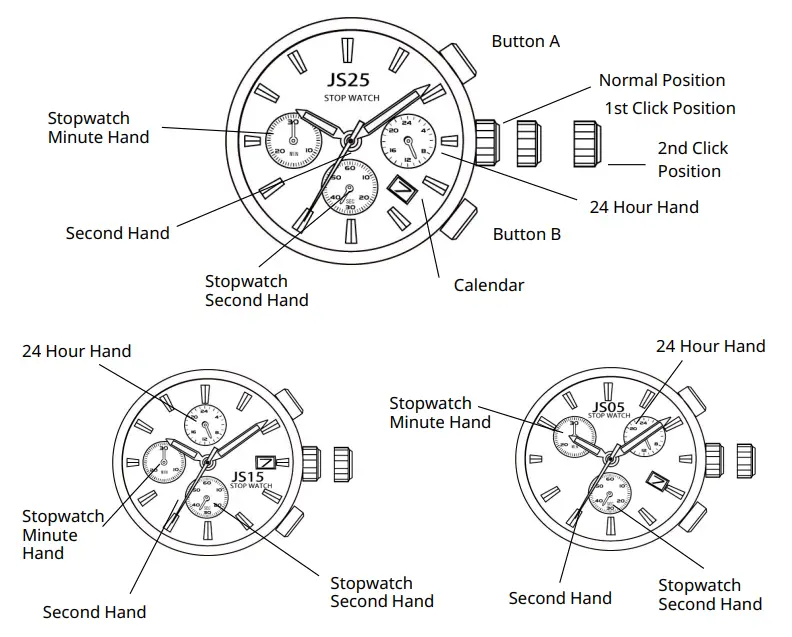

| A) DISPLAYS AND BUTTONS |
| B) SETTING THE TIME |
| C) SETTING THE DATE |
| D) USING THE STOPWATCH |
| E) STOPWATCH RESET |
b) SETTING THE TIME
| 1. Pull the crown out to the 2nd Click Position. |
| 2. Turn the crown to set hour and minute hands. |
| 3. After the time has been set, push the crown back to the Normal position. |
SETTING THE DATE
| 1. Pull the crown out to the 1st Click Position. |
| 2. Turn the crown clockwise to set the date. |
| * If the date is set between the hours of around 9:00 PM and 1:00 AM, |
| the date may not change on the following day. |
| 3. After the date has been set, push the crown back to the Normal position. |
C) USING THE STOPWATCH
| This stopwatch is able to measure and display time in 1/1 second united up to |
| maximum of 30 minutes. |
| Stopwatch will stop automatically after running continuously for 30 minutes. |
| 【Measuring time with the stopwatch】 |
| 1. Press button ” A ” to start the stopwatch. |
| 2. The stop watch can be started and stopped each time button “A” is pressed. |
| 3. Pressing button “B” resets the stopwatch and stopwatch minute |
| and second hands return to their Zero positions |
e) STOPWATCH RESET (INCL. AFTER REPLACING BATTERY)
| This procedure shoud be performed when the stopwatch second & minute hand does not return |
| to the Zero position. |
| 1. Pull the crown out to the 2nd Click Position. |
| 2. Press the button “A” to set the stopwatch second hand forward. |
| Press the button “B” to set the stopwatch second hand back. |
| * The stopwatch minutes hand is syncronized with stop watch second hand. |
| * The stopwatch second hand can be advanced rapidly by continuously pressing button “A” or “B”. |
| 3. Once the both hands been zeroed, reset the time and return the crown to its normal position. |
These specifications might be changed without prior notice.
