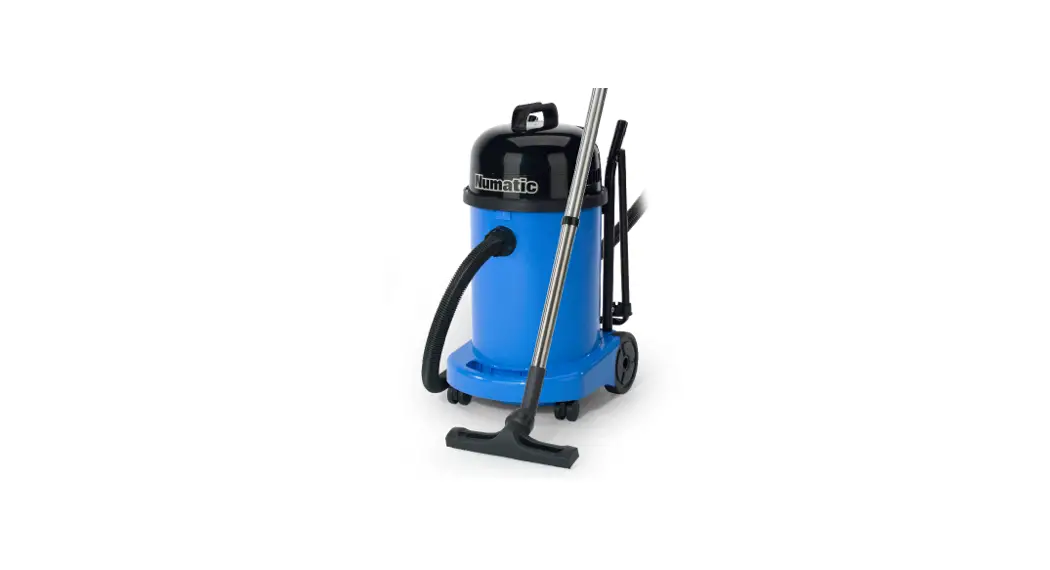

Numatic Wv 470 Wet Or Dry Vacuum Cleaner Owner's Manual

WV 470 Wet or Dry Vacuum Cleaner
Owner’s Manualwww.numatic.co.uk

WV 470 Wet or Dry Vacuum Cleaner

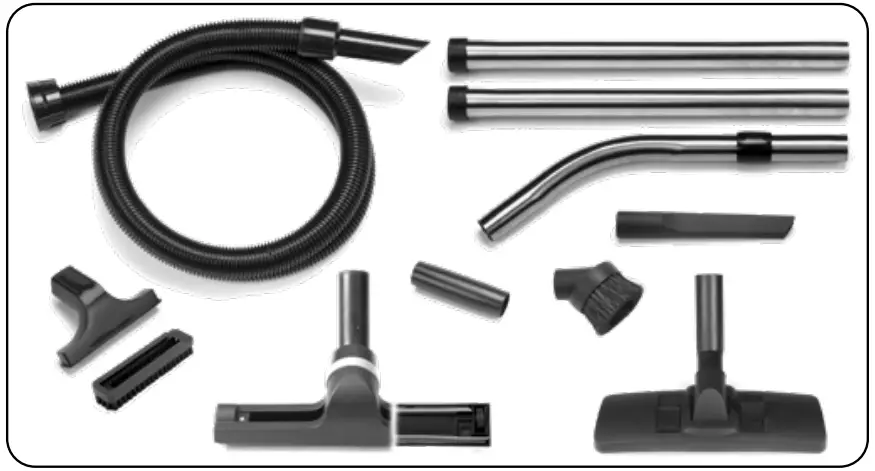

CVC Machine – Kit AS21

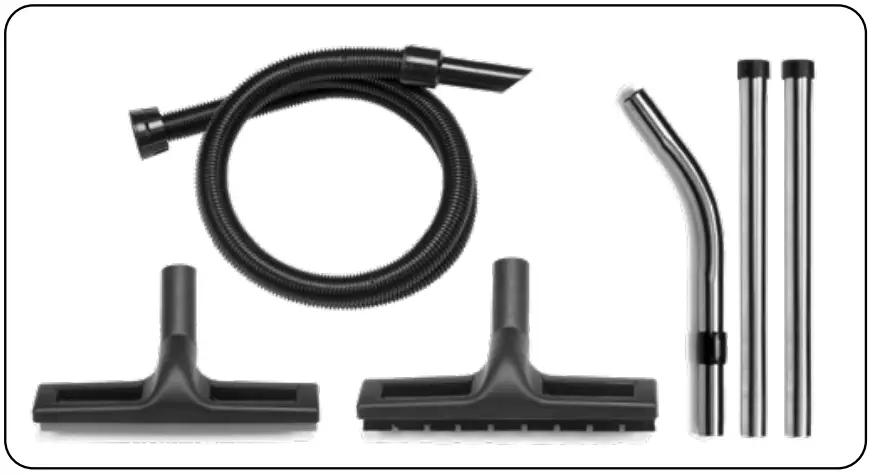

WV Machine – Kit A11/85

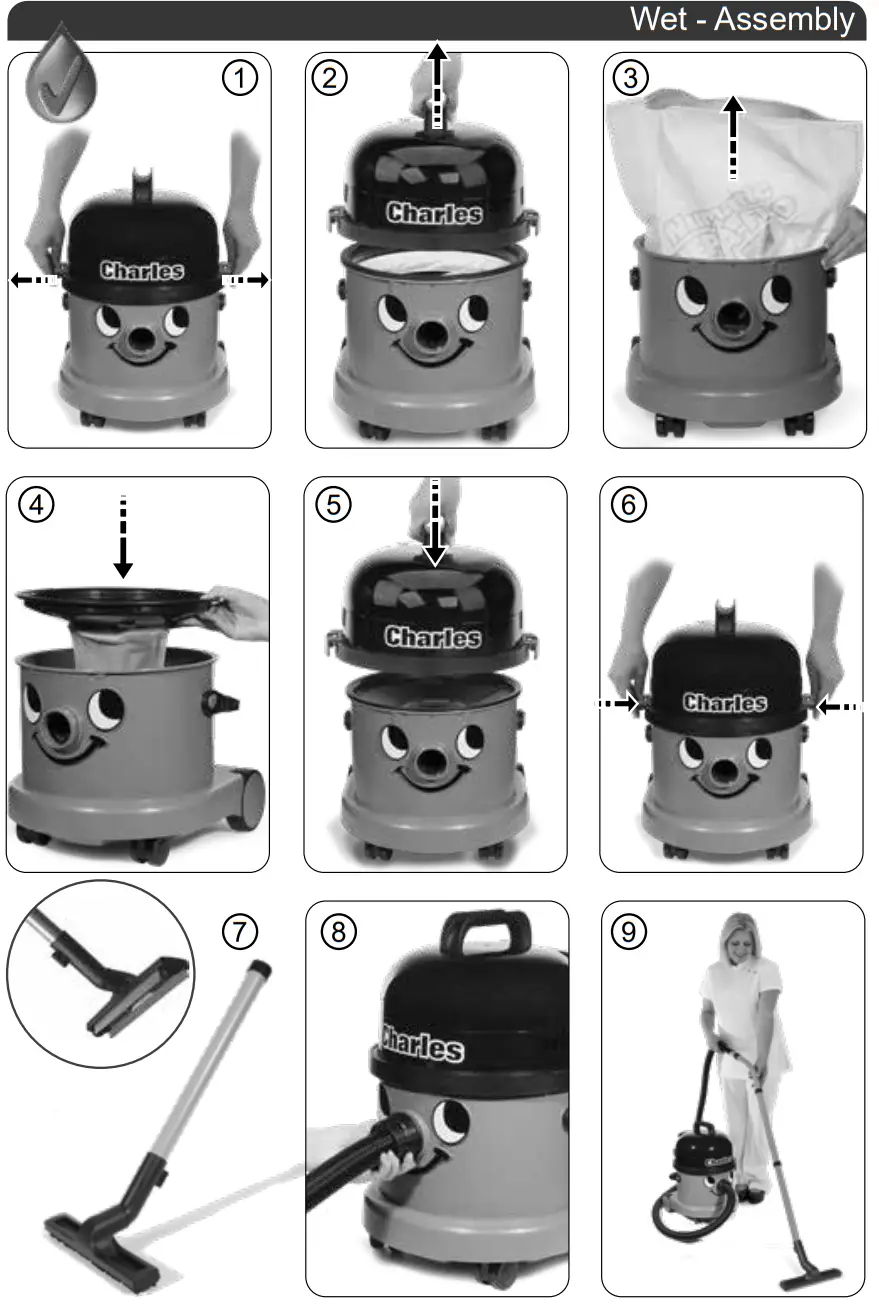

Wet – Assembly

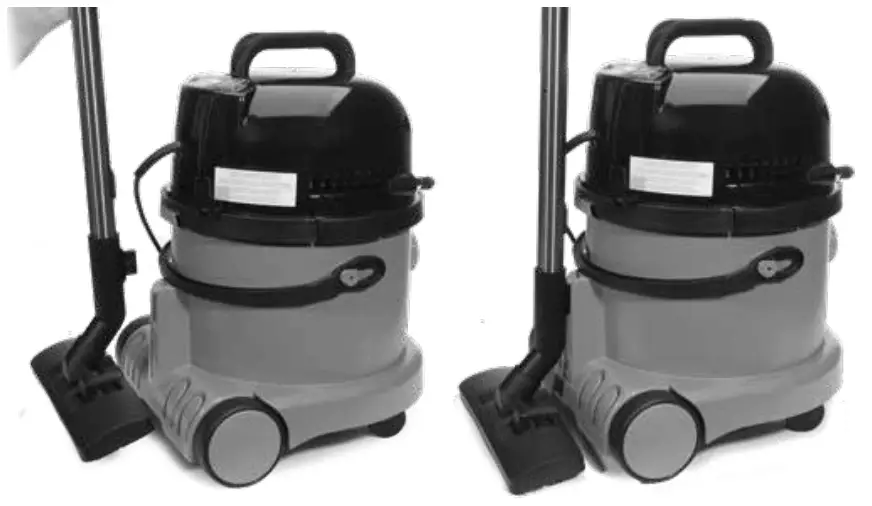

370 drum – Wand Docking

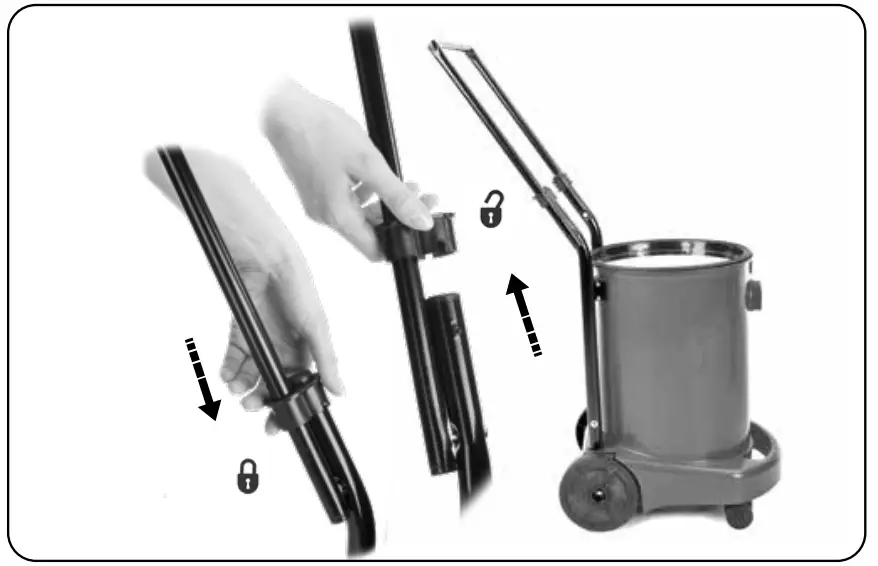

470 Handle Locking Instructions

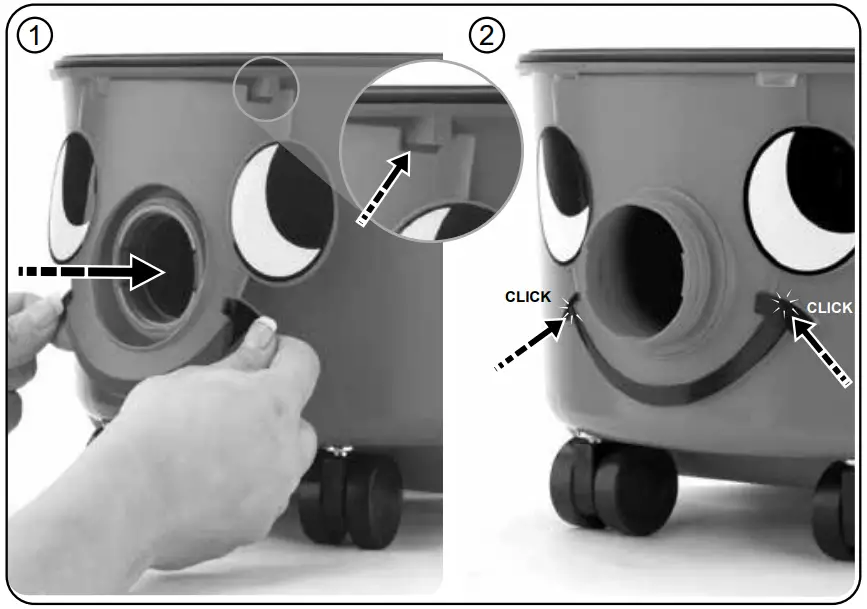

Fitting the face

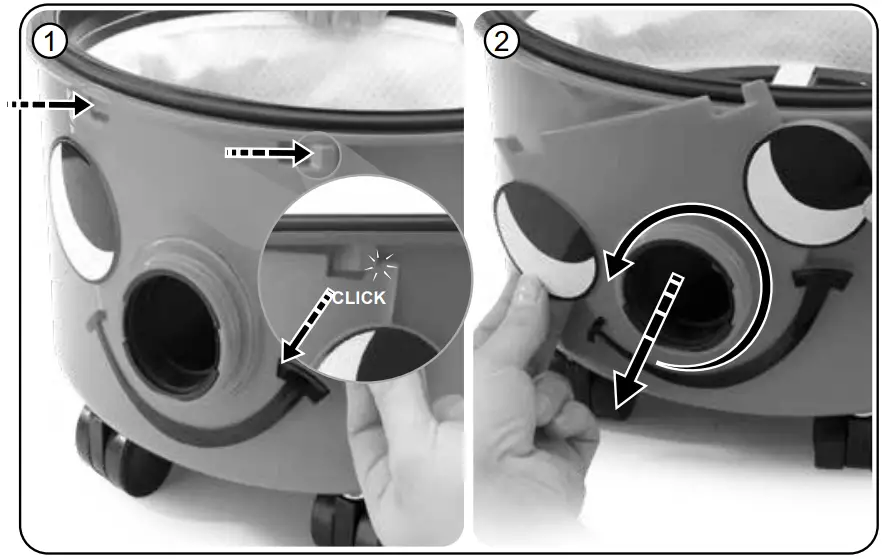

Removing the face

WEEE Legislation (Waste, Electrical and Electronic Equipment)
Vacuum cleaner, accessories and packaging should be sorted for environmentally – friendly recycling.
(Only for EU Countries)
Do not dispose of vacuum cleaner into household waste! According to the European Directive  2012/19/EU on waste electrical and electronic equipment and its  incorporation into national law.
Vacuum cleaners that are no longer suitable for use must be separately collected and sent for recovery in an environmentally – friendly  manner.

PPE (personal protective equipment). That may be required for certain operations.
Ear Protection	Safety Footwear	Head Protection	Safety Gloves
Eye Protection	Protective Clothing	Dust / Allergens Protection	Hi Viz Jacket	Caution Floor Sign
NOTE: A risk assessment should be conducted to determine which PPE should be worn.

Failure to rectify the problem or in the event of a breakdown contact your Nomadic dealer or the Nomadic Technical helpline +44 (0)1460 269268
Safety Critical Components
Mains leads: HO5VV-F 10 m x 2 Core x 1.00 mm²
Information for WET & DRY use Vacuum Cleaners

Warning
Read the instruction manual before using the machine.
Operators shall be adequately instructed on the use of these machines.
As with all electrical equipment, care and attention must be exercised at all times during use, in addition to ensuring that routine and preventative maintenance is carried out  periodically to ensure safe operation.
Failure to carry out maintenance as necessary, including the replacement of parts to the correct standard could render this equipment unsafe and the manufacturer can accept no responsibility in this respect.
The machine shall be disconnected from the mains power by removing the plug from the power supply socket during cleaning or maintenance and when replacing parts or converting the machine to another function.
This machine is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience or knowledge.
Children being supervised are NOT to play with the machine.
This appliance is intended to be assembled, cleaned and maintained by an adult.
This machine is not a toy.
This machine is not suitable for picking up hazardous or explosive dust. Contact your local distributor if you require a machine capable of performing these tasks.

Caution
If foam/liquid comes out of machine exhaust, switch off immediately.
Allow the accumulated liquid to drain out through the machine exhaust, check the fl oat assembly to ensure correct operation, empty the container if full of liquid, reassemble the machine.
Immediately upon start up there will be a certain amount of liquid issuing from the machine exhaust which will be the residue of liquid still within the power head. This will  be quickly discharged after which the machine should function normally.
Liquid ejected from the machine could be hazardous as a result of its temperature, pressure or chemical content.
Ensure that the filtration system fitted to the machine is suitable for the material being collected.
This machine is for indoor use only.
This machine shall be stored indoors only. .
When moving from one place to another, consider the weight of the machine.

Notes
You must ensure that the filtration system fitted to the machine is suitable for the material being collected.
This product complies with the requirements of clause 20 of IEC/EN 60335-2-69 Stability and Mechanical Hazards.
The primary use for this machine is commercial, for example in hotels, schools, hospitals, factories, shops and offices.
If the vacuum cleaner stops working, remove the plug from the power supply before investigating where the fault lies.
The vacuum cleaner should be inspected after use for damage.
The power light will illuminate, when your machine is connected to a suitable power supply (where fitted).

Do

• Use a bag and filter at all times when using ‘dry’.
• Keep your machine clean.
• Keep filters clean.
• Regularly clean the water level limiting fl oat safety valve and examine for signs of damage or correct operation.
• Keep hoses and tubes clear.
• Replace any worn or damaged parts immediately.
• Regularly examine the power cord, if damage is found, power cord must be replaced by a qualifi ed person using the correct Nomadic original part.

Don’t

• Use steam cleaners or pressure washers to clean the machine or use the machine in the rain.
• Immerse in water for cleaning.
• Allow any inexperienced repairs. Call the experts.
• Use wet if float valve is not functioning or fitted.
• Use to suck up hot ashes, or lighted cigarette ends.
• Run the machine over the power cable during operation as a hazard may occur.
• Pull on the cable to unplug the machine from the power supply.
• Walk over-wet carpets, upholstery or fabrics.
• Walk on clean carpets until fully dry.
• Attempt machine maintenance or cleaning unless the power supply plug has been removed from the supply outlet.
• Under any circumstances place foreign objects including (but not limited to) air fresheners, air freshener capsules or scented beads of any type into the top filter of the  machine. Doing so can be dangerous and risk damage to the machine and may invalidate the machine warranty.

Fault Finding

Dry Mode maintenance/fault finding
If the vacuum cleaner stops working switch off and remove the plug from the wall before investigating were the fault lies.
If the vacuum cleaner will not pick up any debris from the surface, switch off and remove the plug from the wall, inspect the floor tool, wands and hose for blockages, if no  blockages are found, the dust bag may be full if the dust bag is not full the filter may be blocked.

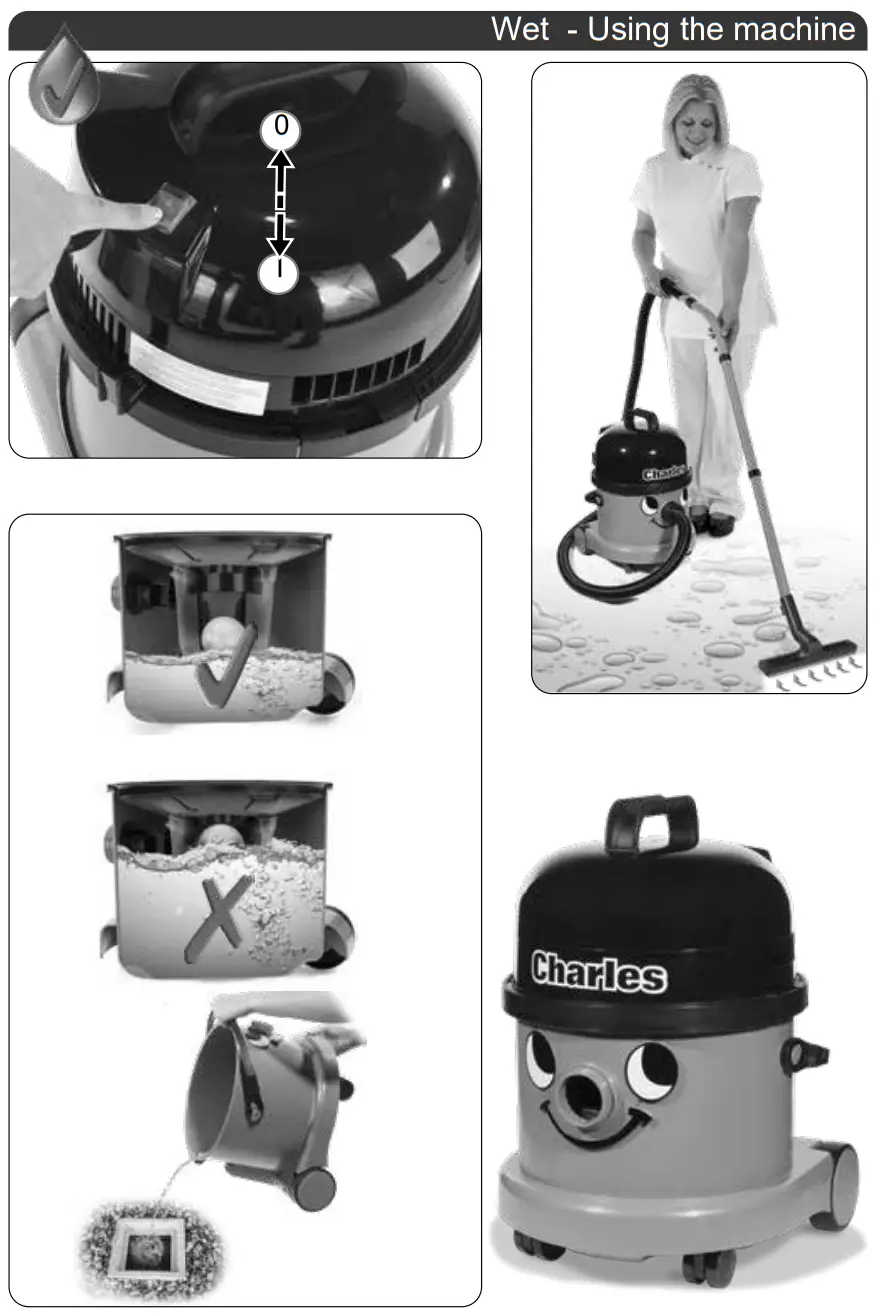

Wet mode
If the vacuum cleaner stops working switch off and remove the plug from the wall before investigating were the fault lies.
If the vacuum cleaner has a blockage and will not pick up liquid, switch off and remove the plug from the wall, has the float valve operated, this will shut off the suction and the pitch of the vacuum motor will change.
Remove the power head and empty the liquid out of the container, if the container is empty, check that the floor tool wands and hose are not blocked.
Flush the system with clean water after use.
After use always inspect the machine for damage.

Replacement Parts

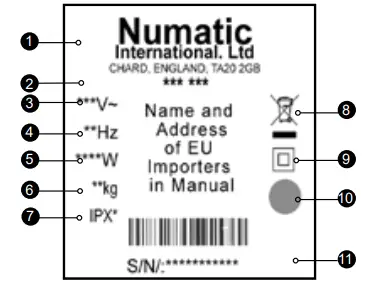

Data

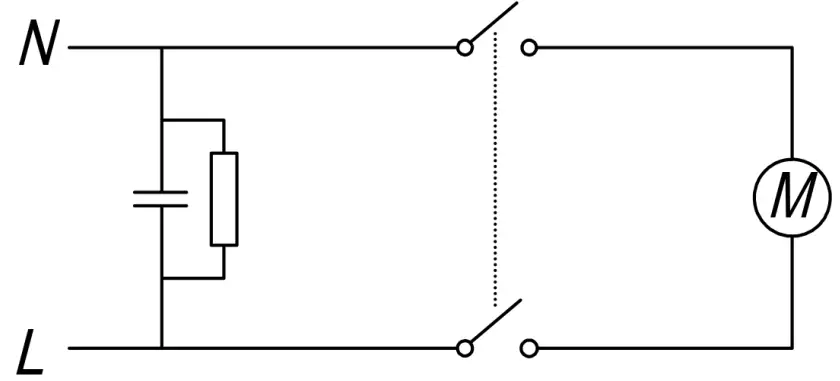

Wiring Diagram

Notes ……………………………………………………

Nomadic International
Warranty
Nomadic International Limited warrant to the original purchaser that its products are free of defects in both material or workmanship for the period shown below:- Homecare and Clean care Vacuum cleaners ………..2 Years
Rotary Floor Machines ………………………………………2 Years
Twente Auto Scrubber Dryer ……………………………..1 Year
Varo Ride-On Scrubber Dryer …………………………….1 Year / 1500 hours
Mopping, Compacts, Combi and Servo care Products ……1 Year
Individual Accessories and Spare Parts…………………………. 6 Months
Note: This warranty expressly excludes consumable parts such as carbon brushes, floor brushes, mops, batteries etc. that are considered replaceable from time to time during the normal working life of the machine.
Using non Nomadic dustbins can be detrimental to both machine performance and life and may invalidate the Warranty.
A. The warranty period commences from the date the goods are purchased.
B. All warranty claims must be processed through the Dealer from whom the equipment was purchased. The Dealer will co-operate with the purchaser throughout the warranty claims procedure and will arrange any necessary repairs using genuine Nomadic parts.
C. If the original Dealer is no longer able to fulfil his obligations please contact Nomadic International Limited with full details of the claim and proof of purchase so that this may be processed without delay.
D. Any warranty claim can only relate to the specific part that is proven to be at fault and for which a replacement will be supplied but cannot be extended to constitute a claim against the complete machine.
E. Nomadic International will supply the Dealer with any warranty parts required, subject to the claim being validated, after return of the faulty items in accordance with Nomadic International Limited’s General Conditions of Sale.
F. Claims will not be accepted if they are the result of fair wear and tear, misuse or abuse of any kind.
G. No replacement will be given unless the appropriate evidence of the validity of the claim has been provided to the satisfaction of Nomadic International Limited.
H. Nomadic International Limited reserve the right to charge for any unnecessary work carried out as a result of an invalid claim.
I. No variation to this warranty may be made or implied by any member of Nomadic International Limited or its Dealers unless such variation is in writing and authorised by the Company

Nomadic
Nomadic International Limited. Chard, Somerset, TA20 2GB
Telephone: 01460 68600 Fax: 01460 68458
Nomadic International Limited

Declaration of Conformity

Manufacturer:	Nomadic International Limited ChardSomerset TA20 2GB www.numatic.co.uk
Product:	CVC, WV, WCT, WVP, HWD, WVT, CDC
Description:	Vacuum Cleaner – Commercial – Wet & Dry

Authorised Signatory: Mr. Matthew Coles Signed: Date: 04th May 2022

Position: Head of Technology Nomadic International Limited Chard, Somerset, TA20 2GB, UK

UKCA Declaration of Conformity
Manufacturer:	Nomadic International Limited Chard Somerset TA20 2GBwww.numatic.co.uk
Product:	CVC, WV, WVT, WVP, HWD, CDC
Description:	Vacuum Cleaner – Commercial – Wet & Dry
We, Nomadic hereby declare under our sole responsibility, that the above-mentioned product(s) is/are in conformity with the following directives and standards.

Authorised Signatory: Mr. Matthew Coles	Position: Head of Technology
Signed: Date: 1st Dec 2021	Nomadic International Limited, Chard, Somerset, TA20 2GB, UK

DEC-008 V2.0
numatic.com
Nomadic International Limited. Chard, Somerset TA20 2GB ENGLAND
Tel: 01460 68600 www.numatic.co.uk
Specification subject to change without prior notice
www.numatic.com © Nomadic International Limited
908909 11/22 (A11)
