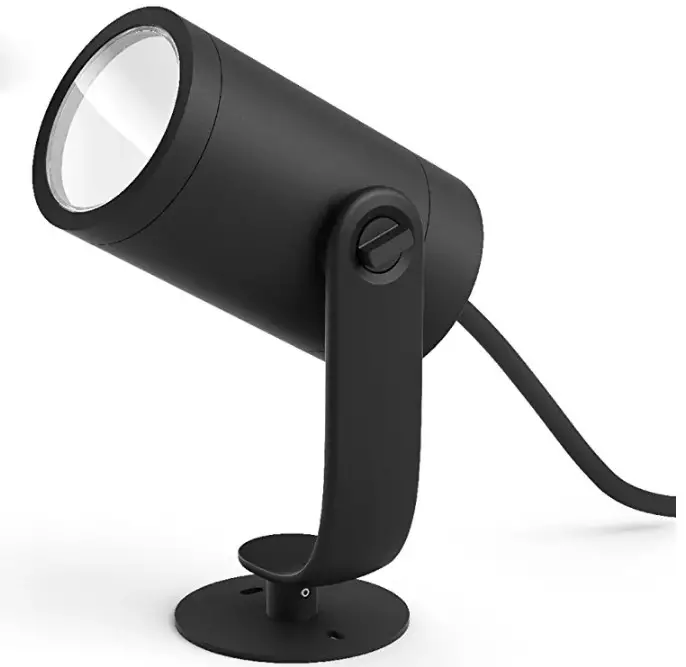

Philips 458471 Outdoor Smart Spot Light Extension

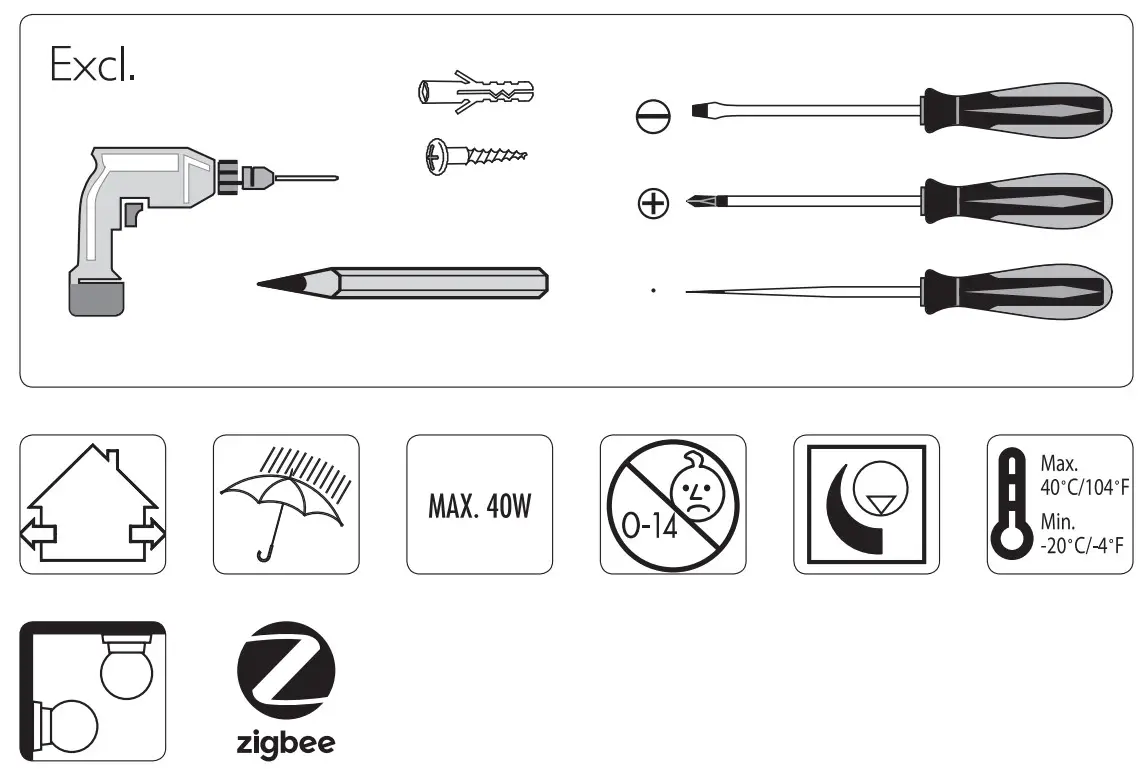

TOOL REQUIRED
SAFETY INSTRUCTION
- Product appearance may vary from the image shown.
- UL Listed Landscape Lighting System. This luminaire and power supply unit is intended for installation in accordance with the National Electrical Code and local code specifications. Failure to adhere to these codes and instructions may result in serious injury and/or damage to the PSU and void the warranty. These instructions do not purport to cover all details or variations in equipment, nor to provide for every possible contingency related to installation, operation, maintenance, or mounting situation. Should specific problems occur that are not addressed by these instructions, contact your Sales Representative or distributor for assistance. SAVE THESE INSTRUCTIONS for future reference.
- Warning-do not use an extension cord.

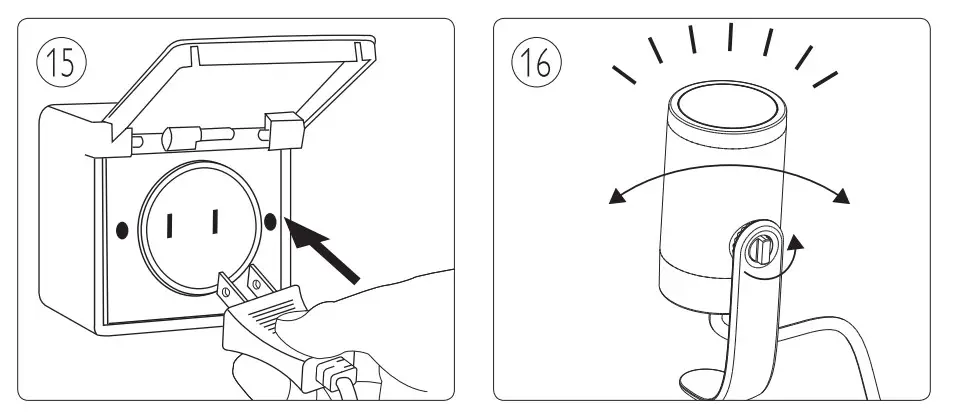

- The plug on the power supply unit must be connected to a GFCI-protected hooded flush-type cover plate receptacle marked “Wet Location” while in use.
- Protect the wire by routing it in close proximity to the light fitting, or next to a building structure such as a house or a deck.
- The landscape wire and connector can also be hidden under stone or buried under grass at a maximum depth of 6 inches (15.2 cm).
- Philips recommends a minimum depth of 4 inches when burying in the lawn to prevent damage from aerators or other lawn plugging equipment.
- Philips recommends not to bury the T-shaped connectors.
- Do not submerge luminaire or PSU in water.
- WARNING Risk of Electric Shock. Do not install power supply unit or luminaires within 10 feet (3.05 m) of a pool, spa, or fountain.

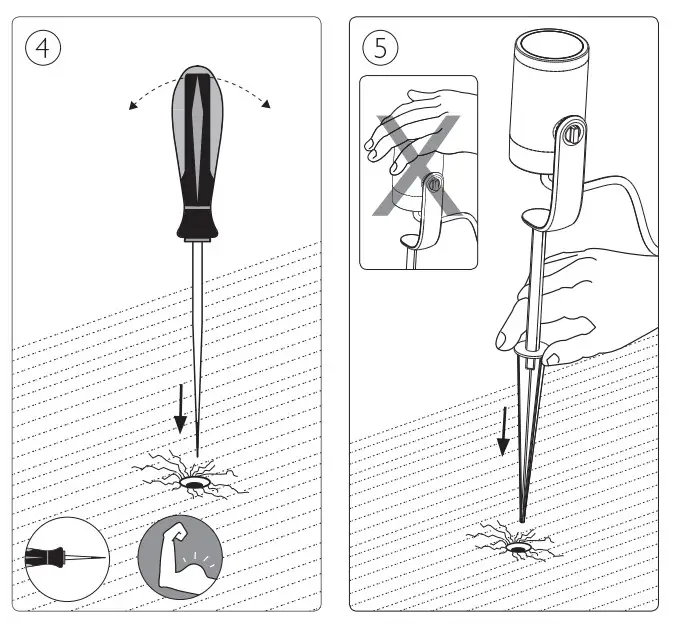

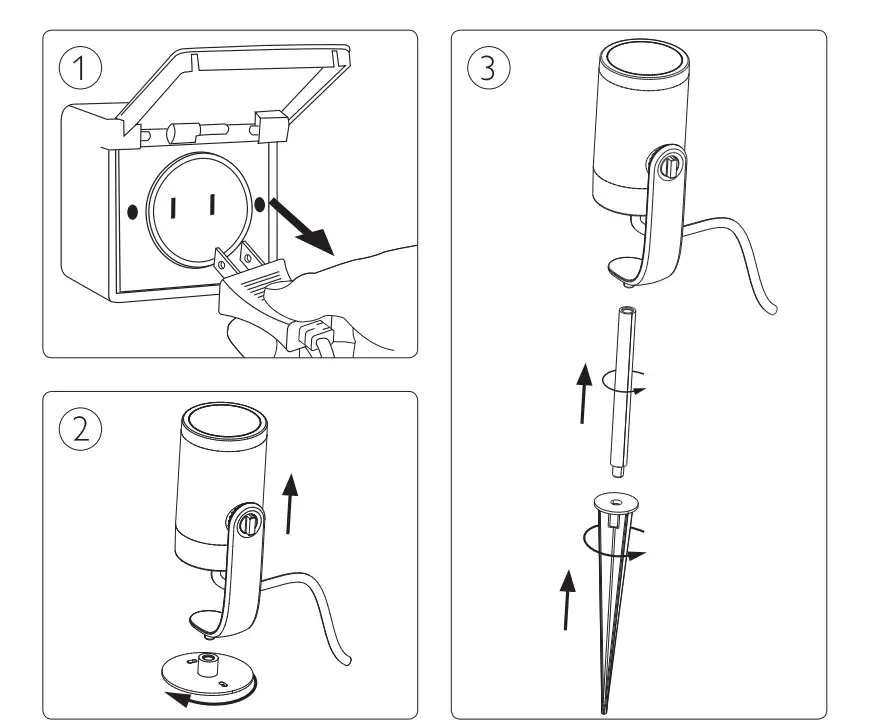

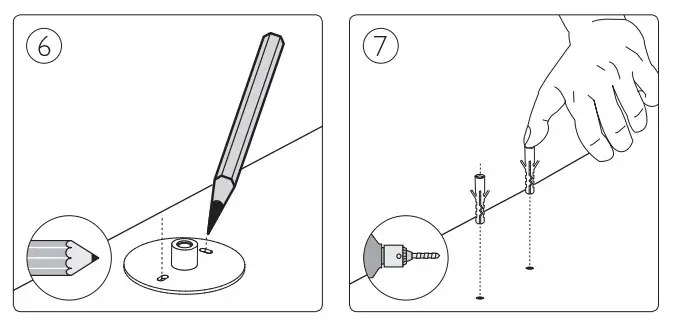

INSTALLATION
Use only with Philips Hue 24V luminaires!
Low volt system
- Power Supply not included. Sold with the base unit.

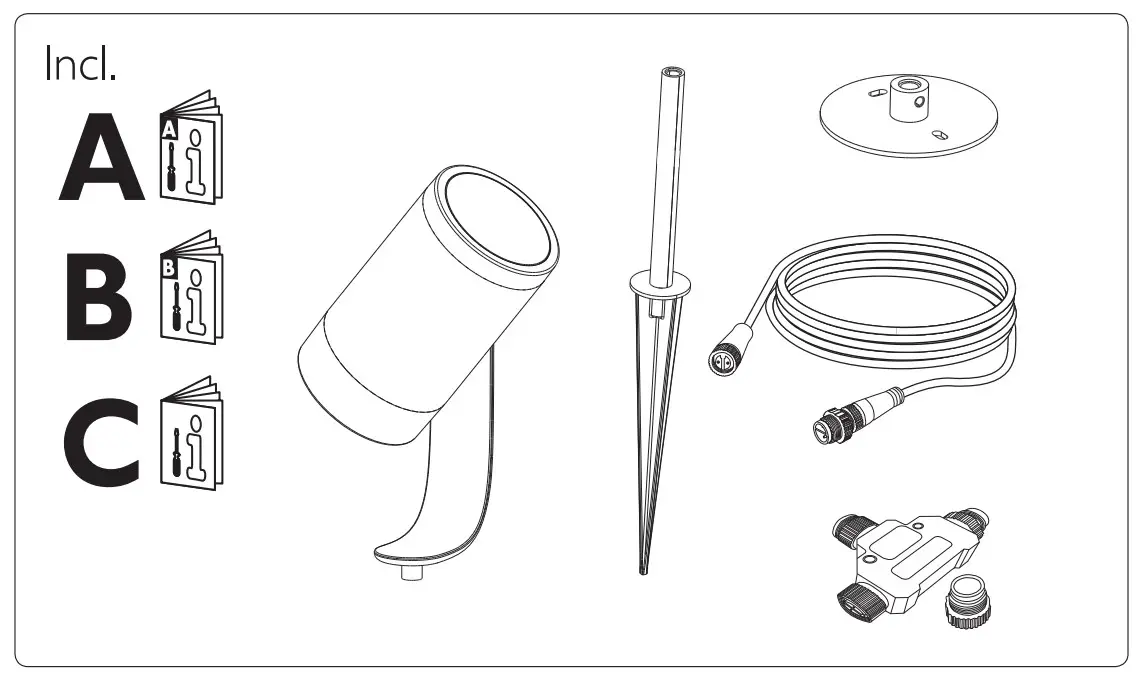

- Included

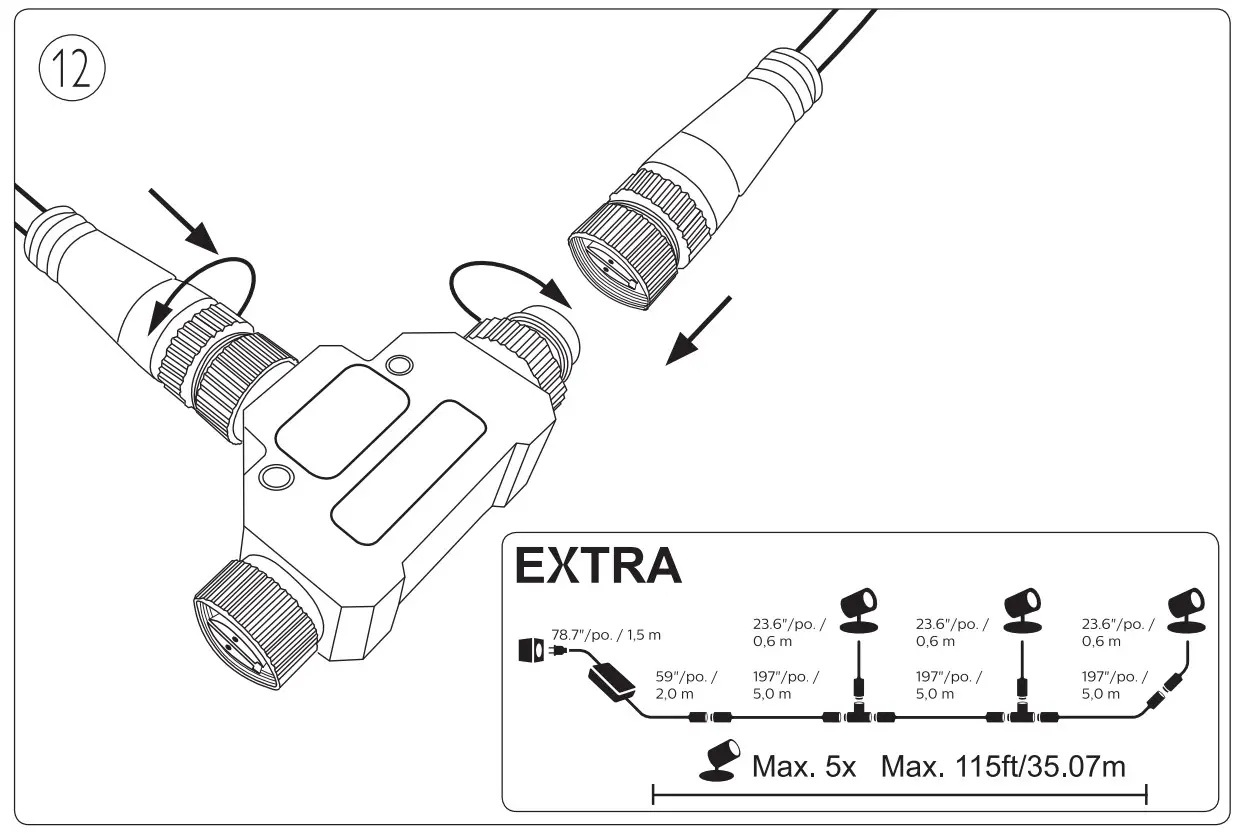

- Extensions: sold separately
Philips Lighting North America Corporation 200 Franklin Square Drive Somerset, NJ 08873, USA Philips Lighting North America Corporation
Imported by: Philips Lighting Canada Ltd. 281 Hillmount Road, Markham ON, Canada L6C 253
Questions or Comments
1-800-555-0050 www.philips.com
Philips Mexicana S.A. de C.V. Av. La Palma N° 6 – Col. San Fernando, La Herradura Huixquilucan, Edo
0 1-800-508-9000. [email protected] Philips Lighting Holding BV, 2018. All rights reserved.
FAQS
In the extension bollard, does it contain a t shaped connector? if not, where do you get them? already have the lily system installed.

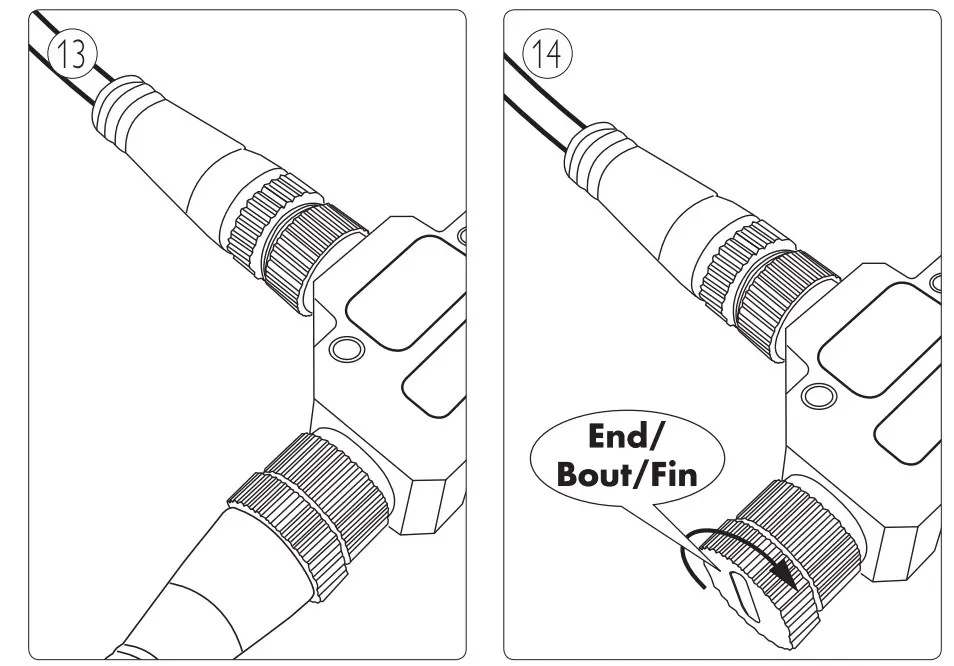

Yes, it comes with a T connector, bollard lamp, stake/spike, and extension cord. If you are purchasing multiple extensions, use the T connector from the last extension lamp to connect the first or base unit bollard to the chain. The base unit does not come with a T connector. The last lamp on the chain does not need the T connector as it’s cord can connect directly to its extension cable which connects to lamp n-1’s T connector. Ignore the video and literature that shows the final T connector capped on the downstream side at the final lamp.
How high of a temperature is this rated for?
113 F.
Are these light compatible with an existing low-voltage cable and power supply unit? Or will this require rewiring everything?
I had my original Hue transformer die when lightning hit the house. But I replaced it with a 250W 24v transformer. Instead of using 3 hue transformers, all 14 lights are running on one, with plenty of wattage to spare to add more units.
Is the power cord and supply proprietary? In other words, can I cut the extension cord and splice to a typical landscape wire?
You can splice the wires and connect to your 24v transformer. But this will void the warranty. I have spliced mine and it works fine.
Where do you get the connectors shown in manually to connect 5 of these together?
You WILL NOT get a t-connector with the CELLA light. There is no way to interconnect these lights without cutting and splicing. They simply are not available. I planned to string 5 CELLA lights together. After purchasing, unpacking, and throwing the original packaging out, I now find out the connectors cannot be obtained.
I believe this is a starter set. I need 2 of these. Do they sell without the whole set?
Each starter (base) can accommodate a total of 5 lights. But they’re having stock issues. Took me 4 months to get the base unit and 5 months for the extension units.
Is the cable allowed to be buried?
Yes, the cable is allowed to be and it is recommended. It is not recommended to bury the connector that links the lights together.
How many Lilly XLs can you attach to a single power supply?
I have 8 or them to one plug. No problems.
Can I change each light’s color individually?
Yes, through the Hue app.
Can this be used as a table lamp on my apartment balcony, or is it strictly for pathway lighting?
It could, but the light is not very heavy; you’ll need to secure it and route the wiring.
Can I use my own power supply? I have a hue base station. or asked another way are the smarts in the light?
There are two types of this light. The base and an extension. You need 1 base, which includes the power supply. Then you add extension lamps into the string. The smarts are in each light. You can control them individually but you only need the base lamp to be connected to power. All the rest feed in a string from the base lamp.
If I have a low-voltage transformer box already, can I splice these cables and plug them in to the transformer box or must I use a standard plug?
I’m not sure why you’d do that. These lights are expensive!
Can each Lily light in the same chain be controlled individually? In other words: one green, one blue, one purple, etc.
Yes, they can be individual colors.
Does this come with preset colors to mimic warm 2700k color? Or do you have to play around yourself on the color palate?
You can ask Siri for Warm White.

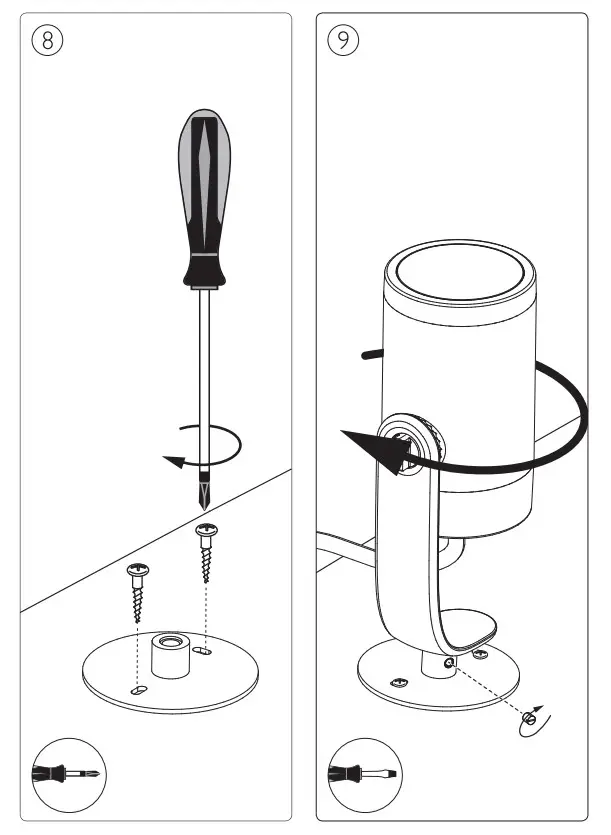

Can this be secured on a deck?
Yes, it can be on a deck with screws or a spike for the yard.
