WIRELESS PET IMMUNE MOTION DETECTOR Is a part of the U-Prox security alarm system
User manual
Manufacturer: Integrated Technical Vision Ltd.
Vasyl Lypkivsky str. 1, 03035, Kyiv, Ukraine

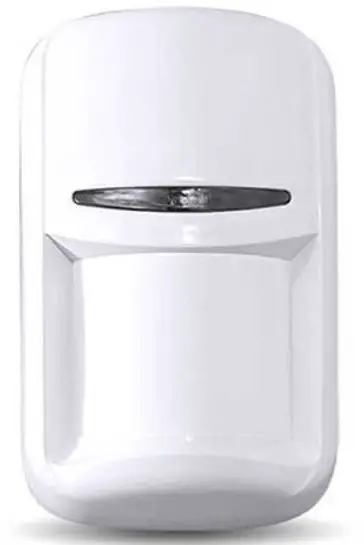

U-Prox PIR – is a wireless motion sensor equipped with a PIR-sensor and is designed for the security of any indoor residential or industrial premises.
When the thermal balance of the environment changes, the device sends an alarm notification to the U-Prox control panel.
For indoor use only.
The device is connected to the control panel and is configured with the U-Prox Installer mobile application.

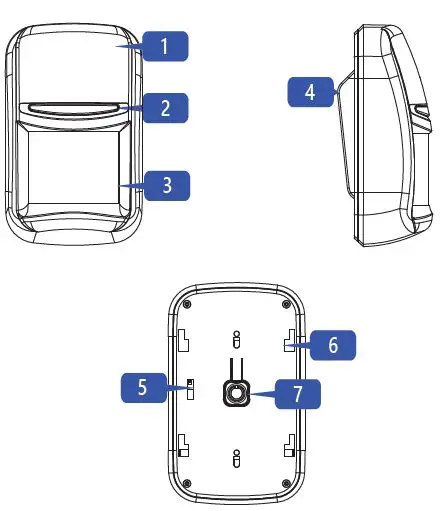

Functional parts of the device (see picture)
- Device case
- Light indicator of the operation modes
- Fresnel lens
- Bracket for mounting
- Tamper switch
- Back of the device
- Power button

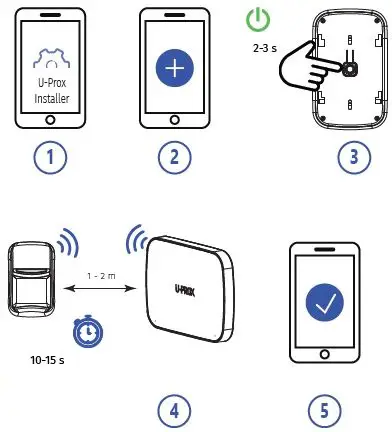

REGISTRATION

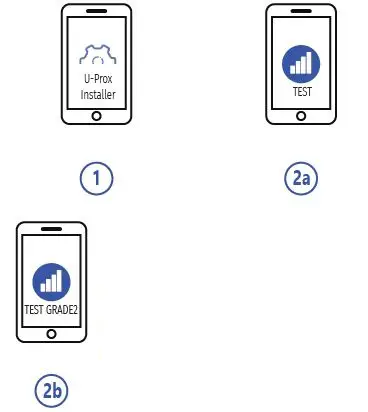

RANGE TEST FOR OPTIMAL INSTALLATION LOCATION
Due to Grade 2 requirement RF link works with reduction of power in 8 dB

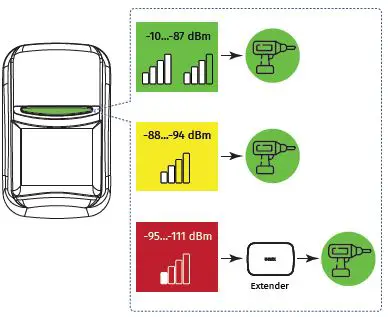

INDICATION IN RANGE TEST MODE

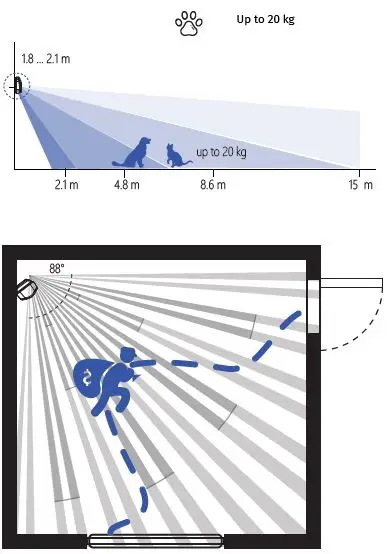

DEVICE PLACEMENT

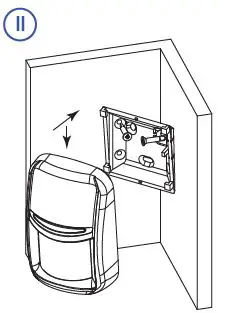

INSTALLATION
Wall bracket
Angle bracket

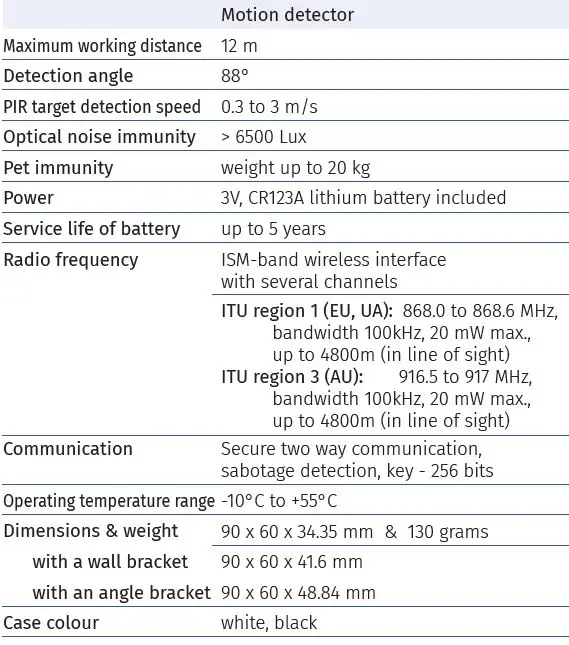

TECHNICAL SPECIFICATIONS
COMPLETE SET
- U-Prox PIR;
- CR123A battery (pre-installed);
- Wall bracket;
- Angle bracket;
- Mounting kit;
- Quick start guide
CAUTION. RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE USED BATTERIES ACCORDING TO THE NATIONAL REGULATIONS
WARRANTY
Warranty for U-Prox devices (except batteries) is valid for two years after the purchase date.
If the device operates incorrectly, please contact [email protected] at first, maybe it can be solved remotely
