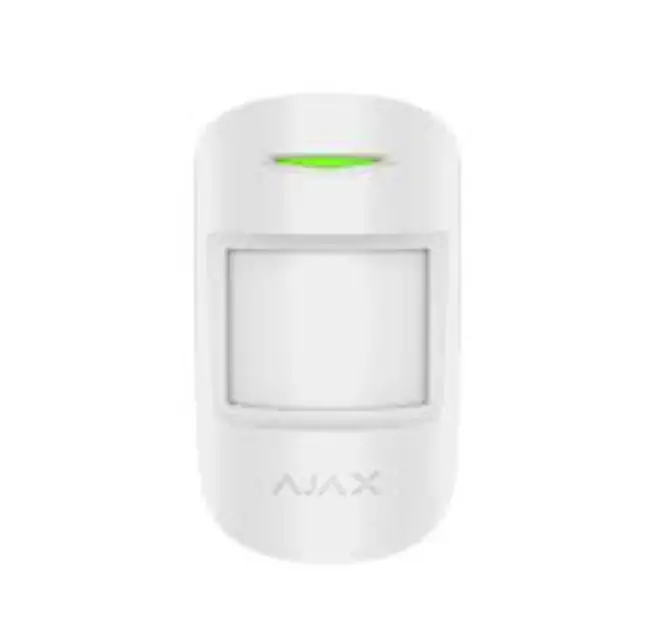

AJAX AJ-MOTIONPROTECT-W MotionProtect Wireless Pet Immune Motion

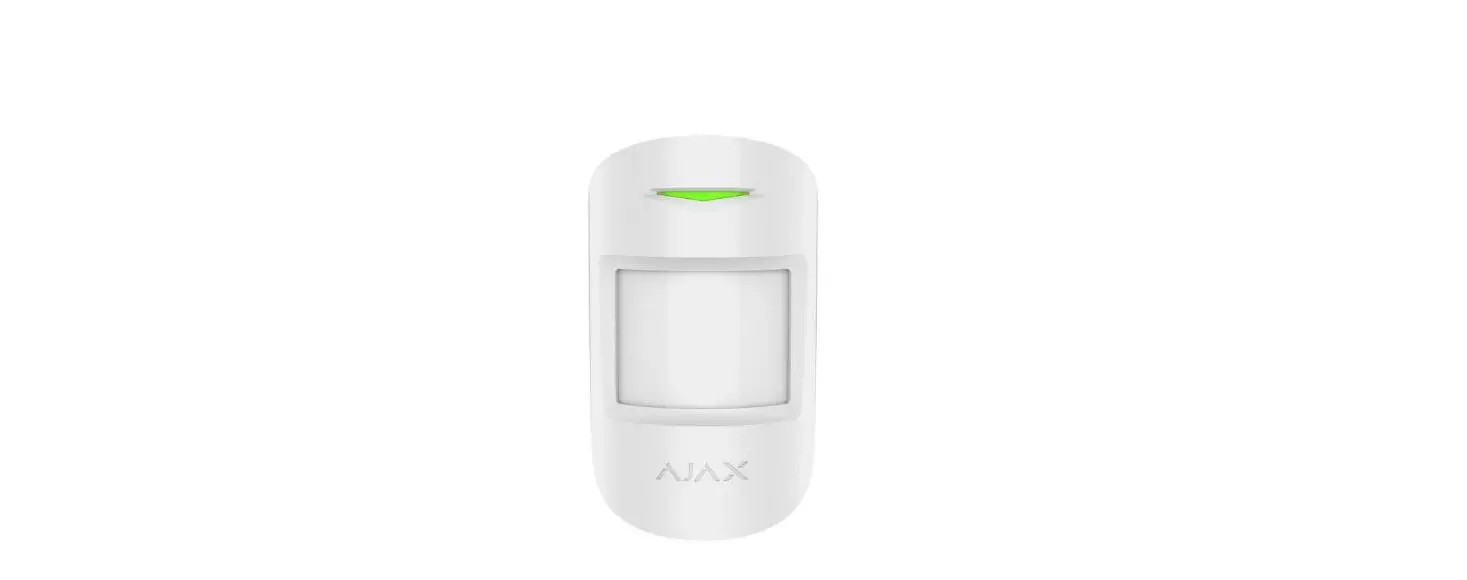

MotionProtect is a wireless motion detector designed for indoor use. It can operate for up to 5 years from an in-built battery, and monitors the area within 12-meter radius. Motion Protect ignores animals, while recognizes a human from the step.

MotionProtect Plus uses radio frequency scanning along with a thermal sensor, ltering interference from thermal radiation. Can operate up to 5 years from an in-built battery.

Buy motion detector with micrmicrowaowave sensor MotionProtect Plus

MotionProtect (MotionProtect Plus) operates within the Ajax security system, connected to the hub via the protected Jeweller protocol. The communication range is up to 1700 (MotionProtect Plus up to 1200) meters in the line of sight. In addition, the detector can be used as a part of third-party security central units via the Ajax uartBridge or Ajax ocBridge Plus integration modules.The detector is set up via the Ajax app for iOS, Android, macOS and Windows. The systemnoties user of all events through push notications, SMS and calls (if activated).
The Ajax security system is self-sustaining, but the user can connect it to the central monitoring station of a security company.

Buy motion detector MotionProtect

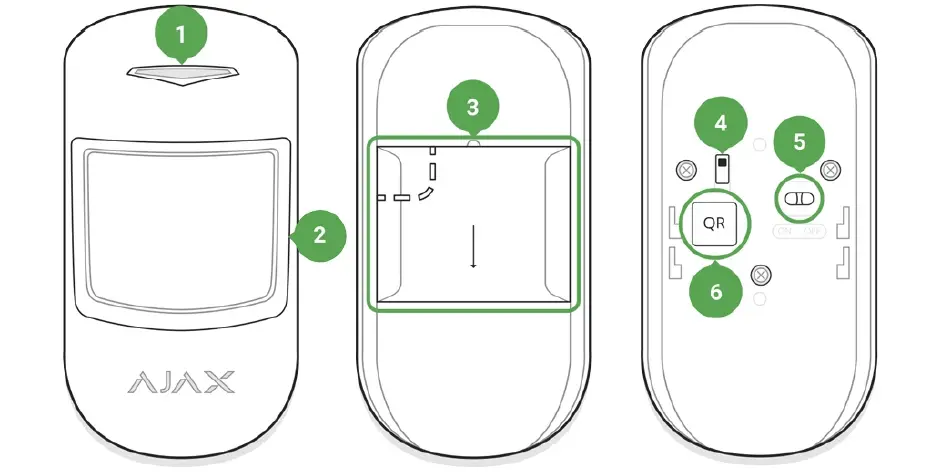

Functional Elements

1. LED indicator
2. Motion detector lens
3. Smart Bracket attachment panel (perforated part is required for actuating the tamper in case of any attempt to dismantle the detector)
4. Tamper button
5. Device switch
6. QR code

Operating Principle
Thermal PIR sensor of Motion Protect detects intrusion into protected room by detecting moving objects whose temperature is close to the temperature of the human body. However, the detector can ignore domestic animals if the suitable sensitivity has been chosen in the settings.
When the MotionProtect Plus detects motion, it will additionally carry out radio frequency scanning of the room, preventing false actuation from thermal interferences: air ows from sun-heated curtains and louvre shutters, operating thermal air fans, replaces, air conditioning units, etc.
After actuation, the armed detector immediately transmits an alarm signal to the hub, activating the sirens and notifying the user and security company.
If before arming the system, the detector has detected motion, it will not arm immediately, but during the next inquiry by the hub.
Connecting the Detector to the Ajax Security System
Connecting the Detector to the hub
Before starting connection:

1. Following the hub manual recommendations, install the add the hub to the application, and create at least one room.
2. Switch on the hub and check the internet connection (via Ethernet and/or GSM network).
3. Make sure that the hub is disarmed and does not update by checking its status in the app.

How to connect the detector to the hub:

1. Select the Add Device option in the Ajax application.

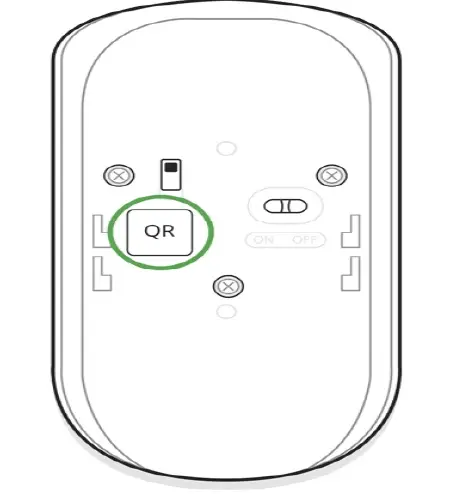

2. Name the device, scan/write manually the QR Code (located on the body and packaging), and select the location room.

3. Select Add — the countdown will begin.

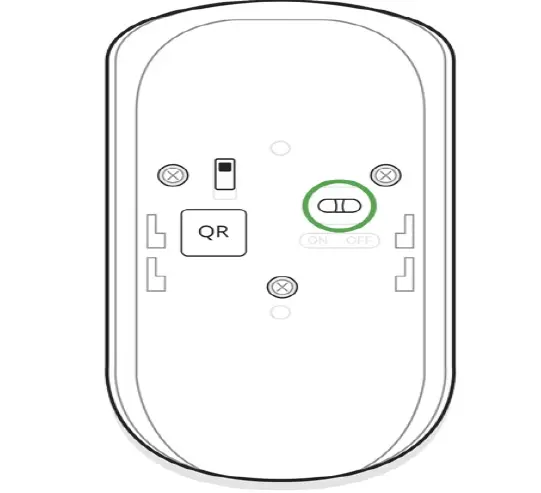

4.  Switch on the device.


For detection and pairing to occur, the detector should be located within the coverage of the wireless network of the hub (at a single protected object).
Request for connection to the hub is transmitted for a short time at the moment of switching on the device.
If the detector failed to connect to the hub, switch off the detector for 5 seconds and retry.
The connected detector will appear in the devices list in the application. Update of the detector statuses in the list depends on the device inquiry time set in the hub settings(default value is 36 seconds).
Connecting the Detector to Third Party security systems

To connect the detector to a third party security central unit with the integration module, follow the recommendations in the manuals of these devices.
States

1. Devices
2. Motion Protect | Motion Protect Plus

Settings

1. Devices
2. Motion Protect | Motion Protect Plus
3. Settings

First field                                                                                  Detector name, can be edited

Room                                                                                       Selecting the virtual room to which the device is assigned

Delay When Entering, sec                                                          Selecting delay time when entering

Delay When Leaving, sec                                                           Selecting delay time on exit

Delays in night mode Arm in night mode

Delay turned on when using night mode

If active, the detector will switch to armed mode when using night mode

Alarm LED indication

Allows you to disable the flashing of the LED indicator during an alarm. Available for devices with firmware version 5.55.0.0 or higher

support@ajax.systems

Sensitivity

Choosing the sensitivity level of the motion sensor.

For MotionProtect:

High — for premises with a minimum amount of obstacles, motion is detected as quickly as possible

Medium — for premises with potential obstacles (windows, air conditioner, heating element, etc)

Low — ignore pets weighing up to 20 kg and up to 50 cm tall

For MotionProtect Plus:

 High — the detector disregards cats (under 25 cm)

Medium — disregards small dogs (under 35 cm)

Low — disregards animals under 50 cm.

Always active

Alert with a siren if motion detected

If active, the detector always registers motion

If active, sirens added to the system are activated when the motion detected

Jeweller Signal Strength Test  Switches the detector to the signal strength test mode

Detection Zone Test  Switches the detector to the detection area test

Attenuation Test

Switches the detector to the signal attenuation test mode (available in detectors with firmware version 3.50 and later)

Allows the user to disconnect the device without removing it from the system.

Two options are available:

Entirely — the device will not execute system commands or participate in automation scenarios, and the system will ignore device alarms and other notifications

Temporary Deactivation

Lid only — the system will ignore only notifications about the triggering of the device tamper button

Learn more about temporary deactivation of devices

The system can also automatically disable devices when the set number of alarms is exceeded.

Learn more about auto deactivation of devices

Before using the detector as a part of the security system, set up the suitable sensitivity level.
Switch the Always Active if the detector is located in a room requiring 24-hour control. Regardless of whether the system is set in the armed mode, you will receive notices of any detected motion.
If any motion is detected, the detector activates the LED for 1 second and transmits an alarm signal to the hub and then to the user and central monitoring station (if it is connected).
Detector operation indication

Detector Testing

The Ajax security system allows conducting tests for checking the functionality of connected devices.
The tests do not start immediately but within a period of 36 seconds when using the standard settings. The time of the start depends on the settings of the detector polling period (the paragraph on Jeweller settings in the hub settings).
Jeweller Signal Strength Test

Detection Zone Test

Attenuation test

Device installation
Selection of the Detector Location

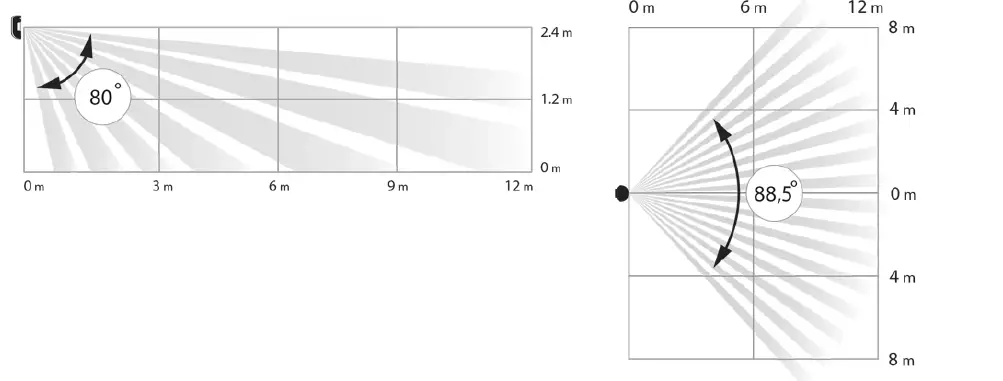

The controlled area and the eciency of the security system depends on the location of the detector.

Location of Motion Protect depends on the remoteness from the hub and presence of any obstacles between the devices hindering the radio signal transmission: walls, insertedoors, large-size objects located within the room.

If the signal level is at one bar, we cannot guarantee stable operation of the security system. Take all possible measures to improve the quality of the signal! As a minimum, move the device – even 20 cm shift can signicantly improve the quality of reception.If after moving the device still has a low or unstable signal strength, use the range extender.

Make sure that any furniture, domestic plants, vases, decorative or glass structures do not block the eld of view of the detector.

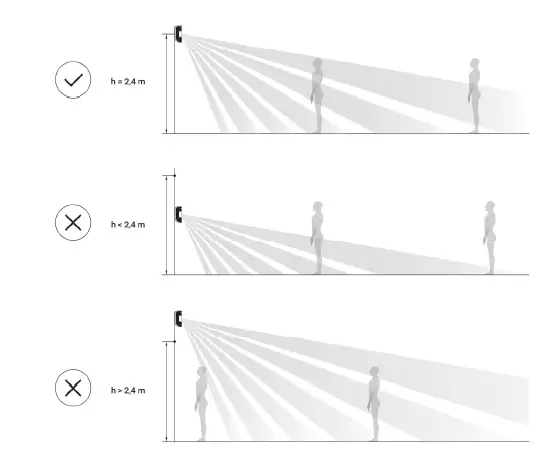

We recommend installing the detector at the height of 2,4 meters.
If the detector is not installed at the recommended height, this will reduce the area of the motion detection zone and impair the operation of the function of ignoring animals.

Why motion detectors react to animals and how to avoid it

Installation of the Detector

The Ajax MotionProtect detector  (MotionProtect Plus) should be attached to a vertical surface or in the corner.

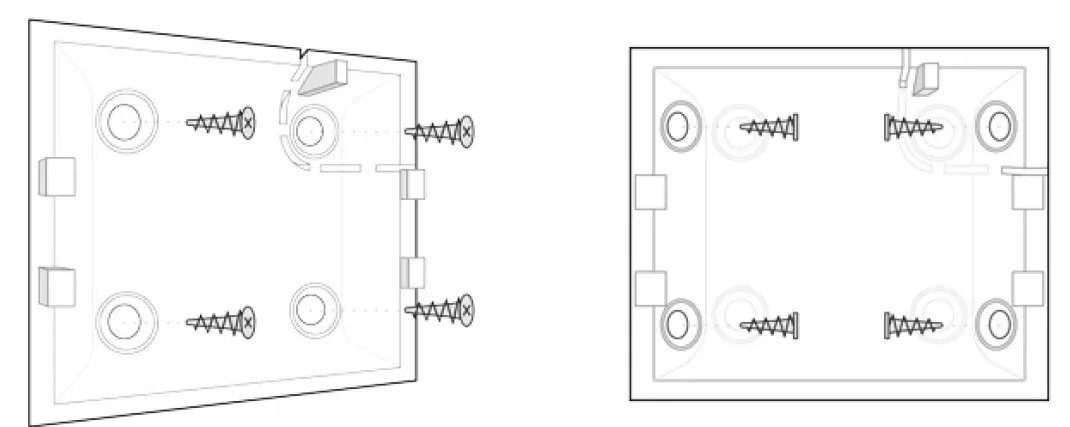

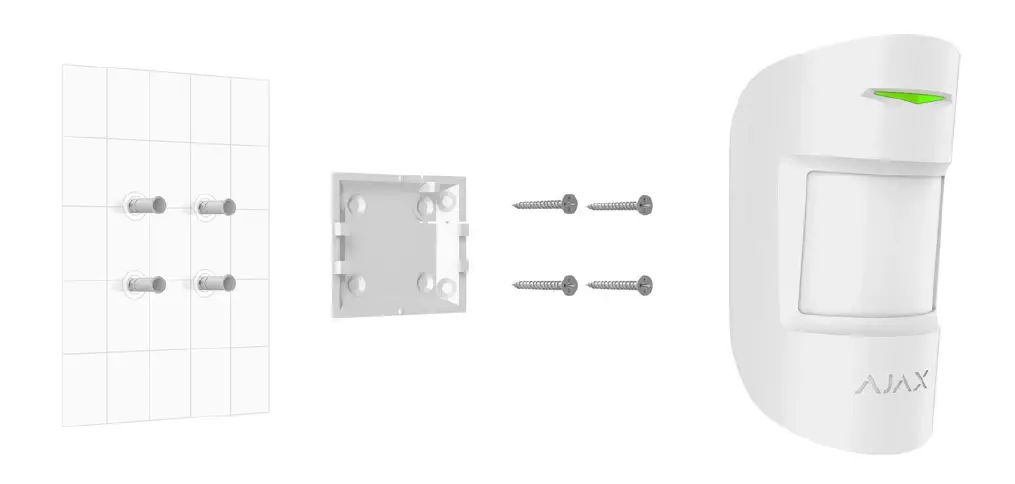

1. Attach the SmartBracket panel to the surface using bundled screws, using at least two xing points (one of them – above the tamper). After selecting other attachment screws, make sure that they do not damage or deform the panel.The double-sided adhesive tape may only be used for temporary attachment of the detector. The tape will run dry in the course of time, which may result in the falling of the detector and actuation of the security system. Furthermore, hitting can damage the device.
2. Put the detector on the attachment panel. When the detector is xed in SmartBracket, it will blink with an LED – this will be a signal that the tamper on the detector is closed.If the LED indicator of the detector is not actuated after installation in SmartBracket, check the status of the tamper in the Ajax Security System application panel. If the detector is torn off from the surface or removed from the attachment panel, you will receive the notification.

Do not install the detector:

1.  outside the premises (outdoors)
2.  in the direction of the window, when the detector lens is exposed to direct sunlight (you can install MotionProtect Plus)
3. opposite any object with the rapidly changing temperature (e.g., electrical and gas heaters)(you can install MotionProtect Plus)
4. opposite any moving objects with a temperature close to that of the human body (oscillating curtains above the radiator) (you can install MotionProtect Plus)
5.  at any places with fast air circulation (air fans, open windows or doors) (you can install MotionProtect Plus)
6.  nearby any metal objects or mirrors causing attenuation and screening of the signal
7. within any premises with the temperature and humidity beyond the range of permissible limits
8. closer than 1 m from the hub.

Detector Maintenance
Check the operational capability of the Ajax MotionProtect detector on a regular basis.
Clean the detector body from dust, spider webs and other contaminants as they appear. Use soft dry napkin suitable for equipment maintenance.

Do not use any substances containing alcohol, acetone, gasoline and other active solvents for cleaning the detector. Wipe the lens very carefully and gently – any scratches on the plastic may cause reduction of the detector sensitivity.
The pre-installed battery ensures up to 5 years of autonomous operation (with the inquiry frequency by the hub of 3 minutes). If the detector battery is discharged, the security system will send respective notices and the LED will smoothly lights up and goes out, if the detector detects any motion or if the tamper is actuated.
How long Ajax devices operate on batteries, and what affects this

Battery Replacement

Tech specs

Tamper protection      Yes

Frequency band

868.0 – 868.6 MHz or 868.7 – 869.2 MHz,

depending on the sales region

Compatibility

Operates with all Ajax hubs, range extenders, ocBridge Plus, uartBridge

Maximum RF output power    Up to 20 mW

Modulation of the radio signal GFSK

Up to 1700 m (any obstacles absent)

Radio signal range

(Motion Protect Plus up to 1200 m)

Power supply  1 battery CR123A, 3 V

Battery life  Up to 5 years

Installation method     Indoors

Operating temperature range   From -10°С to +40°С

Operating humidity    Up to 75%

Complete Set

1. MotionProtect (MotionProtect Plus)
2. SmartBracket mounting panel
3. Battery CR123A (pre-installed)
4. Installation kit
5. Quick Start Guide

Warranty
Warranty for the “AJAX SYSTEMS MANUFACTURING” LIMITED LIABILITY COMPANY products is valid for 2 years after the purchase and does not apply to the pre-installed battery.
If the device does not work correctly, you should  contact the support service—in half of the cases, technical issues can be solved remotely!

The full text of the warranty

User Agreement

Technical support: support@ajax.systems
