Wybot Wy1102 Robotic Pool Floor Cleaner User Manual

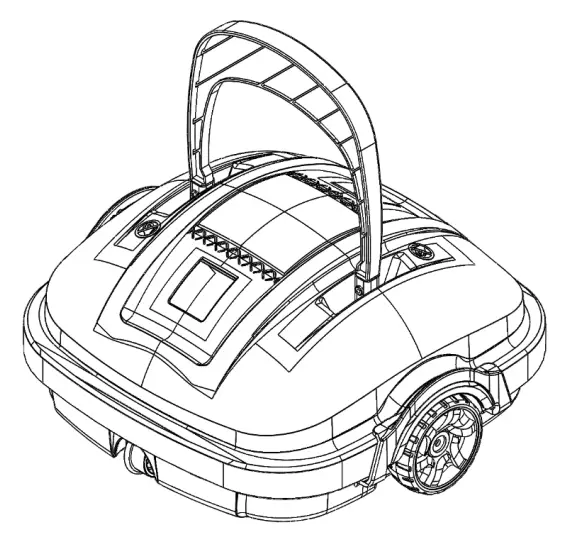

WYBOT WY1102 Robotic Pool Floor Cleaner

READ AND KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
Thank you for purchasing WYBOT Robotic Pool Cleaner. If you have any question or issue, please contact us for customer service.

LIMITED WARRANTY

WYBOT, owned by TIANJIN WANGYUAN ENVIRONMENTAL PROTECTION & TECHNOLOGY CO., LTD, makes products at the best quality we can offer. All WYBOT products have been inspected against defects in materials and workmanship prior to leaving factory. WYBOT is happy to offer warranty for the repair or replacement of pool products for one (1) year, only covering battery, motor and PCB from the date of purchase. The provisions of this Limited Warranty only apply to the original purchaser. Please keep your original sales receipt, as this proof of purchase will be required and must accompany warranty claims to WYBOT or its designated agents. This Limited Warranty does not apply without proof of purchase; or should the purchaser modify or repair the product themselves or by unauthorized people; use non-WYBOT parts or accessories with the product; use the product in contravention of the manufacturer’s instructions; use improper voltage; abuse the product in any way; or through accident or negligence. This Limited Warranty will not cover consequential damages, including claims for normal wear-and-tea or any Act of God outside the control of WYBOT. Nonmanufacturing defects, such as grasses that may grow through the ground cloth and/or pool liner are examples of which WYBOT cannot hold responsible for.
IN NO EVENT SHALL WYBOT, ITS AUTHORIZED AGENTS, RELATED ENTITIES, OR EMPLOYEES BE LIABLE TO THE BUYER OR ANY OTHER PARTY FOR DIRECT OR CONSEQUENTIAL DAMAGES. Some states or countries, or other jurisdictions, do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
This Limited Warranty is not extended to close-outs, factory seconds, or resold products (i.e., garage sales, online auctions, or online retailers not purchased directly from WYBOT). Any issue with items purchased from these types of vendors/sellers will need to be addressed through these stores.

Scan QR code to watch setup video:

IMPORTANT SAFETY INSTRUCTIONS

READ AND FOLLOW ALL INSTRUCTIONS

1. Read the manual carefully, and use the cleaner according to the manual. We are not liable for any loss or injury caused by improper use.
2. Only use the accessories recommended or sold by the manufacturer.
3. This model only applies to swimming pools with a flat floor.
4. Do not allow children to ride on the cleaner or play with it as a toy.
5. Use the original and authorized charging adapter only.
6. The adapter cord should only be repaired or replaced by a qualified electrician.
7. Do not turn on the cleaner when it is out of water.
8. The charging adapter must be connected to a leakage protected and earthed socket when charging.
9. Do not operate the cleaner when there are people in the pool.
10. Always clean and wash the filter tray after use.
11. Turn off the cleaner when maintaining, cleaning or when it is not in use.
12. The cleaner should be stored in a cool and ventilated place, away from direct sunshine.
13. While charging, the cleaner should be kept in a cool place, and not be covered with anything to prevent the damage of internal electrical components caused by overheating.
14. Only certified professionals can disassemble the sealed driving kit of the cleaner.
15. Do not operate the cleaner while pool filter is running.
16. Oil seals for motor contain grease, which may cause water pollution if grease leaks occur.
17. Due to the limitation of battery capacity, the cleaner is only suitable for swimming pools with size up to 500 ft² (46.4m²), otherwise the cleaning effect will be affected.
18. When the cleaner is stored for a long period of time, it should be charged every three months to maintain battery life between 40%-60%. Please use the original and authorized charging adapter only. If the cleaner is not charged for a long time, the battery voltage will be lower than the overdischarge protection voltage due to the self-discharge of the battery, which may cause fatal damage.
19. Do not use or store the cleaner near any heat source.
20. Do not pierce the shell of the cleaner with nails or other sharp objects. Do not hammer, impact, or throw the cleaner
21. Make sure the charging socket is dry before charging.

SAVE THESE INSTRUCTIONS

Introduction

The environmentally-friendly robotic pool cleaner WY1102 is a new type of rechargeable automatic cleaner that filters the pool water and gets rid of particles without replacing the pool water.

Packing List

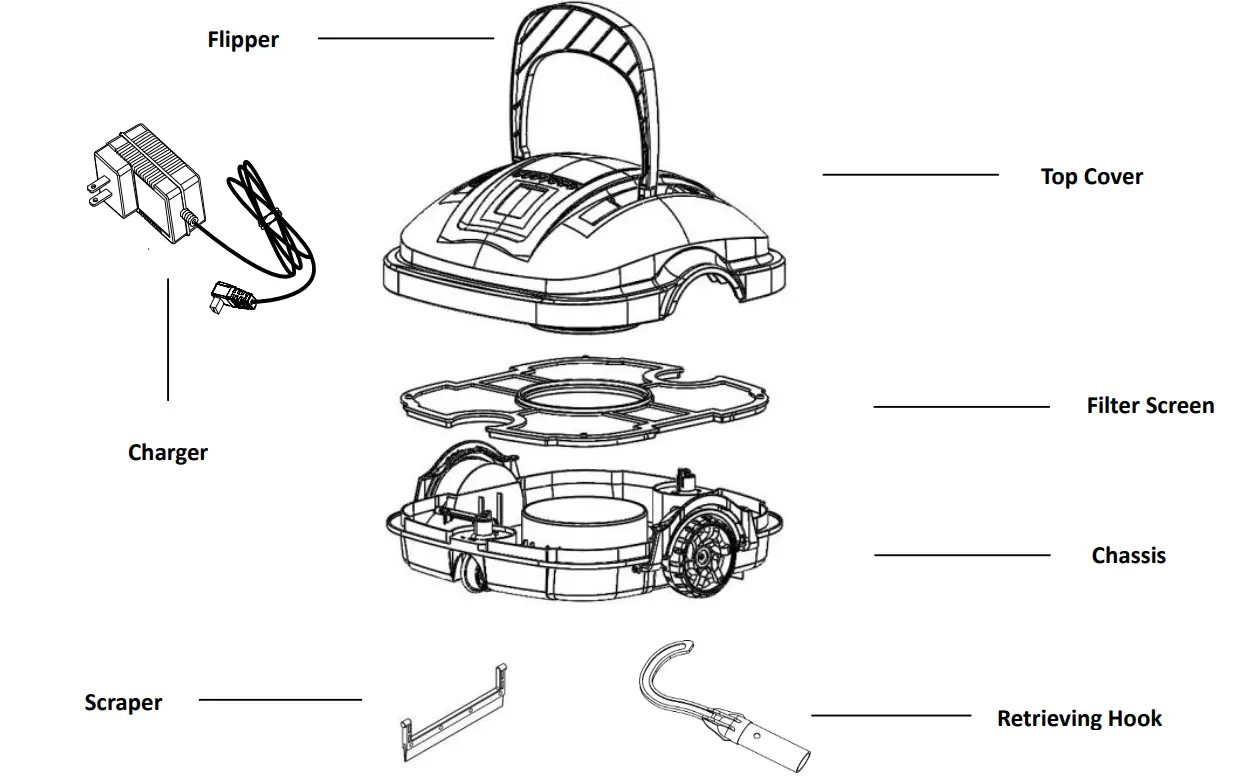

Product Diagram

Specifications

Operation Instructions

Assembly before use

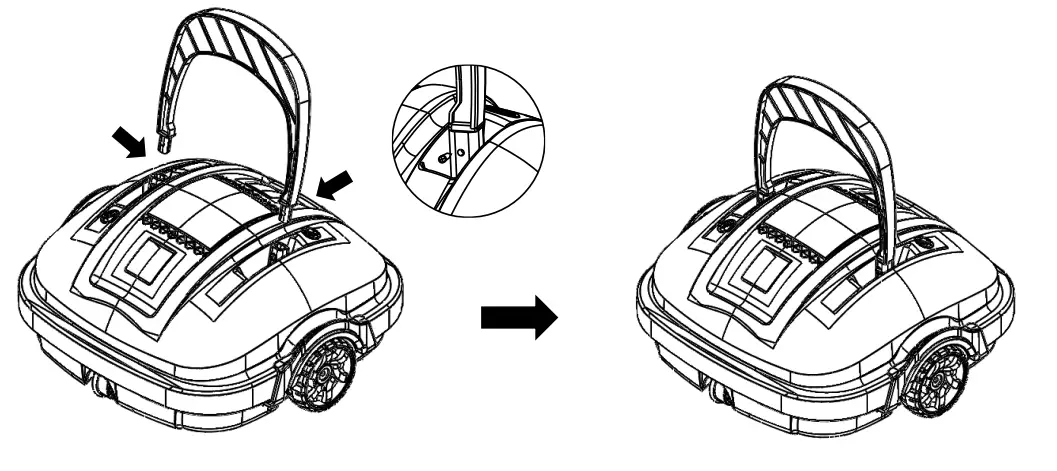

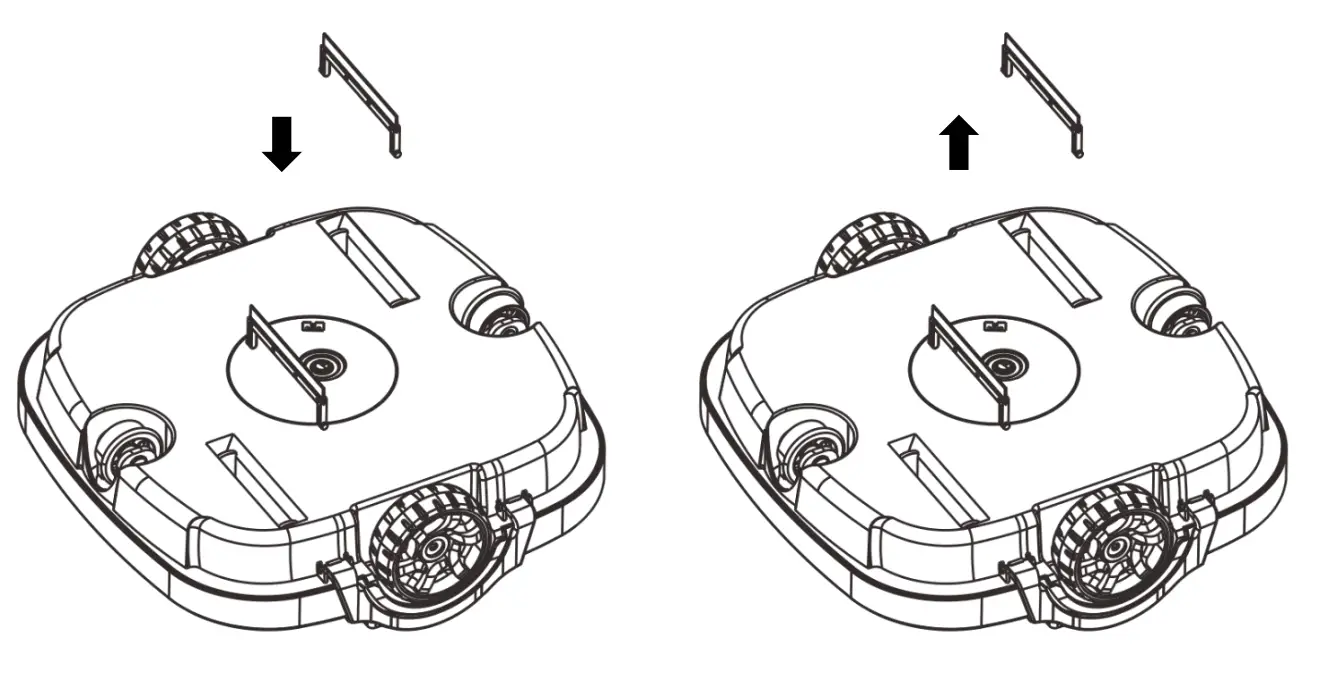

1. Attach the flipper and fix it with the screws provided.

   Note: The installation direction of 2 screws is opposite.
2. Install the scrapers to enhance suction effect if the pool floor is full of debris or particles. It is not recommended to install the scrapers if the pool bottom is uneven or full of pits, which avoids the cleaner from getting stuck by the rough floor.

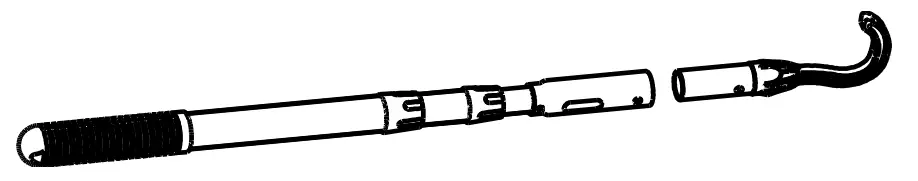

3. Attach the retrieving hook to a standard pool pole (not included).


To use the robotic cleaner

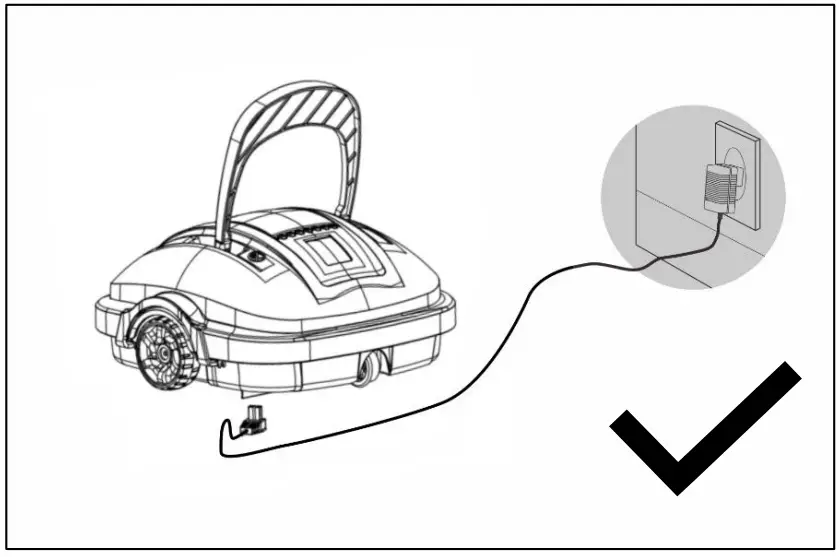

1. Charge the battery Fully charge the cleaner before each use. Attach the charging connector to the charging socket at the bottom of the cleaner. Place the cleaner in its upright position and, then plug the charger into the main electrical outlet. The indicator lamp on the charger shall turn red when charging. It should turn green once fully charged.
   NOTE: The robotic cleaner must be charged indoor.
   NOTE: It is strictly forbidden to face the bottom up to prevent the swing plate from being crushed when charging.
   NOTE: Clean and dry the charging socket before charging.

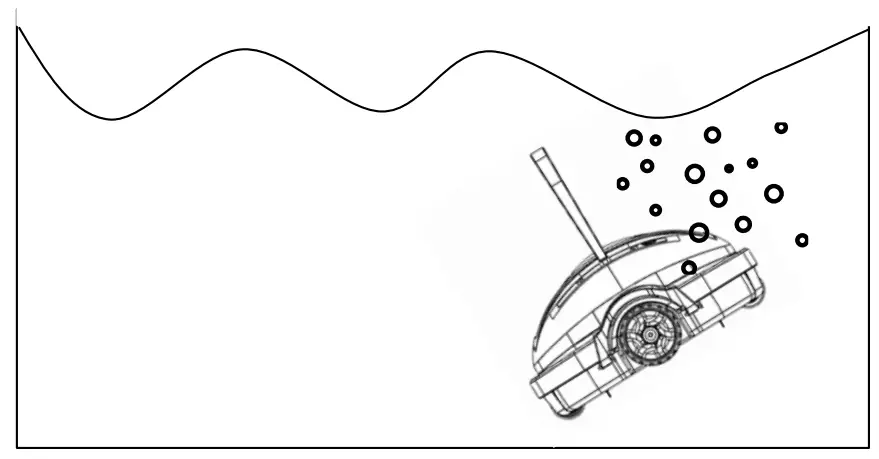

2. Purge out the air Hold the robotic cleaner with two hands and submerge it into the pool. Rotate the cleaner until no air bubble is coming out.

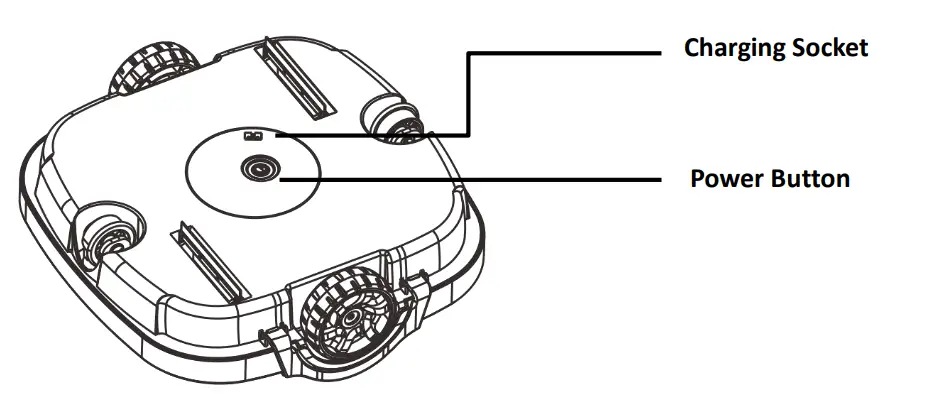

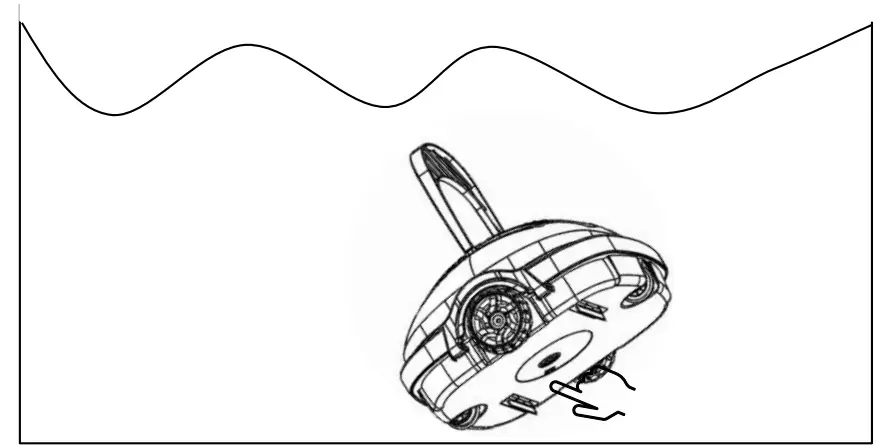

3. Turn on the power While keeping the entire robotic cleaner underwater, switch on the product by pressing the power button located at the bottom. Water will begin to flow out from the nozzle after 5 second

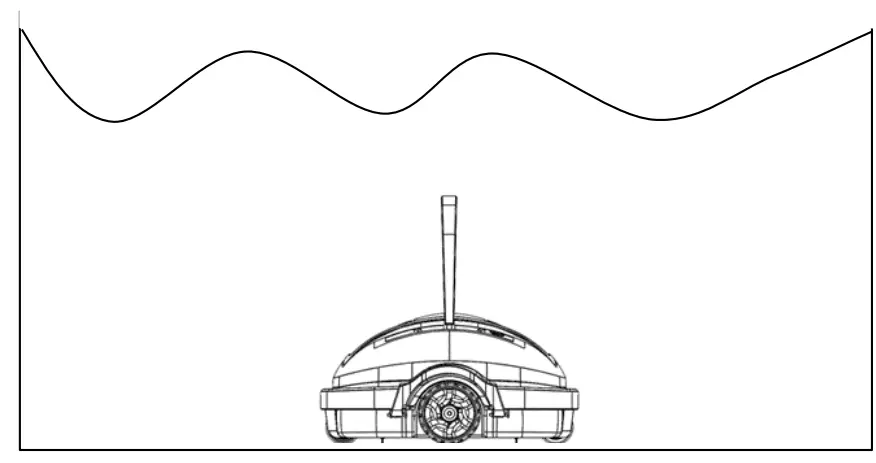

4. Release the cleaner Hold the robotic cleaner in its upright position and slowly release the product. The product shall slowly sink to the pool floor. In case the cleaner is flipped upside down, use the floating handle to correct its orientation.

5. Let it clean The robotic cleaner shall run around the pool floor and vacuum the debris automatically for max. 60 minutes. It will automatically reverse when it touches the wall. The cleaner will move to the pool wall automatically and stop running when it runs out of battery
6. Retrieve the cleaner To retrieve the robot, grasp the flipper and pull it out of the water and away from the pool. Power off the robot. Use the retrieving hook if needed.

Clean after use

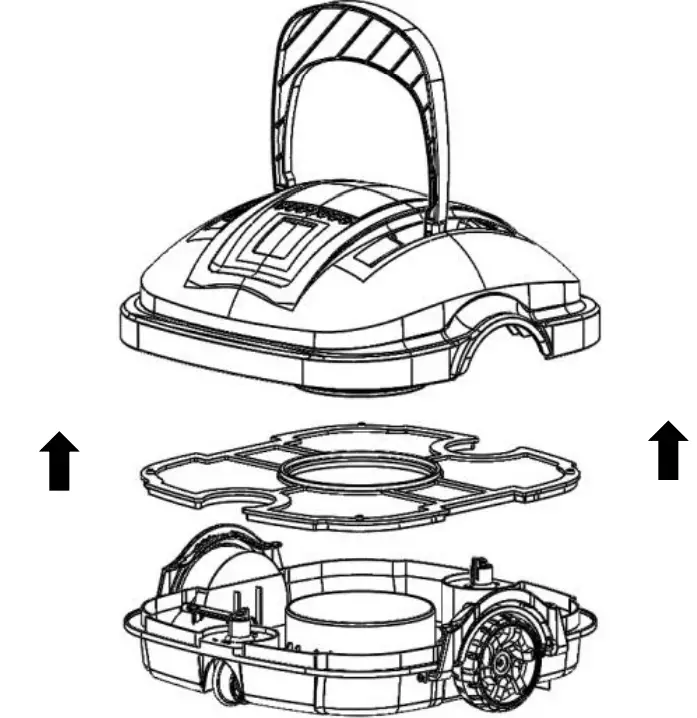

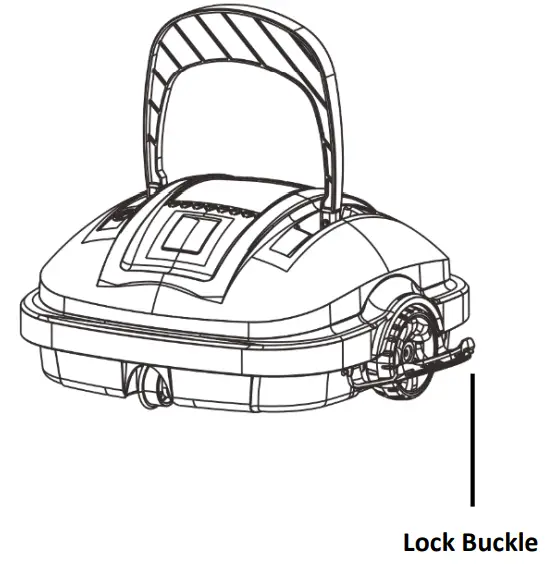

1. Open all lock buckles, detach the top cover, and remove the filter screen.

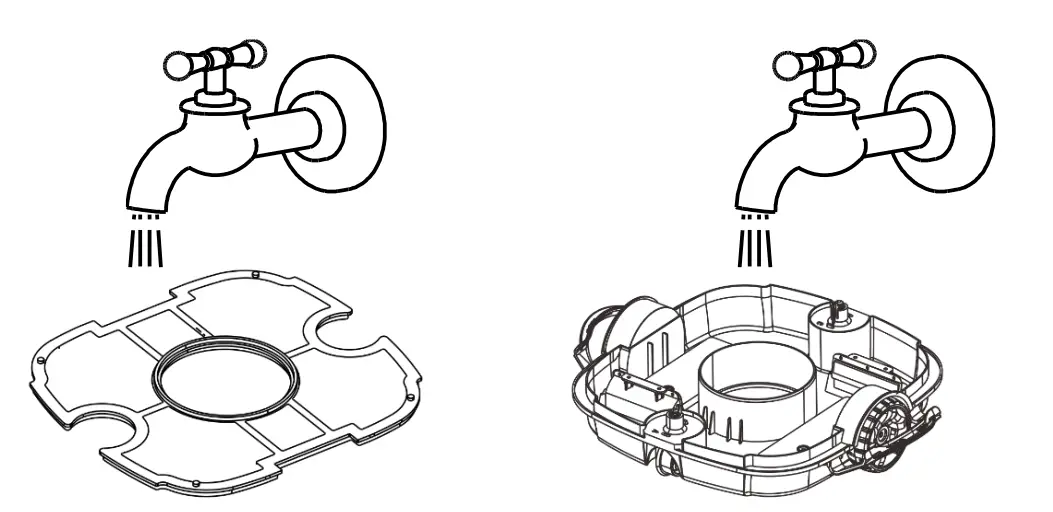

2. Rinse off all the dirt and debris with running water.

3. Wipe the robotic cleaner with a clean cloth and let it air dry. 8

To adjust the running pattern

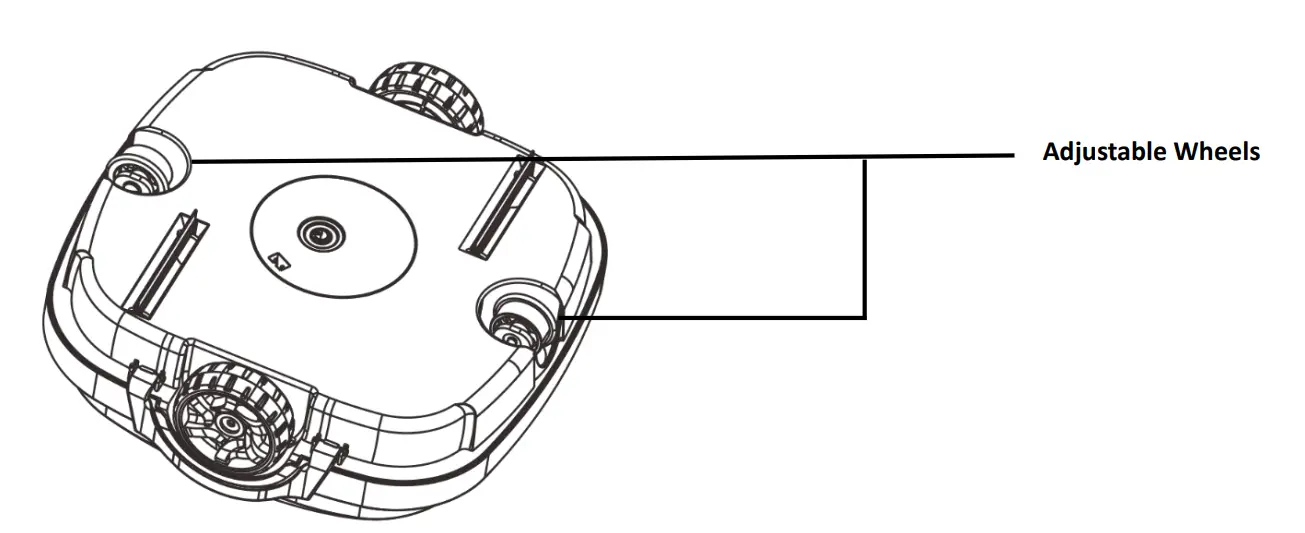

1. This robotic cleaner comes with 2 adjustable wheels. By modifying the combination of these 2 adjustable wheels, it will change the running pattern of the cleaner.

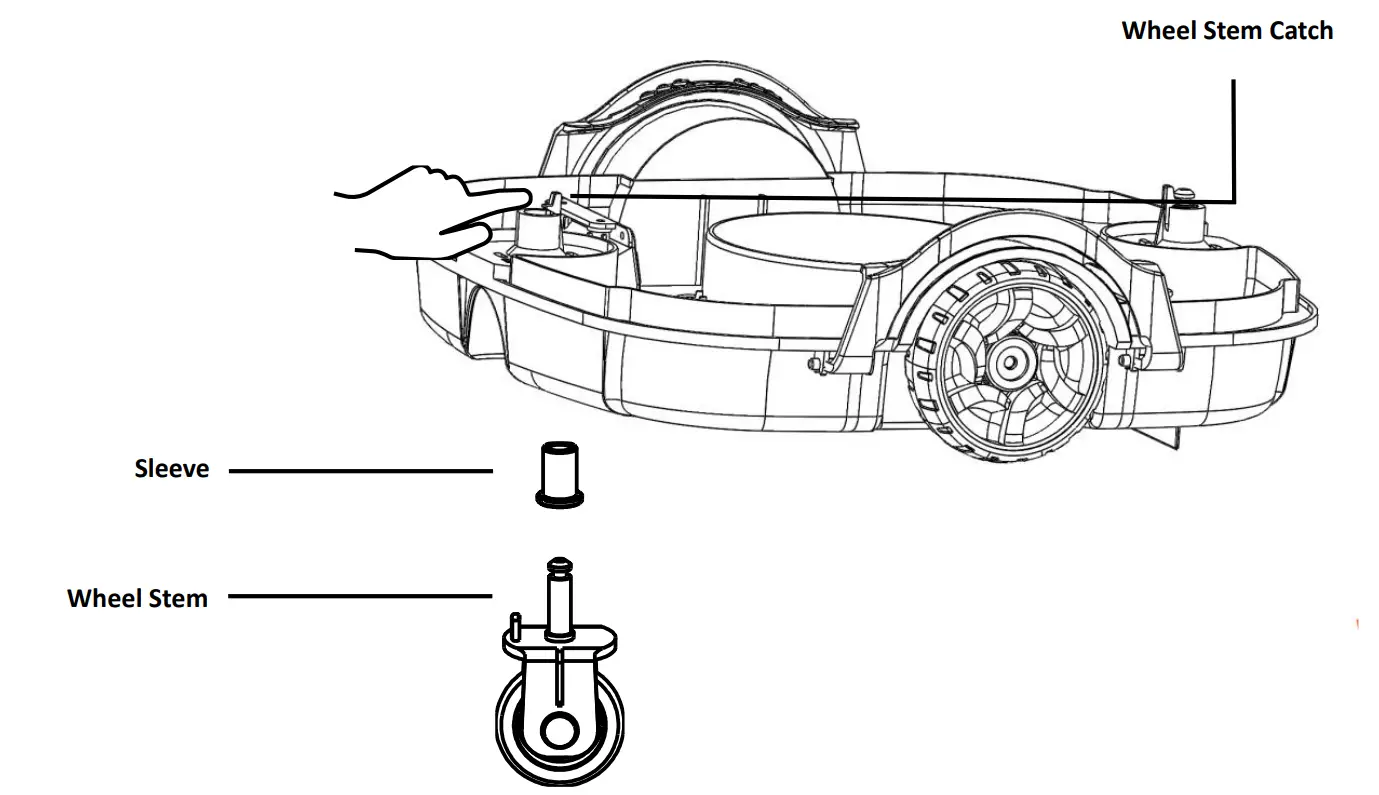

2. To adjust the wheel, open the lock buckles and remove the top cover. Locate the 2 adjustable wheels. Detach the wheel by pushing the wheel stem catch. Select the correct combination and insert the wheel until the catch clicks.

3. Combinations:

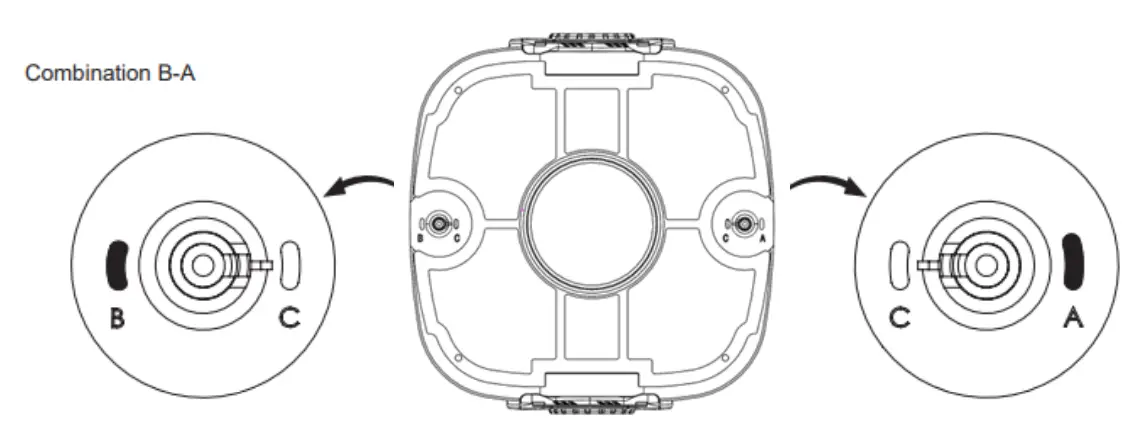

   A ­ C for most types of pool (factory setting)
   B ­- C Smaller rebounding angle than A ­- C
   C -­ C Minimum maneuvering (For rectangular or longer pool)
   A -­ B For round pools
