Karcher 1.324-550.0 K 5 Power Control Pressure Washer Instruction Manual

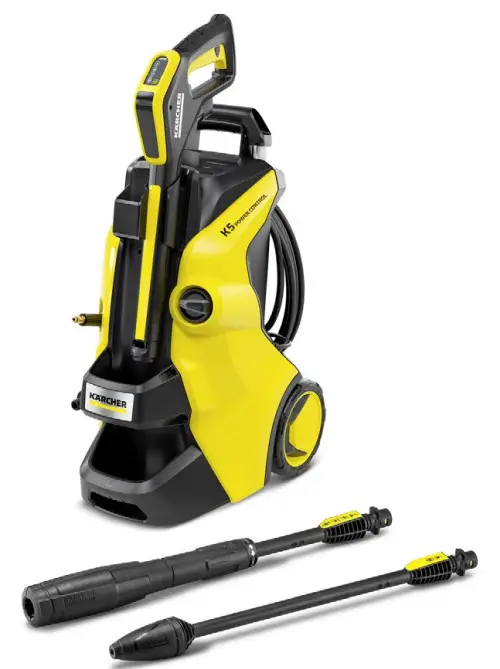

K 5 Power Control

For even greater control: The K 5 Power Control pressure washer with application consultant via app, G 160 Q Power Control spray gun, Vario Power sprays lance, and Kärcher  Plug ‘n’ Clean system.

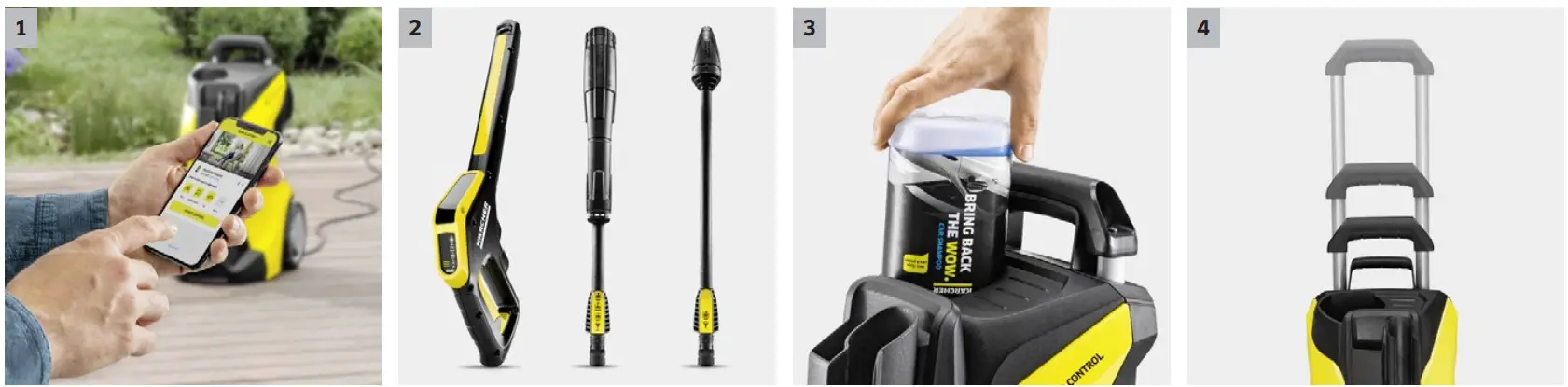

1. Home & Garden app
   The Kärcher Home & Garden app makes you a cleaning expert.
   Make use of our extensive Kärcher knowledge for the perfect cleaning results.
2. Power Control spray gun and Quick Connect spray lances
   The optimal setting for every surface. Three pressure settings and one detergent setting.
   Full control – the manual display shows the settings that have been set.
3. Plug ‘n’ Clean – the Kärcher detergent system
   Innovative insertion system for Kärcher detergent bottles.
   For the quick, convenient, and comfortable application of detergents with the pressure washer.
4. Telescopic handle made from high-quality aluminum
   Can be adapted to people of different heights.
   The height of the telescopic handle can be adjusted by pulling.

TECHNICAL DATA AND EQUIPMENT

Power Control spray gun with pressure level display
Maximum stability thanks to low center of gravity, hose guide, and larger base
Highly efficient water-cooled motor

Technical data

Equipment
High-pressure spray gun	G 160 Q Power Control	Soft bag
Vario Power Jet
Dirt Blaster
High-pressure hose m	10
Quick Connect on the side of the device
Detergent application via	Plug ‘n’ Clean system
Water suction
Integrated water filter
A3/4″ garden hose connector adapter
Telescopic handle
Water-cooled motor
Included in the scope of supply.

K 5 POWER CONTROL
1.324-550.0

		Order no.					Price	Description

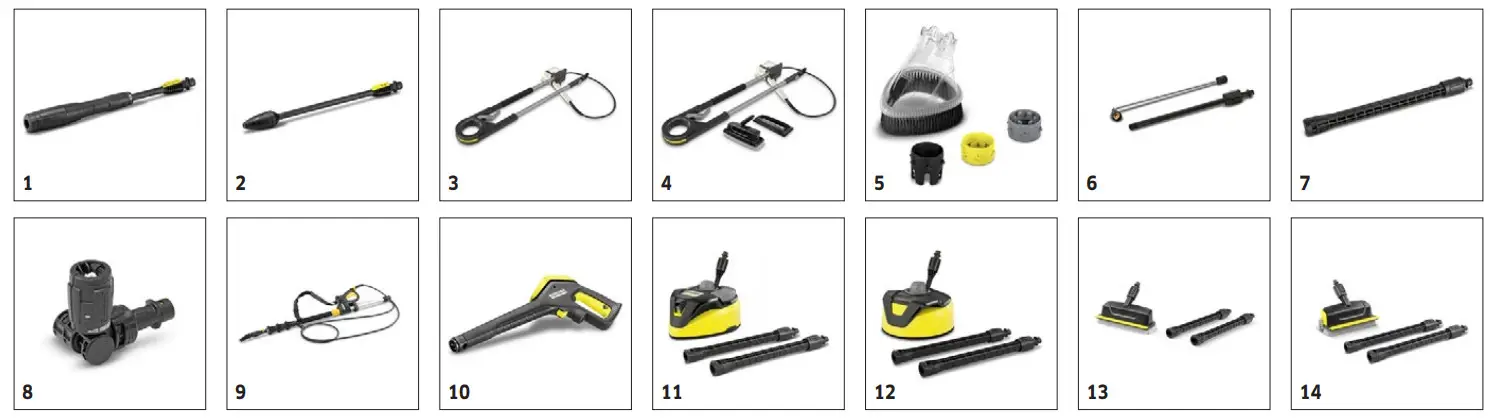

Spray lances
VP 145 Vario power jet for K 4-K 5	1	2.642-725.0						Vario power sprays lance for pressure washers in classes K 4 to K 5. Continuously adjustable from low-pressure detergent jet to high-pressure jet, simply by turning the spray lance.
DB 145 dirt blaster for K 4-K 5	2	2.642-728.0						Dirt blaster with powerful middle rotary nozzle for Kärcher pressure washers in classes K 4 and K 5. For particularly stubborn dirt like that on mossy or weathered surfaces.
TLA 4 telescopic spray lance	3	2.644-190.0						Simple cleaning at (almost) every point: The telescopic spray lance easily reaches areas that are difficult to access thanks to its 180° adjustable hinge.
Façade & glass cleaning kit	4	2.644-249.0						Set comprising the telescopic spray lance TLA 4 and the façade and glass cleaning attachment. For easy cleaning of objects that are difficult to access such as house façades or conservatories.
Splash guard	5	2.642-706.0						Transparent splash guard for class K 2 to K 7 Kärcher pressure washers protects the operator and surrounding area from spray water. Ideal for cleaning corners and edges.
Angled spray lance	6	2.638-817.0						Extra-long angled spray lance (about 1 m) for easy cleaning of difficult-to-reach areas, e.g. roof gutters or vehicle under-bodies.
1-step lance extension	7	2.643-240.0						Extends spray lance by 0.4 m. For effective cleaning of difficult-to-reach areas. Suitable for all Kärcher accessories.
VP 180 S Vario power jet short 360° for K 2-K 7	8	2.643-254.0						VP 180 S: The Vario power jet short 360° with infinitely variable pressure regulation and adjustable 360° joint is ideal for cleaning areas that are difficult to reach.
Telescopic spray lance	9	2.642-347.0						Telescopic spray lance (1.20 m – 4 m) for easy cleaning of difficult-to-reach areas. With shoulder strap, bayonet connection and integrated, ergonomically adjustable trigger gun. Weight: ca. 2 kg
Trigger guns
G 145 Q gun	10	2.643-634.0						High-pressure gun with LED display for the display of different pressure stages and the cleaning agent mode. With Quick Connect. For Kärcher Power Control and Full Control pressure washers in classes K 4 to K 5.
Surface cleaners
T 7 Plus T-Racer surface cleaner	11	2.644-074.0						Power nozzle for ultimate cleaning power, even in corners and along edges: The T 7 Plus T-Racer surface cleaner with rinse function – for effective and splash-free cleaning of large areas.

K 5 POWER CONTROL
1.324-550.0

		Order no.					Price	Description

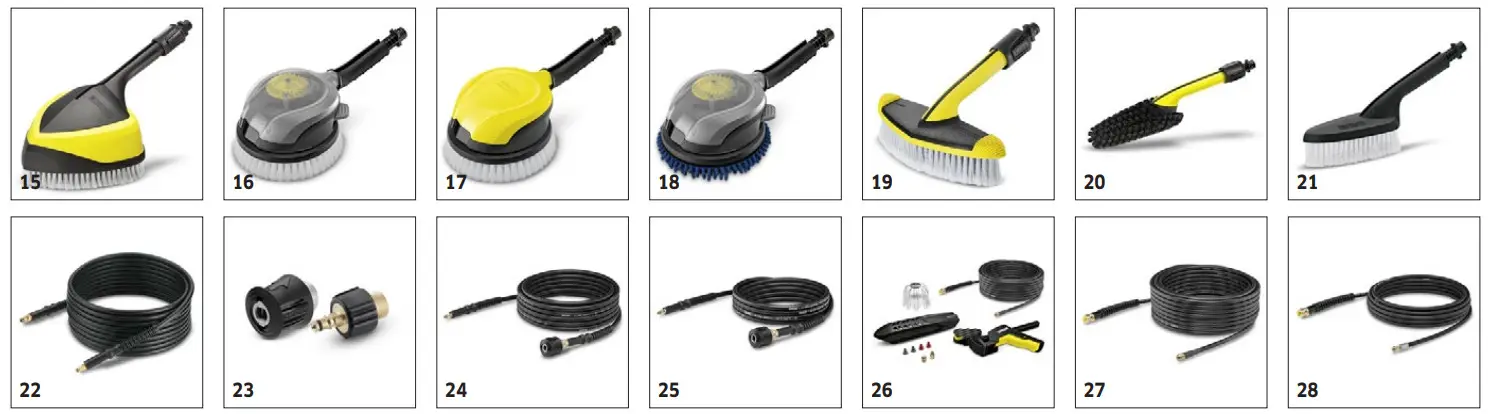

Brushes
WB 150 power brush	15	2.643-237.0						WB 150 power brush for splash-free cleaning of sensitive surfaces. The effective combination of high pressure and manual brush pressure saves energy, water, and up to 30% time.
WB 120 rotating wash brush	16	2.644-060.0						Rotating wash brush with interchangeable attachment for cleaning all smooth surfaces such as paint, glass, or plastic. Quick and easy attachment changing thanks to the integrated release lever.
Rotating wash brush	17	2.644-061.0						Ideal for cleaning smooth surfaces such as paint, glass, or plastic: The rotating wash brush with interchangeable at- tachment.
WB 120 rotating wash brush car & bike	18	2.644-129.0						Gently cleans cars and motorbikes: The rotating wash brush with innovative soft microfibre interchangeable attachment Car & Bike. Machine washable at 60 °C.
WB 60 soft surface wash brush	19	2.643-233.0						Soft flat brush for cleaning larger areas such as cars, caravans, boats, conservatories, or roller shutters. Good area performance with a working width of 248 mm.
Wheel washing brush	20	2.643-234.0						Wheel washing brush for effective cleaning also in difficult-to-reach areas. Uniform 360° water distribution for a perfect cleaning result.
Wash brush	21	6.903-276.0						Wash brush with soft bristles for cleaning sensitive areas and areas which are difficult to access in the outside area. Suitable for all Kärcher K 2 to K 7 pressure washers.
High-pressure replacement hose: system from 2009 with Quick Connect system
H 9 Q high-pressure hose Quick Connect	22	2.641-721.0						9 m high-pressure replacement hose for K 2 to K 7 pressure washers manufactured since 2009, on which the hose is attached to the spray gun and device with a Quick Connect quick coupling. 180 bar, 60°C.
High-Pressure replacement hose kit system from 1992
Extension hose adapter kit	23	2.643-037.0						Two-part adapter set for connecting an extension hose with screw thread to a pressure washer with a Quick Connect system. Not for hose reel machines.
High-pressure extension hose: System for devices with Quick Connect system
XH 10 Q Quick Connect extension hose	24	2.641-710.0						High-pressure hose extension for greater flexibility. 10-m, robust DN 8 quality hose for excellent durability. For K 3-K 7 devices with Quick Connect adapter.
XH 6 Q extension hose Quick Connect	25	2.641-709.0						High-pressure extension hose for greater flexibility. 6 m robust DN 8 quality hose for durability. For K 2 to K 7 series from 2008 with Quick Connect adapter. Connect the spray gun and the high-pressure hose.
Pipe cleaning
PC 20 roof gutter and pipe cleaning kit	26	2.642-240.0						The gutter and pipe cleaning kit works all by itself – with high pressure. It easily cleans outflows, pipe blockages, and gutters. Hose length: 20m.
PC 15 pipe cleaning kit	27	2.637-767.0						Pipe cleaning kit with 15 m hose for clearing blockages in pipes, drains, and downpipes.
PC 7.5 pipe cleaning kit	28	2.637-729.0						Pipe cleaning kit with 7.5 m hose for clearing blockages in pipes, drains, and downpipes.

		Order no.					Price	Description

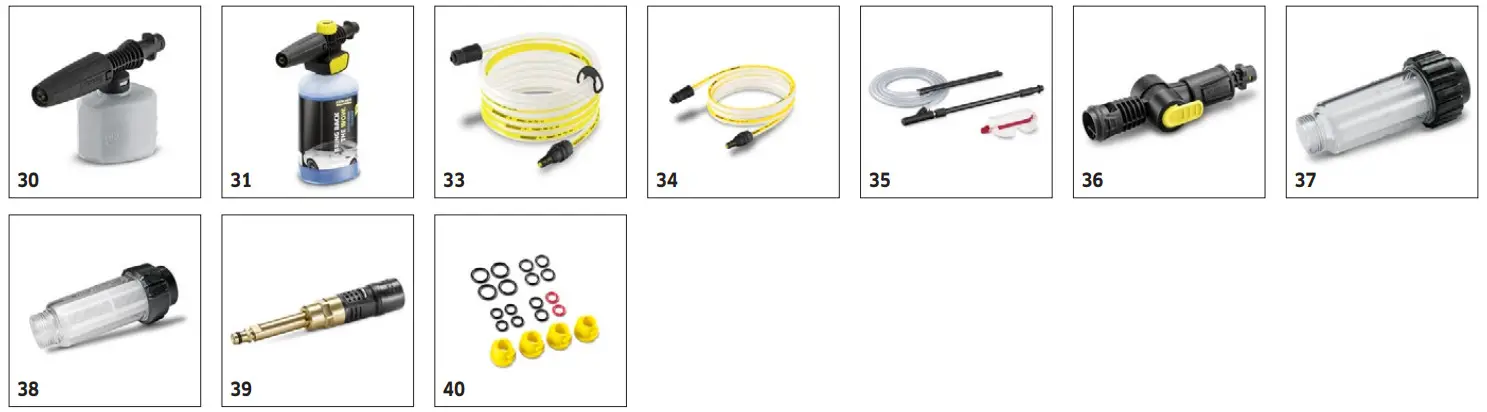

FJ 3 foam jet	30	2.643-150.0						FJ 3 foam nozzle for cleaning with powerful foam (e.g. ultra foam cleaner). For cars, motorcycles, etc., and for applying cleaning products to stone and wood surfaces and façades.
FJ 10 C Connect ‘n’ Clean foam jet + Ultra Foam Cleaner	31	2.643-143.0						Ultra foam cleaner + quick-change system FJ 10 C Connect ‘n’ Clean foam nozzle. Easy change between different detergents with just a simple click.
FJ 10 C foam jet Connect ‘n’ Clean with car shampoo 3-in-1	32	2.643-144.0						Car shampoo + quick-change system FJ 10 C Connect ‘n’ Clean foam nozzle. Easy change between different detergents with just a simple click.
Miscellaneous
SH 5 suction hose	33	2.643-100.0						Environmentally friendly 5-meter long suction hose for sucking up water from alternative sources such as water butts or water containers.
SH 3 suction hose	34	2.643-101.0						3-meter suction hose for drawing water from alternative sources such as water butts and barrels.
Sand and wet-blasting kit	35	2.638-792.0						Sand and wet-blasting kit for removing rust, paint, and stubborn dirt using Kärcher abrasive.
Vario joint	36	2.640-733.0						Vario’s joint rotates 180° for cleaning difficult-to-reach areas. For connection between gun and accessory or extension lance and accessory.
Water filter	37	4.730-059.0						The water filter protects the pressure washer pumps against dirt particles from dirty water.
	38	2.642-794.0						Water filter to protect the high-pressure pump against dirt particles from contaminated water.
Anti-twist adapter	39	2.644-257.0						The anti-twist adapter eliminates loops in the high-pressure hose for guaranteed twist-free working. For all high-pressure hoses with a Quick Connect adapter on the gun.
O-ring set	40	2.640-729.0						Replacement O-ring set for easy replacement of O-rings and safety plugs on pressure washer accessories.

		Order no.					Price	Description

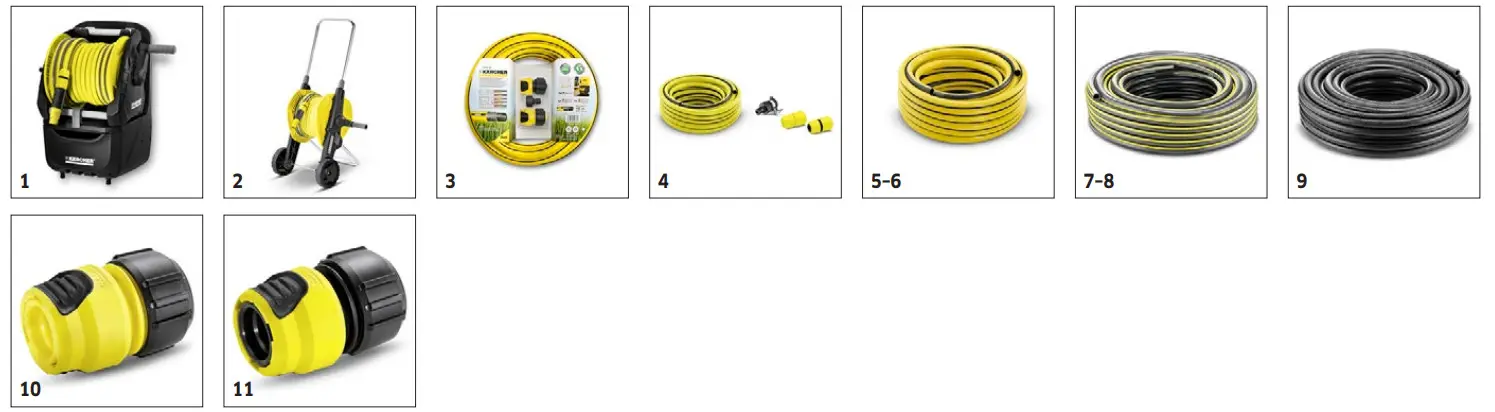

Hose storage and hose trolley
Premium Hose Reel HR 7.315 Kit 5/8″	1	2.645-165.0						Watering Station for the practical and space-saving stowage of hoses and garden accessories. With a removable drum, storage possibility for nozzles, spray guns, and spray lances, and a spacious storage box. Fully equipped.
Hose Trolley HT 3.420 Kit 5/8“	2	2.645-167.0						Compact hose trolley with height adjustable handle, angled hose connector, free-wheeling crank, and innovative folding function for space-saving stowage. Fully assembled.
Hoses
Hose set for pressure washers	3	2.645-156.0						Hose set for high-pressure cleaning or garden watering. With 10 m PrimoFlex® hose (3/4″), G3/4 tap adaptor, 1 x universal hose connector, and universal connector with Aqua Stop.
Water supply hose set	4	2.645-258.0						Hose set for water supply (pressure washer, garden watering). With 10 m PrimoFlex® hose (½”), hose connector with and without Aqua Stop, and universal connection for non-threaded taps.
PrimoFlex® hose 1/2″ – 20 m	5	2.645-138.0						The PrimoFlex® (1/2″) flexible garden hose is 20 m long, temperature-resistant, comes with pressure-resistant reinforcement technology, and contains no substances that are harmful to health. Bursting pressure: 24 bar.
PrimoFlex® hose 3/4″ – 25 m	6	2.645-142.0						PrimoFlex® quality garden hose (3/4″). 25-m long. With pressure-resistant reinforcement mesh. Contains no substances that are harmful to health. Bursting pressure: 24 bar. High-temperature resistance from -20 to 65 °C.
Hose Performance Plus 1/2″ -20m	7	2.645-318.0						Flexible and extremely resistant to kinks thanks to high-quality multi-layered woven material: the new 20-me- the long Performance Plus 1/2″ garden hose. Ensures constant water flow.
Hose Performance Plus 3/4″ -25m	8	2.645-322.0						Easy to handle, long-lasting, and weather-resistant: the 25-meter long Performance Plus 3/4″ garden hose. Flexible, ultra-robust, and extremely resistant to kinks – for constant water flow.
Performance Premium hose, 1/2″ -20 m	9	2.645-324.0						The hose innovation from Kärcher: the ultra-flexible and kink-resistant Performance Premium garden hose. Diameter: 1/2″. Length: 20 m. With Kärcher Premium anti-torsion technology.
Hose connection systems
Universal hose coupling Plus	10	2.645-193.0						Universal hose coupling plus soft plastic recessed grips for comfortable handling. Compatible with all click systems.
Universal hose coupling Plus Aqua Stop	11	2.645-194.0						Universal hose coupling plus Aqua Stop and soft plastic recessed grips for comfortable handling. Compatible with all click systems.
