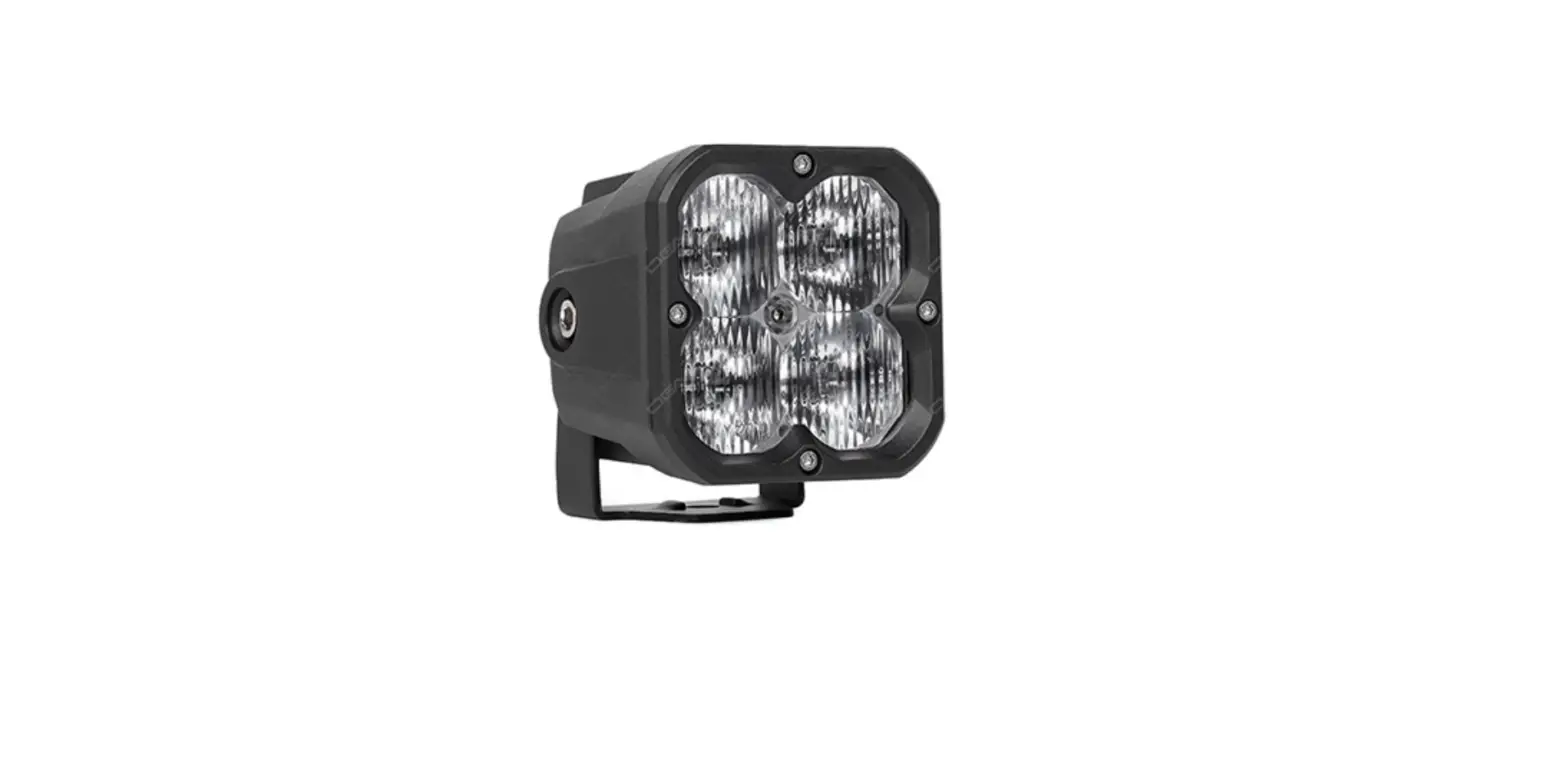

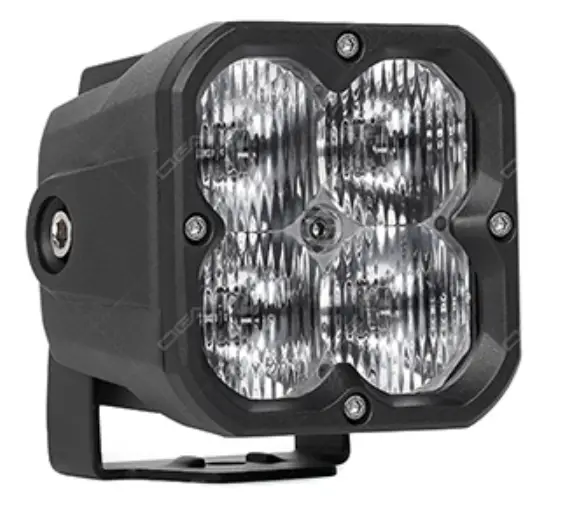

CLDPCHB Street Legal 3 Inches Cube Pod Light
WHAT’S INCLUDED
- 1 X LED Pod
- 1 X U Mount Bracket
- Mounting Hardware
FEATURES & SPECIFICATIONS
- Light Output: 620-1,434 Lumens
- Power: 20W @13.6V DC
- Current: 1.5A @13.6V DC
- Voltage: 10 – 36V DC
Beam Pattern & Compliance:
- Cube / Round Auxiliary High Beam(SAEJ581)Cube / Round Fog Light (SAE J583)
- Cube / Round Fog Light, YellowLens
- Cube Flood Beam

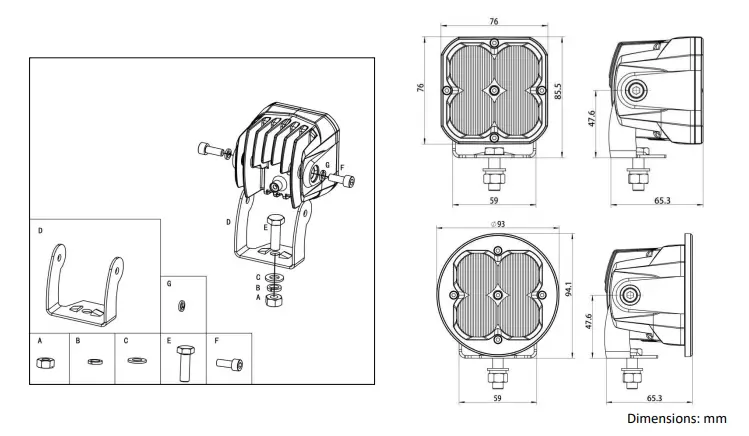

MOUNTING BRACKET INSTALL INSTRUCTION
HARNESS INSTALL INSTRUCTION
Wiring Harness sold separately
- Determine and suitable mounting locations to install the LED Pods, wiring harness, and switch. Once all mounting locations are confirmed, connect the wires as shown above. Proper insulation at connections is required.
- Connect the positive wire and negative wire properly. Press the switch to test if the lights are functioning properly.
- Adjust the light to the desired angle and then secure it by tightening all mounting screws.
