Installation drawings for semi-integrated dishwashers
To avoid the risk of accidents or damage to the dishwasher please observe this installation sheet and read the operating instruction manual supplied with it before it is installed or used for the first time.
 | See operating instruction manual. |
 | Risk of damage or fire hazard. |
 | Check connection data. |
 | Do not use a cordless screwdriver, risk of damage. |
 | Warning: Danger of being cut. |

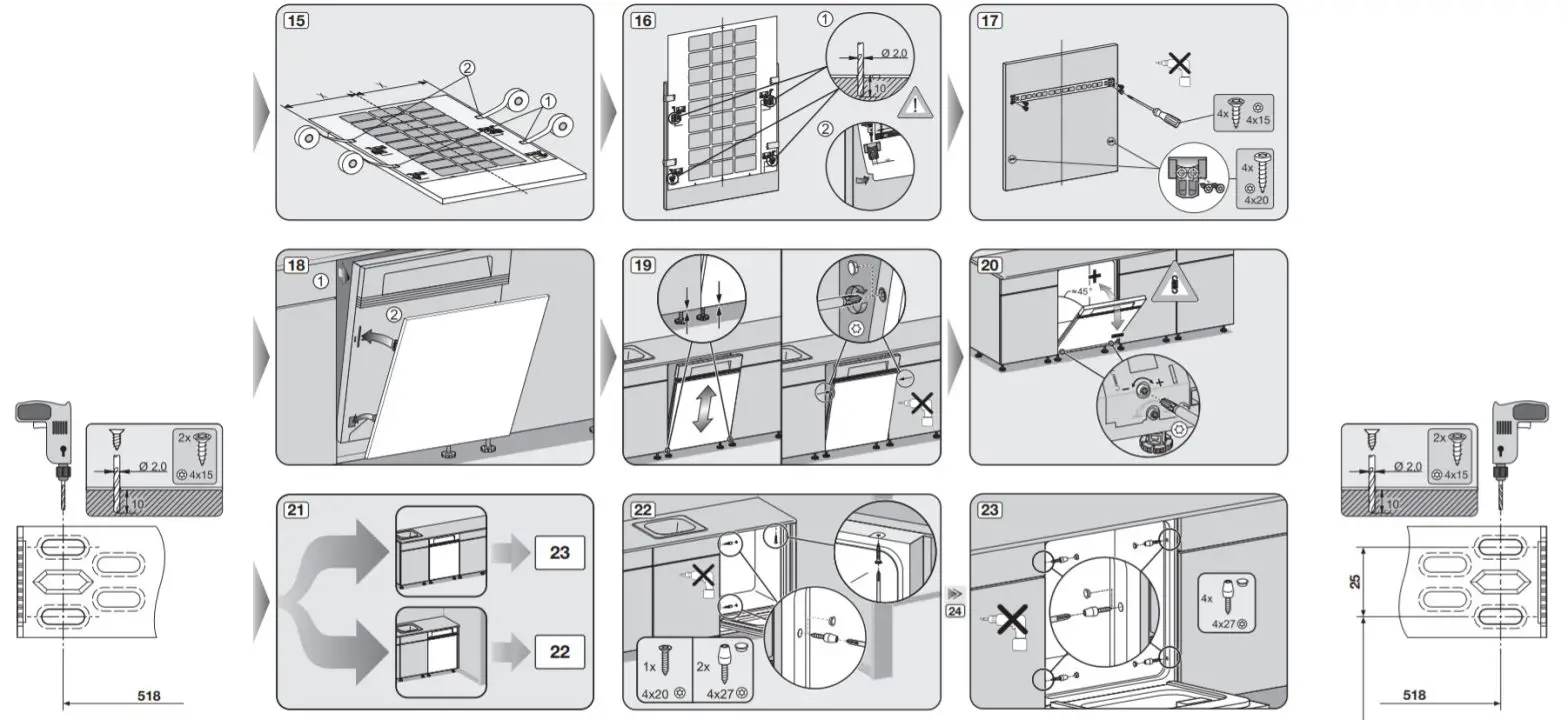

 | The door springs must be set equally on both sides after fitting the front panel to the door. |

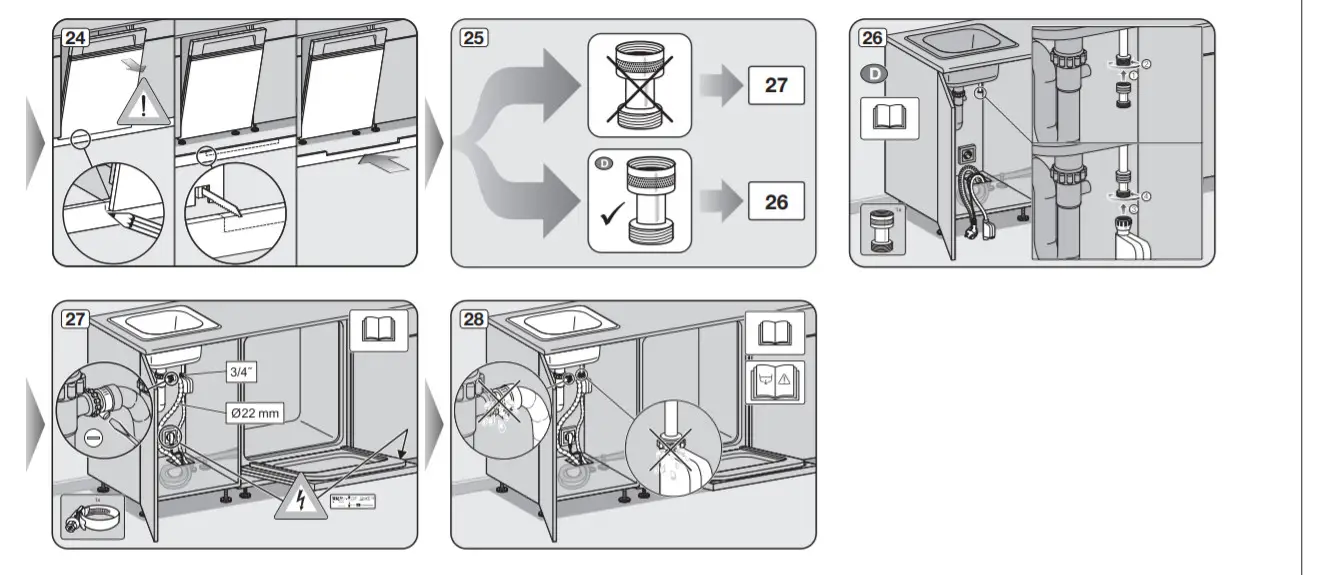

 | Venting the water drain If the on-site drainage connection is situated lower than the guide path for the lower basket rollers in the open door, the drainage system must be vented. |

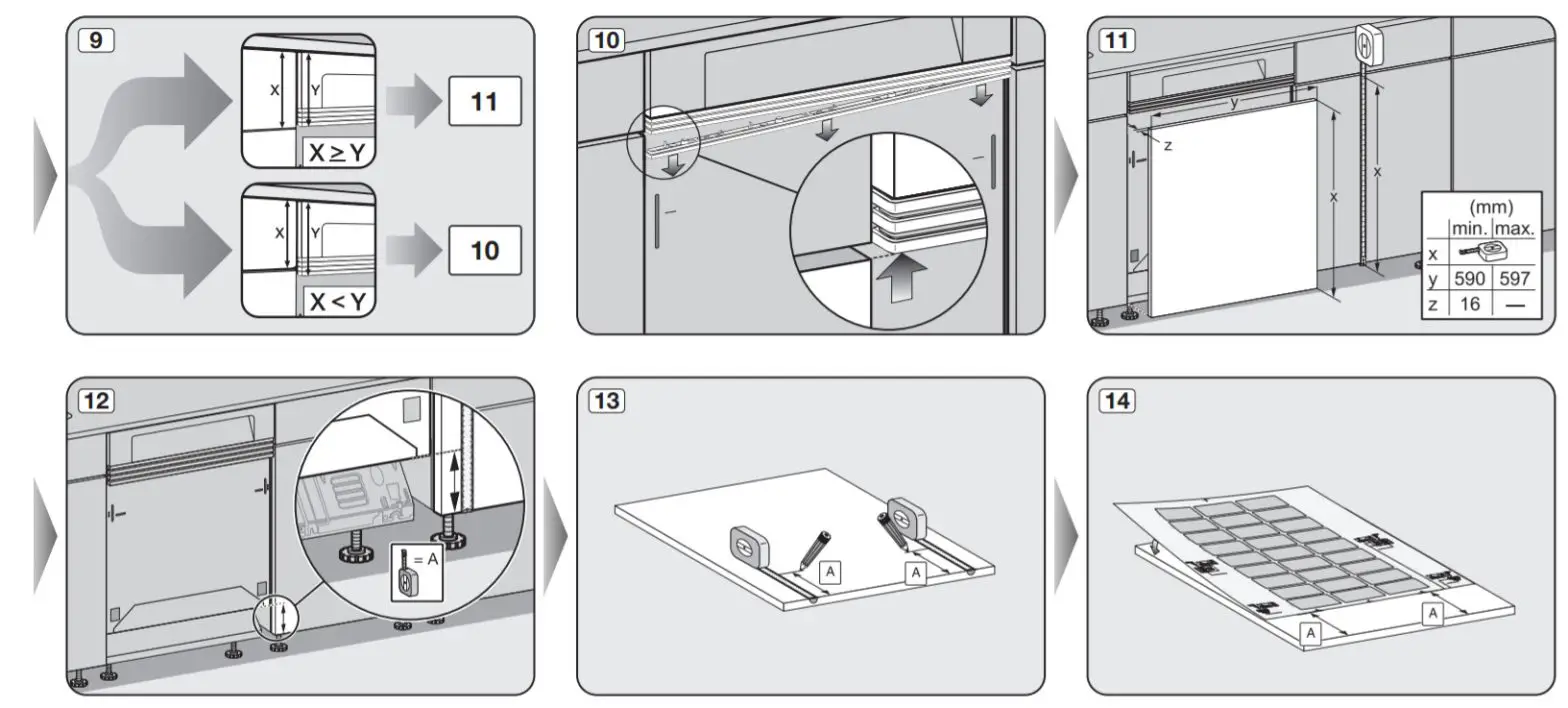

 | Screw the feet in before moving the dishwasher. |
D. Only required in Germany.

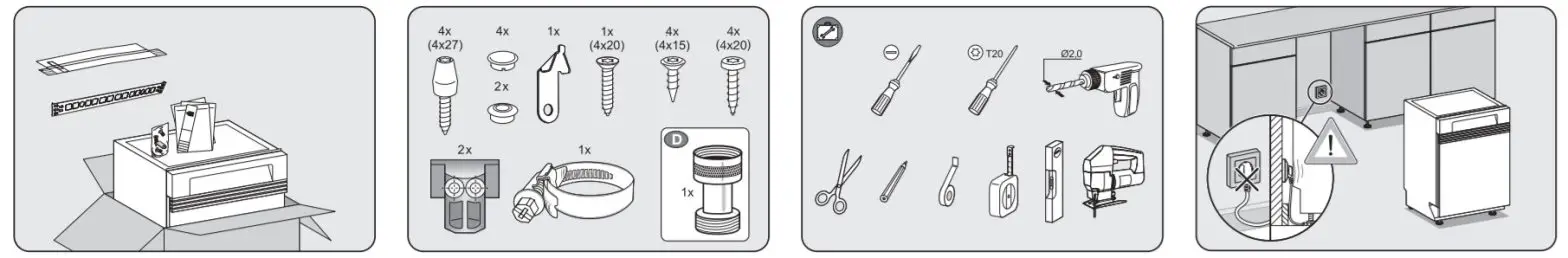

Tools required to depend on the model.
M. Optional accessories
