Shenzhen Jixin Intelligence BL62B BT Module
This device is intended only for OEM integrators under the following conditions
- The antenna must be installed such that 20 cm is maintained between the antenna and users, and
- This device and its antenna(s) must not be co‐located with any other transmitters except in accordance with FCC multi‐transmitter product procedures. Referring to the multi‐transmitter policy, multiple‐transmitter(s) and module(s) can be operated simultaneously without C2P.
- For all products market in US, OEM has to limit the operation channels in CH1 to CH11 for 2.4G band by supplied firmware programming tool. OEM shall not supply any tool or info to the end‐user regarding to Regulatory Domain change.
USERS MANUAL OF THE END PRODUCT
In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with the antenna while this end product is installed and operated. The end user has to be informed that the FCC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate this equipment . If the size of the end product is smaller than 8x10cm, then additional FCC part 15.19 statement is required to be available in the users manual: This device complies with Part 15 of FCC rules. Operation is subject to the following two co nditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. LABEL OF THE END
PRODUCT
The final end product must be labeled in a visible area with the following ” Contains FCC ID: 2AVTT-BL62B “. If the size of the end product is larger than 8x10cm, then the following FCC part 15.19 statement has to also be available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum distance between 20cm the radiator your body.
Product Overview
BL-62B is a wireless module based on WiFi+BLE single-chip SoC as the main control. It can meet the development of low-power and high-performance IOT applications. The core processor BL602C of the module integrates 2.4G Wi-Fi ( 802.11b/g/n) and BLE 5.0 baseband and MAC design. Its microcontroller subsystem includes a low-power 32-bit RISC-V CPU, cache and memory. It has an advanced power management unit and supports multiple low power consumption modes. Peripheral interfaces include UART, GPIO, ADC, DAC, PWM, I2C, SDIO, SPI, IR, etc.

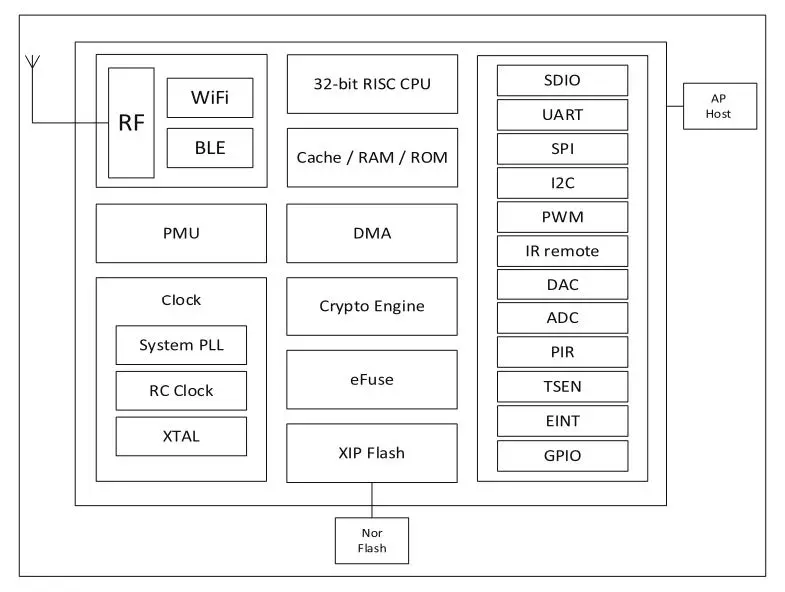

BL602C functional block diagram

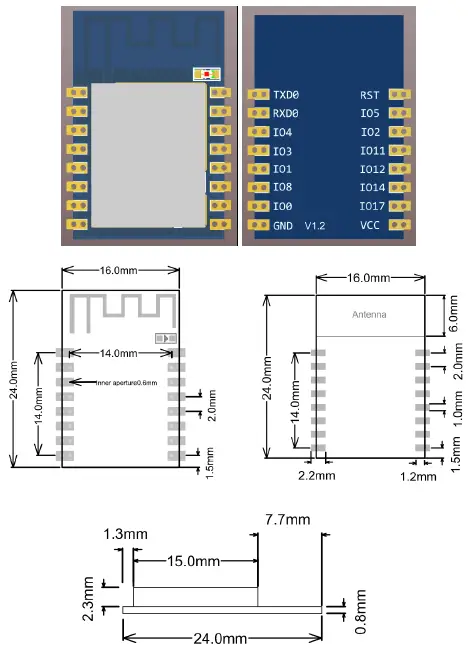

Appearance and Dimensions
Features
Wireless
- ◼ IEEE 802.11b/g/n, 1×1 SISO 2.4GHz◼
- Bluetooth® BLE 5.0
- ◼ Wi-Fi 20MHz bandwidth
- ◼ Wi-Fi security WPS/WEP/WPA/WPA2 Personal/ WPA2 Enterprise/WPA3
- ◼ STA，SoftAP and Sniffer mode
- ◼ Wi-Fi and BLE coexist, BLE assists in realizing Wi-Fi fast connection
- ◼ Integrated balun，PA/LNA
- ◼ Support Smart Config/AirKiss (WeChat)
- ◼ Support serial port local upgrade and remote firmware upgrade (FOTA)
- ◼ General AT commands can be used quickly
- ◼ Support secondary development, integrated Windows and Linux development environment
MCU Subsystem
- 32-bit RISC-V CPU with FPU (floating point unit)
- One RTC timer (cycle one year)
- Two 32-bit general-purpose timers
- Four DMA channels.
- DFS (Dynamic Frequency Scaling) from 1MHz to 192MHz
- JTAG development support
- XIP QSPI Flash has hardware encryption support
Memory
- 276KB RAM
- 128KB ROM
- 1Kb eFuse
- Embedded 2M Byte flash
Security Mechanism
- QSPI Flash Instant AES Decryption (OTFAD)-AES-128, CTR mode
- Support AES 128/192/256 bit encryption engine
- Support SHA-1/224/256
- Real random number generator (TRNG)
- Public Key Accelerator (PKA)
Key parameter
| Module model | BL-62B |
| Mounting | SMD16/DIP-16 |
| Size | 16*24*3(±0.2)mm |
| Cert. | FCC、CE |
| Flash | Chip built-in 2MB |
| Interface | UART/GPIO/ADC/DAC/PWM/ I2C/SDIO/SPI/IR |
| Number of GPIO | 13 |
| UART baud. | 9600/19200/38400/115200/921600 bps ,Up to 5Mbps |
| Freq. | 2400 ~2483.5MHz |
| Antenna | Onboard PCB antenna |
| Security | WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3 |
| Power Supply | DC 3.0V ~ 3.6V，Imax >300mA |
| Temperature | -30 ℃ ~ 85 ℃ |
| Storage Condition | -45℃ ~ 135℃ ,< 90%RH |
Pin definition

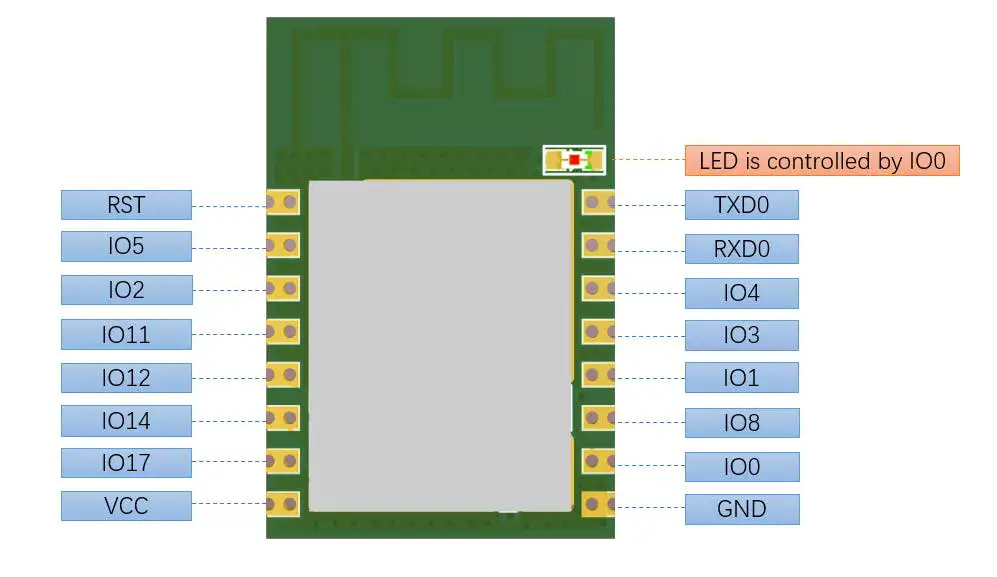

The BL-62B module has 16 pins in total, as shown in Figure 2.1. Peripherals include 13 GPIOs, 1 SPI master/slave, 2 UARTs, 1 I2C master/slave, 5 PWM channels, 5 12-bit general-purpose ADCs, 1 10-bit general-purpose DAC, 1 SDIO2. 0 slave, 1 IR remote hardware accelerator, etc., UART can be flexibly configured. Each GPIO can be used as a general-purpose input and output function. The LED on the module is controlled by IO0, and whether it needs to be controlled is determined by the customer. Table 2.2 is the interface definition.
Pin description
| Number | Pin Name | Function description |
| 1 | RST | Reset |
| 2 | IO5 | GPIO5;SDIO_DAT3;SPI_MOSI;I2C_SDA;UART;PWM_CH0； ADC_CH4;JTAG_TDI |
| 3 | IO2 | GPIO2；SDIO_DAT0；FLASH_D2；SPI_SS；I2C_SCL；UART； PWM_CH2；JTAG_TCK |
| 4 | IO11 | GPIO11；SPI_SCLK；I2C_SDA；UART；PWM_CH1； IROUT/ADC_CH10；JTAG_TDO |
| 5 | IO12 | GPIO12 ； SPI_MISO ； I2C_SCL ； UART1 ； PWM_CH2 ； ADC_VREF/ADC_CH0；JTAG_TMS |
| 6 | IO14 | GPIO14；SPI_SS；I2C_SCL；UART；PWM_CH4；ADC_CH2； DAC_OUTB；JTAG_TCK |
| 7 | IO17 | GPIO17;FLASH_D3;SPI_MOSI;I2C_SDA;UART;PWM_CH2; DC_TP_OUT; JTAG_TDI |
| 8 | VCC | Power supply 3.3V |
| 9 | GND | ground |
| 10 | IO0 | GPIO0;SDIO_CLK;FLASH_D1;SPI_MISO;I2C_SCL;UART; PWM_CH0; JTAG_TMS |
| 11 | IO8 | GPIO8;SPI_MISO;I2C_SCL;UART;PWM_CH3;JTAG_TMS; |
| IO8 should be pulled high when downloading, and low when running (IO8 inside the module has been pulled low) | ||
| 12 | IO1 | GPIO1;SDIO_CMD;FLASH_D2;SPI_MOSI;I2C_SDA; UART; PWM_CH1; JTAG_TDI |
| 13 | IO3 | GPIO3;SDIO_DAT1;FLASH_D3;SPI_SCLK;I2C_SDA;UART; PWM_CH3; JTAG_TDO |
| 14 | IO4 | GPIO4;SDIO_DAT2;SPI_MISO;I2C_SCL;UART;PWM_CH4; ADC_CH1;JTAG_TMS |
| 15 | RXD0 | GPIO7;SPI_SCLK; I2C_SDA; UART0_RX/ UART; PWM_CH2; JTAG_TDO (Only this UART0 can be used to burn firmware) |
| 16 | TXD0 | GPIO16;SPI_MISO;I2C_SCL;UART0_TX/ UART; PWM_CH1; JTAG_TMS (Only this UART0 can be used to burn firmware) |
In the table above, when selecting the UART function, only one signal of the UART is selected, the specific function of the pin (e.g. UART TX or UART RX) is not specified, and the specific UART signal and corresponding function are further selected by UART_SIGX_SEL (X-0-7). The signals that UART_SIGX_SEL each option include:
- SIG0 : UART0_RTS; SIG1 : UART0_CTS; SIG2 : UART0_TXD; SIG3 : UART0_RXD;
- SIG4 : UART1_RTS; SIG5 : UART1_CTS; SIG6 : UART1_TXD; SIG7 : UART1_RXD.
Electrical parameters
Electrical characteristics
| parameter | test condition | min | Typ. | max | unit | |
| Storage Temp. | – | -45 | normal | 135 | ℃ | |
| Work temp. | – | -30 | 20 | 85 | ℃ | |
| Max welding temp. | IPC/JEDEC J-STD-020 | – | – | 260 | ℃ | |
| Static Protection （HBM） | 2000 | V | ||||
| Supply volt. | VCC | 3.0 | 3.3 | 3.6 | V | |
|
I/O | VIL | VCC_IO=3.3V | -0.3 | – | 1.32 | V |
| VIH | VCC_IO=3.3V | 2.06 | – | 3.6 | V | |
| VOL | VCC_IO=3.3V, |IOL|=7.5~50 mA | -0.3 | – | 0.4 | V | |
| VOH | VCC_IO=3.3V, |IOL|=7.5~50 mA | 2.9 | – | 3.4 | V | |
| IMAX | – | – | – | 12 | mA | |
Wi-Fi RF characteristic
| Description | Min | Typ. | Max | Unit |
| Frequency | 2400 | – | 2483.5 | MHz |
| S11 | <-10 | dB | ||
| Transmit Power | ||||
| CCK, 1 Mbps | – | 19.0 | – | dBm |
| CCK, 11 Mbps | – | 18.9 | – | dBm |
| 6 Mbps OFDM | – | 18.4 | – | dBm |
| 54Mbps OFDM | – | 17.7 | – | dBm |
| HT20, MCS0 | – | 17.4 | – | dBm |
| HT20, MCS7 | – | 16.5 | – | dBm |
| EVM | ||||
| CCK, 1 Mbps | – | -22.2 | – | dB |
| CCK, 11 Mbps | – | -21.6 | – | dB |
| 6 Mbps OFDM | – | -26.5 | – | dB |
| 54Mbps OFDM | – | -30 | – | dB |
| HT20, MCS0 | – | -29 | – | dB |
| HT20, MCS7 | – | -30.2 | – | dB |
| Receiver Sensitivity | ||||
| CCK, 1 Mbps | – | -97 | – | dBm |
| CCK, 11 Mbps | – | -92 | – | dBm |
| 6 Mbps OFDM | – | -92 | – | dBm |
| 54 Mbps OFDM | – | -76 | – | dBm |
| HT20, MCS0 | – | -92 | – | dBm |
| HT20, MCS7 | – | -74 | – | dBm |
Power dissipation
BL602, 25℃, VCC=3.3V
| Work mode | Test condition | Min. | Typ. | Max. | unit |
| RX | 11b | – | 35 | – |
mA |
| 11g | – | 39 | – | ||
| 11n | – | 39 | – | ||
| TX | 11b – 11Mbps @21dBm | Duty 50% | 190 | – | |
| Duty 99% | 310 | – | |||
| 11g – 54Mbps @18dBm | Duty 50% | 145 | – | ||
| Duty 99% | 230 | ||||
| 11n – MCS7 @17dBm | Duty 50% | 130 | – | ||
| Duty 99% | 215 | – | |||
| MCU | Run | Freq@ 192MHz | 22 | – | |
| Standby | Freq@<10MHz | 2 | – | ||
| Sleep | PDS7 | Fast recover | 12 | – | uA |
| Hibernate | HBN | RTC or GPIO wakeup | 0.5 | – | |
| Shut-down | – | – | 0.1 | – |

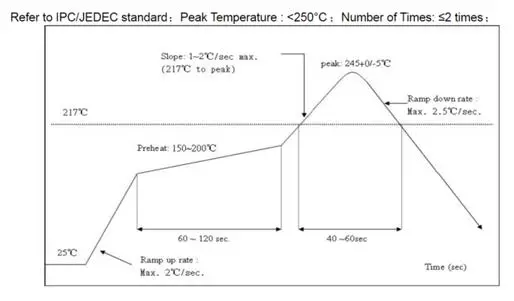

Reflow welding temperature curve

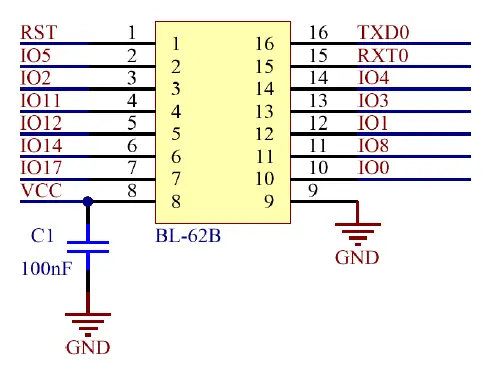

Application circuit
Contact Us
- Address：A505 Room,Business Building,Suojia Science Park,Xixiang,Baoan District,Shenzhen
- Telephone：0755-23220940
- Website：www.aimachip.com
