M5Stack Sensor Kit
Operation

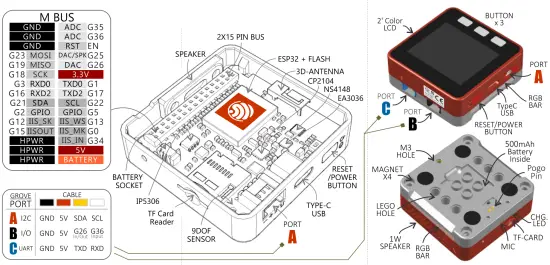

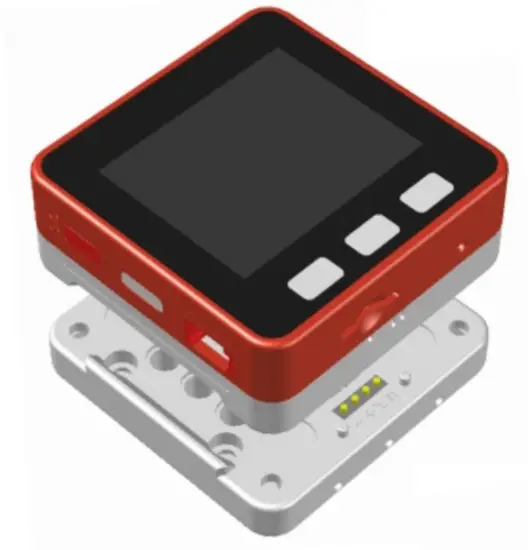

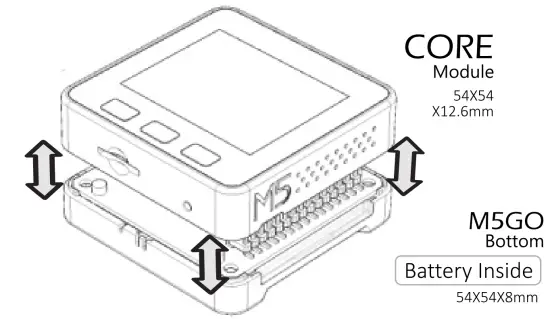

Internal View
MORE INFORMATION
Connect WIFI

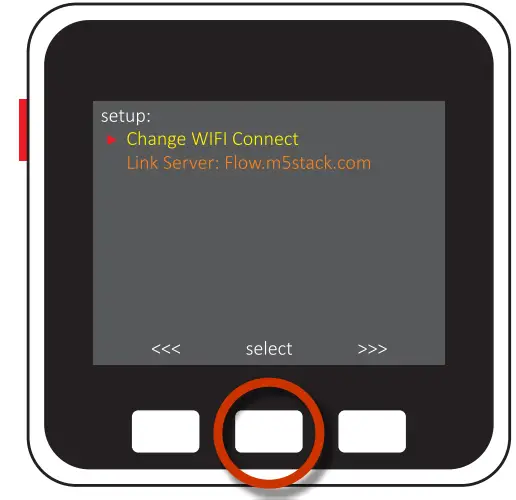

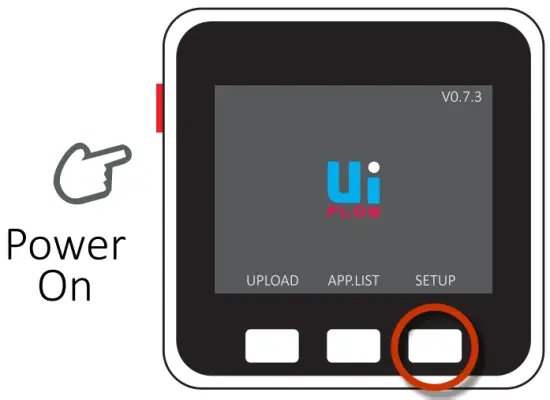

Connect WIFI- Press Setup Button
- Select Change WIFI Connect

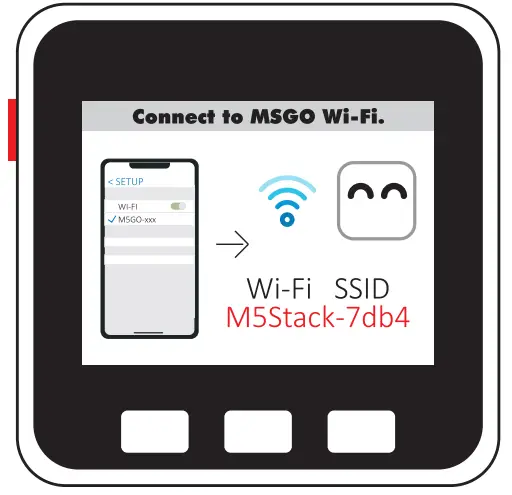

- Connect to MSGOWi-Fi

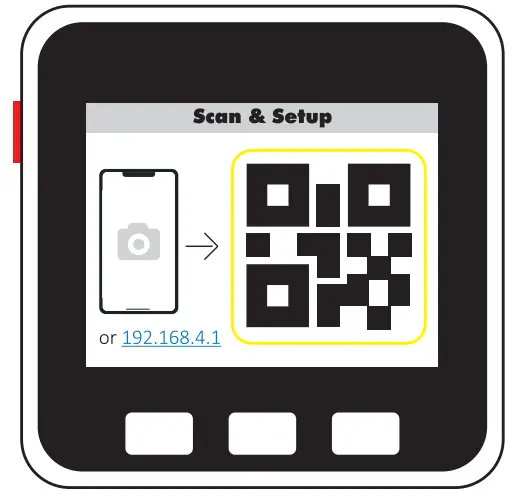

- Scan QR Code

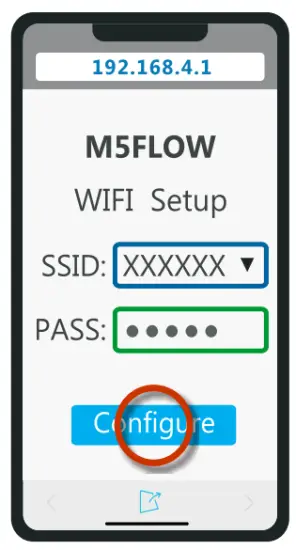

- Input your wifi details

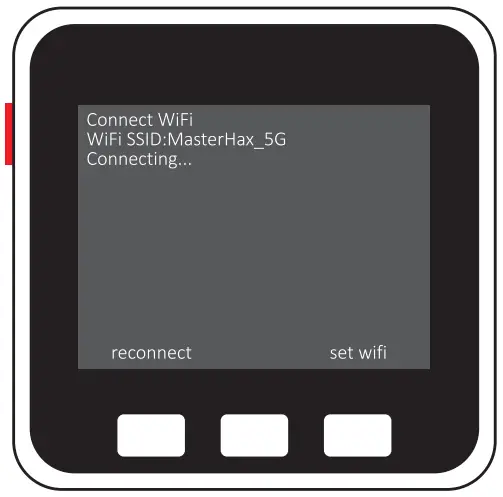

- Connecting …
Configuring UIFLOW
Configuring UIFLOW- Press UPLOAD Button
- Connecting …

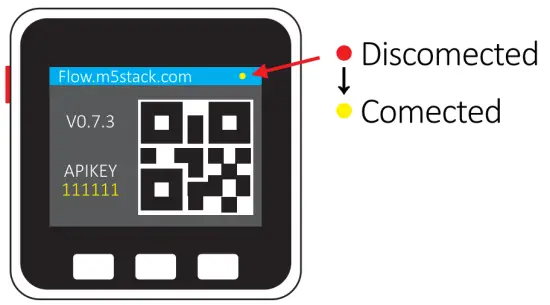

- Scan QR or go to flow.m5stack.com

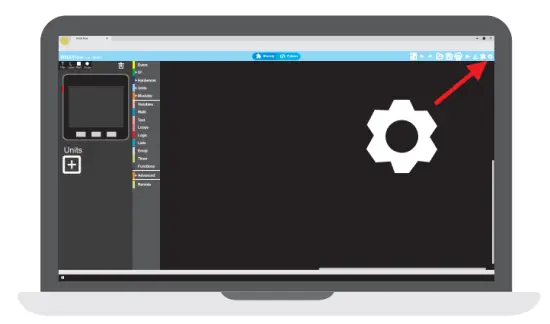

- Click on the gear icon

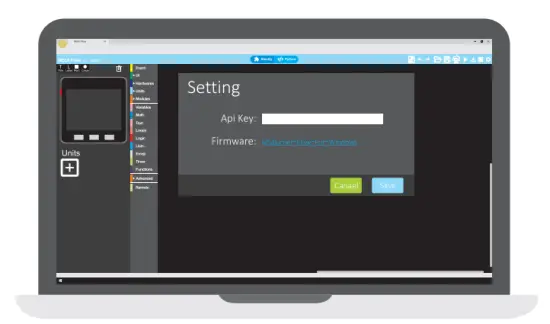

- Enter your MS Api Key + Click Save

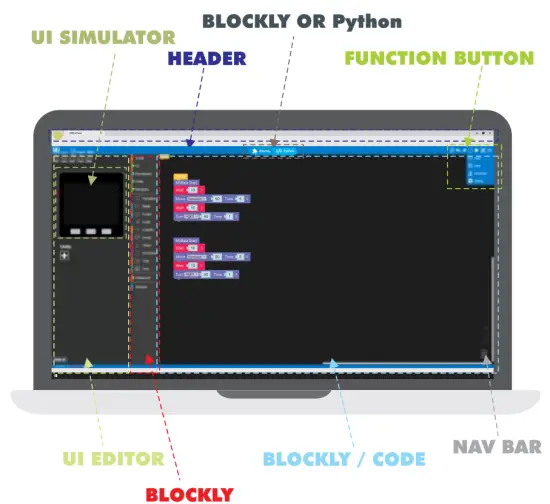

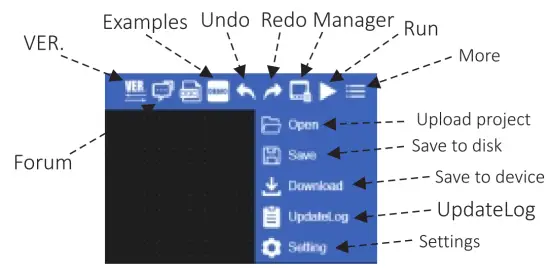

UI FLOW
UI FLOW
flow.m5stack.com
Schematic

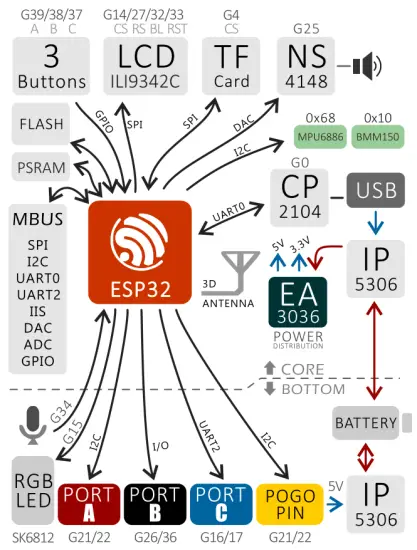

Schematic

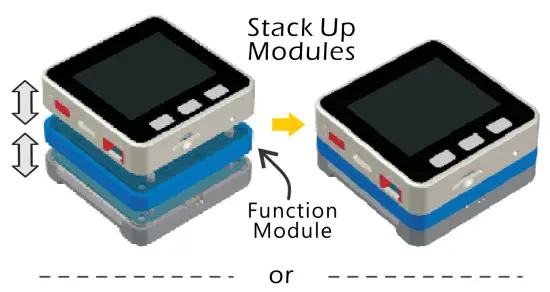

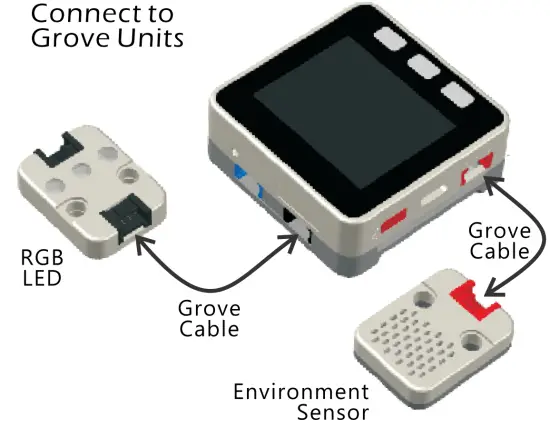

Extension
Extension

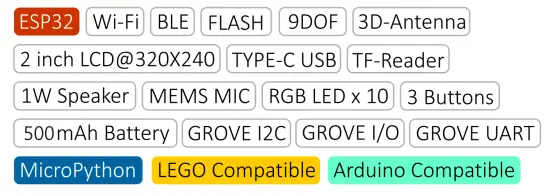

Specifications
Specifications| Model | FIRE |
| ESP32 | 24() MHz dual core Tensilica LX6 microcontroller with 600 DMIPS, Integrated 520 KB SRAM,lntegrated 802.11 b/g/n HT40 Wi-Fi transceiver, baseband, stack and LWIP, Integrated dual mode Bluetooth |
| Flash | 16M FLASH+ 4M PS RAM |
| Input | 5V@S00mA |
| Interface | TypeC x 1, GROVE(l2C+I/O+UART), Pogo Pin x 1 |
| LCD | 2 inch, 320×240 Colorful TFT LCD, ILl9342C |
| Speaker | 1W-0928 |
| Mic | MEMS Analog BSE3729 Microphone |
| LED | SK6812 3535 RGB LED x 10 |
| 9DOF | MPU6886+BMM150 |
| Battery | 500 [email protected], inside |
| Op.Temp | 32°F to 104°F ( 0°C to 40°C) |
| Size | 54x 54×21 mm |
| C.A.5.E | Plastic (PC) |
| Weight | 56g |
Copyright© 2019 MSStack.
