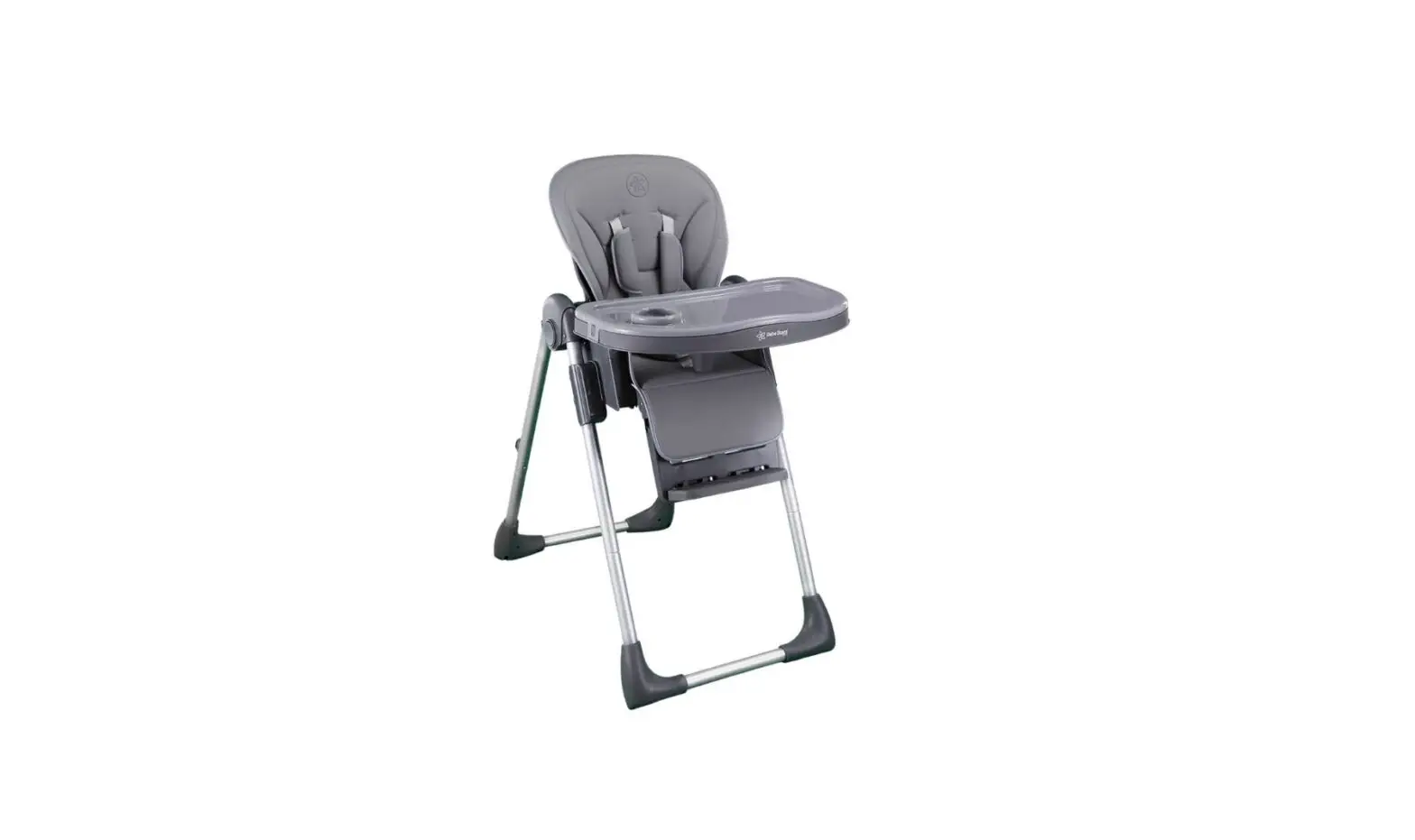

BebeStars ACE1023 High Chair Cookie User Manual

Thank you for purchasing this high chair by Bebe Stars. We will always give you the best productsand service .
Please read the user manual before you use!

Contents hide

1 SAFETY NOTES

2 Parts List

3 Assembly Instructions

3.1 FULLY ASSEMBLED CHAIR

4 Storing Instructions

5 CARE & CLEANING

6 Documents / Resources

7 Related Posts

SAFETY NOTES

IMPORTANT: KEEP FOR FUTURE REFERENCE
Suitable for children who are able to sit up unaided (6 months up to 3 years).
Maximum weight supported is 15kgs.
To ensure safe, trouble free use, please take a little time to read the important safety notes below and the following instructions.

WARNING: Do not use if any partis broken, torn or missing.
WARNING: Do not use the highchair when the child can sit up unaided.
WARNING: Do not use the highchair unless you check that all components are correctly fitted and adjusted.
WARNING: Do not leave your child unattended, even for the shortest time.
WARNING: To prevent serious injury or death from falls or sliding out, ensure the harnessis correctly fitted and that the child is secure in the restraint.
WARNING: Avoid placing the chair near naked heat sources such as electric bar fires, gasfires.
Ensure all users are familiar with the products operation. It should always open and fold easy. If itdoes not, do not force the mechanism – stop and read the instructions.
Only use on aflatstable surface.
Ensure your highchairis fully erected before placing your child inside.
Ensure children are clear of all moving parts before making any adjustments.
Do not move the highchair with your child inside.
Do notallow your child to climb unassisted into, play with or hang onto your highchair.
Thisisnotatoy.
Complies with EN 14988:2017+A1

WARNING !!!
Never leave your child unattended!

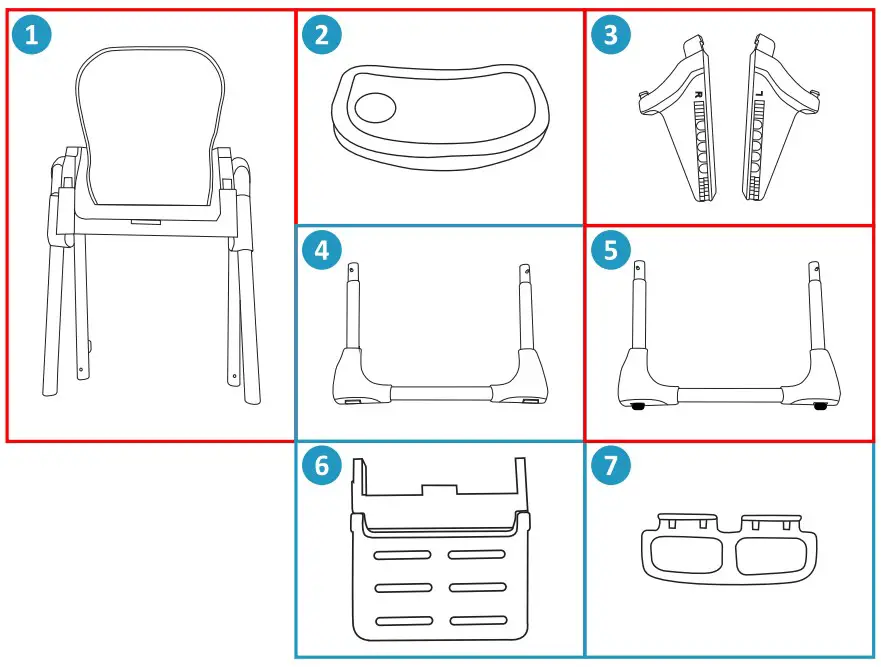

Parts List

Part List

Seat (main frame)
Double food tray
Tray support armrest
Front leg set with stoppers
Rear leg set with wheels
Leg rest
Foot rest

Assembly Instructions

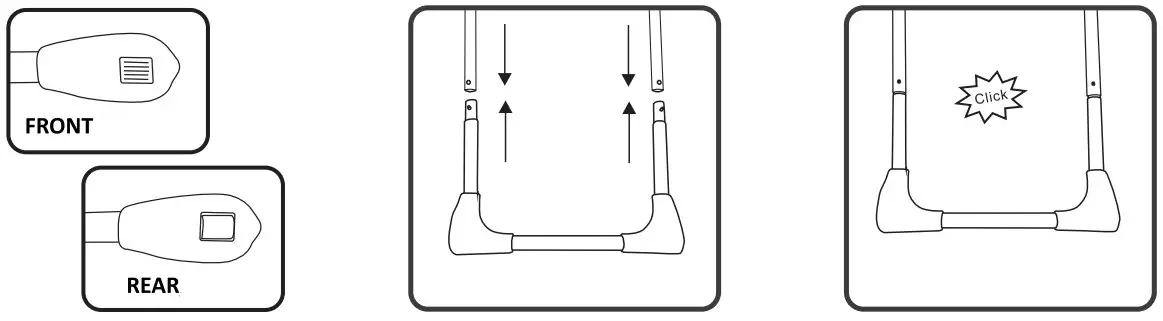

Connect the front leg set (with stoppers) (4) onto the front part of the main frame and therearlegset (with wheels) (5) onto the rear part of the main frame (1).

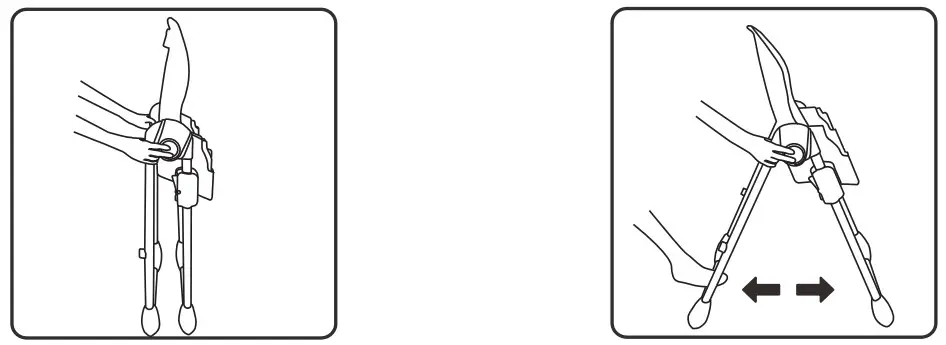

Press the buttons located on both sides of the top part of the frame to release the legs. Pull the rear part with your leg to slide until the chair is fully unfolded and locked in place.

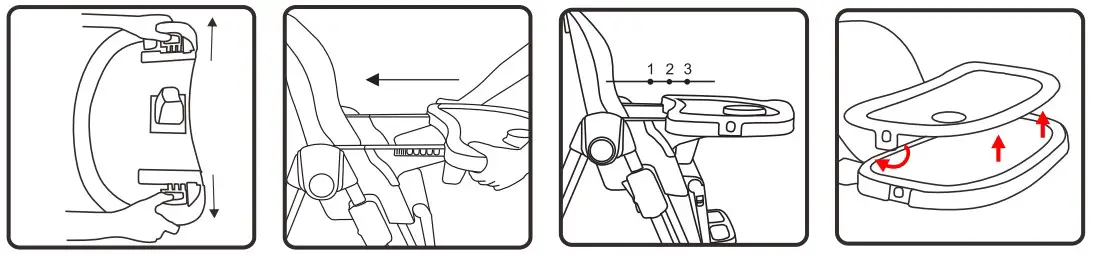

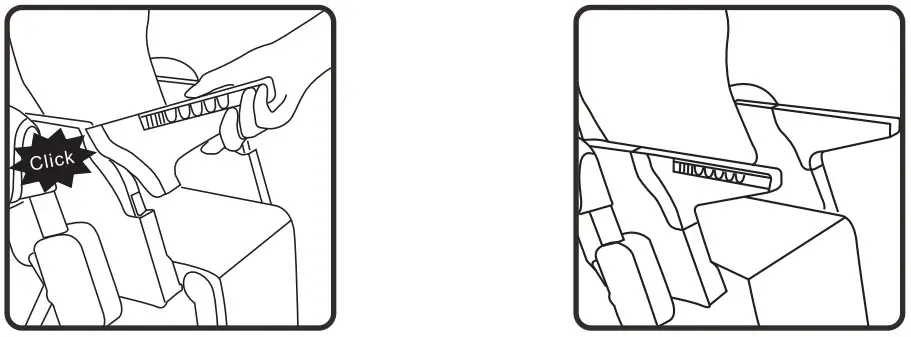

Connect the tray support armrest (3) on the corresponding fixtures on the seat. Left and right armrests are different for a correct fitting. A double click indicates the armrests arelocked in place.
To install the food tray, pull and hold the two buttons located on the down side of the tray and slide it on the armrests. There are 3 positions to set. Make sure it is secured before use. The top tray can be removed for washing by flipping the 2 plastic strands on the side and lifting.

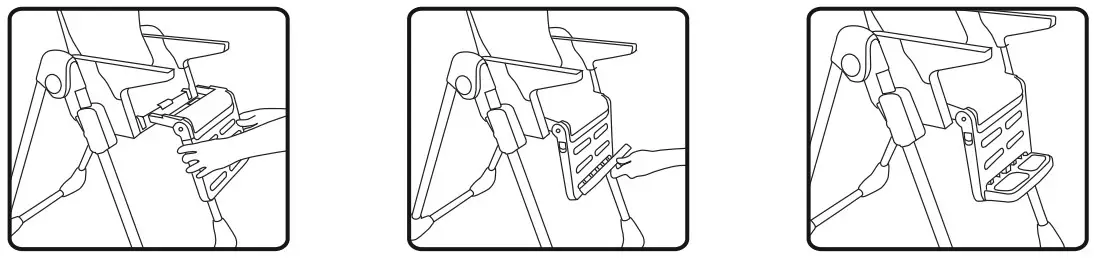

Install the leg rest by inserting the guides into the corresponding holes on the seat. Hang the foot rest on the leg rest on one of the three sets of holes, depending on the child’s height.

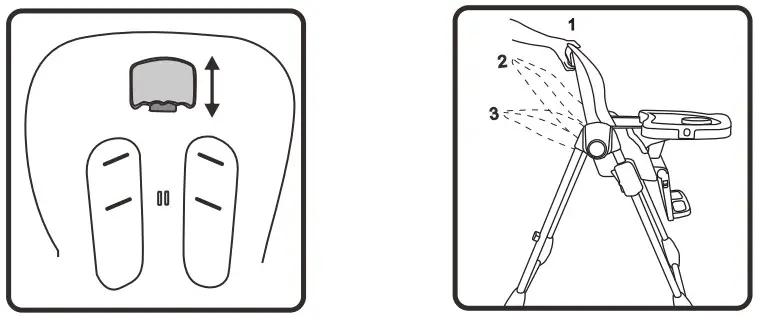

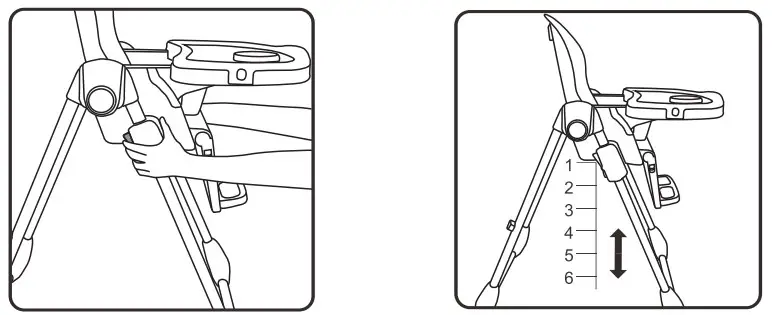

To adjust the height of the seat, hold the triggers located on both sides and raise or lower, depending on your needs. There are 6 available positions for the seat to set.

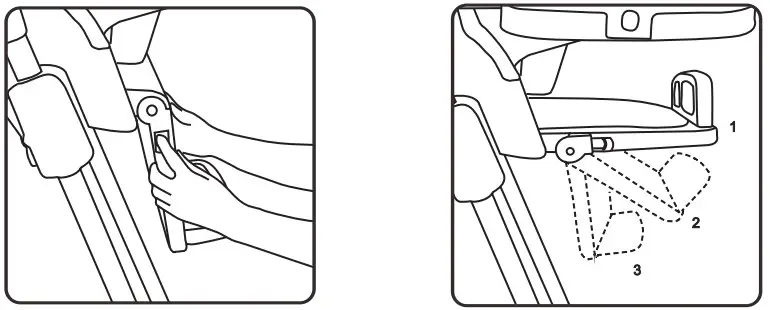

To recline the seat’s back, hold the button located behind the back and set the back to one of the 3 available positions, depending on your needs.
To adjust the angle of the foot rest, push and hold the buttons located on the sides of the foot rest and tilt to one of the 3 available positions, according to your needs.

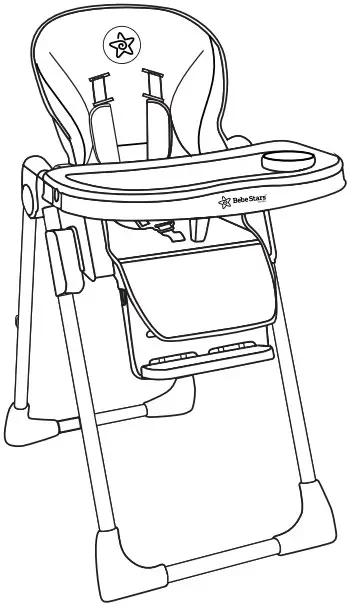

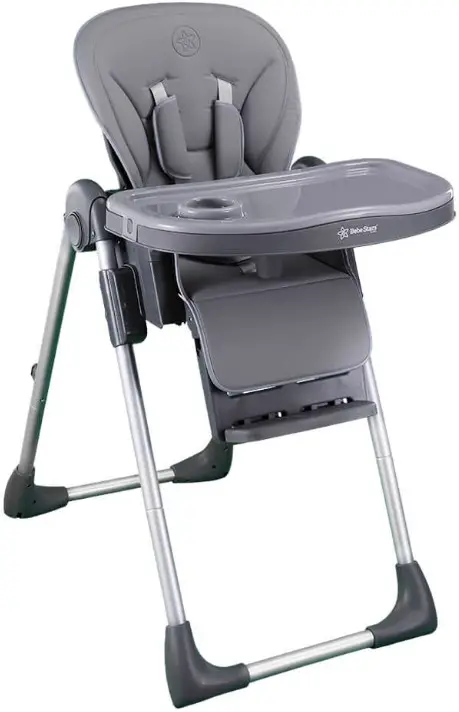

FULLY ASSEMBLED CHAIR

Storing Instructions

To fold the high chair, press the buttons located on both sides of the top part of the frame to release the legs. Push the rear part with your leg to slide until the chair is fully folded and locked in place.
The food tray can be hanged on the rear legs.
