Asus Vg27wq Tuf Gaming Pixels Full Hd Led Black User Guide

Asus Vg27wq Tuf Gaming Pixels Full Hd Led Black User Guide

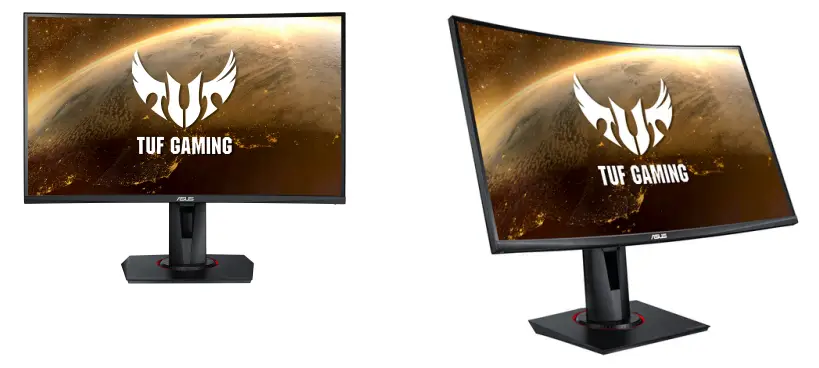

ASUS - logoASUS TUF Gaming VG27WQ 68.6 cm (27″) 2560 x 1440 pixels Full
HD LED BlackASUS VG27WQ TUF Gaming Pixels Full HD LED Black

VG27WQ TUF Gaming Pixels Full HD LED Black

Brand : ASUSProduct family: TUF GamingProduct code: 90LM05F0B01E70Product name : VG27WQ
  • 27-inch WQHD (2560×1440) 1500R gaming monitor with ultrafast 165Hz refresh rate designed for professional gamers and immersive gameplay
  • 1ms (MPRT) response time for smooth gameplay, and ASUS Extreme Low Motion Blur (ELMB) technology to further reduce ghosting and motion blur
  • FreeSync Premium equips serious gamers with a fluid, tear-free gameplay experience at peak performance. There are no compromises, game confidently with a high  refresh rate, low framerate compensation, and low latency
  • High Dynamic Range (HDR) technology with professional color gamut delivers contrast and color performance that meets the DisplayHDR 400 certification
  • Features an ergonomically designed stand to offer extensive swivel, tilt and height adjustments Curved 27″ VA, 2560x1440px, 16:9, 400 cd/m², 3000:1, 1500R, 165 Hz,  2x 2W, 2x HDMI 2.0, DisplayPort 1.2, 609×359.9×44 mm

Display

Display diagonal *68.6 cm (27″)
Display resolution *2560 x 1440 pixels
HD type *Full HD
Native aspect ratio *16:09
Display technology *LED
Panel type *VA
Touchscreen *
Display brightness (peak)400 cd/m²
Display brightness (typical)400 cd/m²
Response time4 ms
Screen shape *Curved
Screen curvature rating1500R
Contrast ratio (dynamic)3000:01:00
Maximum refresh rate *165 Hz
Viewing angle, horizontal178°
Viewing angle, vertical178°
Response time (fast)1 ms
Pixel pitch0.233 x 0.233 mm
Viewable size, horizontal59.8 cm
Viewable size, vertical33.6 cm
Digital horizontal frequency30 – 185 kHz
Digital vertical frequency30 – 185 Hz
High Dynamic Range (HDR) supported
High Dynamic Range (HDR) technologyHigh Dynamic Range (HDR) 400
RGB colour spacesRGB
sRGB coverage (typical)120%
Screen curvature150 cm
3D

Performance

AMD FreeSync *ASUS VG27WQ TUF Gaming Pixels Full HD LED Black - icon 2

Ports & interfaces

Audio inputASUS VG27WQ TUF Gaming Pixels Full HD LED Black - icon 1
Headphone out *ASUS VG27WQ TUF Gaming Pixels Full HD LED Black - icon 2
Headphone outputs1
Headphone connectivity3.5 mm
HDCPASUS VG27WQ TUF Gaming Pixels Full HD LED Black - icon 2

Ergonomics

VESA mounting *ASUS VG27WQ TUF Gaming Pixels Full HD LED Black - icon 2
Panel mounting interface100 x 100 mm
Cable lock slot *ASUS VG27WQ TUF Gaming Pixels Full HD LED Black - icon 2
Cable lock slot typeKensington
Height adjustment *ASUS VG27WQ TUF Gaming Pixels Full HD LED Black - icon 2
Height adjustment12 cm
SwivellingASUS VG27WQ TUF Gaming Pixels Full HD LED Black - icon 2
Swivel angle range-90 – 90°
Tilt angle range-5 – 25°
Tilt adjustmentASUS VG27WQ TUF Gaming Pixels Full HD LED Black - icon 2

Power

Energy efficiency class (SDR) *F
Energy efficiency class (HDR) *G
Energy consumption (SDR) per 1000 hours *25 kWh
Energy consumption (HDR) per 1000 hours *30 kWh
Power consumption (typical) *22 W
Power consumption (standby) *0.5 W
Power consumption (off)0.5 W
AC input voltage100 – 240 V
AC input frequency50/60 Hz
Energy efficiency scaleA to G

Operational conditions

Operating temperature (T-T)0 – 40 °C

Performance

AMD FreeSync typeFreeSync Premium
VESA Adaptive Sync supportASUS VG27WQ TUF Gaming Pixels Full HD LED Black - icon 2
Flicker-free technologyASUS VG27WQ TUF Gaming Pixels Full HD LED Black - icon 2
Low Blue Light technologyASUS VG27WQ TUF Gaming Pixels Full HD LED Black - icon 2

Multimedia

Built-in speaker(s) *ASUS VG27WQ TUF Gaming Pixels Full HD LED Black - icon 2
Built-in camera *ASUS VG27WQ TUF Gaming Pixels Full HD LED Black - icon 1
Number of speakers2
RMS rated power4 W

Design

Market positioning *Gaming
Product colour *Black

Ports & interfaces

Built-in USB hub *ASUS VG27WQ TUF Gaming Pixels Full HD LED Black - icon 1
DVI portASUS VG27WQ TUF Gaming Pixels Full HD LED Black - icon 1
HDMI *ASUS VG27WQ TUF Gaming Pixels Full HD LED Black - icon 2
HDMI ports quantity2
HDMI version2
DisplayPorts quantity1
DisplayPort version1.2

Operational conditions

Storage temperature (T-T)-20 – 60 °C

Weight & dimensions

Width (with stand)609 mm
Depth (with stand)211.2 mm
Height (with stand)386.9 mm
Weight (with stand)5.9 kg
Width (without stand)60.9 cm
Depth (without stand)4.4 cm
Height (without stand)36 cm
Weight (without stand)3.7 kg

Packaging data

Package width692 mm
Package depth213 mm
Package height558 mm
Package weight9.3 kg

Logistics data

Harmonized System (HS) code85285210

Other features

TV tuner integratedASUS VG27WQ TUF Gaming Pixels Full HD LED Black - icon 1

ASUS VG27WQ TUF Gaming Pixels Full HD LED Black - barcode

Disclaimer. The information published here (the “Information”) is based on sources that can be considered reliable, typically the manufacturer, but this Information is  provided “AS IS” and without guarantee of correctness or completeness. The Information is only indicative and can be changed at any time without notification. No rights  can be based on the Information. Suppliers or aggregators of this Information do not accept any liability with regard to the content of (web)pages and other documents,  including its Information. The publisher of the Information can not be held liable for the content of 3rd party websites that are linking this Information or are linked to from this Information. You as the User of the Information are solely responsible for the choice and usage of this Information. You are not entitled to transfer, copy or otherwise  multiply or distribute the Information. You are obliged to follow the directions of the copyright owner(s) with regard to the use of the Information. Exclusively Dutch law is  applicable. With regard to price and stock data on the site, the publisher followed a number of starting points, which are not necessarily relevant for your private or business  circumstances. Therefore, the price and stock data are only indicative and are subject to changes. You are personally responsible for the way you use and apply this  information. As a user of the Information or sites or documents in which this Information is included, you will adhere to standard fair use including avoidance of spamming,  ripping, intellectual-property violations, privacy violations, and any other illegal activity.

Publication date: 25-JAN-2023. Prints or copies of Information are only valid on the printed Publication date
