Arrowhead Alarm Products PW WIEGAND-SK4
Proximity Reader Instructions

Arrowhead Alarm Products PW WIEGAND-SK4 Proximity Reader Instructions

Introduction

The PW Wiegand-SK4 is a heavy duty Wiegand output keypad, with proximity reader, compatible with 125KHz EM format card. The keypad is fully potted, and can function at extreme temperatures (-40 ~60), which allows it is capable to be mounted either indoor or outdoor.

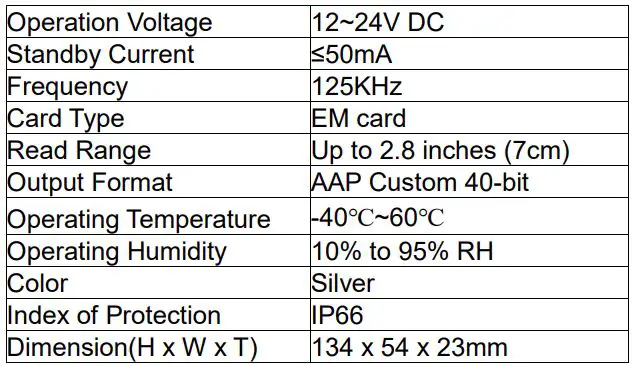

Specifications

Arrowhead Alarm Products PW WIEGAND-SK4 Proximity Reader Instructions - Specifications

Special Backlight Feature

The PW Wiegand-SK4 device has the ability to automatically turn off its backlight after 20 seconds if no keys are pressed.
To turn this feature Off press and hold the # key for 10 seconds. (the green led will flash to confirm)
To turn this feature On press and hold the # key for 10 seconds. (the green LED will flash 4 times)

ARROWHEAD ALARM PRODUCTS Ltd.
1A Emirali Road, Silverdale 0932, Auckland, NZ Ph. 09 414 0085 www.aap.co.nz v1.1
Arrowhead Alarm Products Logo

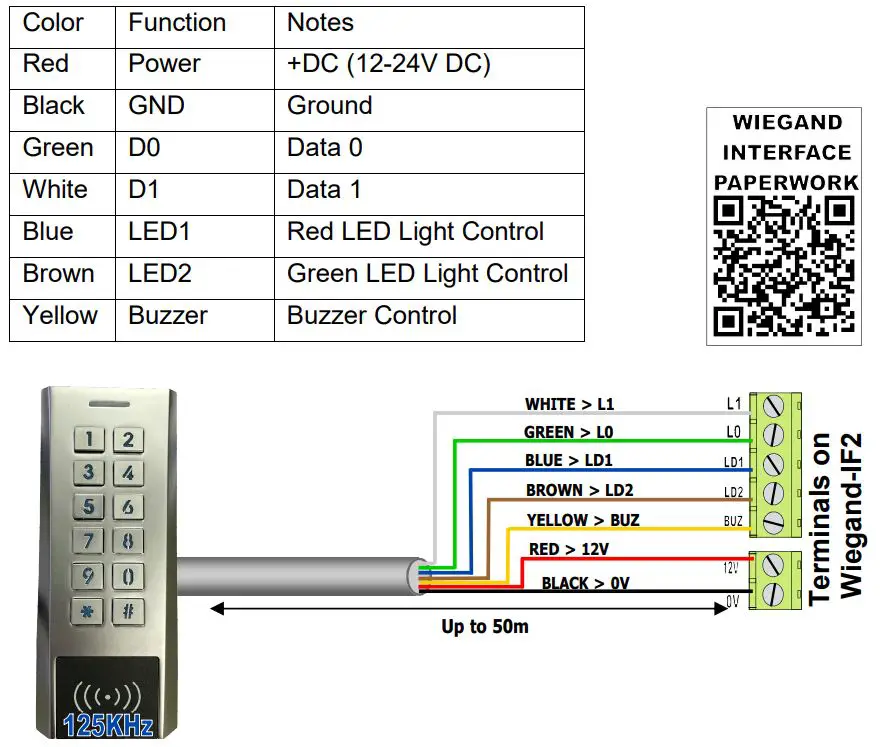

Wiring

Arrowhead Alarm Products PW WIEGAND-SK4 Proximity Reader Instructions - Wiring

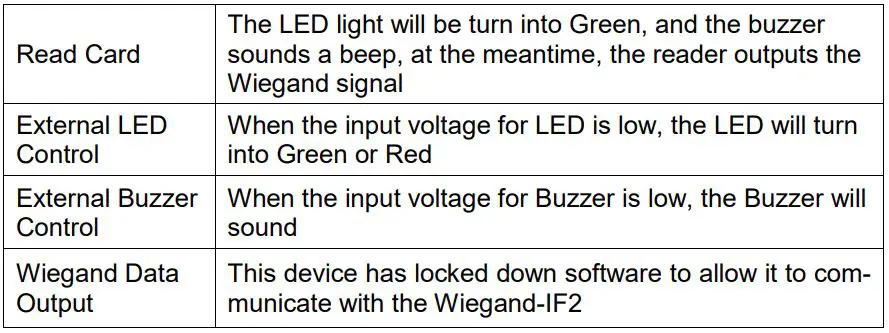

Function Table sheet

Arrowhead Alarm Products PW WIEGAND-SK4 Proximity Reader Instructions - Function Table sheet
