bticino 375010 IP DES System Lift Controller Protocol Installation Guide

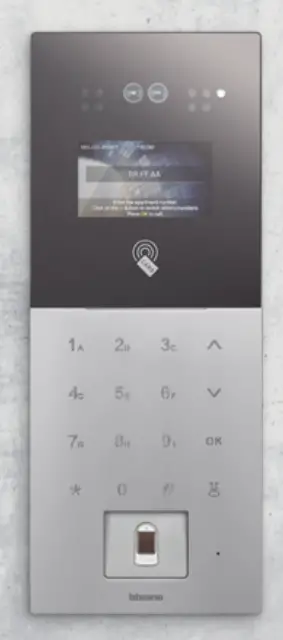

Fundamental concepts
Lift call
The lift call generated by the IP DES system provides Central Unit Lift with certain data such as:
- who made the call
- where the call is addressed
- call generation
Based on this information, Central Unit Lift decides how to operate the lift. The lift call can be generated in two modes:
- with Lift Control icon on the Indoor Unit
- with door lock release
In turn, the lock release command can be activated by:
- door lock icon on the Indoor Unit
- door lock icon on the Guard station
- face recognition from Entrance panel
- finger print from Entrance panel
- badge reader from Entrance panel
- local access code from Entrance panel
- personal access code from Entrance
Protocol
This protocol is applicable to point-to-point communication between IP DES system Entrance Panel and lift access control system of 3rd party company. This document is open to use for the access control company or lift company that wants to be compatible with IP DES system.
They should modify their protocol management according to this document to realize the control function of the lift.
If the lift access control system is not natively compatible with the protocol presented in this document, 375010 must be added to realize protocol conversion.
375010 has two serial RS485 interfaces, RS485-1 connected with IP DES EP and the RS485-2 connected to the lift access control system. It’s only required to create a new firmware to be uploaded in 375010 lift controller SW, there’s no need to apply any changes in IP DES Entrance Panel.
In this manual, for easy reading, the abbreviated device name is used as in the list.
- IU: Indoor Unit
- EP: Entrance Panel
- CLC: Central Unit Lift control
- APT: apartment
Interface definition
- Hardware interface: RS-485
- Baud rate: 9600BPS
- Start:1 Bit End: 1 BitData: 8 Bit ASCII
- Error correction method: CheckSum
Communication protocol
Data format ( STX – Data length – Data – ETX -SUM)
STX (starting frame) 0 x 02
2 Bytes, indicating the data length. Data length
For example: if the data length is 18 Bytes, it is marked as “18” as 0x 31 0 x 38.
|
ETX: 0 x 03
The accumulated value after the character STX (excluding STX), ignoring arithmetic carry.
Data composition
Data description In the starting floor of data lift, if B2= A (HEX) –> 41 (ASCII) , it means underground floor. For example: B2B1B0= A02 (HEX) –>413032 (ASCII) , it means 2nd floor underground.
Note: the field values in this description are hexadecimal (HEX) values. During the transmission of the protocols, they are decoded into ASCII.
Communication direction:
- EP > CLC: it means that the frames originated by the EP for the 375010, and should be translated to the
- EP > 375010: it means that the frames originated by the EP for the 375010, but not to be translated to the
- 375010 > EP: it means that the frames originated by the 375010, not from the lift
Command list
Note: for the correct operation of the protocol, the parameters “Floor” and “Apartment” in the “Community information configuration” of the Address book must have value “99”. See Server DES software manual.
Note: In this table, ‘000’ and ‘0000’ indicate that the field cannot be used, while ‘xxxx’ indicates that a value must be entered.
| Command Command description 2 Byte | Event Start Arrival APT ID Lift start floor Lift arrival floor Communic. 2 Byte APT ID 4 Byte 3 Byte 3 Byte direction 4 Byte | |||||||||||
| IU calls lift 11 | 00 | 0000 | xxxx (IU APT ID) | 000 | xxx (IU location of the floor) |
EP CLC | ||||||
| 01 (indoor to indoor) | xxxx (IU 1 APT ID) | xxxx (IU 2 APT ID) | xxx (IU 1 location of the floor) | xxx (IU 2 location of the floor) | ||||||||
|
EP unlock 12 | 01 IU unlocking (EP calls IU, IU unlocking) | xxxx (EP No.) | xxxx (IU APT ID) | xxx (EP location of the floor) | xxx (IU location of the floor) | |||||||
| 02 local password unlocking | xxxx (EP No.) | 0000 | xxx (EP location of the floor) | 000 | ||||||||
| 02 personal access code unlocking | xxxx (EP No.) | xxxx (IU APT ID) | xxx (EP location of the floor) | xxx (IU location of the floor) | ||||||||
| 03 fingerprint unlocking | xxxx (EP No.) | 0000 | xxx (EP location of the floor) | 000 | ||||||||
| 03 GS unlocking | xxxx (EP No.) | 0000 | xxx (EP location of the floor) | 000 | ||||||||
| 03 face | xxxx (EP No.) | xxxx (IU APT ID) | xxx (EP location of the floor) | xxx (IU location of the floor) | ||||||||
| 04 Bticino access control card unlocking | xxxx (EP No.) | xxxx (IU APT ID) | xxx (EP location of the floor) | 000 | ||||||||
| Riser (01-99) Building A building contains many EP call lift 13 Risers, there is no Riser Note 4 EP, multiple Risers share a Building EP and call lift | xxxx Start APT No. If there is no specific APT number, use 0000 instead | xxxx Arrival APT No. If there is no specific APT number, use 0000 instead | xxx Start floor No If there is no specific floor number, use 000 instead | xxx Arrival floor No. If there is no specific floor number, use 000 instead | EP CLC CLC calls the lift according to the riser number | |||||||
|
Lift query and feedback 21 | 01 Lift quantity, number and protocol type of the lift riser query |
Reserve 14 Byte |
EP 375010 | |||||||||
| 02 Lift quantity, number and the lowest floor of the riser query | Lift qty 1Byte | Lift 1 1Byte (1 – 8) | Lift 2 1 Byte (1~8) | Lift 3 1 Byte (1~8) | Lift 4 1 Byte (1~8) | Reserved 7 Byte | Local riser the lowest floor 1 Byte Note 3 | Protocol Type 1 Byte | 375010 EP | |||
|
Lift status query and 22 | 01 lift status query | Lift No. 1 Byte Note 1 |
Reserve 13 Byte | EP 375010 | ||||||||
| feedback 02 lift response to the status Note 2 | Lift 1# status | Lift 1# physical layer | Lift 2# status | Lift 2# physical layer | Lift 3# status | Lift 3# physical layer | Lift 4# status | Lift 4# physical layer |
Reserve 6 Byte | 375010 EP | ||
Command list
| Command Command description 2 Byte | Event Start Arrival APT ID Lift start floor Lift arrival floor Communic. 2 Byte APT ID 4 Byte 3 Byte 3 Byte direction 4 Byte | |||||||||||
| IU calls lift 11 | 00 | 0000 | xxxx (IU APT ID) | 000 | xxx (IU location of the floor) |
EP CLC | ||||||
| 01 (indoor to indoor) | xxxx (IU 1 APT ID) | xxxx (IU 2 APT ID) | xxx (IU 1 location of the floor) | xxx (IU 2 location of the floor) | ||||||||
|
EP unlock 12 | 01 IU unlocking (EP calls IU, IU unlocking) | xxxx (EP No.) | xxxx (IU APT ID) | xxx (EP location of the floor) | xxx (IU location of the floor) | |||||||
| 02 local password unlocking | xxxx (EP No.) | 0000 | xxx (EP location of the floor) | 000 | ||||||||
| 02 personal access code unlocking | xxxx (EP No.) | xxxx (IU APT ID) | xxx (EP location of the floor) | xxx (IU location of the floor) | ||||||||
| 03 fingerprint unlocking | xxxx (EP No.) | 0000 | xxx (EP location of the floor) | 000 | ||||||||
| 03 GS unlocking | xxxx (EP No.) | 0000 | xxx (EP location of the floor) | 000 | ||||||||
| 03 face | xxxx (EP No.) | xxxx (IU APT ID) | xxx (EP location of the floor) | xxx (IU location of the floor) | ||||||||
| 04 Bticino access control card unlocking | xxxx (EP No.) | xxxx (IU APT ID) | xxx (EP location of the floor) | 000 | ||||||||
| Riser (01-99) Building A building contains many EP call lift 13 Risers, there is no Riser Note 4 EP, multiple Risers share a Building EP and call lift | xxxx Start APT No. If there is no specific APT number, use 0000 instead | xxxx Arrival APT No. If there is no specific APT number, use 0000 instead | xxx Start floor No If there is no specific floor number, use 000 instead | xxx Arrival floor No. If there is no specific floor number, use 000 instead | EP CLC CLC calls the lift according to the riser number | |||||||
|
Lift query and feedback 21 | 01 Lift quantity, number and protocol type of the lift riser query |
Reserve 14 Byte |
EP 375010 | |||||||||
| 02 Lift quantity, number and the lowest floor of the riser query | Lift qty 1Byte | Lift 1 1Byte (1 – 8) | Lift 2 1 Byte (1~8) | Lift 3 1 Byte (1~8) | Lift 4 1 Byte (1~8) | Reserved 7 Byte | Local riser the lowest floor 1 Byte Note 3 | Protocol Type 1 Byte | 375010 EP | |||
|
Lift status query and 22 | 01 lift status query | Lift No. 1 Byte Note 1 |
Reserve 13 Byte | EP 375010 | ||||||||
| feedback 02 lift response to the status Note 2 | Lift 1# status | Lift 1# physical layer | Lift 2# status | Lift 2# physical layer | Lift 3# status | Lift 3# physical layer | Lift 4# status | Lift 4# physical layer |
Reserve 6 Byte | 375010 EP | ||
Note 1
Lift No. = 1 query the status of lift 1 # ;
Lift No. = 2 query the status of lift 2 #, and so on. This protocol limits the max number of Lifts to 4 in a riser. Lift = FF it means to query the status of all lifts.
Note 2
The answer is 1Byte, the specific as below:
| Lift status = | 1 | Up |
| Lift status = | 2 | Down |
| Lift status = | 3 | Current waiting floor |
| Lift status = | 4 | Lift stop working |
| Lift status = | 5 | Up direction from waiting floorr |
| Lift status = | 6 | Down direction from waiting floor |
The IU can judge whether the lift has arrived according to the lift status 5, 6 and the current floor of lift location.
For example, when the indoor unit of 9th floor calls the lift, if the lift is on the 9th floor and the lift status is 6 (Down direction from waiting floor), that means the lift has arrived on the current floor; If visitors need to arrive the 8th floor, when the lift is on the 8th floor and the lift status is 5 (Up direction from waiting floor), that means the lift has arrived on the current floor.
Note 3
0 x 30 – 0 x 39 corresponds to underground layer 5 to layer 5 respectively.
For example, if the value is 0 x 34, that means the lift has arrived the lowest floor – 1 . Hex is used in the parts of physical layer of the lift, and ASCII code is used for the rest.
Note 4
The Building Unit EP manages multiple Risers, the Building EP to call lift when there is no Riser EP.
Communication examples
Note: In these examples, the data shown are already decoded into ASCII.
Lift request generated by an EP Riser following a call to IU 0801.
The lift goes to the EP floor and then to the IU 0801 floor.
| STX Data Command Event Lift call sender Lift call Lift start floor Lift arrival floor ETX SUM length address receiver address | |||||||||||||||||||||
| high | low | high | low | high | low | D3 | D2 | D1 | D0 | A3 | A2 | A1 | A0 | B2 | B1 | B0 | C2 | C1 | C0 | ||
| 02 | 31 | 38 | 31 | 31 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 38 | 30 | 31 | 30 | 30 | 30 | 30 | 30 | 38 | 03 DF |
Lift request generated by EP 01 on basement floor 1 by pressing the lock icon on IU 0605.
The lift goes to the EP 01 floor and then to the IU 0605 floor.
| STX Data Command Event Lift call sender Lift call Lift start floor Lift arrival floor ETX SUM length address receiver address | |||||||||||||||||||||
| high | low | high | low | high | low | D3 | D2 | D1 | D0 | A3 | A2 | A1 | A0 | B2 | B1 | B0 | C2 | C1 | C0 | ||
| 02 | 31 | 38 | 31 | 32 | 30 | 31 | 30 | 30 | 30 | 31 | 30 | 36 | 30 | 35 | 41 | 30 | 31 | 30 | 30 | 36 | 03 F4 |
Lift request generated by EP 02 on floor 1 using a local password.
The lift goes to the EP 02 floor.
| STX Data Command Event Lift call sender Lift call Lift start floor Lift arrival floor ETX SUM length address receiver address | |||||||||||||||||||||
| high | low | high | low | high | low | D3 | D2 | D1 | D0 | A3 | A2 | A1 | A0 | B2 | B1 | B0 | C2 | C1 | C0 | ||
| 02 | 31 | 38 | 31 | 32 | 30 | 32 | 30 | 30 | 30 | 32 | 30 | 30 | 30 | 30 | 30 | 30 | 31 | 30 | 30 | 30 | 03 D4 |
Lift request generated by EP 01 on floor 1 using a personal access code linked to IU 0301.
The lift goes to the EP 01 floor and then to the IU 0301 floor.
| STX Data Command Event Lift call sender Lift call Lift start floor Lift arrival floor ETX SUM length address receiver address | |||||||||||||||||||||
| high | low | high | low | high | low | D3 | D2 | D1 | D0 | A3 | A2 | A1 | A0 | B2 | B1 | B0 | C2 | C1 | C0 | ||
| 02 | 31 | 38 | 31 | 32 | 30 | 32 | 30 | 30 | 30 | 31 | 30 | 33 | 30 | 31 | 30 | 30 | 31 | 30 | 30 | 33 | 03 DC |
Lift request generated by a GS by pressing the lock icon during a conversation with EP 03 on floor 1.
The lift goes to the EP 03 floor and then to the GS floor.
| STX Data Command Event Lift call sender Lift call Lift start floor Lift arrival floor ETX SUM length address receiver address | |||||||||||||||||||||
| high | low | high | low | high | low | D3 | D2 | D1 | D0 | A3 | A2 | A1 | A0 | B2 | B1 | B0 | C2 | C1 | C0 | ||
| 02 | 31 | 38 | 31 | 32 | 30 | 33 | 30 | 30 | 30 | 33 | 30 | 30 | 30 | 30 | 30 | 30 | 31 | 30 | 30 | 30 | 03 D6 |
Lift request generated by EP 01 on basement floor 2 through face recognition linked to IU 0101.
The lift goes to the EP 01 floor and then to the UI 0101 floor.
| STX Data Command Event Lift call sender Lift call Lift start floor Lift arrival floor ETX SUM length address receiver address | |||||||||||||||||||||
| high | low | high | low | high | low | D3 | D2 | D1 | D0 | A3 | A2 | A1 | A0 | B2 | B1 | B0 | C2 | C1 | C0 | ||
| 02 | 31 | 38 | 31 | 32 | 30 | 33 | 30 | 30 | 30 | 31 | 30 | 31 | 30 | 31 | 41 | 30 | 32 | 30 | 30 | 31 | 03 E9 |
Lift request generated by IU 0801 by pressing the Lift control icon during a conversation with IU 0301.
IU 0801 and IU 0301 are installed on the same Riser. The lift goes to the IU 0301 floor and then to the IU 0801 floor.
| STX Data Command Event Lift call sender Lift call receiver Lift start floor Lift arrival floor ETX SUM length address address | |||||||||||||||||||||
| high | low | high | low | high | low | D3 | D2 | D1 | D0 | A3 | A2 | A1 | A0 | B2 | B1 | B0 | C2 | C1 | C0 | ||
| 02 | 31 | 38 | 31 | 31 | 30 | 31 | 30 | 33 | 30 | 31 | 30 | 38 | 30 | 31 | 30 | 30 | 33 | 30 | 30 | 38 | 03 E7 |
Here are some examples of calls directed to several riser columns sharing the same entrance (the EP is located at the entrance of the building, not on the riser).
Note that the call configuration must specify the riser to which the call is addressed. This function does not support a local password to call the lift.
Lift request generated by IU 0605 of riser 03 by pressing the lock icon during a conversation with the building EP of basement floor 2.
The lift goes to the building EP floor and then to the IU 0605 floor.
| STX Data Command Event Lift call sender Lift call receiver Lift start floor Lift arrival floor ETX SUM length address address | |||||||||||||||||||||
| high | low | high | low | high | low | D3 | D2 | D1 | D0 | A3 | A2 | A1 | A0 | B2 | B1 | B0 | C2 | C1 | C0 | ||
| 02 | 31 | 38 | 31 | 33 | 30 | 33 | 30 | 30 | 30 | 30 | 30 | 36 | 30 | 35 | 41 | 30 | 32 | 30 | 30 | 36 | 03 F7 |
Lift request generated by an EP of basement floor 4 using a personal access code linked to IU 0605.
The lift goes to the EP floor of basement 4 and then to the UI 0605 floor.
| STX Data Command Event Lift call sender Lift call receiver Lift start floor Lift arrival floor ETX SUM length address address | |||||||||||||||||||||
| high | low | high | low | high | low | D3 | D2 | D1 | D0 | A3 | A2 | A1 | A0 | B2 | B1 | B0 | C2 | C1 | C0 | ||
| 02 | 31 | 38 | 31 | 33 | 30 | 38 | 30 | 30 | 30 | 30 | 30 | 36 | 30 | 35 | 41 | 30 | 34 | 30 | 30 | 36 | 03 FE |
Lift request generated by IU 0301 by pressing the Lift control icon, during a conversation with IU 0801.
IU 0801 and IU 0301 installed on the same Riser 2. The lift goes to the UI 0801 floor and then to the UI 0301 floor.
| STX Data Command Event Lift call sender Lift call receiver Lift start floor Lift arrival floor ETX SUM length address address | |||||||||||||||||||||
| high | low | high | low | high | low | D3 | D2 | D1 | D0 | A3 | A2 | A1 | A0 | B2 | B1 | B0 | C2 | C1 | C0 | ||
| 02 | 31 | 38 | 31 | 33 | 30 | 32 | 30 | 30 | 30 | 31 | 30 | 33 | 30 | 31 | 30 | 30 | 38 | 30 | 30 | 33 | 03 EA |
Communication process
| Name | Code (HEX) |
| STX | 0X02 |
| ACX | 0X06 |
| ENQ | 0X05 |
| 0X05 | 0X03 |
| NAK | 0X15 |
Querying the status of lift
For the items that need to display the lift status in real time, the riser EP must query 375010; 375010 collects the lift status and responds to the query of the riser EP.
Lift qty query
When EP is power on, it should send a message “Lift quantity, number and the lowest floor of the riser query” to lift to get the lift quantity and the lowest floor of this riser.
In order to avoid the situation that EP is poweron first and 375010 is power on later so it cannot get the query information the following beharior is implemented. After 375010 is power on, it will return the same response message “Lift quantity, number and the lowest floor of the riser query” when it received any lift’s command for the first time, inform EP the lift quantity and the lowest floor of this riser.
Note: 375010 receives the “lift quantity inquiry” command, and shall feedback the lift quantity information within 50 ms.
Lift status query
After getting the lift quantity information, the EP will query the lift status every 200 ms (if it does not receive the lift quantity information, it will not query for status). After the EP sends the
command to query the lift quantity or status, it must wait for 375010 to reply to the lift status. The next instruction cannot be sent until the number of lifts (or status) of 375010 is returned or the waiting time of 50 ms is expired.
When the EP receives the lift status information and finds that the lift status has changed, it sends the status to the IU in the form of UDP broadcast.
The IU displays the status as required.
| EP | 695863 | |
| | | | | |
| | | STX + DATA query lift qty or status + ETX + SUM | -> | |
| | <- | STX + DATA lift qty and status feedback + ETX + SUM | | |
EP sends the other lift control requests
The EP send one frame of lift control request at a time, and the other side does Not need to respond.
| EP | CLC | |
| | | | | |
| | | STX + DATA + ETX + SUM | | |
| | | ———————————–> | | |
Bticino International
