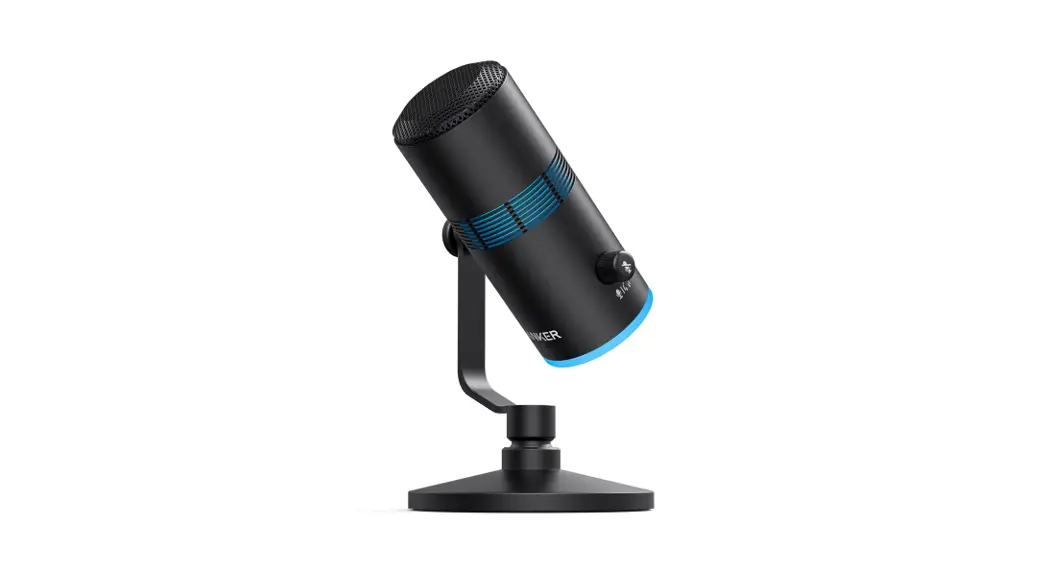

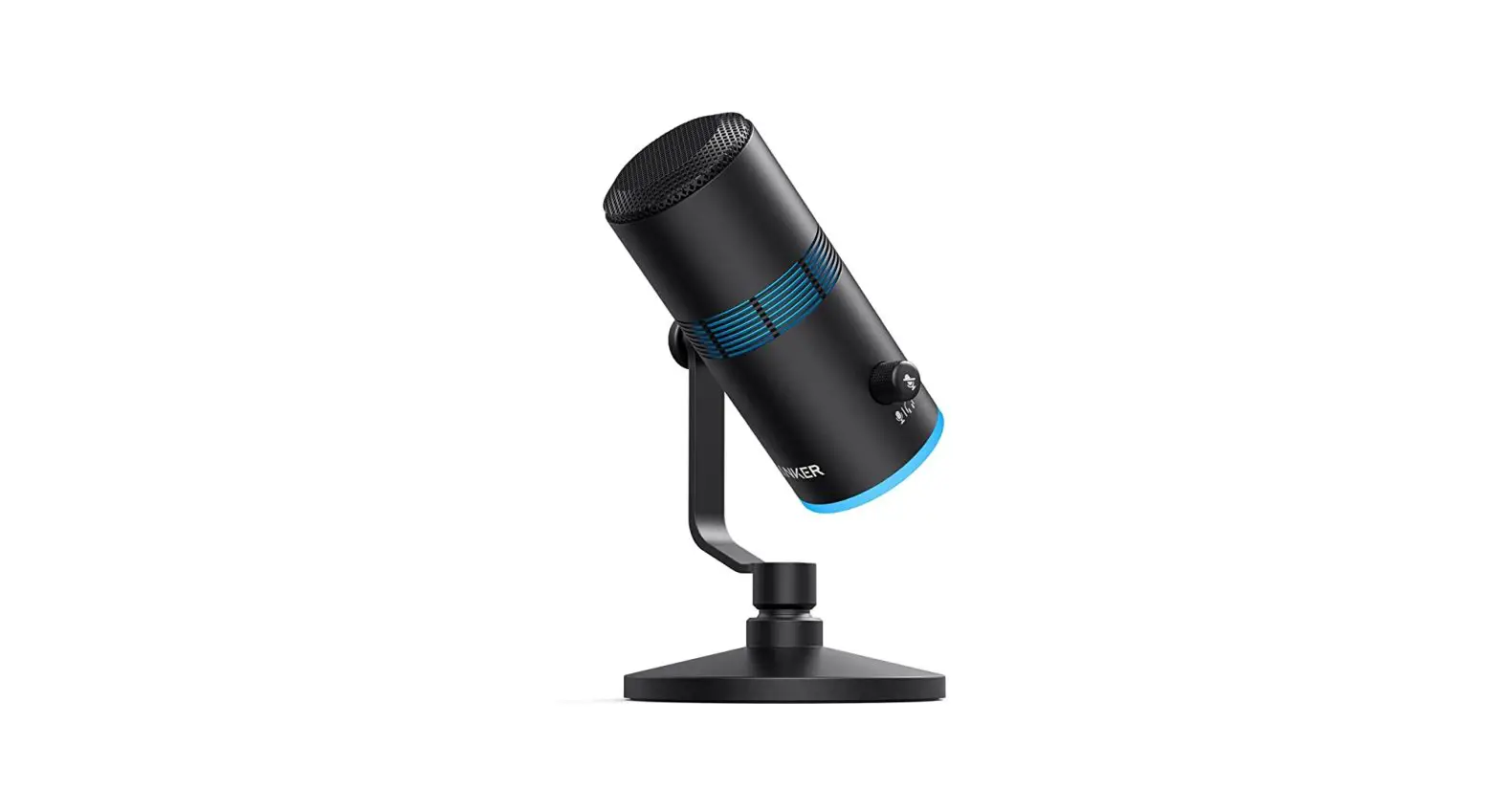

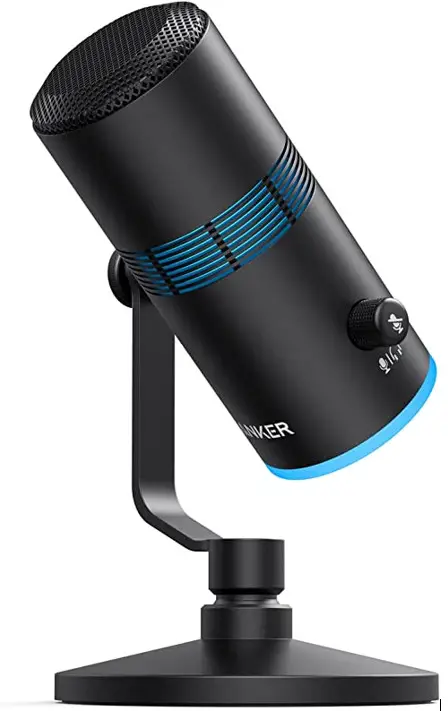

Anker PowerCast M300
USER MANUAL

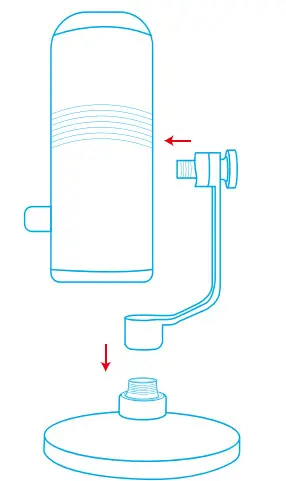

Assembly
- Securely tighten the base to the thread mount of your microphone.
- Adjust the angle of the microphone by swiveling the microphone up and down, then tightening the screw.

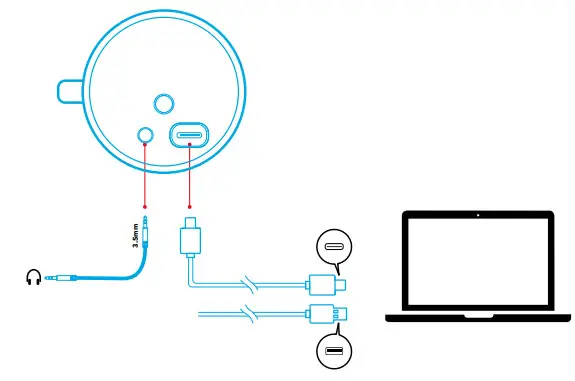

Connecting
- Connect the microphone to your PC via the provided USB-C to USB-C cable or USB-C to USB-A cable.
- Connect to your headphones via a 3.5mm audio cable.
You might need to manually select PowerCast M300 for your PC system.
- macOS
System Preferences > Sound > Input
- Windows
Right-click on the sound icon > Open Sound settings > Choose your input device

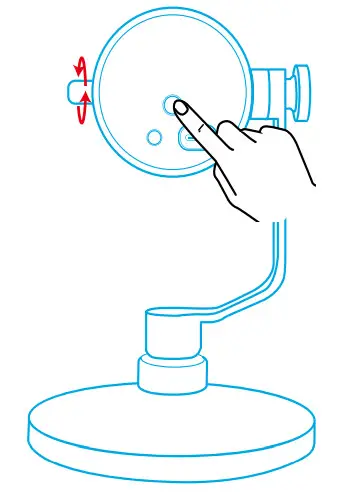

Light Show
Press the RGB button on the bottom of the microphone to switch light effects. To turn off the light effects, press and hold the RGB button for 2 seconds. Adjusting the volume dial corresponds to the brightness of the light effects in the middle of the microphone.

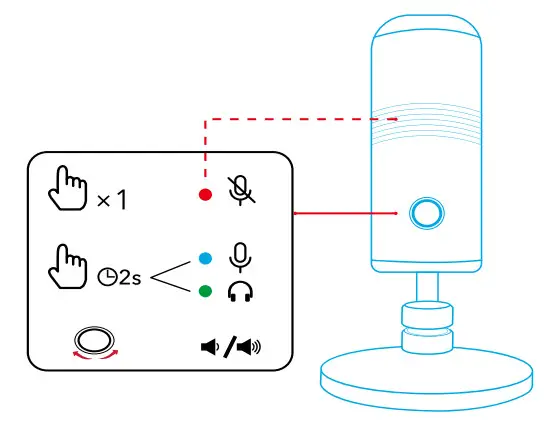

Controls
| Microphone on | Press once | Solid blue |
| Microphone off | Press once | Solid red |
| Switch to microphone control status | Press and hold for 2 seconds | Solid blue |
| Microphone volume up / down | Rotate in microphone control status | Solid blue; brightness varying with volume |
| Switch to headphone control status | Press and hold for 2 seconds | Solid green |
| Headphone volume up / down | Rotate in headphone control status | Solid green; brightness varying with volume |
Specifications
| Input | 5V= 0.2A (Max) |
| Microphone | 16mm condenser capsule |
| Polar pattern | Cardioid |
| Bit depth | 24 bit / 96 kHz |
| Frequency response | 20 Hz – 20 kHz |
| Compatibility | Windows® 7 or later, macOS® 10.11 or later |
