PAR900M Wireless Audio Transmitter Receiver
User Guide
PAR900M Wireless Audio Transmitter Receiver
| Recveiver Model | Description | Ch | Stereo/ Mono | XLR | XLR Signal Out | RCA | Line Signal Out | Freq Res Noise Dual (Hz) Gate Diversity | Use With |
| PAR900M | PRO Series Wireless Audio Receiver | 24 | Mono | x | 3.5Vpp | x | 1.5Vpp | 30-20k x x | PAT900, AT900-24DZ |
| Transmitter Model | Description | Ch | Stereo/ Mono | XLR | XLR Input | RCA | Line Input Z | Freq Res Remote (Hz) Mic Input Antenna | Use With |
| PAT900 | Pro Audio Transmitter, Mono | 24 | Mono | x | 200k | x | 50k | 30-20k x | PAR900M |
| AT900-24DZ | Audio Transmitter with Remote Outdoor Antenna | 24 | Mono | x | 10k | 50-15k x | PAR900M | ||
| AT900-24DY | Audio Transmitter with Remote Indoor Antenna | 24 | Mono | x | 10k | 50-15k x | PAR900M |
| Recveiver Model | Description | Ch | Stereo/ Mono | XLR | XLR Signal Out | RCA | Line Signal Out | Freq Res Noise Dual (Hz) Gate Diversity | Use With |
| PAR900M | PRO Series Wireless Audio Receiver | 24 | Mono | x | 3.5Vpp | x | 1.5Vpp | 30-20k x x | PAT900, AT900-24DZ |
| Transmitter Model | Description | Ch | Stereo/ Mono | XLR | XLR Input | RCA | Line Input Z | Freq Res Remote (Hz) Mic Input Antenna | Use With |
| PAT900 | Pro Audio Transmitter, Mono | 24 | Mono | x | 200k | x | 50k | 30-20k x | PAR900M |
| AT900-24DZ | Audio Transmitter with Remote Outdoor Antenna | 24 | Mono | x | 10k | 50-15k x | PAR900M | ||
| AT900-24DY | Audio Transmitter with Remote Indoor Antenna | 24 | Mono | x | 10k | 50-15k x | PAR900M |
All products above operate at 902 to 928 MHz.
All products above come with power adapters.
Max. Line-of-Sight Range for all products are 750 feet with included antennas. Higher gain antennas are also available.
Optional Directional Antennas for use on Receivers
| Model | Description | Size (inches) | Elements | Beam width |
| FP915-5 | Flat Panel, 5dBd | 8 x 8 x 1 in | 65 deg | |
| Y915-8 | Yagi, 8 dBd | 21″ | 5 | 55 deg |
| Y915-10 | Yagi, 10 dBd | 26″ | 7 | 50 deg |
| FB35T900 | Vertical, Omni-Directional, 6-dB, N Female | 22″ | 1 | 360 deg |
First 3 Antennas above have 3′ RG58 cable with BNC male Connector.

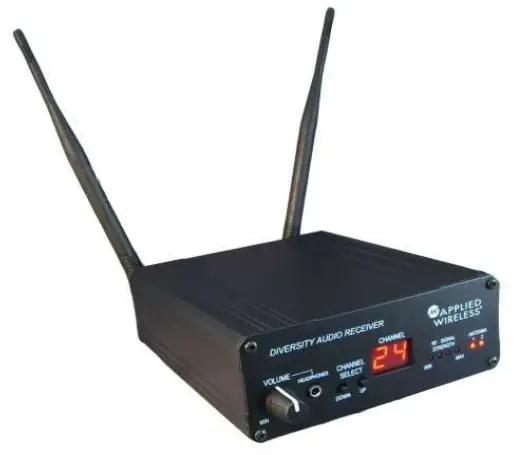

PAR900 Pro Audio Receiver

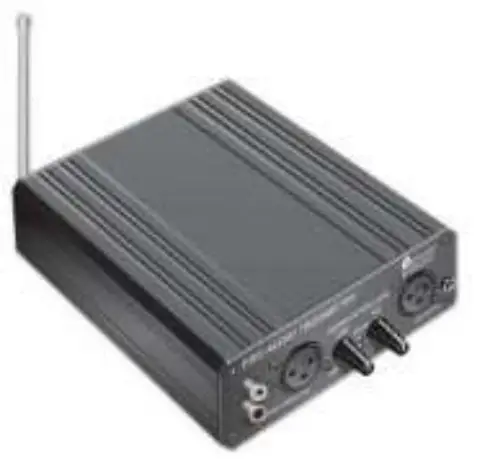

PAT900 Pro Audio Transmitter
These are analog products so there is no latency.
Use with amplified speakers or separate amplifier(s) and speakers.

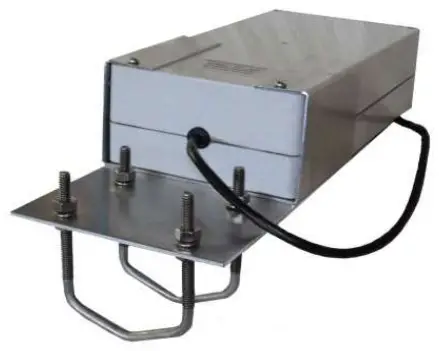

Remote Outdoor Transmit Antenna
