CRYSTORAMA 710-OB-CL-MWP Two Light Ceiling Mount
Dimension
Crystal Sets
A. 25 Sets. (1) 28mm + (1) 26mm +(1) 20mm + (1) 16mm + (1) 14mm
WARNING
Electrical Danger | Turn Power Off |
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes.
You will need 2- Candelabra Base Bulb 40 Watts recommended 60 Watts Max.
USE LED BULBS FOR EXTENDED USE
The fixture is Dry rated
HOW TO INSTALL
Place the fixture parts on a soft cloth covered platform before installation of fixture.
- Install the mounting bar onto the outlet box.
- Raise the Frame up over the threaded nipple on the mounting bar.
After the wire connection is completed, Secure with the coupling. - Screw the center stem onto the coupling and secure with the nut.
- Adjust the hex nut along the bottom end of the center stem to allow the vase cap to stay in the correct position.
Secure the cap with the finial. - Dress the crystals as illustrated.
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.p65warnings.ca.gov

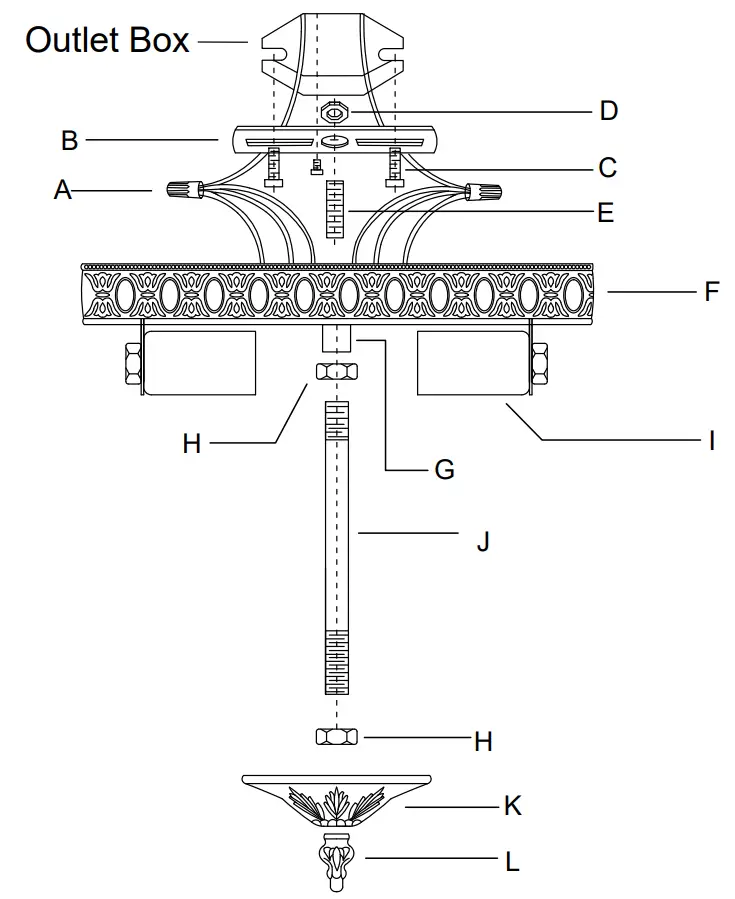

Part Number
Part Numbers
A. (2)- Wire Connector
B. (1)- Mounting bar
C. (2)- Screw
D. (1)- Hex nut
E. (1)- Threaded nipple
F. (1)- Frame ; Ø10″ ; 25 pin holes ; with inner plate.
G. (1)- Coupling
H. (2)- Hex Nut
I. (2)- Socket
J. (1)- Center stem ; H 4 1/2″-XSN708OBSTEM4.5IN
K. (1)- Vase Cap ; Ø3″ ; 25 pin holes-XSN710OBCAP3IN
L. (1)- Finial-XSN708OBFIN
Customer Support
Crystorama Lighting
p65warnings.ca.gov
