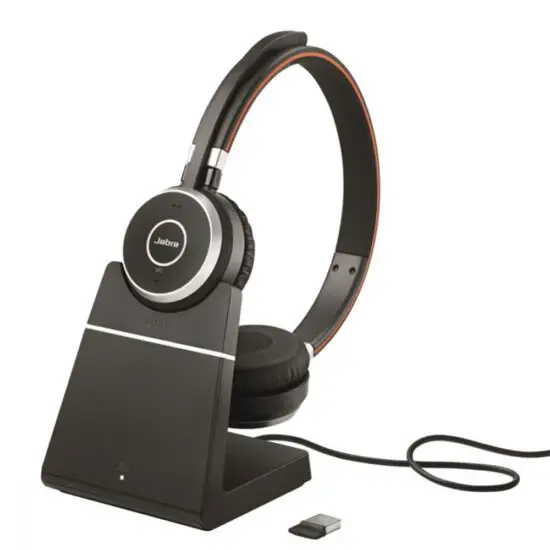

Jabra Evolve 65 UC Stereo Headset User Manual
Welcome
Thank you for using the Jabra Evolve 65. We hope you will enjoy it!
Jabra Evolve 65 features
- Connects to PC via Jabra Link 370 Bluetooth adapter or USB cable
- Connects to mobile devices via Bluetooth
- Integrated busy light
- Discreet microphone boom-arm that integrates into the headband when not on calls
- Superior music and voice capabilities
- Hi-Fi Sound
Jabra Evolve 65 overview

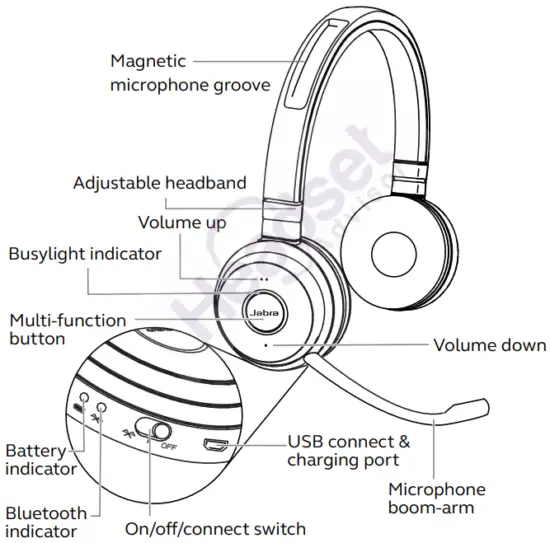

Stereo variant

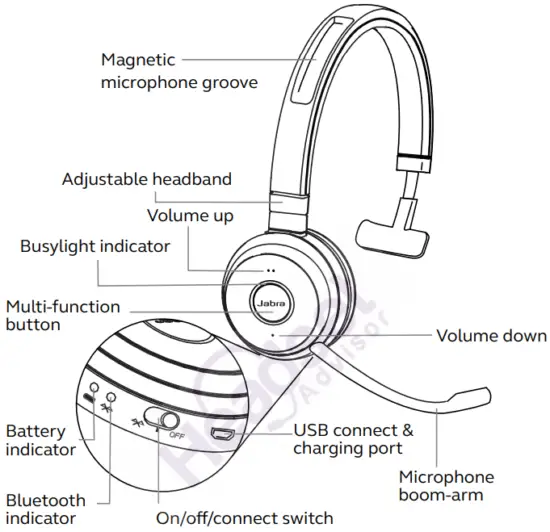

Mono variant
Included accessories
(stereo and mono)
- Carry pouch
- USB cable

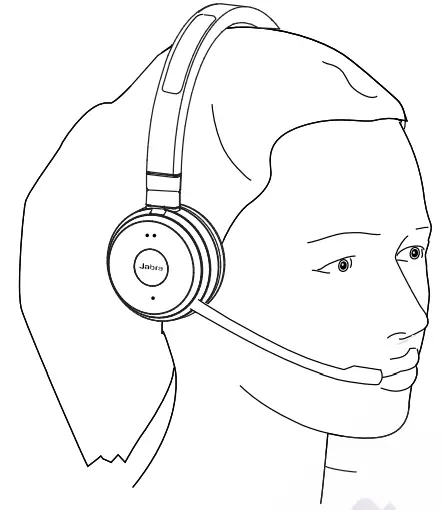

How to wear

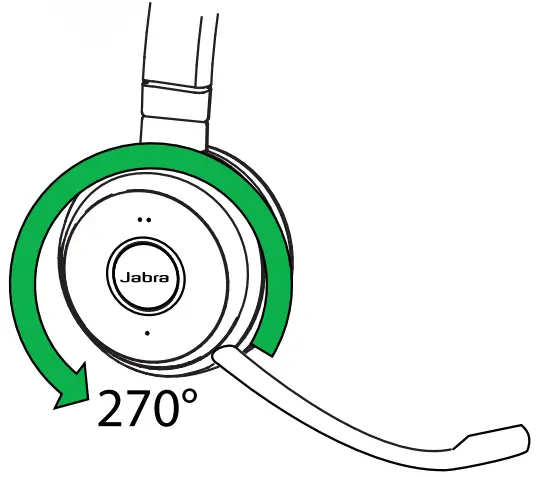

Left or right wearing style
The Jabra Evolve 65 can be worn on the left or right by flipping the microphone to the other side (270° limit).

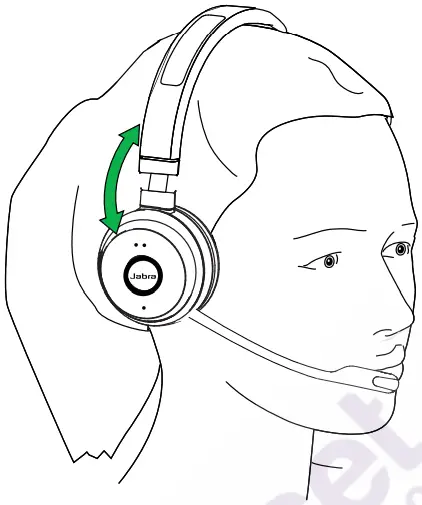

Adjust the headband
Adjust the headband to find the most comfortable fit.

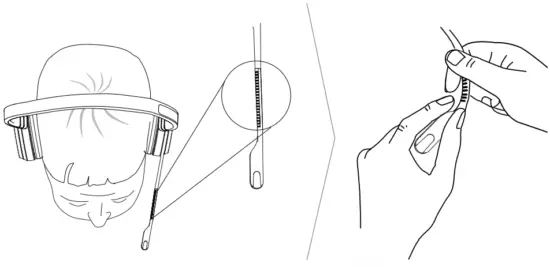

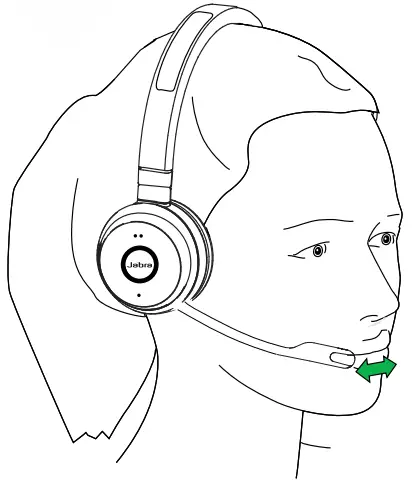

Position the microphone
It is recommended to position the microphone close to your mouth (0.5 inches).
The microphone is bendable for personal preference.

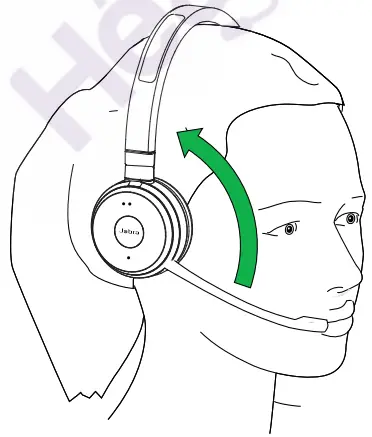

Storing the microphone
When listening to music or outdoors, the microphone can be magnetically stored in the headband groove.
How to charge the battery
The headset battery will charge when connected to a PC using a USB cable, or when using any USB charger supplied with your mobile device.
The headset can still be used for calls while charging using a USB cable connected to a PC.
It takes approx. 3 hours to charge the battery.
Sleep mode
When the headset is powered on, but not being used, it will automatically enter sleep mode after 15 minutes to conserve battery. To manually exit sleep mode, press any button on the headset.
After 24 hours of sleep mode, the headset will power down completely. To power the headset back on, slide the On/off/connect switch from On to Off, and then back to On.
Sleep mode is enabled by default, and can be disabled using Jabra Direct.
How to connect

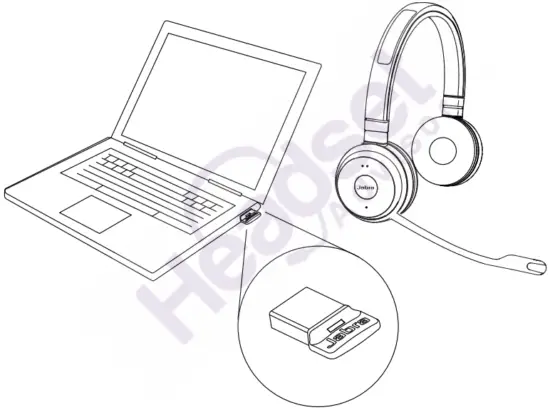

Connect to PC (using jabra Link 370)
- Ensure the headset is switched on.
- Plug the Jabra Link 370 dongle into a USB port on your PC. The headset and Jabra Link 370 are already pre-connected.

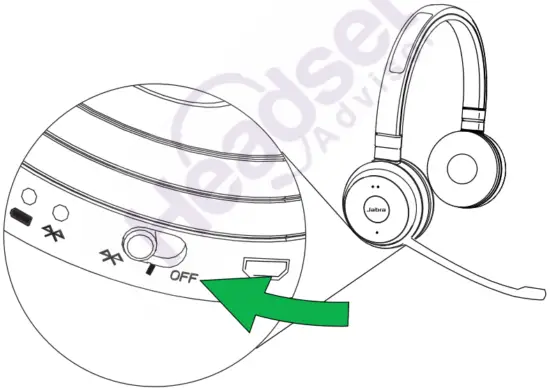

Connect to mobile device (using Bluetooth)
- Wear the headset.
- Hold (3 secs) the On/off/connect switch in the connect position until you hear the voice guided instructions. The Bluetooth indicator will flash blue.
- Follow the voice guided instructions to connect.

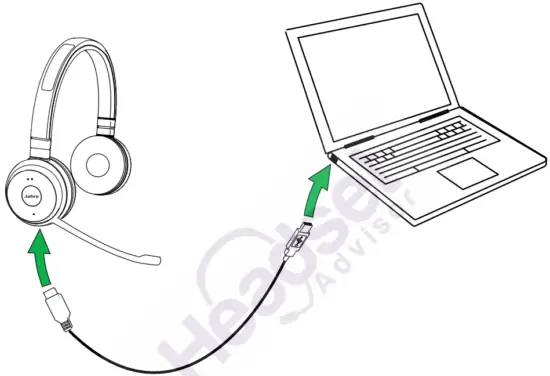

Connect to PC (using USB cable)
- Ensure the headset is switched on.
- Plug the headset into a USB port on your PC using the supplied USB cable.

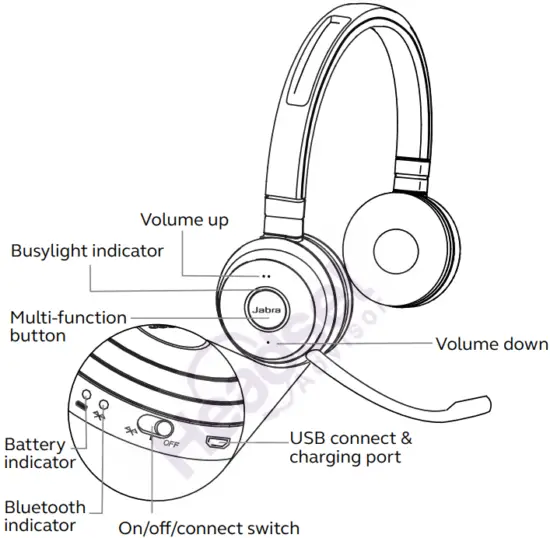

How to use
Everyday use
| Function | Action | |
| Headset on/of | Slide the On/off/connect switch |
| Answer/end call | Tap the Multi-function button |
| Open Microsoft Teams notification* | Tap the Multi-function button | |
| Reject call | Double-tap the Multifunction button | |
| Battery and connection status | Tap the Multi-function button when not on a call | |
| Enable/disable Voice prompts | Press and hold the Multi-function button while turning on the headset | |
| Adjust volume | Tap the Volume up or Volume down button |
| Manual busylight on/of | Simultaneously tap the Volume up and Volume down buttons |
| Enable/disable Busylight function | Simultaneously press and hold (3 secs) the Volume up and Volume down buttons | |
 | Mute/unmute microphone | Press and hold (2 secs) the Volume down button |
Multiple call handling
The headset can accept and handle multiple calls at the same time.
| Function | Action | |
| End current call and answer incoming call | Tap the Multi-function button |
| Switch between held call and active call | Press and hold (2 secs) the Multi-function button | |
| Put current call on hold and answer incoming call | Press and hold (2 secs) the Multi-function button | |
| Reject incoming call, when on a call | Double-tap the Multi-function button |

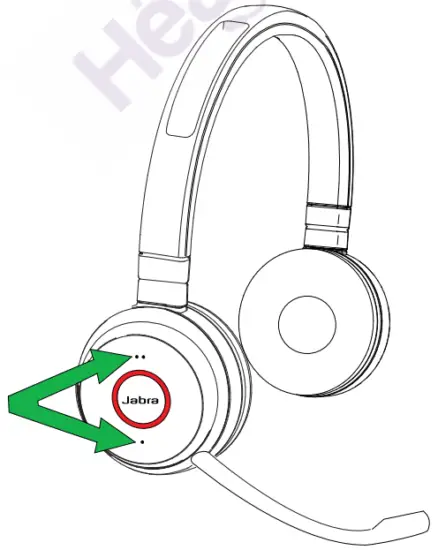

Busylight
The busylight indicator on the headset can be turned on to let others know that you are busy.
MANUALLY TURN BUSYLIGHT ON/OFF
To manually turn the busylight on/off, tap both the Volume up and Volume down buttons at the same time.
ENABLE/DISABLE BUSYLIGHT FUNCTION
To enable/disable the busylight function, press and hold (3 secs) both the Volume up and Volume down buttons at the same time.
Software and firmware
Jabra Direct
Jabra Direct is computer software designed to support, manage and enable optimal functionality for Jabra devices.
Download the latest free version from jabra.com/direct
Update firmware
Firmware updates improve performance or add new functionality to Jabra devices.
- Connect the Jabra Evolve 65 to a computer.
- Use Jabra Direct to check for the latest firmware updates.
Support
FAQ
View the FAQs on Jabra.com/evolve65
How to care for your headset
- Always store the headset with the power off and safely protected.
- Avoid storage at extreme temperatures (above 55°C/131°F or below -10°C/14°F). This can shorten battery life and may adversely affect the headset.
Technical specifications
| Jabra Evolve 65 headset | Specification |
| Headset weight: | Mono headset: 79 g Stereo headset: 111 g |
| Headset dimensions: | Mono headset: L 154.4 mm x W 58.6 mm x H 170.4 mm Stereo headset: L 155.5 mm x W 58.6 mm x H 170.5 mm |
| Microphones: | Noise cancelling microphone |
| Speaker: | 28 mm Dynamic PureSound speakers (Hi-Fi) |
| Speaker maximum input power: | 10 mW |
| Speaker frequency range: | 70 hz – 20 kHz |
| Operating temperature: | -10°C to 55°C (14°F to 131°F) |
| Storage temperature: | -20°C to 25°C (-4°F to 77°F) |
| BLUETOOTH ADAPTER (JABRA LINK 370) | SPECIFICATION |
| PC connection: | USB 2.0 |
| Bluetooth version: | 4.2 |
| Bluetooth range: | Up to 30m (100 feet), Class 1 |
| Bluetooth profiles: | A2DP (v1.2), Hands free profile (v1.6) |
| Simultaneous Bluetooth connections: | 1 |
| Bluetooth audio bandwidth | HD voice (wideband), A2DP |
| Visual indicators: | Multicolor LED |
Declaration of Conformity can be found on www.jabra.com/doc
