Zebra Smartphone User Guide

TC21 and TC26 Accessory Guide

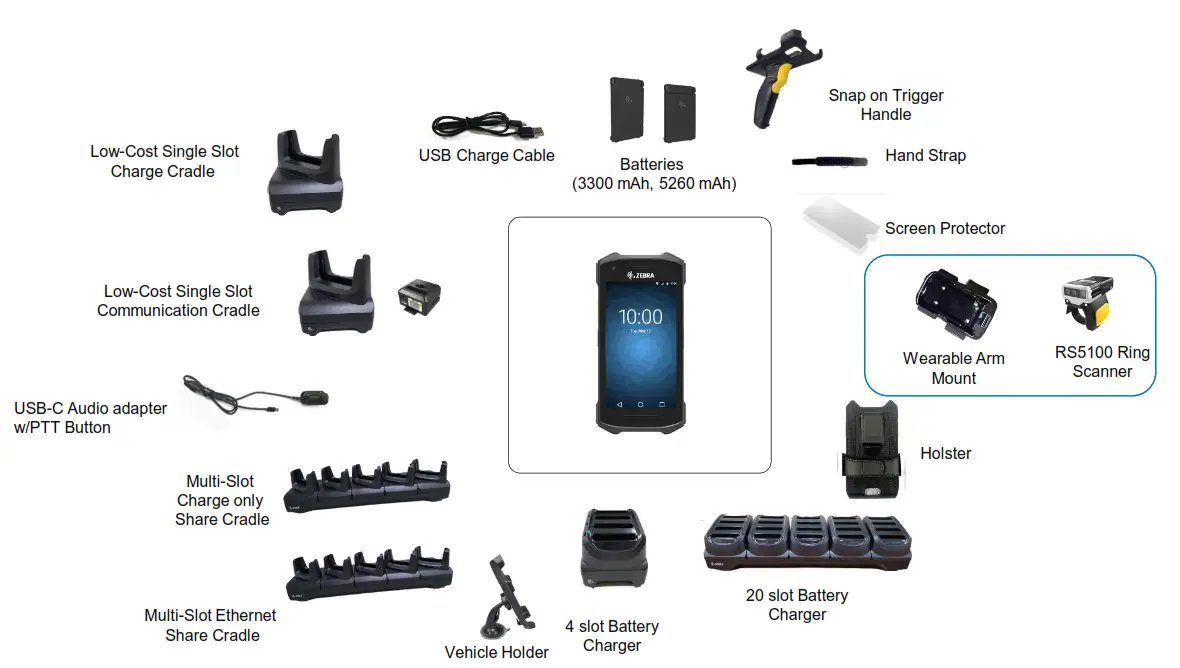

TC21/TC26 Accessory Overview

Cradle System

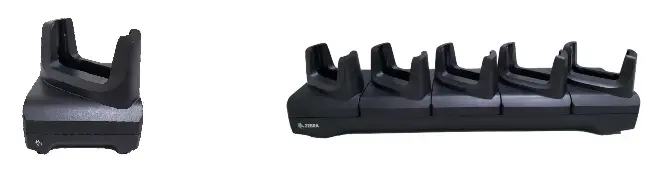

1 & 5 Slot Charge Cradles

CRD-TC2Y-BS1CO-01
TC21/TC26 Single Slot Charge Only Cradle

CRD-TC2Y-BS5CO-01
CRD-TC2Y-BS54B-01
TC21/TC26 Multi-Slot Charge Only ShareCradle

• Charges Trigger Handle and Terminal together
• Multi-slot – 19″ Rack: Rack Mountable (Mounting accessory required – BRKT-SCRD-SMRK-01)
• 5-slot available in 2 options;
  • 5 slot terminal only
  • 4 slot terminal plus 4 slot battery
• Single Slot Base Cradle requires USB C Cable
  (CBL-TC5X-USBC2A-01, PS: PWRWUA5V12W0XX (US, EU, GB, AU, CN, BR, KR, IN)
• 5-Slot Cradles requires power supply PWRBGA12V108W0WW, DC Line Cord CBL-DC381A1-0 & country-specific AC Line Cord (sold separately)

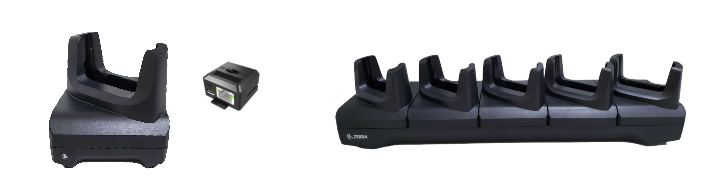

1 & 5-Slot Communication Cradles

CRD-TC2Y-SE1ET-01
TC21/TC26 Single Slot Charge/Communication Cradle

CRD-TC2Y-SE5ET-01
TC21/TC26 5-Slot Ethernet & Charge ShareCradle

• Charge Trigger Handle and Terminal Together
• Multi-slot 19-inch Rack Mountable (Mounting accessory required – BRKT-SCRD-SMRK-01)
• NOTE: Single Slot Communication Cradle to utilize Ethernet requires MOD-MT2-EU1-0 or to utilize USB requires UBB cable 25-124330-01R. (Both Sold Separately)
• Single Slot Charge and Ethernet Communication Cradle requires power supply PWR-BGA12V50W0WW & CBLDC-388A1-01 & country-specific AC Line Cord (sold separately)
• 5-Slot Cradles requires power supply PWRBGA12V108W0WW, DC Line Cord CBL-DC-381A1-0 & country-specific AC Line Cord (sold separately)

Batteries and Chargers

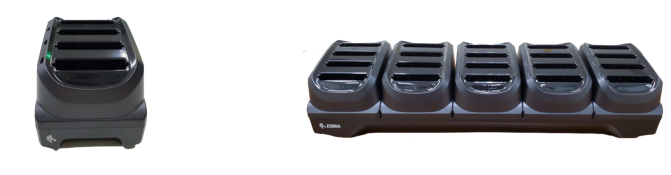

4-Slot Battery Charger

SAC-TC2Y-4SCHG-01
SAC-TC2Y-20SCH-01
TC21/TC26 4-slot Battery Charger

• Charges 1X or 2X Batteries; can mix & match battery per slot
• 4-Slot requires power supply PWR-BGA12V50W0WW; DC Line Cord CBL-DC-388A1-01 & country-specific AC Line Cord (sold separately)
• 20-slot required power supply PWR-BGA12V108W0WW; DC Line Cord CBL-DC-381A1-01 & country-specific AC Line Cord (sold separately)
• 20-slot Rack Mountable (requires BRKT-SCRD-SMRK-01 sold separately)

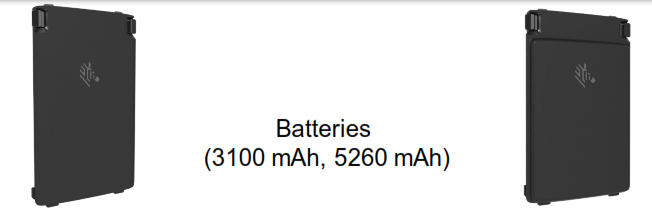

1X and 2X Batteries

BTRY-TC2Y-1XMA1-01
BTRY-TC2Y-2XMA1-01
Basic Battery 3300 mAh
Extended Battery 5260 mAh

• Basic Battery 3300 mAh · Extended Battery 5260 mAh
• Country-Specific Batteries available: “-BR” Brazil, “-IA” India
• Both compatible with battery charger SAC-TC2Y-4SCHG-01

Data Capture

Trigger Handle

TRG-TC2Y-SNP1-01
TC21/TC26 Snap-On Trigger Handle
Transforms device into all-touch handle style terminal for use in interim high-volume scanning operations

• Easily attaches to TC21/TC26 top housing
• Exposed Contacts provide ability to charge with the 5-Slot & Single Slot Cradles
• Optional Wrist Tether (sold separately) 50-12500-066
• The Trigger Handle is only available to be used on the TC21 and TC26 devices equipped with the 2-pin rear I/O connector.
• Does not block rear camera

Screen Protector

SG-TC2Y-SCRNPT1-01
TC21/TC26 Tempered Glass Screen Protector

• Protects Display on TC21 & TC26
• Single Protector to a Package

Trigger Handle Service Plan

The TC2X trigger accessory provides users with significant flexibility as they adapt the TC2X device to different operations within their retail environment. The TC2X trigger accessory is considered a consumable item that may need to be replaced during the life of a TC2X. Therefore, Zebra highly recommends the purchase of a Zebra trigger handle service plan.

• OPT-TRGMNT-2
  • 2-Year Zebra OneCare Comprehensive Trigger Maintenance
• OPT-TRGMNT-3
  • 3-Year Zebra OneCare Comprehensive Trigger Maintenance

Soft Goods

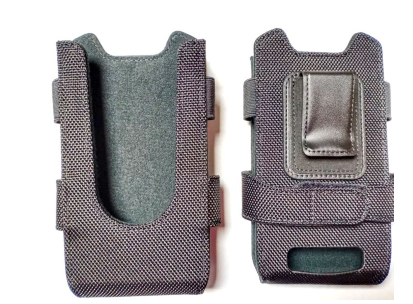

Soft Holsters

SG-TC2Y-HLSTR1-01
TC21/TC26 Soft Holster

• TC2X Open Bucket design to accommodate hand strap + Snap-on’s for easy insertion/removal
• Opening for audio & drainage
• Non-rotating clip
• Adjustable belt to fit the TC21/TC26 with Basic or Extended Battery

Hand Strap

SG-TC2Y-HSTRP1-01
TC21/TC26 Hand Strap

• Plastic clip that snap into towel bar for easy insertion/removal
• Leather and Hypalon Pad for maximum comfort & wear resistance with Adjustable Velcro design

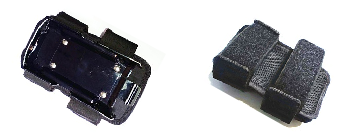

Arm Mount

SG-TC2Y-ARMNT-01
TC21/TC26 Arm Mount

• Enables the TC21/TC26 to be mounted to the arm for hands-free operation
• Scan with the hands-free RS5100 Bluetooth Ring Scanner

Audio and Vehicle Accessories

In-Vehicle Holder

CRD-TC2Y-VCH1-01
TC21/TC26 In-Vehicle Holder

• Suction Cup for Easy Window or Dashboard Mount
• Supports device with 1X or 2X Batteries
• USB-C jack accessible
• Does Not support Snap-On Accessories
• Work with USB Cigarette Lighter Adapter (CHG-AUTOUSB1-01) ­ sold separately

Headset

HDST-35MM-PTVP-01
Over the ear headset with MIC and PTT
3.5mm Requires USB-C adapter cable, ADP-USBC-35MM1-0 (sold separately)

Bluetooth Headset

HS3100-OTH
HS3100 Rugged Bluetooth Headset Over-The-Head Headband includes HS3100 Boom Module and HSX100 OTH Headband Module

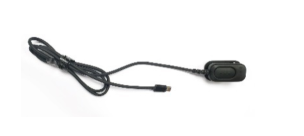

Audio Adapter Cable

ADP-USBC-35MM1-01
USB to 3.5MM adapter with PTT Headset button support

Chargers and Cables

USB C Cable

CBL-TC5X-USBC2A-01
TC21/TC26 USB C Cable to be used for charging and communications

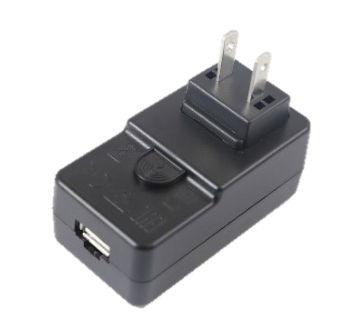

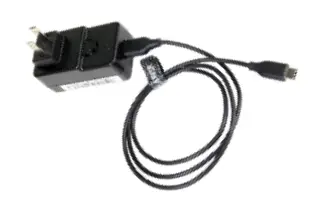

Wall Charger ­ Power Supply

PWR-WUA5V12W0XX
Power Supply-100-240 VAC, 5 V, 2.5 A with country-specific plugs.

AC Line Cords ­ Country Specific
