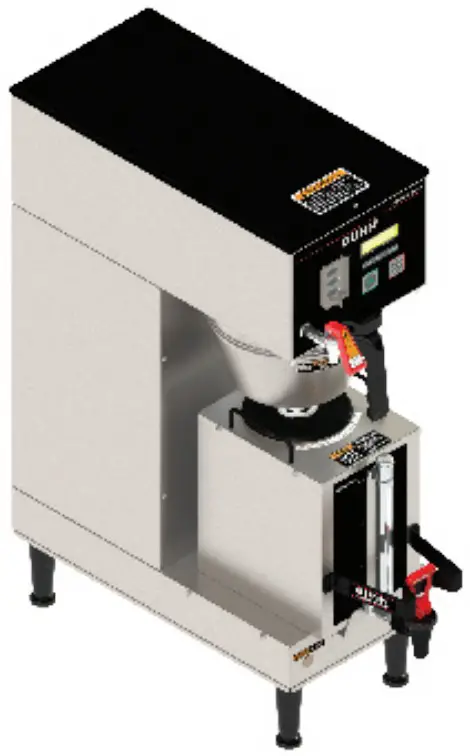

SINGLE® GPR DBC-DV
WITH SMART FUNNEL®
Dual Voltage Model
37981.0001 BrewWISE GPR DBC 12.5 Gallon Single Coffee
ILLUSTRATED PARTS CATALOG
Designs, materials, weights, specifications, and dimensions for equipment or replacement parts are subject to change without notice.
BUNN-O-MATIC COMMERCIAL PRODUCT WARRANTY
Bunn-O-Matic Corp. (“BUNN”) warrants equipment manufactured by it as follows:
- Airpots, thermal carafes, decanters, GPR servers, iced tea/coffee dispensers, MCR/MCP/MCA single cup brewers, thermal servers and ThermoFresh® servers (mechanical and digital) 1 year parts and 1 year labor.
- All other equipment – 2 years parts and 1 year labor plus added warranties as specified/below:
a) Electronic circuit and/or control boards – parts and labor for 3 years.
b) Compressors on refrigeration equipment – 5 years parts and 1 year labor.
c) Grinding burrs on coffee grinding equipment to grind coffee to meet original factory screen sieve analysis – parts and labor for 4 years or 40,000 pounds of coffee, whichever comes first.
These warranty periods run from the date of installation BUNN warrants that the equipment manufactured by it will be commercially free of defects in material and workmanship existing at the time of manufacture and appearing within the applicable warranty period. This warranty does not apply to any equipment, component or part that was not manufactured by BUNN or that, in BUNN’s judgment, has been affected by misuse, neglect, alteration, improper installation or operation, improper maintenance or repair, non periodic cleaning and descaling, equipment failures related to poor water quality, damage or casualty. In addition, the warranty does not apply to replacement of items subject to normal use including but not limited to user replaceable parts such as seals and gaskets. This warranty is conditioned on the Buyer 1) giving BUNN prompt notice of any claim to be made under this warranty by telephone at (217) 529-6601 or by writing to Post Office Box 3227, Springfield, Illinois 62708-3227; 2) if requested by BUNN, shipping the defective equipment prepaid to an authorized BUNN service location; and 3) receiving prior authorization from BUNN that the defective equipment is under warranty.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, WRITTEN OR ORAL, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF EITHER MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. The agents, dealers or employees of BUNN are not authorized to make modifications to this warranty or to make additional warranties that are binding on BUNN. Accordingly, statements by such individuals, whether oral or written, do not constitute warranties and should not be relied upon.
If BUNN determines in its sole discretion that the equipment does not conform to the warranty, BUNN, at its exclusive option while the equipment is under warranty, shall either 1) provide at no charge replacement parts and/or labor (during the applicable parts and labor warranty periods specified above) to repair the defective components, provided that this repair is done by a BUNN Authorized Service Representative; or 2) shall replace the equipment or refund the purchase price for the equipment.
THE BUYER’S REMEDY AGAINST BUNN FOR THE BREACH OF ANY OBLIGATION ARISING OUT OF THE SALE OF THIS EQUIPMENT, WHETHER DERIVED FROM WARRANTY OR OTHERWISE, SHALL BE LIMITED, AT BUNN’S SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND.
In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages.
392, A Partner You Can Count On, Air Infusion, Auto POD, AXIOM, Brew LOGIC, Brew METER, Brew Better Not Bitter, BrewWISE, Brew WIZARD, BUNN Espress, BUNN Family Gourmet, BUNN Gourmet, BUNN Pour-O-Matic, BUNN, BUNN with the stylized red line, BUN Nlink, Bunn-OMatic, Bunn-O-Matic, BUNNserve, BUNNSERVE with the stylized wrench design, Cool Froth, DBC, Dr. Brew stylized Dr. design, Dual, Easy Pour, Easy Clear, Easy Gard, Flavor Gard, Gourmet Ice, Gourmet Juice, High Intensity, iMIX, Infusion Series, InteliStaf, My Café, Phase Brew, Power Logic, Quality Beverage Equipment Worldwide, Respect Earth, Respect Earth with the stylized leaf and coffee cherry design, Safety-Fresh, savemycoffee.com, Scale-Pro, Silver Series, Single, Smart Funnel, Smart Hopper, Smart WAVE, Soft Heat, Splash Gard, The Mark of Quality in Beverage Equipment Worldwide, Thermo Fresh, Titan, trifecta, TRIFECTA (sylized logo), Velocity Brew, Air Brew, Beverage Bar Creator, Beverage Profit Calculator, Brew better, not bitter., Build-A-Drink, BUNN Source, Coffee At Its Best, Cyclonic Heating System, Daypart, Digital Brewer Control, Element, Milk Texturing Fusion, Nothing Brews Like a BUNN, Picture Prompted Cleaning, Pouring Profits, Signature Series, Sure Tamp, Tea At Its Best, The Horizontal Red Line, Ultra are either trademarks or registered trademarks of Bunn-O-Matic Corporation. The commercial trifecta® brewer housing configuration is a trademark of Bunn-O-Matic Corporation.
To search this document electronically, press “control” + “F” (on P.C.) or “command” + “F” on Mac, then type in description or part number, press “enter”.

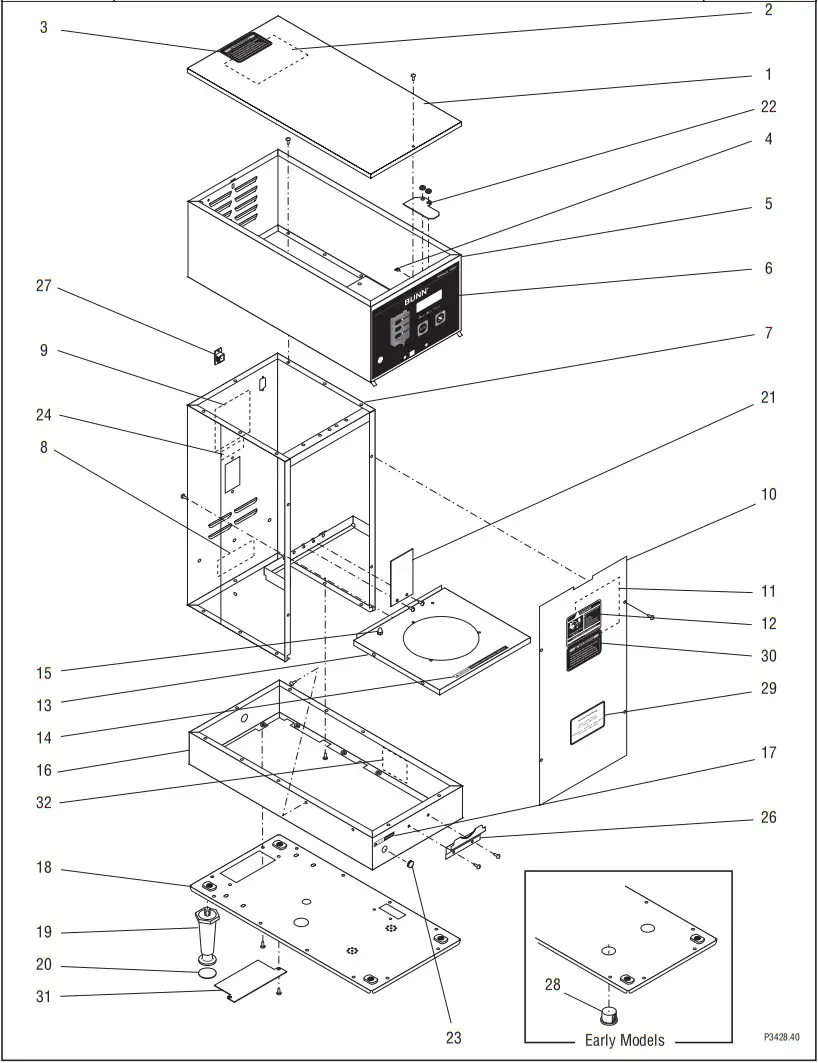

BASE – TRUNK – HOOD – COVERS & PANELS
SINGLE / GPR DBC-DV
| ITEM | PART NO. | QTY. | DESCRIPTION |
| 1 | 25766.0001 02336.0000 | 1 1 | Cover W/Decals, Top (Includes items 2 & 3) Screw, Truss Head #4 – 40 x .375″ |
| 2 | 25151.0000 | 1 | Shield, Insulator |
| 3 | 37881.0000 | 1 | Decal, Warning – “No Serviceable Parts” |
| 4 | 00916.0000 | 1 | Clip, J-Type #4 – 40 |
| 5 | 36404.1005 02308.0000 | 1 7 | Hood W/Decals (Includes item 6) Screw, Pan Head #8 – 32 x .375″ |
| 6 | 29973.0003 | 1 | Membrane Switch |
| 7 | 37426.1000 37426.1001 | 1 1 |  |
| 8 | 00656.0001 | 1 | Decal, Comply to Plumbing Code |
| 9 | 00986.0000 | 1 | Decal, Warning – Electrical |
| 10 | 27744.1005 22987.1000 01382.0003 | 1 1 8 | Panel W/Decals, 120/240V (17.66″) (Includes items 11, 12, 29 & 30) Panel W/Decals, 120/240V (15.92″) (Includes items 11, 12, 29 & 30) Screw, Truss Head Locking #6 – 32 x .375″ |
| 11 | 32043.0003 32043.0014 | 1 1 | Schematic, Electrical 120/240V Schematic, Electrical 120/240V (After S/N SNG0089375) |
| 12 | 00658.0000 | 1 | Decal, Caution – Decanter/Funnel |
| 13 | 21511.1004 01311.0000 | 1 4 | Warmer Panel Assy W/Decals (Includes items 14 & 15) Screw, Truss Head SST #8 – 32 x .25″ |
| 14 | 12364.0000 | 1 | Decal, Caution-Warmers Are Hot |
| 15 | 02324.0000 | 2 | Nut, Acorn #8 – 32 |
| 16 | 28592.1004 28592.0008 02308.0000 | 1 1 7 | Base Housing W/Decals, 120/240V (Includes item 17) Base Housing, 120/240V Screw, Pan Head #8 – 32 x .375″ |
| 17 | 20201.5600 | 1 | Decal, Warning – Hot Water |
| 18 | 22979.0003 22979.0004 22979.0007 02308.0000 | 1 1 1 12 | Cover, Bottom 120/240V Cover, Bottom 120/240V (Models with Main Power Switch) Cover, Bottom 120/240V (Models with Main Power Switch) Screw, Pan Head #8 – 32 x .375″ |
| 19 | 26528.0000 | 4 |  |
| 20 | 03996.0000 | 4 | |
| 21 | 34020.0000 02308.0000 | 1 2 | Plate, Decal Mounting (Models without Main Power Switch) Screw, Pan Head #8 – 32 x .375″ |
| 22 | 32649.0000 00970.0000 | 1 2 | Plate, Cover Nut, Keps #8 – 32 |
| 23 | 00619.0007 | 1 | Plug, .50″ Dia. |
| ITEM | PART NO. | QTY. | DESCRIPTION |
| 24 | 00985.0000 | 1 | Decal, Individual Circuit Info |
| 25 | 13255.0003 | – | Leg Kit (Includes 4 each of items 19 & 20) (Not Illustrated) |
| 26 | 21104.0003 21104.0007 01347.0000 | 2 2 4 | Server Stop, Bolt-On (Used in Product # 36100.0000) Server Stop, Bolt-On (Used in Product # 36100.0010) Screw, #6 – 32 x .38″ |
| 27 | 36398.0000 | 1 | Hole Plug, DB-9 (Early models) |
| 28 | 03011.0000 | 2 | Plug, Vent BLK 1.0″ Dia. (Early models only) |
| 29 | 29710.0012 | 1 | Decal, Optional Field Wiring |
| 30 | 37881.0000 | 1 |  |
| 31 | 37766.0000 02308.0000 | 1 2 | Cover, Access Screw, Pan Head #8 – 32 x .375″ |
| 32 | 39803.0000 | 1 | Decal, Main Switch (Models with Main Power Switch only) |

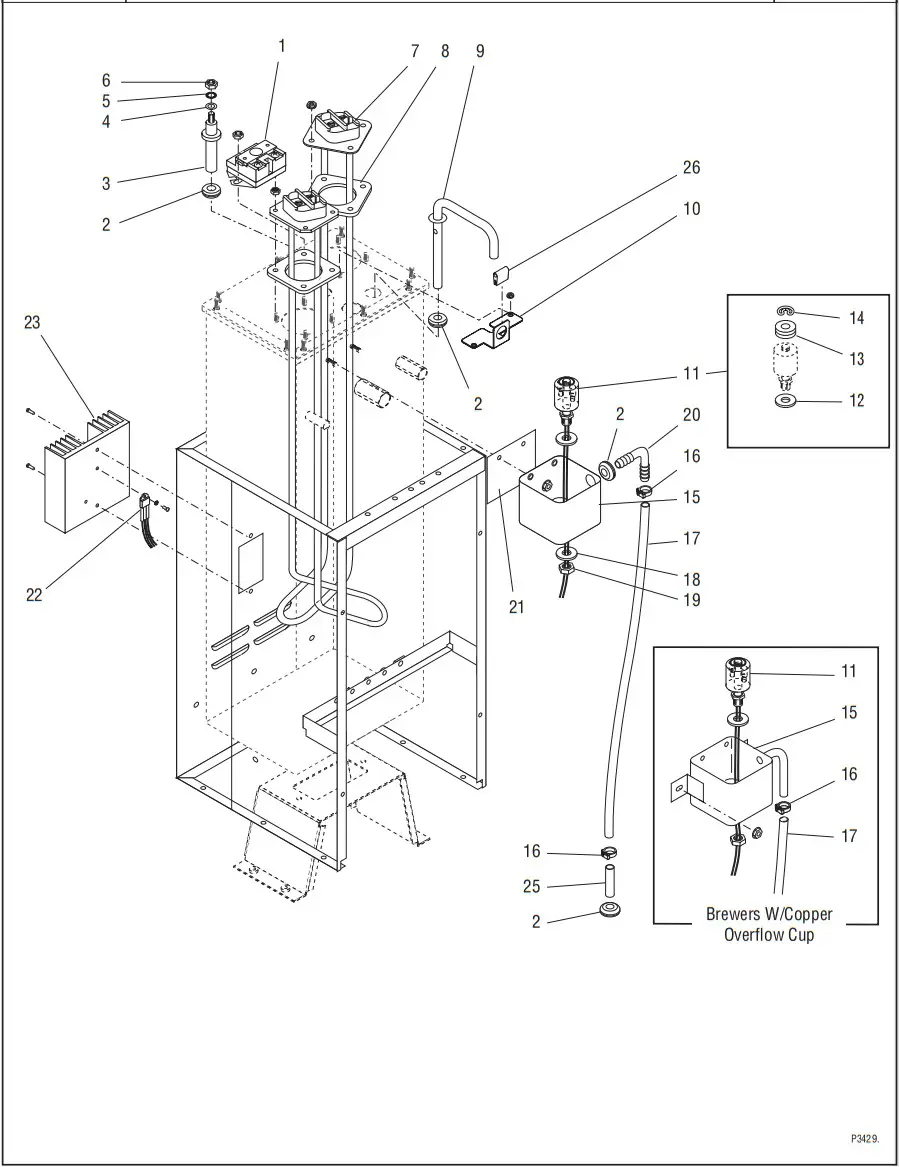

TANK HEATER & OVERFLOW PROTECTION DEVICES
SINGLE / GPR DBC-DV
TANK HEATER & OVERFLOW PROTECTION DEVICES
| ITEM | PART NO. | QTY. | DESCRIPTION |
| 1 | 23717.0003 00908.0000 | 1 2 | Thermostat, Limit Nut, Hex #8 – 32 |
| 2 | 02536.0000 | 4 | Grommet, Probe (1 less used on brewers with Copper Overflow Cup) |
| 3 | 20936.1000 | 1 | Probe Kit (Includes items 4, 5 & 6) |
| 4 | 01501.0000 | 1 | Washer .164″ I.D. x .375″ O.D. |
| 5 | 20203.0100 | 1 | Lockwasher, Internal Tooth #8 |
| 6 | 00908.0000 | 1 | Nut, Hex #8 – 32 |
| 7 | 20922.1001 20922.1004 00908.0000 | 1 1 4 | Tank Heater 1650W @ 120V (Includes Item 8) Tank Heater 3235W @ 120V (Includes Item 8) Nut, Hex #8 – 32 |
| 8 | 12398.0002 | 1 | Gasket, Tank Heater |
| 9 | 26622.0001 | 1 | Tube Assy, Vent |
| 10 | 37844.0000 | 1 | Bracket, Vent Tube |
| 11 | 03803.0000 04797.0000 00946.0000 | 1 1 1 | Switch Assy, Liquid Level, 120/240V (Includes Items 12, 13 & 14) Washer, Celcon .520″ I.D. x 1.0″ O.D. Nut, Hex .125″ FPT |
| 12 | 03633.0000 | 2 | Gasket, Float Switch (Only 1 used in this application) |
| 13 | – – – – – – – – | 3 | Washer, Adjusting (DO NOT USE IN THIS APPLICATION) |
| 14 | 03807.0000 | 1 | Clip, Spring |
| 15 | 22728.0000 41259.1003 00971.0000 | 1 1 2 | Overflow Cup Assy Copper (Also replaces aluminum cup) Kit, Overflow Cup (Aluminum) (Includes items 2,18, 20 & 21) Nut, Keps #10-32 |
| 16 | 12422.0000 | 2 | Clamp, Hose .47″/.54″ I.D. |
| 17 | 28526.0009* | 1 | Tube, Silicone .313″ I.D. x 24″ (Order Item 27) (Cut As Required) |
| 18 | 04797.0000 | 1 | Washer, Celcon .520” I.D. x 1.0” O.D. |
| 19 | 00946.0000 | 1 | Nut, Hex .125” FPT |
| 20 | 41280.0001 | 1 | Elbow,.375” Multi Barb |
| 21 | 41266.0000 | 1 | Film, Insulating |
| 22 | 12565.0036 12565.0004 02328.0003 01520.0000 | 1 1 1 1 | Triac Assy, 40 Amp (120/240V) (Before S/N SNG0089375) Triac Assy, 40 Amp (120/240V) (After S/N SNG0089375) Screw, Pan Head #6 – 32 x .312″ Lockwasher #6 |
| 23 | 20541.0001 | 1 | Heat Sink, Aluminum |
| 24 | M2522.1000 | – | Heat Sink Compound (Not Illustrated) |
| 25 | 21801.0002 | 1 | Tube, .375″ O.D. x 1.50″ LG |
| Note: The following parts are not illustrated | |||
| 26 | 02434.0013* | 1 | U-Channel 1.0″ (Order item 28) |
| 27 | 28526.1000 28526.1001 28526.1002 28526.1003 | – – – – | Tube, Silicone .313″ I.D. x 12.0″ Tube, Silicone .313″ I.D. x 36.0″ Tube, Silicone .313″ I.D. x 60.0″ Tube, Silicone .313″ I.D. x 120.0″ |
| 28 | 02434.1000 | U-Channel 18.0″ (Use as required) | |
TANK AND MOUNTING BRACKETS
SINGLE / GPR DBC-DV
TANK AND MOUNTING BRACKETS
| ITEM | PART NO. | QTY. | DESCRIPTION |
| 1 | 28909.0000 02308.0000 00908.0000 | 1 1 2 | Bracket, Tank Support (Top) Screw, Pan Head #8 – 32 x .375″ Nut, Hex #8 – 32 |
| 2 | 22976.0003 00908.0000 | 1 10 | Lid, Tank Nut, Hex #8 – 32 |
| 3 | 22978.0000 | 1 | Gasket, |
| 4 | 22960.1008 | 1 | Tank Assy (Includes Item 6) |
| 5 | 37517.0000 37541.0000 00971.0000 02308.0000 | 1 1 2 4 | Bracket, Tank Mounting (Bottom) (Used in Product # 36100.0000) Bracket, Tank Mounting (Bottom) (Used in Product # 36100.0010) Nut, Keps #10 – 32 Screw, Pan Head #8 – 32 x .375″ |
| 6 | – – – – – – – – | 1 | Bracket, Vent Tube (See TANK HEATER & OVERFLOW PROTECTION) |

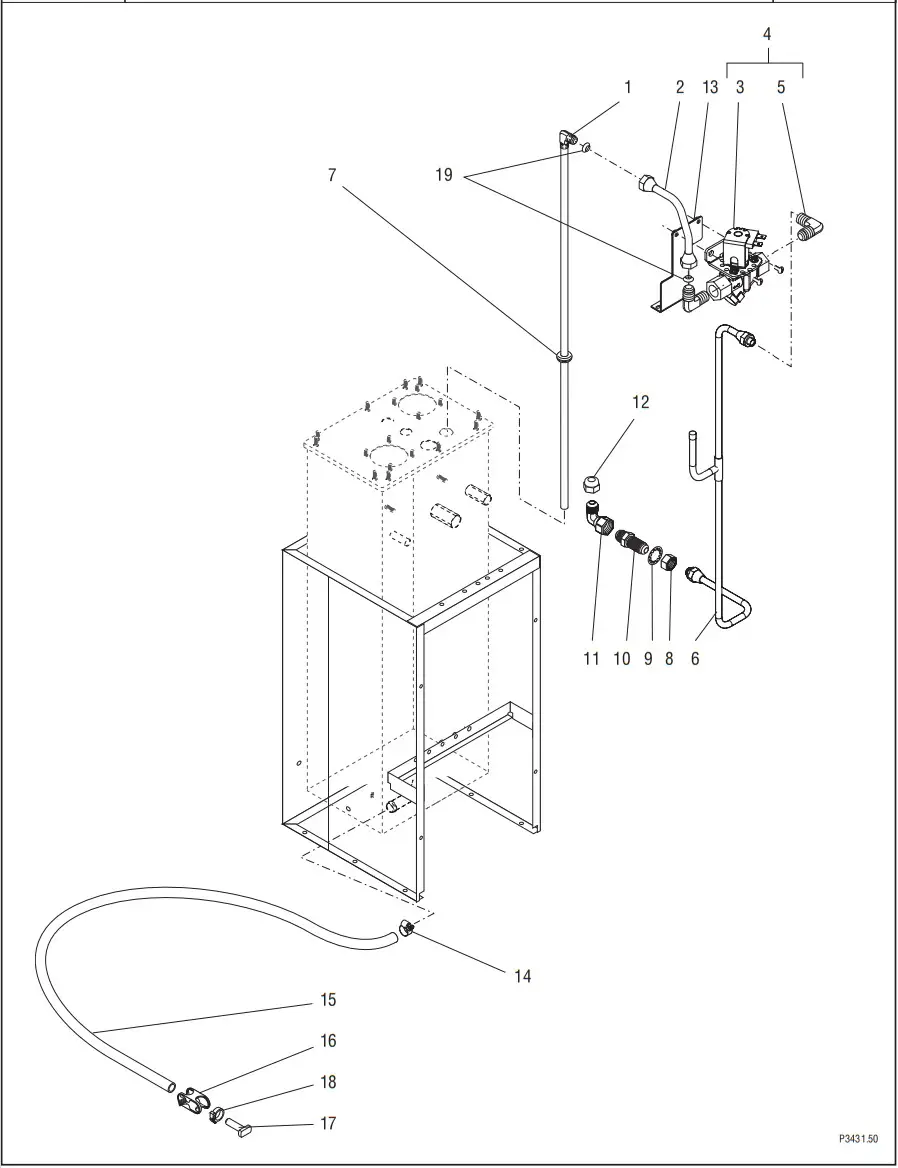

STRAINER, SOLENOID AND LINES
SINGLE / GPR DBC-DV
STRAINER, SOLENOID & LINES
| ITEM | PART NO. | QTY. | DESCRIPTION |
| 1 | 20937.0004 | 1 | Tube, Tank Fill |
| 2 | 36089.0000 | 1 | Tube, Assembly, Solenoid to Tank |
| 3 | 35094.0001 | 1 | Solenoid Valve 120V |
| 4 | 36088.0002 01315.0000 | 1 2 | Solenoid Valve Assy, 120V (Includes Items 3 & 5) Screw, Truss Head #8-32 x .375″ |
| 5 | 34768.0001 | 2 | Elbow, .38″ Male Flare x .37″ |
| 6 | 37892.0000 | 1 | Tube Assy, Bulkhead Refill Tube .38″ O.D. Rear |
| 7 | 12757.0000 | 1 | Grommet, .375″ I.D. |
| 8 | 12757.0000 | 1 | Nut, Hex .625″ – 18 Brass |
| 9 | 01514.0000 | 1 | Lockwasher, Internal Tooth .625″ I.D. |
| 10 | 12756.0000 | 1 | Bulkhead Fitting .38″ Flare |
| 11 | 37761.0000 | 1 | 90° Swivel Elbow |
| 12 | 00976.0000 | 1 | Cap Nut, .375″ Flare-45 |
| 13 | 37127.0001 02308.0000 01522.0000 | 1 2 2 | Bracket, Solenoid Mounting Screw, Pan Head #8-32 x .375” Washer, Flat .203” ID x .50” OD |
| 14 | 29421.0000 | 1 | Clamp, Hose-Worm Drive .625”/.75” |
| 15 | 32591.1002 | 1 | Tube, Silicone .50″ I.D. x 36″ LG |
| 16 | 11630.0001 | 1 | Clamp, Tubing Shut Off .75″ O.D. |
| 17 | 35086.0000 | 1 | Plug, .50″ I.D. Hose |
| 18 | 12422.0005 | 1 | Clamp, Hose – Snap Type .62/.71 I.D. |
| 19 | 32359.0000 | 2 | Gasket, .375″ Flare Copper |

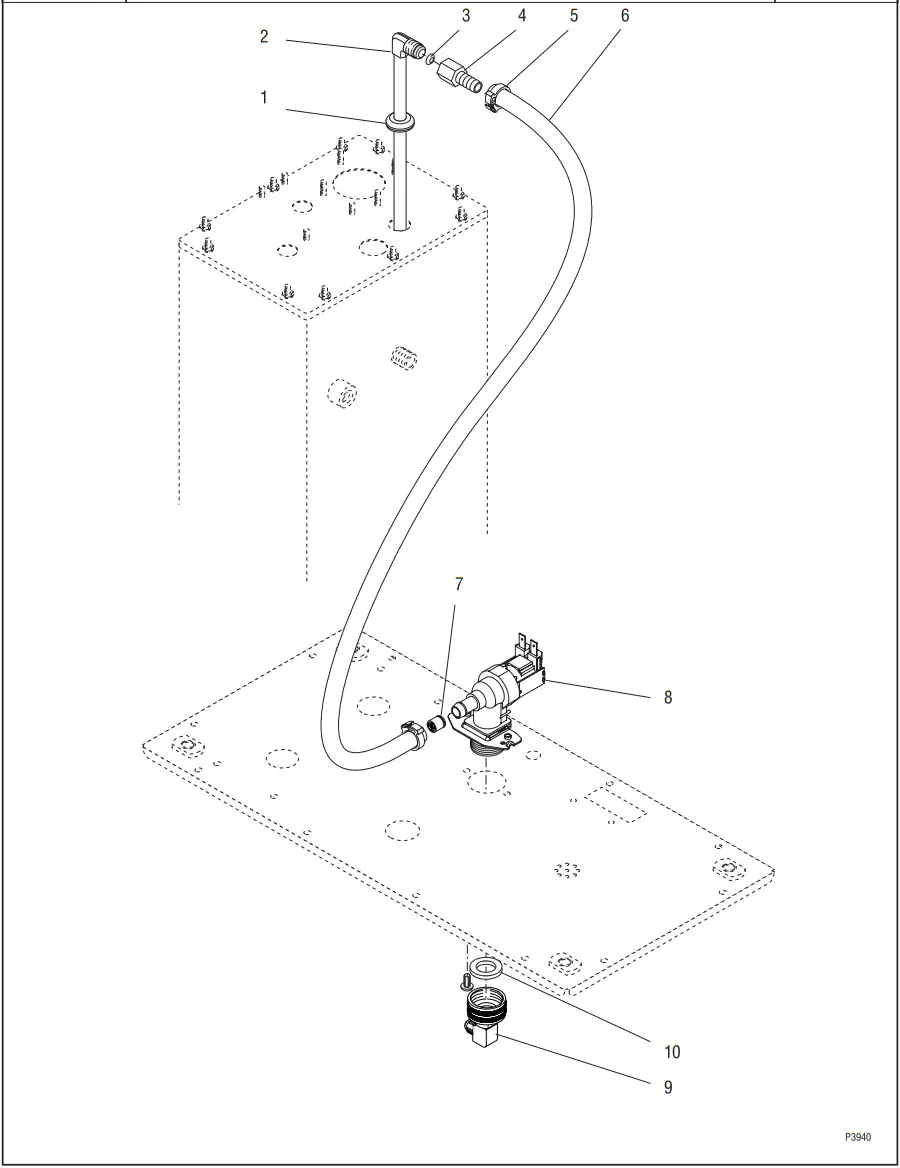

INLET VALVE AND LINE
SINGLE / GPR DBC-DV
| ITEM | PART NO. | QTY. | DESCRIPTION |
| 1 | 02536.0000 | 1 | Grommet, Fill Tube |
| 2 | 20937.0004 | 1 | Tube, Tank Fill |
| 3 | 32359.0000 | 1 | Gasket, .375″ Flare Copper |
| 4 | 12418.0001 | 1 | Fitting, Swivel .375″ Barb |
| 5 | 12422.0001 | 2 | Clamp, Hose .59″/.66″ I.D |
| 6 | 20976.0000* | 1 | Tube, Silicone .375″ I.D. x .625″ O.D. x 30.0″ (Order item 11) |
| 7 | 36378.0001 | 1 | Check Valve (Installed in item 6) |
| 8 | 36233.1000 32283.0000 | 1 2 | Valve, Water Inlet (Refer to item 12) Screw, Pan Head M4 x 6MM |
| 9 | 37297.0001 | 1 | Elbow, .25″ FLR x .75″ FTHR |
| 10 | 41640.0000 | 1 | Gasket, .75″ Hose Fitting |
| 11 | 20976.1001 20976.1002 | – – | Tube .375″ ID x .625″ OD x 36.0″ (Use as required) Tube .375″ ID x .625″ OD x 120.0″ (Use as required) |
| 12 | 43644.0000 | – | Kit, Valve Rebuild) |

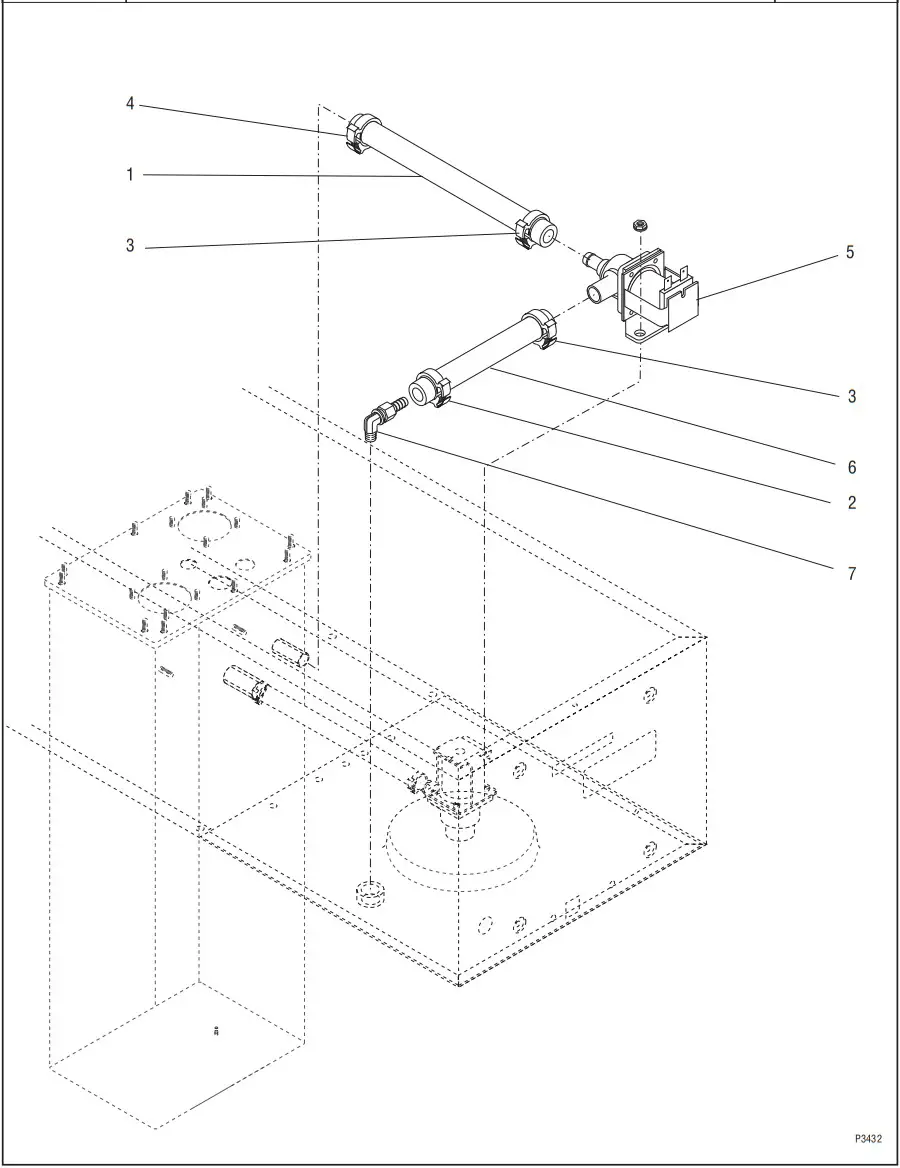

WATER BY-PASS
WATER BY-PASS
| ITEM | PART NO. | QTY. | DESCRIPTION |
| 1 | 32591.0014* | 1 | Tube, Silicone .50″ I.D. x 3.60″ (Order item 8) (Cut As Required) |
| 2 | 12422.0001 | 1 | Clamp, Hose .59″/.66″ I.D. |
| 3 | 12422.0005 | 2 | Clamp, Hose .62″/.71″ I.D. |
| 4 | 12422.0005 | 1 | Clamp, Hose .62″/.71″ I.D. |
| 5 | 27370.0003 00970.0000 | 1 2 | Valve Assy, By-Pass 120/240V Nut, Keps #8 – 32 |
| 6 | 20976.0064* | 1 | Tube, Silicone .38″ I.D. x .62″ O.D. x 4.50″ (Order item 9) (Cut As Required) |
| 7 | 32648.0000 | 1 | Elbow |
| 8 | 32591.1001 32591.1002 | – – |  |
| 9 | 20976.1000 20976.1001 20976.1002 | 1 1 1 |

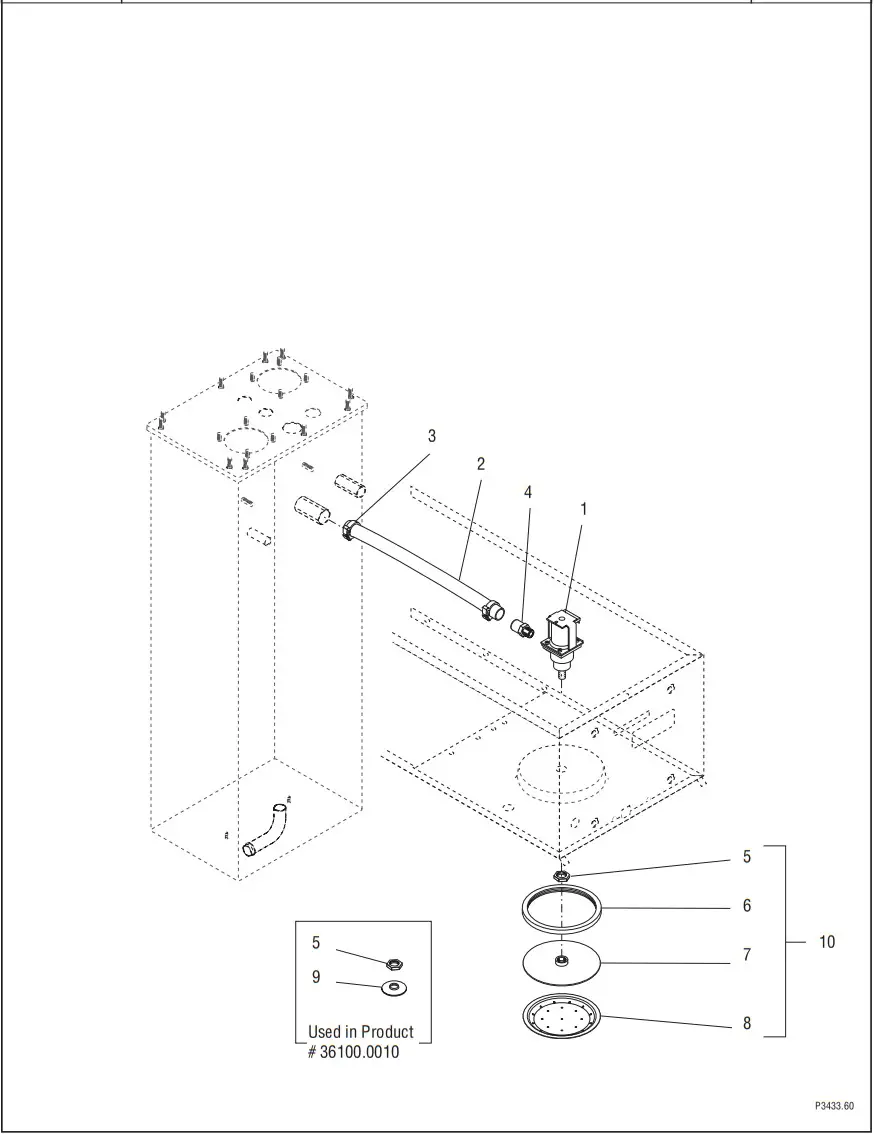

DISPENSE VALVE AND SPRAYHEAD
SINGLE / GPR DBC-DV
DISPENSE VALVE & SPRAYHEAD
| ITEM | PART NO. | QTY. | DESCRIPTION |
| 1 | 26846.0000 26846.0002 11517.0008 23255.0000 23254.0000 23256.0000 56771.0000 56771.0002 56815.0000 56816.0000 22305.0001 22305.0002 | 2 2 – – 8 2 2 2 – – 2 2 | 1 Valve Assembly, Sprayhead 120V (Discontinued, use 56771.0000) 1 Valve Assembly, Sprayhead 240V (Discontinued, use 56771.0002) – Repair Kit (Includes plunger, spring & diaphragm) – Diaphragm Only 4 Screw 1 Spacer Plate 1 Valve Assembly, Sprayhead 120V 1 Valve Assembly, Sprayhead 240V – Repair Kit (Includes plunger, spring & diaphragm) – Diaphragm Only 1 Coil 120VAC (used in both styles) 1 Coil 240VAC (used in both styles) |
| 2 | 1 | Tube, Silicone .75″ I.D. x 6.25″ LG (Order item 17) (Cut as required) | |
| 3 | 12422.0008 | 2 | Clamp, Hose Snap-Type.93″/1.1″ I.D. |
| 4 | 34956.0000 | 1 | Fitting, .250″ NPTF Hose .750″ NPS |
| 5 | 01075.0000 | 1 | Nut, Hex .438″ – 20 |
| 6 | 34868.0000 | 1 |  |
| 7 | 34867.0000 | 1 | |
| 8 | 34867.0000 | 1 | |
| 9 | 01082.0002 | 1 | Sprayhead (6-098) (Used in Product # 36100.0010) |
| 10 | 35308.1004 | – | Sprayhead Assy |
| The following items are not illustrated | |||
| 11 | 35052.1000 | 1 | Tube, Silicone .75″ I.D. x 1.0″ O.D. x 12.0″ |

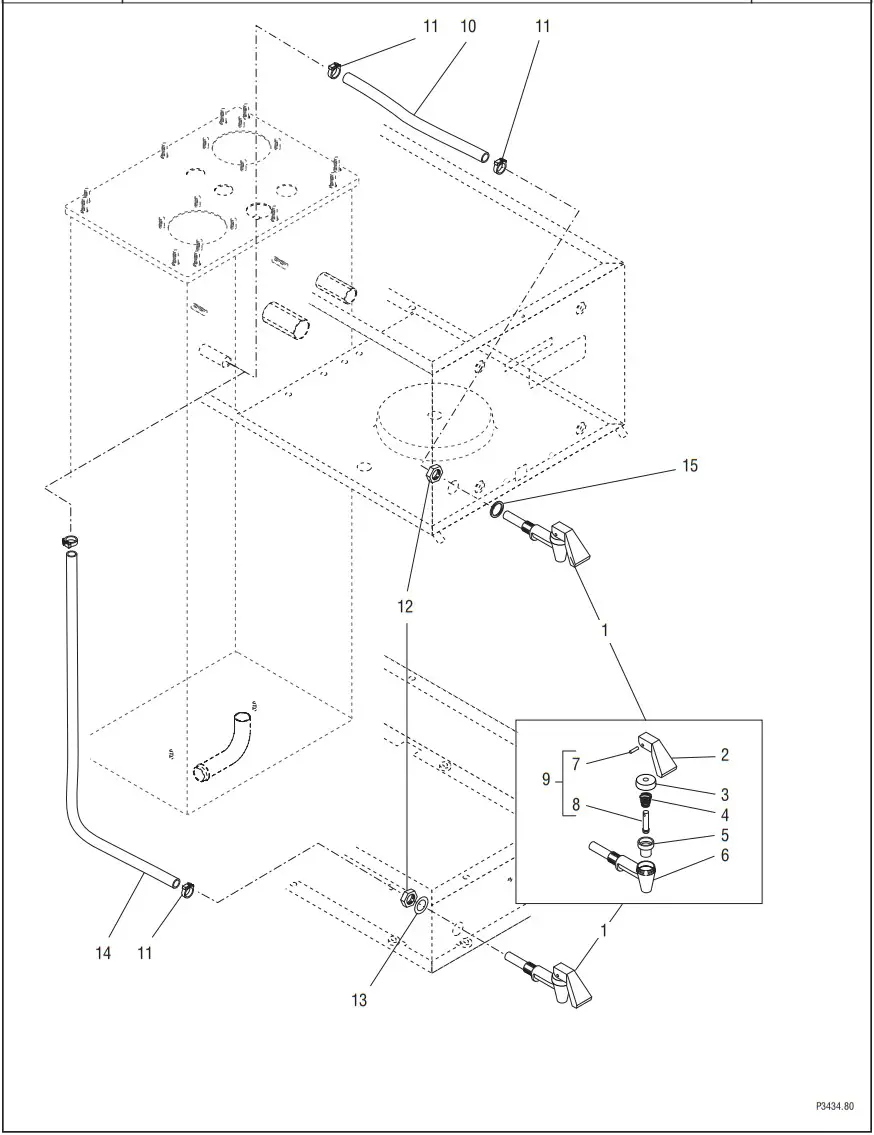

FAUCET
FAUCET
| ITEM | PART NO. | QTY. | DESCRIPTION |
| 1 | 29075.0000 | 1 | Faucet Assy (Includes Items 2 Thru 9) |
| 2 | 02861.0000 | 1 | Handle, Faucet |
| 3 | 02854.0000 | 1 | Bonnet, Faucet |
| 4 | 02595.0000 | 1 | Spring, Faucet |
| 5 | 02766.0000 | 1 | Seat Cup, Faucet |
| 6 | 02856.0002 | 1 | Body, Faucet |
| 7 | 13054.0000 | 1 | Stem, Faucet |
| 8 | 02858.0000 | 1 | Pin, Spring .125″ Dia. x .50″ |
| 9 | 02594.0000 | 1 | Faucet Stem W/Pin (Includes Items 7 & 8) |
| 10 | 20976.0065* | 1 | Tube, Silicone .38″ I.D. x .62″ O.D. x 12″ (Order Item 16) (Cut As Required) |
| 11 | 12422.0001 | 2 | Clamp, Hose .59″ x .66″ I.D. |
| 12 | 00942.0000 | 1 | Nut, Hex Brass .50″ |
| 13 | 01532.0005 | 1 | Washer, Intl Tooth .50″ Lock |
| 14 | 20976.0036* | 1 | Tube, Silicone .38″ I.D. x .62″ O.D. x 36″ (Order Item 16) (Optional Lower Faucet) (Cut As Required) |
| 15 | 01532.0005 | 1 | Washer, Intl Tooth .50″ Lock (Late models) |
| 16 17 18 | 20976.1000 20976.1001 20976.1002 28706.0002 M2517.0000 | 1 1 1 – – |  |
ELECTRICAL CONTROLS
SINGLE / GPR DBC-DV
| ITEM | PART NO. | QTY. | DESCRIPTION |
| 1 | 29969.1014 29969.1000 00973.0000 | 1 1 2 | Circuit Board, Main control (Used in Product # 36100.0000) Circuit Board, Main control (Used in Product # 36100.0010) Nut, Keps #6 – 32 |
| 2 | 01533.0010 | 2 | Spacer (Early models) |
| 3 | 29970.0000 40726.0000 00973.0000 | 1 1 2 | Mount, Circuit Board (Early models) Mount, Circuit Board (Late models) Nut, Keps #6 – 32 |
| 4 | – – – – – – – – 32572.1001 20621.0000 | 1 1 1 | Sensing Coil WO/Leads (Early models) (Not available order item 23) Sensing Coil W/Violet Leads (Includes plug below) (Late models) Plug, hole .203″ Dia. (Not illustrated) |
| 5 | 32573.0000 01382.0007 | 1 2 | Cover, Sensing Coil Screw, Truss Head #6 – 32 x .38″ |
| 6 | 01309.0000 | 1 | Ground Screw W/Terminal Washer #10 – 32 x .50″ |
| 7 | 23004.0000 39248.0001 02308.0000 | 1 1 2 | Bracket, Terminal Block Mounting Bracket, Terminal Block Mounting (Models with Main Power Switch) Screw, Pan Head #8 – 32 x .38″ |
| 8 | 07038.0000 01106.0001 01317.0000 | 1 1 2 | Terminal Block, 3 Pole (BLK/RED/WHI) Terminal Block, 2 Pole (BLK/RED) Screw, Truss Head #8 – 32 x .50″ |
| 9 | 01590.0000 | 1 | Connector, Cable |
| 10 | 12570.0000 | 1 | Grommet, Temperature Sensor |
| 11 | 29327.0001 | 1 | Probe, Temperature & Dry Plug |
| 12 | 32018.0000 | 1 | Bumper (Early models) |
| 13 | 37754.1000 00970.0000 | 1 2 | Bracket W Decal, Switch (Includes item 15) Nut, Keps #8 – 32 |
| 14 | 23522.0001 | 1 | Switch, Toggle |
| 15 | 34056.0001 | 1 | Decal, Switch |
| 16 | 04831.0000 | 1 | Clamp, SST Rubber Coating (Used To Hold Electrical Wires In Place) |
| 17 | 38894.0001 01308.0002 01327.0000 01512.0000 | 1 2 4 4 | Switch, Main Power (Not used on all models) Screw, Truss Head #6-32 x .25″ (Switch Mounting) Screw, Pan Head #10-32 x .375″ Lockwasher, External Tooth #10 |
| 18 | 00824.0002 | 1 | Decal, Ground |
| Note: The following parts are not illustrated | |||
| 19 | 32647.0000 32647.0017 | 1 1 | Wiring Harness, Main (Before S/N SNG0089375) Wiring Harness, Main (After S/N SNG0089375) |
| 20 | 37917.0000 | 1 | Wiring Harness, Voltage Select |
| 21 | 37859.0002 | 1 | Wiring Harness, Main Power Switch |
| 22 | 20630.0005 | 1 | Cord Assy, Power |
| 23 | 38338.0000 | – | Kit, Funnel Sensors (Includes Funnel Sensor Coils W/Leads) |
| 24 | 21014.0002 | 1 | Lead, BLK Limit to Tank Heater (After S/N SNG0089375) |
WARMER ASSEMBLIES
| ITEM | PART NO. | QTY. | DESCRIPTION |
| 1 | 03652.0000 01303.0000 | 1 3 | Warmer Assy, BLK 100W 120V (Includes Items 2 Thru 5) Screw, Pan Head #4 – 40 x .50″ |
| 2 | 03656.0000 | 1 | Warmer Dish, BLK – 45 Hole |
| 3 | 13042.0001 | 1 | Spacer, .174″ I.D. x .188″ |
| 4 | 01227.0000 | 1 | Warmer Element, 100W 120V |
| 5 | 05212.0000 00970.0000 | 1 2 | Plate, Warmer Retainer Nut, Keps #8 – 32 |

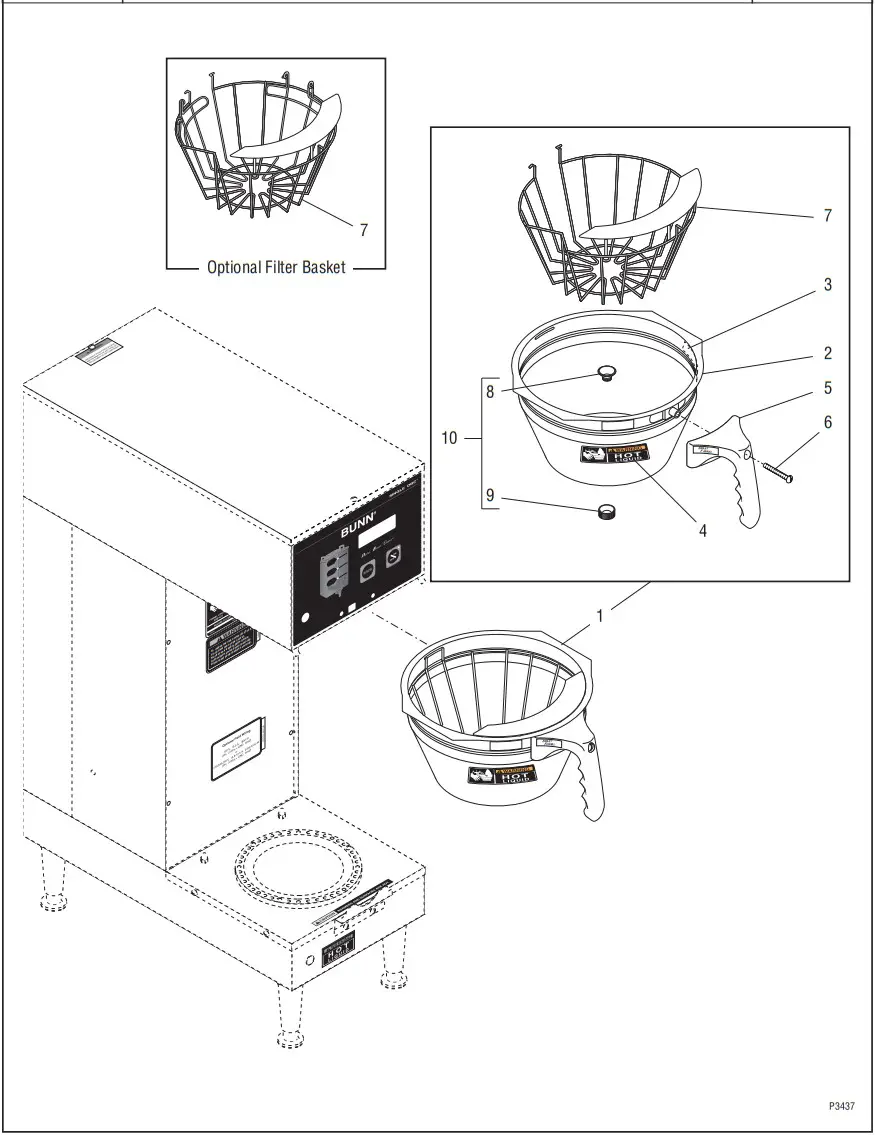

FUNNEL
| ITEM | PART NO. | QTY. | DESCRIPTION |
| 1 | 32643.0000 32643.0010 | 2 2 |  |
| 2 | 24462.0002 | 1 | Funnel W/Decals (Includes items 3 & 4) |
| 3 | 03408.0004 | 1 | Decal, Warning-Remove Funnel |
| 4 | 03409.0004 | 1 | Decal, Warning-Hot Liquid |
| 5 | 32595.0000 | 1 | Handle, Funnel-Black |
| 6 | 12499.0002 | 1 | Screw, Round Head .25″ – 20 x 1.50″ BLK |
| 7 | 33089.0000 33089.0001 | 1 | Filter Basket w/Splash Guard Filter Basket w/Splash Guard & D-Rings (Optional) |
| 8 | 32139.0000 | 1 | Insert, Funnel Tip – Male (Refer to item 10) |
| 9 | 32140.0000 | 1 | Insert, Funnel Tip – Female (Refer to item 10) |
| 10 | 01031.0001 | – | Funnel Tip Kit (Includes items 8 & 9) |
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601
FAX: (217) 529-6644
37981.0001 F 03/22 ©2012
Bunn-O-Matic Corporation
* Indicates the part number listed is for reference only.
See DESCRIPTION for possible service replacement.
37981.1 121912
