THE HOME DEPOT LogoTHE HOME DEPOT Smart Bit Screw Depth Setter - LogoSmart-Bit Screw Depth Setter
Instructions
Pro Plug®
Pro Plug® Tool and Pro Plug® System
To Be Used For Decking Only

For Product Installation Always Use a Standard Drill and Not an Impact Drill

Pro Plug® Tool

Contains: 1 Pro Plug® Tool, 1 deck driver bit, and 1 trim driver bit.
For use with screws and plugs
No Cam-out Auto-Stop™ No stripping screw recesses
Free spinning stop collar No surface damage

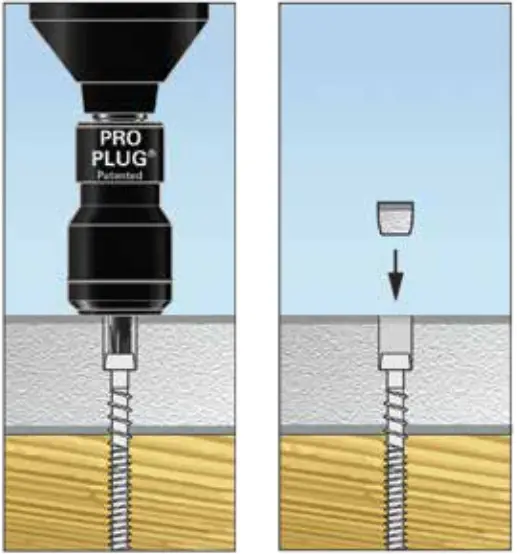

  1. Set screw with tool
  2. Tap in plug with hammer
    THE HOME DEPOT Smart Bit Screw Depth Setter - Figure 1Article Number: 1001342191THE HOME DEPOT Smart Bit Screw Depth Setter - Figure 2

Pro Plug® System

Available in 100 Linear Feet. 100 Linear Feet Contains: 1 Pro Plug® Tool, 150 screws, 165 plugs, and 2 driver bits. Covers approximately 50 Sq. Ft.
For best performance pre-drilling is recommended.
Screw size – 10 x 2.75″

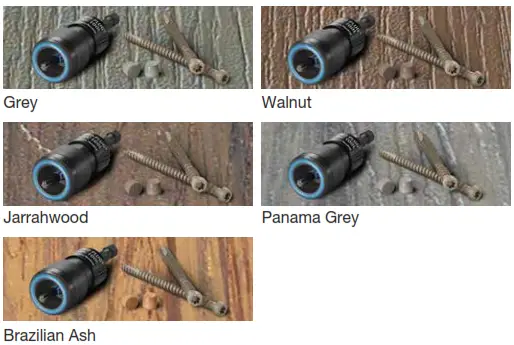

Collection:Decking Colour:100 Linear Feet:THE HOME DEPOT Smart Bit Screw Depth Setter - Figure 3
High PerformanceGrey1001701572
Walnut1001701573
EliteJarrahwood1001701575
Panama Grey1001701576
Brazilian Ash1001701574

THE HOME DEPOT Logo2022 ONLINE ORDER PROGRAM
Home Depot Canada
Vendor #: 70001035
