8790 HMC HF 05004203001 Allen Bit Set
8790 C Impaktor Deep Set 1, 11 pieces
New products 2022
https://www-de.wera.de/ar/3jk5jhbngnbxgkzldttwzpai262hg9z1
 |  |  |
EAN: 4013288224088
Part number: 05004841001
Article number: 8790 C Impaktor Deep Set 1
Size: 235x120x100 mm
Weight: 2976 g
Country of origin: TW
Customs tariff number: 82042000
- Long ½” sockets for low-profile-fitting screw connections in tight construction spaces and for protruding threaded rods
- For use with electric or pneumatic powered impact wrenches with 12.5mm = ½” drive
- Impaktor technology for above-average service life
- Hexagonal profile enables precise and profile-preserving screwdriving with high power transmission
- With cross-bore and ring socket for securing locking pin and locking ring of machine-operated tools
- With Take it easy tool finder: colour coding by size
Set with 11 Impaktor Deep sockets for use with electric or pneumatic wrenches with 12.5 mm = 1/2″ drive. Long design for low-lying couplings and protruding thread rods. The Impaktor technology ensures a higher-than-average service life even at extreme requirements. The hexagon profile used allows a high power transmission while simultaneously being precise and protecting the profile. With “Take it easy” tool finder with colour coding by size – for quick and easy identification of the required tool .

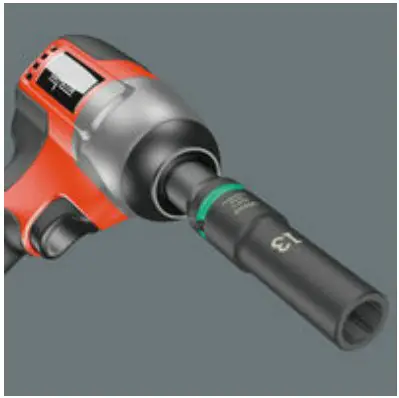

For electric or pneumatic impact wrenches
The extremely robust forged design ensures that the Impaktor sockets have an above-average service life, even under extreme conditions.

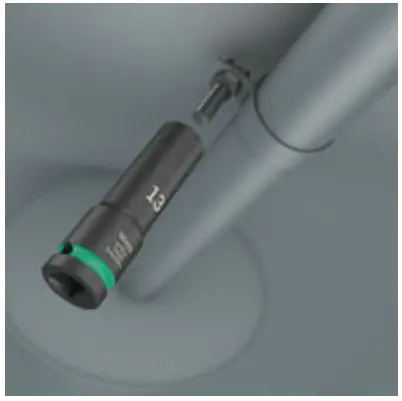

Long design
Due to the long design of the socket, screwdriving can also be achieved in small spaces. Fittings with protruding threaded rods are often also possible.

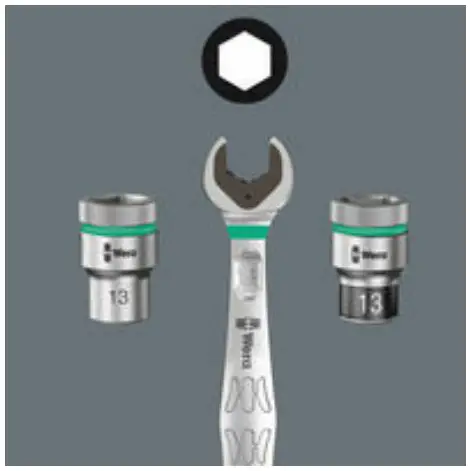

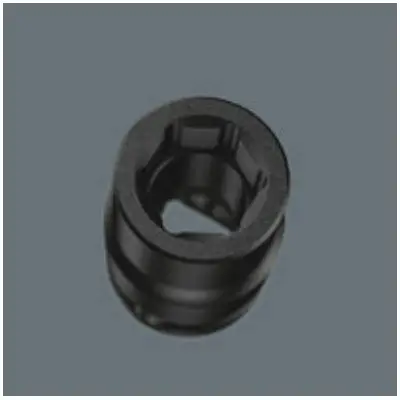

Profile-friendly power transmission
The hexagon profile allows the transmission of high forces and puts less strain on the edges of bolts or screw heads than a double hexagon profile. Fine-toothed ratchets also make the use of a double hexagon profile superfluous, even in confined spaces, thanks to their small return angle.

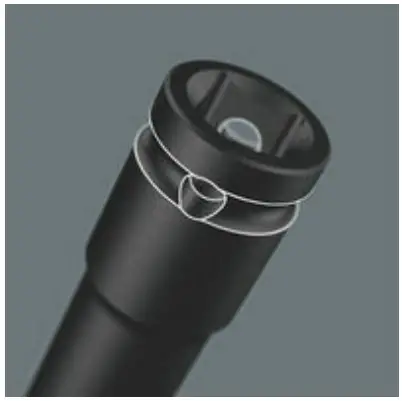

Cross-bore and ring socket
Due to the groove and the ring socket, the tool can be secured with a locking pin or O-ring on the power tool.

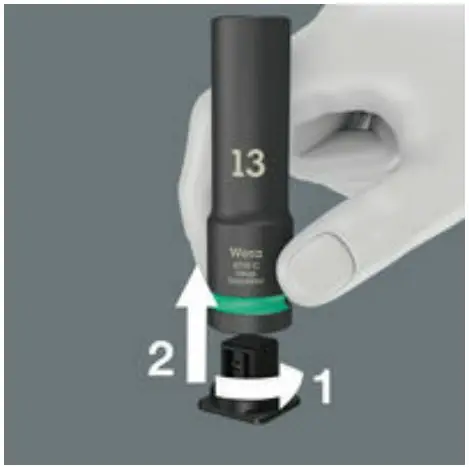

Secure hold and easy removal
The all new smooth turning mechanism guarantees both secure and rattle-free storage, yet allows easy removal of the tool.
Take it easy tool finder system
Take it easy tool finder system with profile and size colour-coding for quick and easy tool selection. Colour-coded system for hexagon drive screws (L-Keys, Zyklop bit sockets), external hex drive screws and nuts (Joker wrenches, Zyklop sockets and Zyklop bit sockets with holding function), and TORX® drive screws (L-Keys, Zyklop bit sockets).

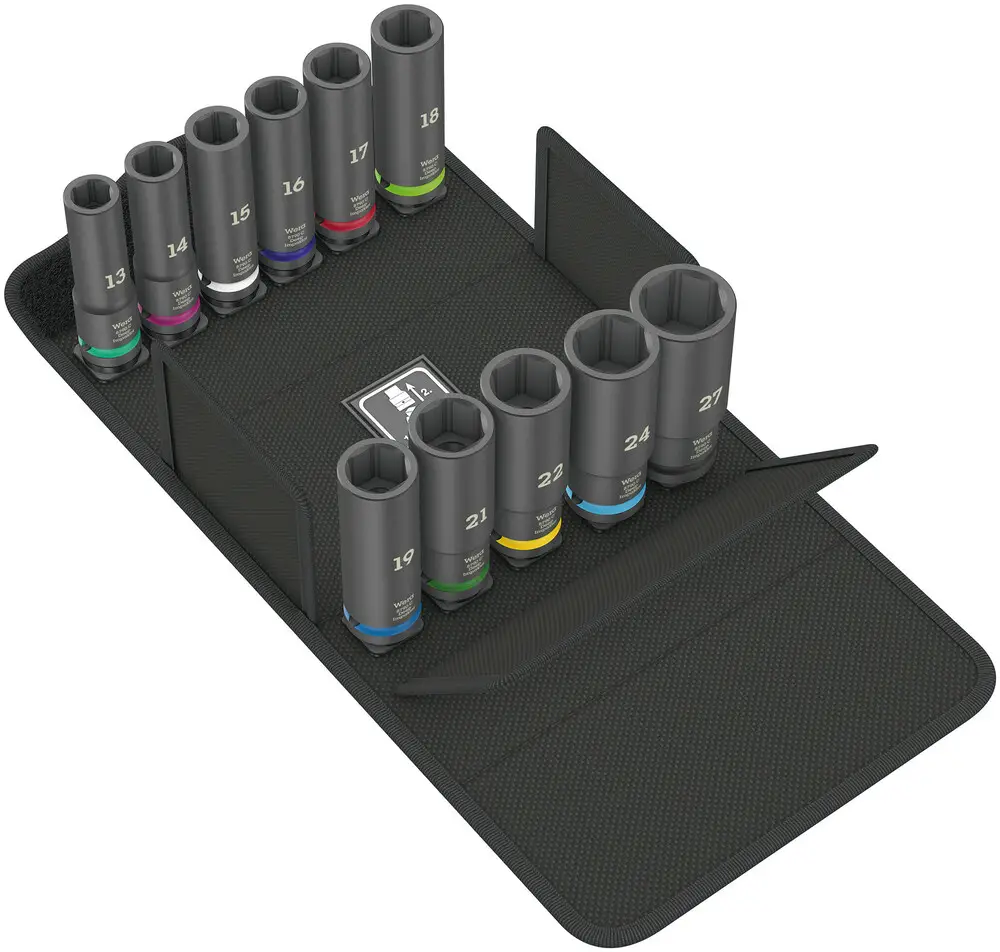

Set contents:
8790 C Impaktor Deep socket with 1/2″ drive, 13 x 83 mm
| 5004830001 | 1x 13 x 83 mm |
| 5004831001 | 1x 14 x 83 mm |
| 5004832001 | 1x 15 x 83 mm |
| 5004833001 | 1x 16 x 83 mm |
| 5004834001 | 1x 17 x 83 mm |
| 5004835001 | 1x 18 x 83 mm |
| 5004836001 | 1x 19 x 83 mm |
| 5004837001 | 1x 21 x 83 mm |
| 5004838001 | 1x 22 x 83 mm |
| 5004839001 | 1x 24 x 83 mm |
| 5004840001 | 1x 27 x 83 mm |
Web link
https://products.wera.de/en/new_products_2022_8790_c_impaktor_deep_set_1.html
Wera – 8790 C Impaktor Deep Set 1
05004841001 – 4013288224088
Wera Werkzeuge GmbH
Korzerter Straße 21-25
D-42349 Wuppertal
Tel: +49 (0)2 02 / 40 45-0
E-Mail: [email protected]
