Straight silencer
MODEL
PZ-100SS-E, PZ-150SS-E, PZ-200SS-E, PZ-250SS-E
Installation Manual
For distribution to dealers and contractors
PZ-100SS-E Straight Silencer
This silencer is installed in the middle of ducting (between the ventilator and outlet/intake grilles) to reduce noise.
- Be sure to read this manual before starting installation to ensure correct and safe installation.
- Installation must be performed by dealers and qualified professional contractors.
Safety Precautions
The types and levels of danger that may arise if the product is handled improperly are described with the warning symbols shown below.
WARNING
Indicates a risk of death or serious injury.
Be sure to follow the instructions.
Make sure to securely install the product.
Failure to observe this warning may result in a drop in products and injury.
Always wear gloves during installation.
Failure to observe this warning may result in injury.
Notes before installation
Do not install this product in the kitchen or bathroom, and use it for exhaust from these places. High humidity and lots of oil smoke may damage the product.
- Install between grilles and ventilators.
- Make an inspection opening below the duct connecting parts.

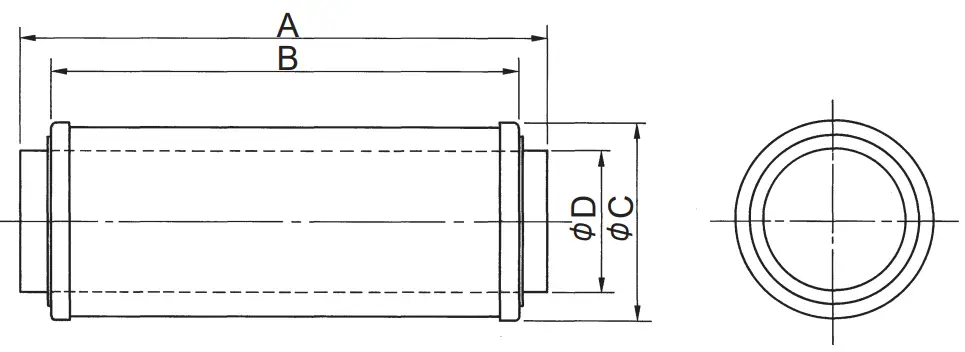

Outside dimensions
Unit: mm
| Model | A | B | C | D | Connecting duct | Weight (kg) |
| PZ-100SS-E | 450 | 400 | 152 | 99 | φ100 | 1.9 |
| PZ-150SS-E | 560 | 500 | 202 | 149 | φ150 | 3.5 |
| PZ-200SS-E | 660 | 600 | 252 | 199 | φ200 | 5.3 |
| PZ-250SS-E | 660 | 600 | 332 | 249 | φ250 | 8.9 |

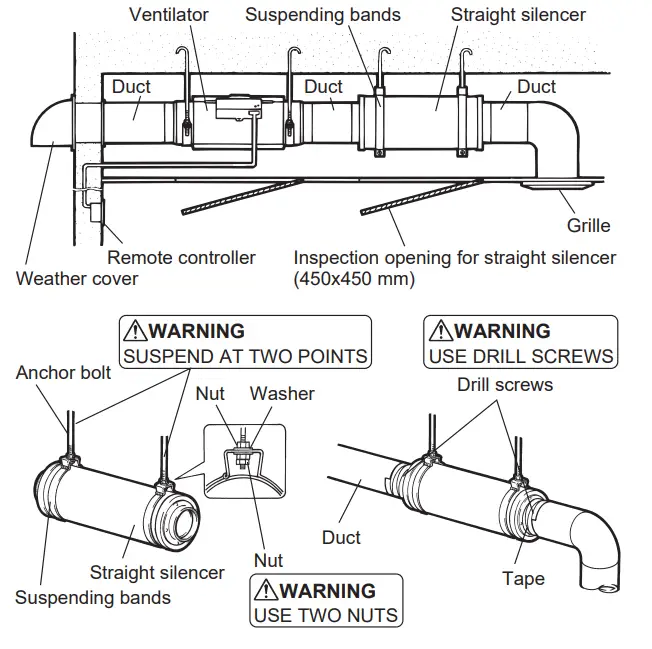

Example of installation
Example of the installation procedure
- Embed commercially available anchor bolts at the installation positions in advance.
- Pass the straight silencer through commercially available suspending bands. Pass the straight silencer through the anchor bolts, then fix the silencer with commercially available nuts and washers.
- Insert the ducts into the duct connecting ports of the straight silencer, then fix them with commercially available drill screws at least one for each connecting point. Apply caulk or tape on the perimeter of the ducts so that the air will not leak.
MITSUBISHI ELECTRIC CORPORATION
HEAD OFFICE: TOKYO BLDG., 2-7-3, MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN
Manual Download
Go to the website below to download manuals,
select the model name, then choose a language.
http://www.mitsubishielectric.com/ldg/ibim/
2011876H55501
876H55501
