HOME ALARM ADVANCED
User guide
1875259 Home Alarm Advanced Wireless Alarm System
We thank you for your recent purchase of a Somfy connected alarm. This guide as well as the mobile app “Somfy Protect” provides you with all the information you need to install and use it. Before you start the installation, please read the attached safety instructions carefully.
If you need any additional information concerning this product, please refer to our FAQ or contact one of our advisers.
More information on www.somfyprotect.com/support
Install Home Alarm Advanced
Download the “Somfy Protect” app, create your account and follow the step-by-step installation instructions.
More information on compatible versions at www.somfyprotect.com/apps.
To meet your needs and all home configurations, some components of your alarm can be either placed on a piece of furniture or glued or fixed to the wall.
Select and follow the instructions!
| Link Advanced | Placed on a piece of furniture | Glued with adhesive tape (1) | Fixed to the wall (2) |
| Indoor keypad |  | | |
| Indoor siren | | | |
| Outdoor siren | | | |
| Motion sensor | | | |
| Intelli TAG® | | |
Fix the components to the wall
In the case of a wall installation, we recommend that you follow the instructions below.
- Do not fix any component until you are sure that your Link Advanced is connected to Wi-Fi and communicates effectively via radio with all accessories.
- For products were screws are not provided, we recommend the use of Ø 3.5 mm countersunk or flat head screws. Make sure that you always use screws and plugs suitable for the materials in your wall to avoid any risk of falling.

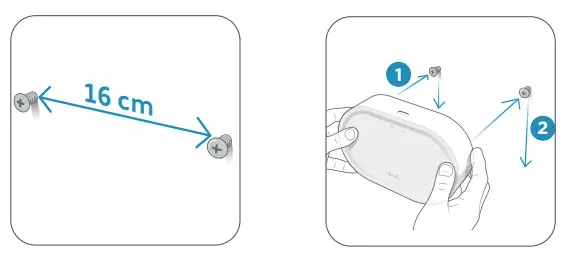

Fixing the Link Advanced
Fix between 60 cm and 2 m from the ground and more than 1 m away from all sources of radio interference.(3)

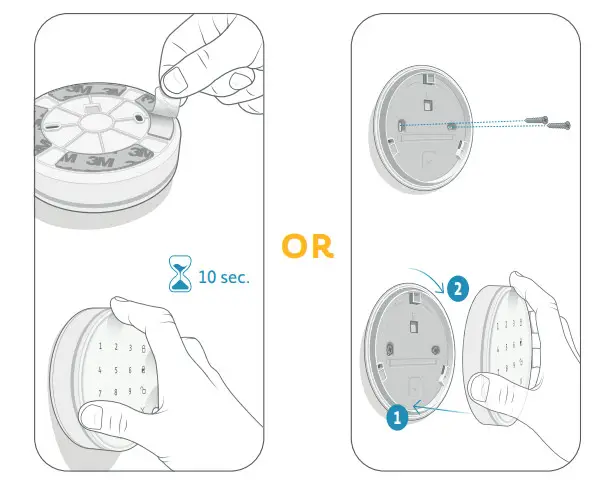

Fixing the indoor keypad
Glue or screw into a clean, level surface at a maximum height of 2 m. If you use the adhesive tapes, your wall must be painted.

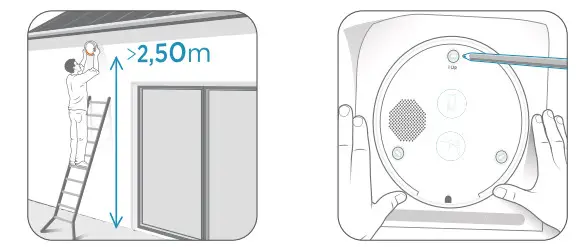

Fixing the outdoor siren
Fix in areas that are unobstructed and out of reach (minimum 2.50 m from the ground recommended).

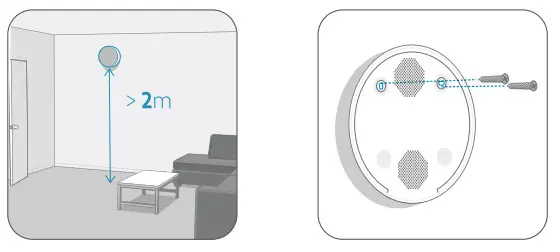

Fixing the indoor siren
Fix close to the entrance door and protected leaves, at least 2 m from the floor.
Discover the range
You can upgrade your installation at any time by adding accessories with your Link Advanced (1).
System management
Link Advanced
The brain of the system: it guarantees protection of your home, it communicates via radio with all the accessories and connects them to the Internet (except cameras).

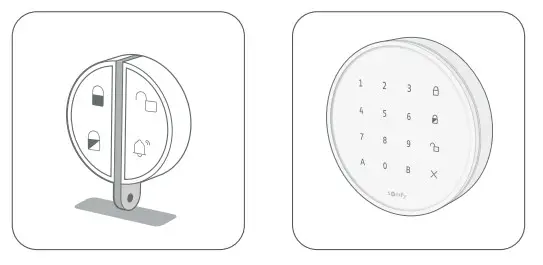

Protection control
Key fob
Indoor keypad
Used to activate and deactivate the alarm.

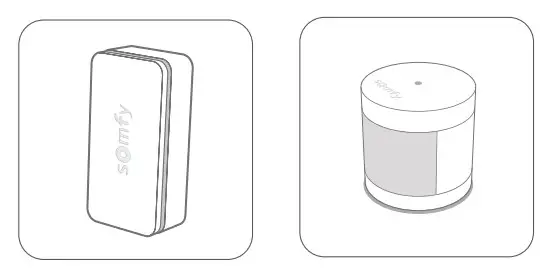

Break-in detection
IntelliTAG® – Vibration and opening sensor for doors and windows. Detects intrusion attempts and therefore triggers the alarm before the break-in.
Indoor motion sensor

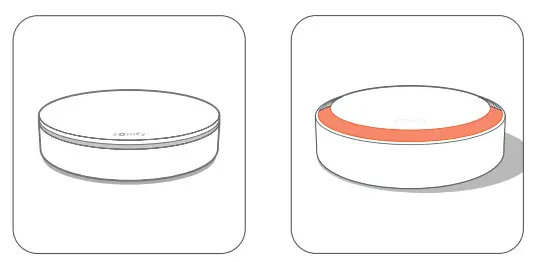

Burglar deterrence
Indoor siren
Wireless 105 dB
Outdoor siren
Wireless 112 dB with flash

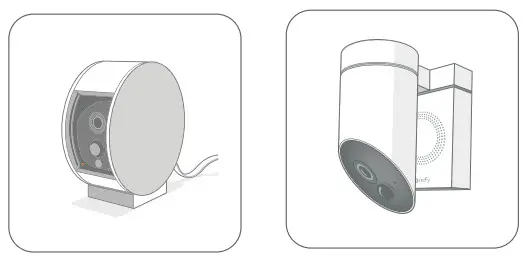

Remote surveillance
Indoor Camera
Indoor camera with privacy shutter
Outdoor Camera
Outdoor camera with 110 dB built-in siren
Accident prevention
Smoke detector
85 dB siren

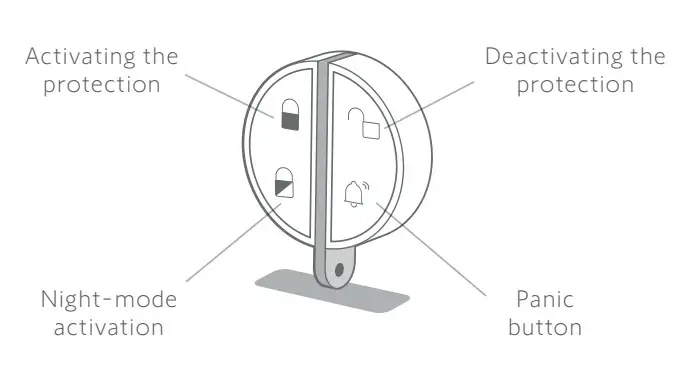

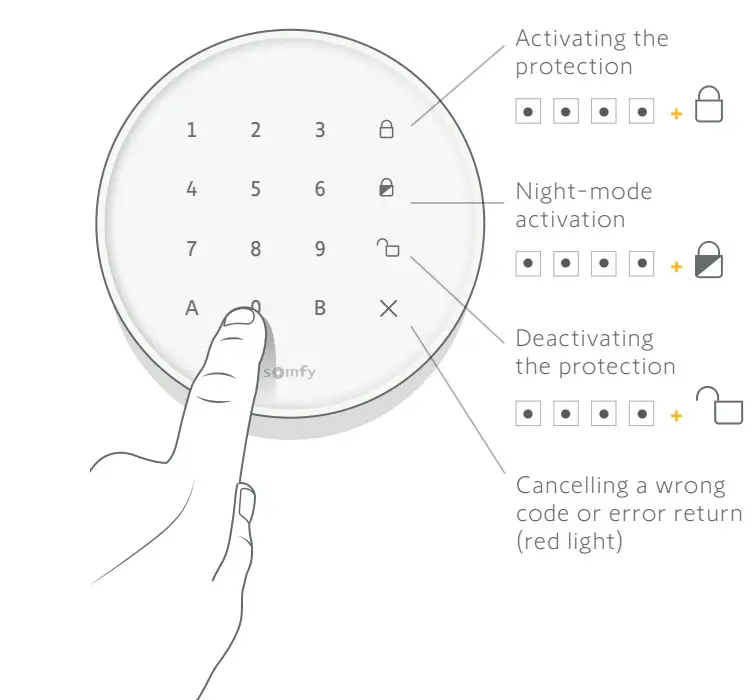

Zoom on the key fob and the keypad
The night mode enables to protect your home even when you are present (activation of some sensors only).
Configurable in the application’s “Settings” menu The panic button is used to alert in case of danger:
– Press once: you send an alert to the smartphones of all owners of the site.
– Press twice: you trigger the sirens.
Change the batteries
Before changing the batteries, remember to deactivate your system and read the instructions below.
Link Advanced
Remove the back cover and replace the batteries (4x 1.5 V alkaline D).

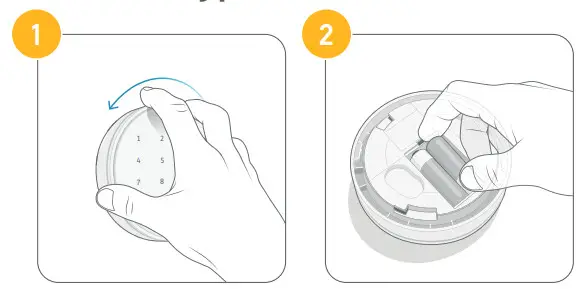

Indoor keypad
Open the keypad and replace the batteries (2x 1.5 V alkaline AA).

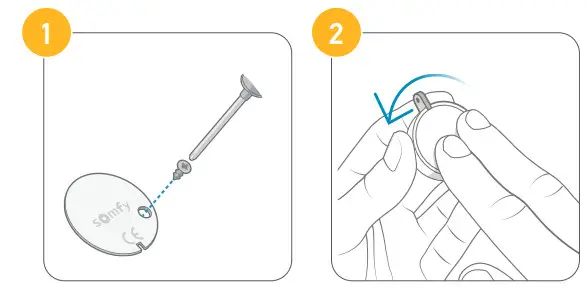

Key fob
Remove the screw and then the cover of your key fob, and replace the battery (1x 3 V Lithium Panasonic or Energizer CR2032).

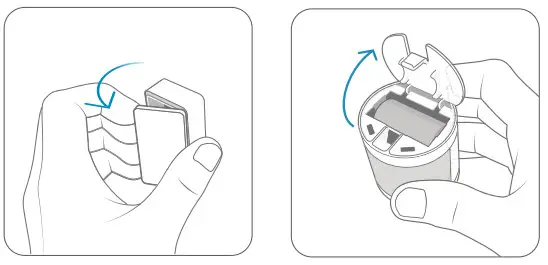

IntelliTAG® – Indoor motion sensor
Open the cover and replace the battery (IntelliTAG®:
1x 1.5 V alkaline AAA /Motion sensor: 1x 3 V Lithium CR123A).

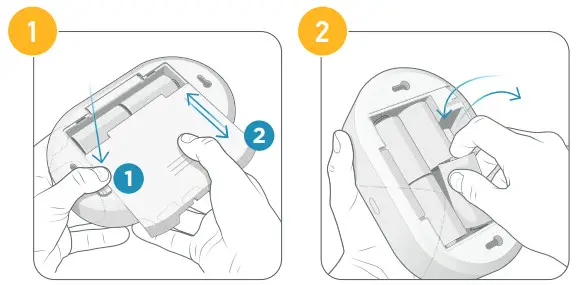

Indoor siren
Open the siren cover in the direction indicated by the arrow, remove the battery protection cover and replace the batteries (4 x 1.5 V alkaline D).
Outdoor siren

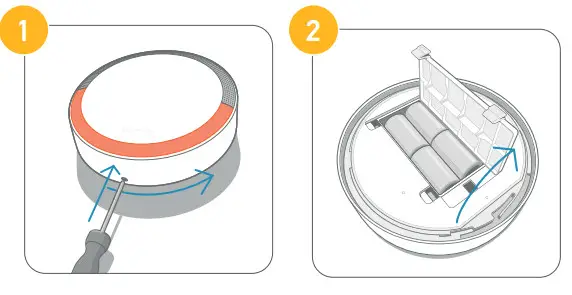

Deactivate the tamper protection (1) and then remove the siren from the wall using a screwdriver (hold down and turn in the direction of the arrow). Open the battery cover and replace the batteries (4 x 1.5 V alkaline D).
Technical information
Link Advanced:
- Connectivity: Wi-Fi 802.11 b/g/n Open/WPA/WPA2-Personal/WPA-WPA2 mixed mode (2.4 GHz, esp<100 mW) I 2G and 4G management I Proprietary protocol (2.4 GHz, e.r.p<100 mW) I Radio Somfy Protect (868 MHz-870 MHz, e.r.p<25 mW) I Radio Somfy io-homecontrolm (868 MHz-870 MHz, e.r.p<25 mW) — 25 actuators I Radio Somfy RTS (433 MHz, e.r.p<10 mW) – max. 25 actuators I GSM (internal e-SIM card that cannot be changed): GSM (880 MHz-915 MHz, e.r.p<2,000 mW) / DCS (1,710 MHz 1,785 MHz, e.r.p<1,000 mW) / LTE BAND III (1,710 MHz-1,785 MHz, e.r.p<200 mW) / LTE BAND XX (832 MHz-862 MHz, e.r.p<200 mW).
- Indoor use only I Maximum installation height: 2 m I Cannot be installed at an altitude of more than 2,000 m.
- Security: Continuous monitoring of the radio connection between system components I Radio interference detection on detectors and sirens (sending an alert to the user) I Encryption of radio communications I Tamper protection
- Detection of power cuts and autonomy on rechargeable battery (12 hours) then batteries (14 days). Autonomy calculated on new battery and batteries.
- Power supply: Mains unit: Use only the mains unit supplied with the product (Input: 100-240 VAC, 50- 60 Hz, 0.5 A max/Output : 5 V= 3.1 A) I Batteries: 4x batteries 1.5 V alkaline D / LR2O. For optimum performance, it is recommended to replace the batteries every 4 years and after every power cut of more than 12 hours. I Lithium battery: 1.9 Ah. The battery can only be replaced with a Somfy compatible battery ref 1875265 (Arts Energy – ref 809104) and by following the instructions mentioned in the box of the replacement product.
- Size: 202 x 123 x 66 mm I Weight: 983 g I Operating temperature: 10-35° C Key fob: Proprietary protocol (2.4 GHz, e.r.p<100 I Battery life under normal
use: 1 year (lx 3 V Lithium CR2032) I Size: 34 x 10 mm I Weight: 12 g I Operating temperature: 0-45° C
IntelliTAG®: Radio range with Link Advanced: 200 m in open air I Radio Somfy Protect (868 MHz-870 MHz, e.r.p<25 mW) I Indoor and outdoor use (IP54) on all types of leaves I Battery life under normal use: 1 year (lx 1.5 V alkaline AAA / LRO3) I Tamper protection I Size: 60 x 28 x 13.5 mm I Weight: 28 g I Operating temperature: 0-45°C.
Indoor motion sensor: Radio range with Link Advanced: 200 m in open air Radio Somfy Protect (868 MHz-870 MHz, e.r.p<25 mW) I Battery life under normal use: 2 years (lx 3 V Lithium CR123A) I Tamper protection
Size: 47 x 47 mm I Weight: 55 g I Operating temperature: 0-45° C
Indoor siren: Radio range with Link Advanced: 200 m in open air I Radio Somfy Protect (868 MHz-870 MHz, e.r.p<25 mW) I Battery life under normal use: 2 years (4 x 1.5 V alkaline D / LR2O) I Tamper protection I Size: 175 x 45 mm
Weight: 985 g I Operating temperature: 0-45° C
Outdoor siren: Radio range with Link Advanced: 200 m in open air I Radio Somfy Protect (868 MHz-870 MHz, e.r.p<25 mW) I Outdoor use (IP43) I Battery life under normal use: 2 years (4 x 1.5 V alkaline D / LR2O) I Tamper protection
Size: 220 x SS mm I Weight: 1,200 g I Operating temperature: -10° / 45° C
Indoor keypad: Radio range with Link Advanced: 200 m in open air I Radio Somfy Protect (868 MHz-870 MHz, e.r.p<25 mW) I Battery life under normal use: 2 years (2 x 1.5 V alkaline AA / LR6) I Tamper protection I Size: 113 x 28 mm
Weight: 178 g I Operating temperature: 10-40°C
Recycling and scrapping
Ensure batteries are separated from other types of waste and are recycled via your local recycling centre.
We care about our environment. Do not dispose of the appliance with usual household waste. Give it to an approved collection point for recycling.
Meaning of the logos mentioned on the product
This product must only be installed in a sheltered, dry location.
This product incorporates double electric insulation and therefore does not require any connection to the earth conductor.
Direct current
Alternate current
If the cover is lost, please contact us so that it can be replaced with a compatible cover. Risk of explosion if the battery or batteries are replaced by an incorrect type.
