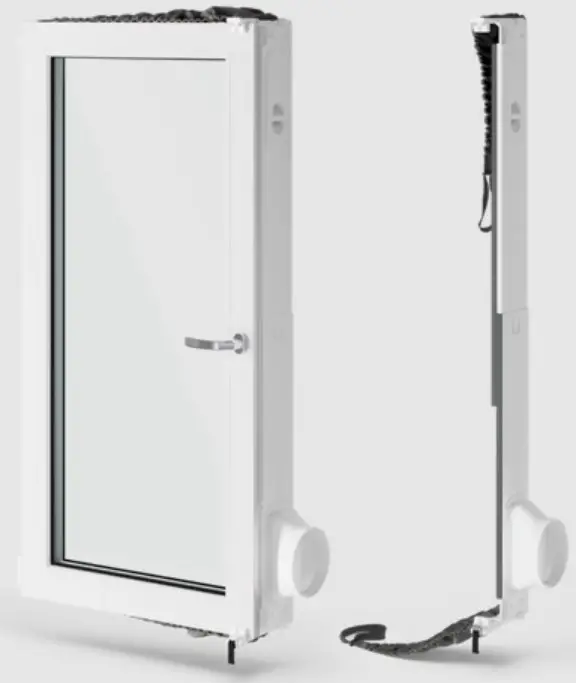

Electrolux AWKIT5 Premium Window Kit Air Purifier Instruction Manual

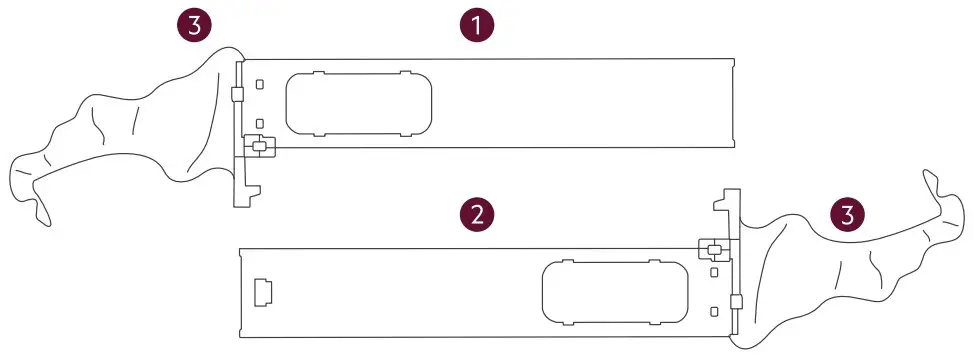

1. Main panel (with clamp and cap)
2. Telescopic panel (with clamp and cap
3. Fabric triangle cover (2 pcs}

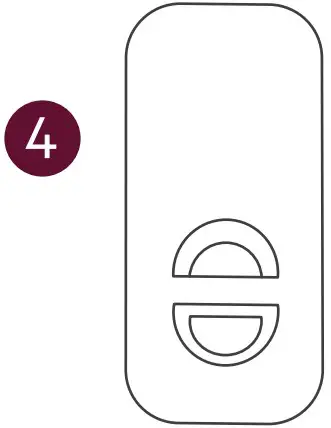

4. Hole cover lid

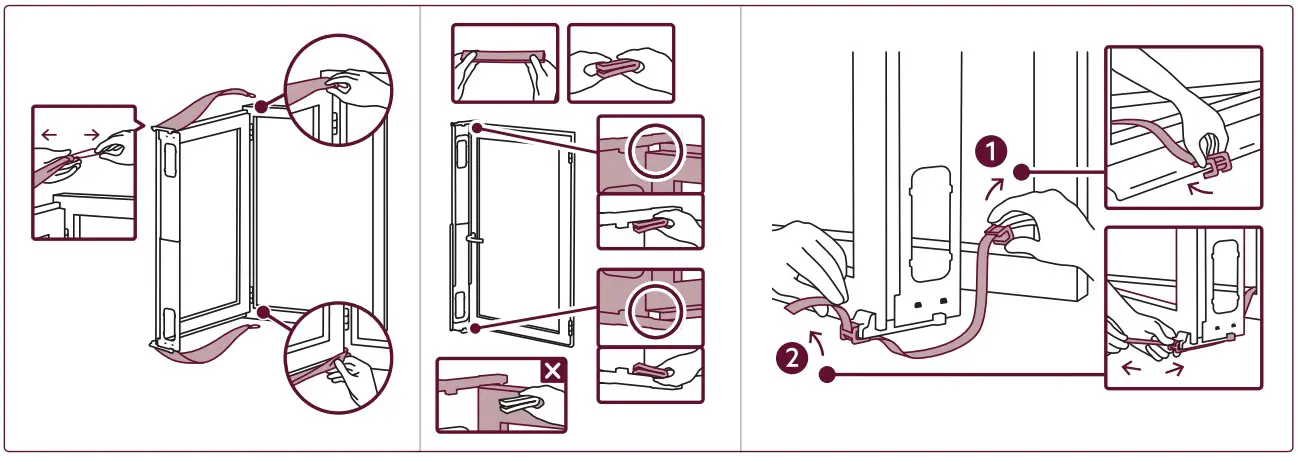

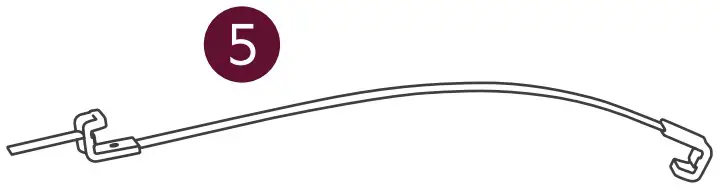

5. Strap with hook

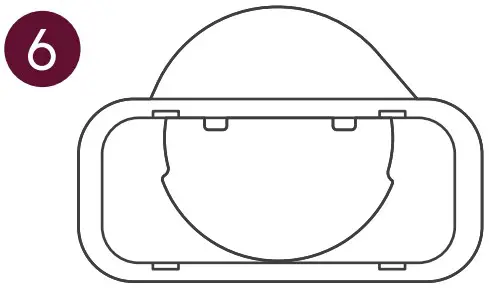

6. Hose connector (15cm diameter)

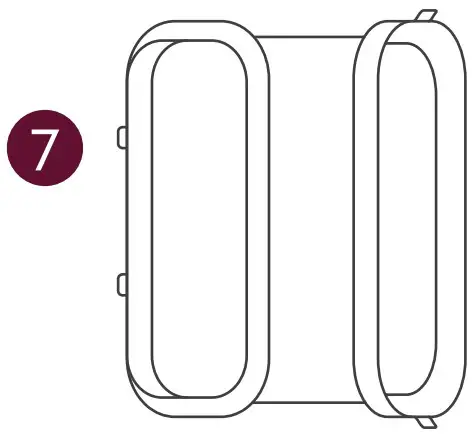

7. Hose connector adapter’

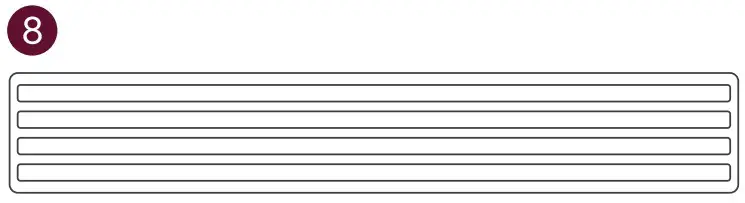

8. Adhesive sealing strips

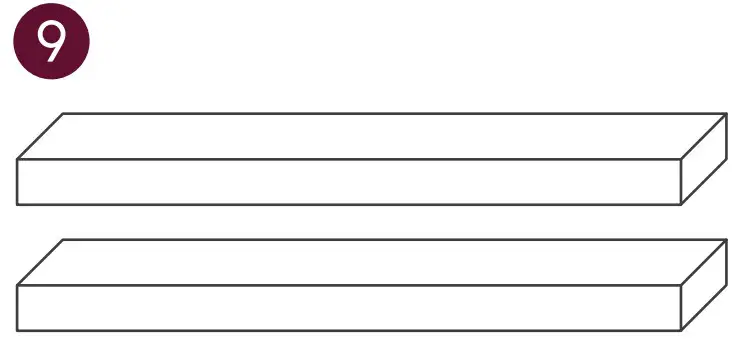

9. Sealing sponge (2 pcs)

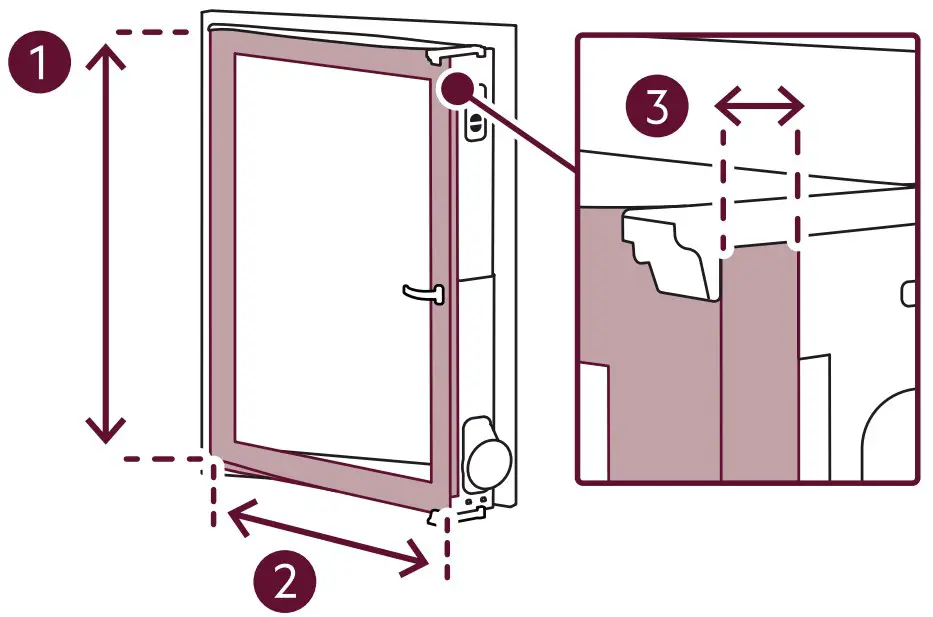

Window size and space requirements for the window ki† to operate properly

1. 1350-1700mm ( with extension piece*/ mit ) ‘ For every extension added the size is increased by 350 mm
2. 900-1260mm
3. Window thickness 35 – 105 mm
4. The clamps require 15mm gap above and below the window frame / Die Klemmen erfordern 15 mm



Suited to the following window types

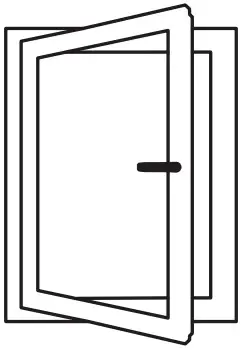

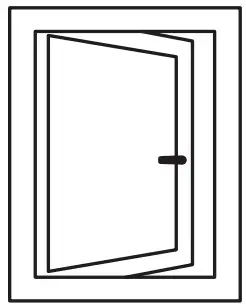

Side hinged inward

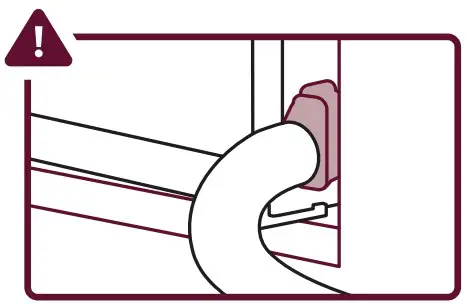

Please make sure there is enough space between the window and wall for hose mounting.

For recessed windows, the minimum distance to be able to mount the adapter part is between 120-150mm depending on the window type and structure.

Side hinged outward

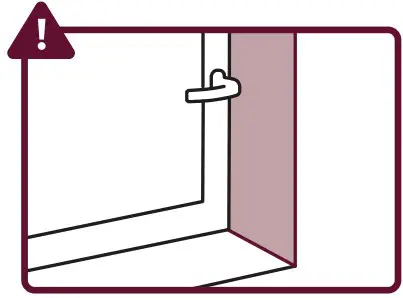

In some cases, the handle can prevent the window from sealing completely.

NOT Suited to the following window types

NOT Suited to the following window types

• Top hinged outward projecting ( with gap at the top )

• Pivot hinged vertical Schwingfenster vertikal

• Top hinged outward

• Pivot hinged horizontal

• Tilt and ture

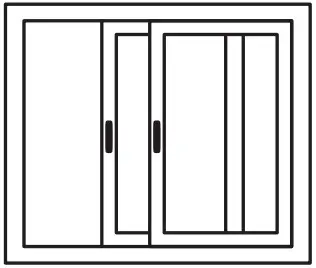

• Sliding

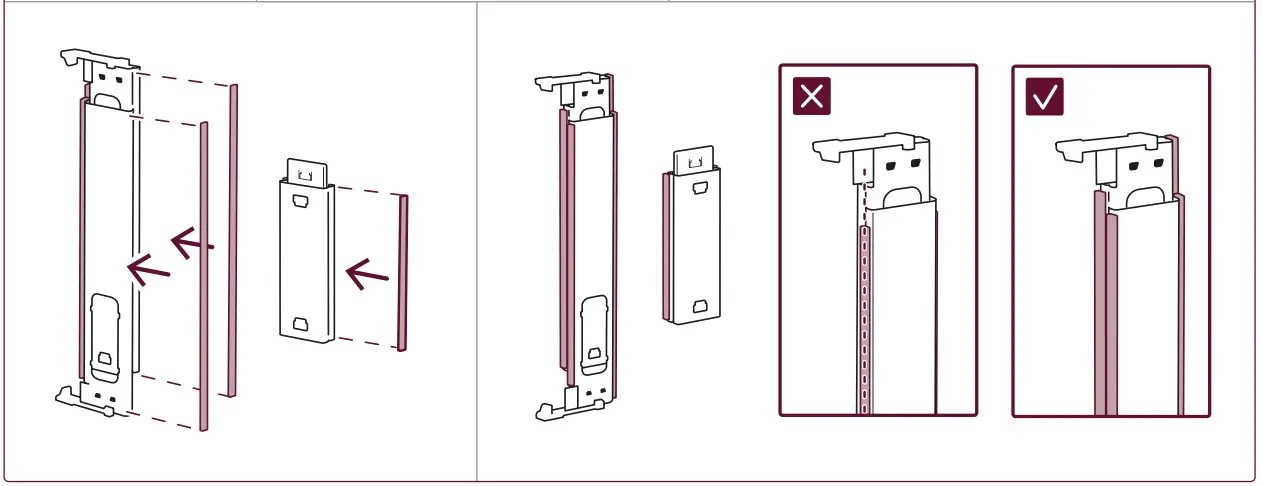

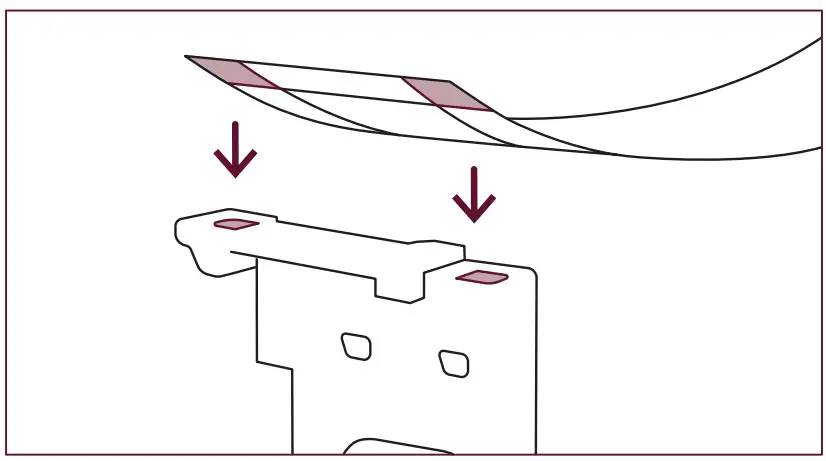

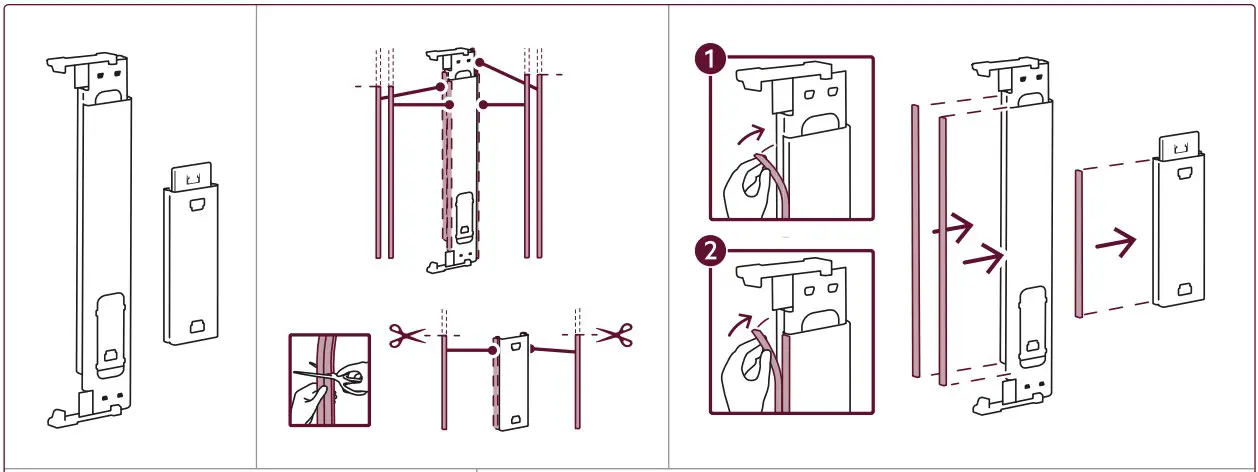

How to appply the adhesive sealing strips

Please keep excess adhesive sealing strips for use ïn the extension piece. / Bitte bewahren Sie ûberschûssige Kleben Dichtstreifen fûr die Verwendung im Erweiterungsstück auÎ

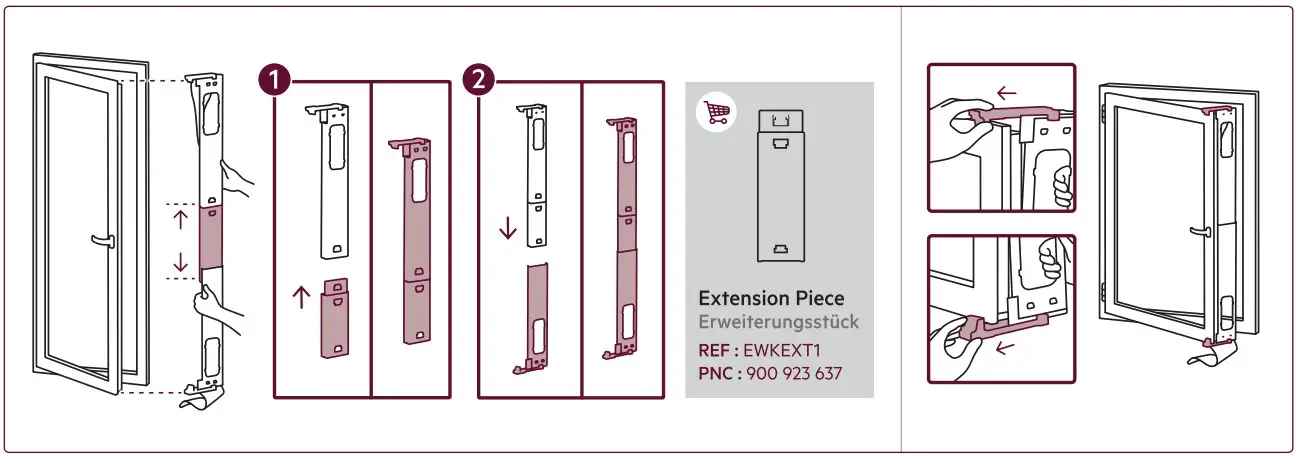

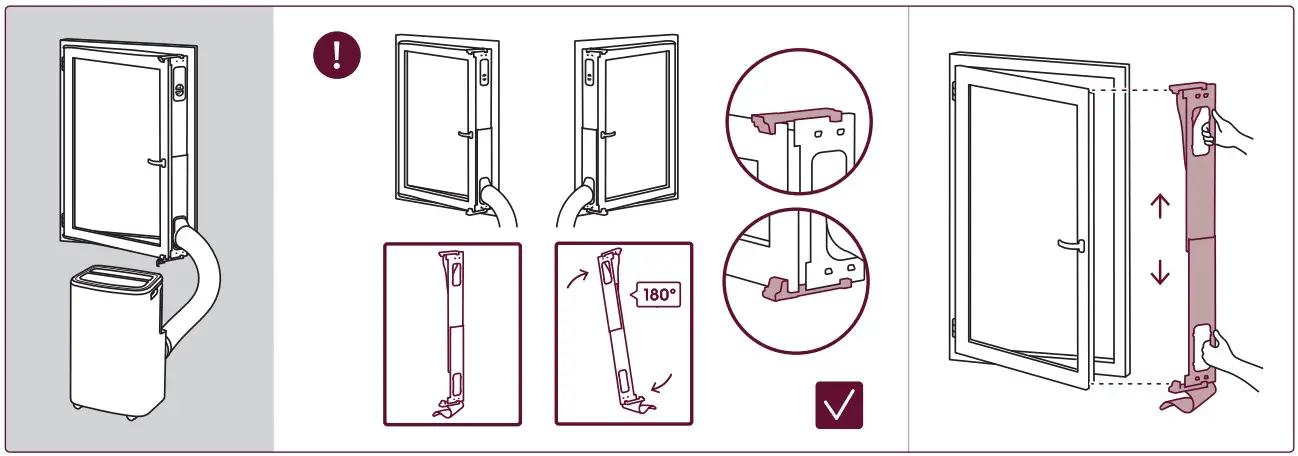

Inward hinged window

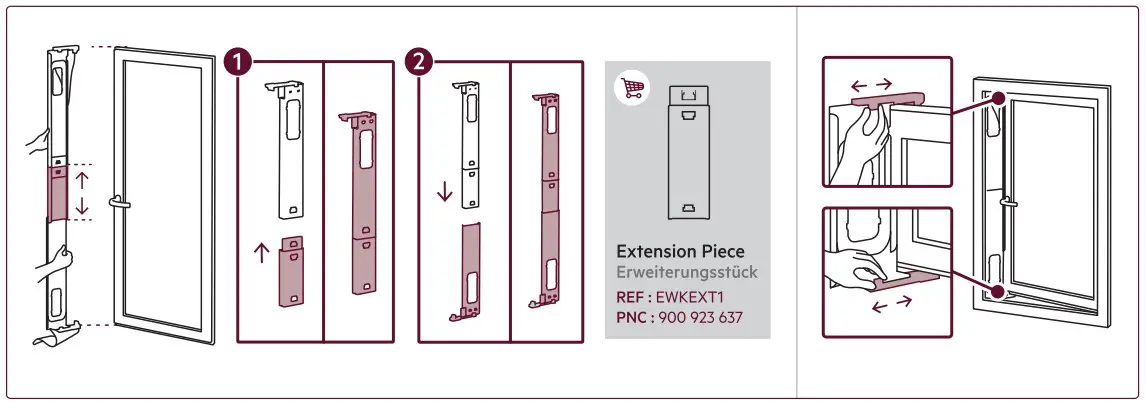

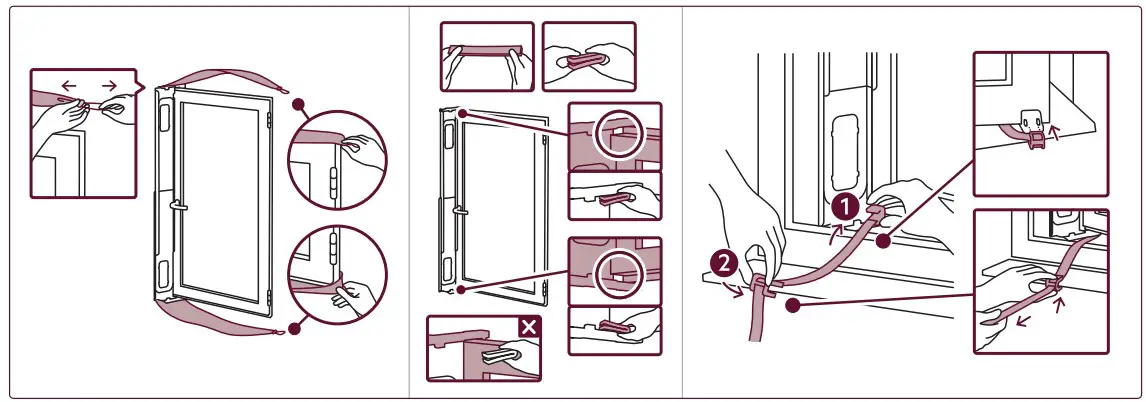

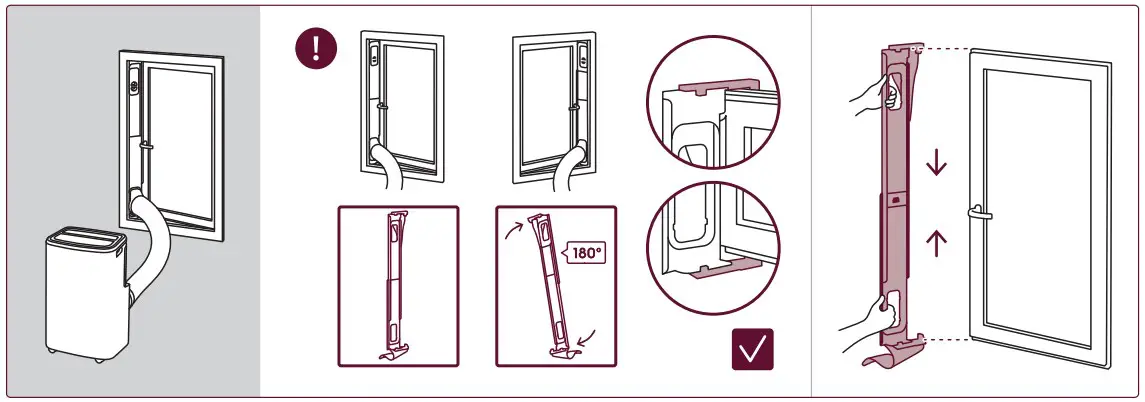

Outward hinged window

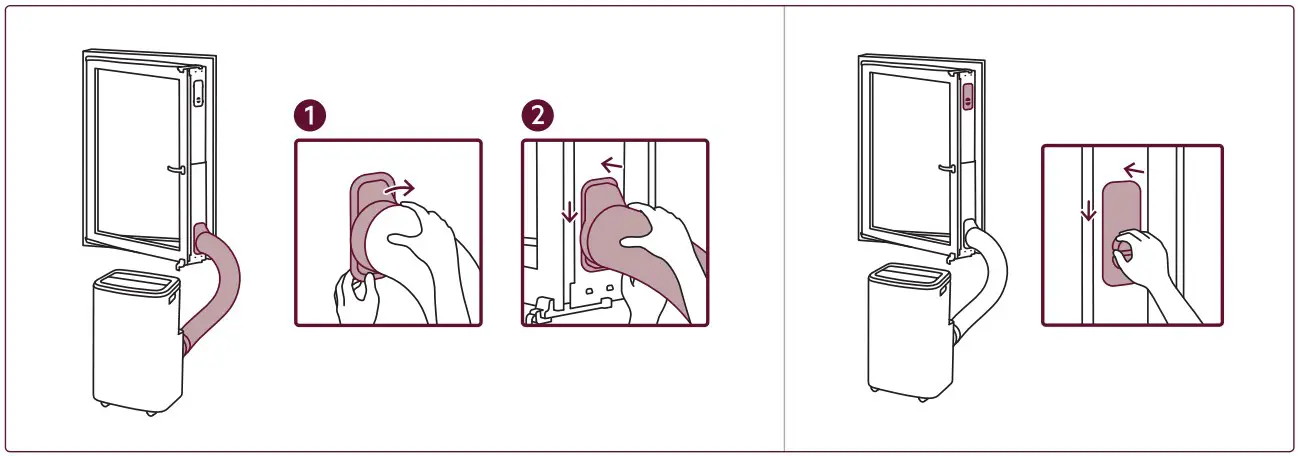

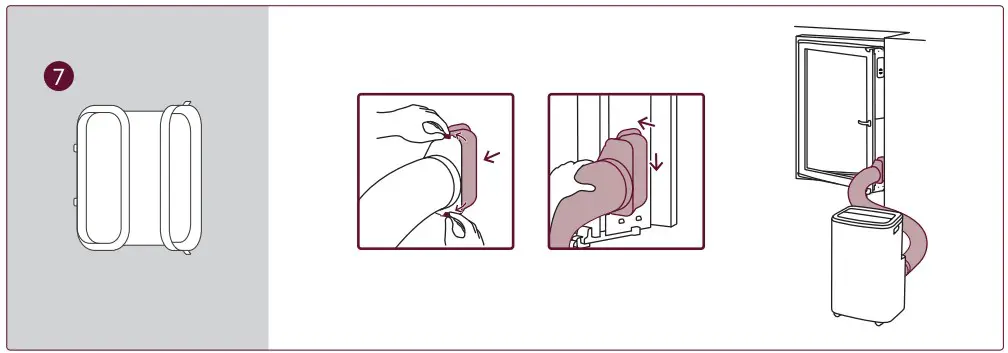

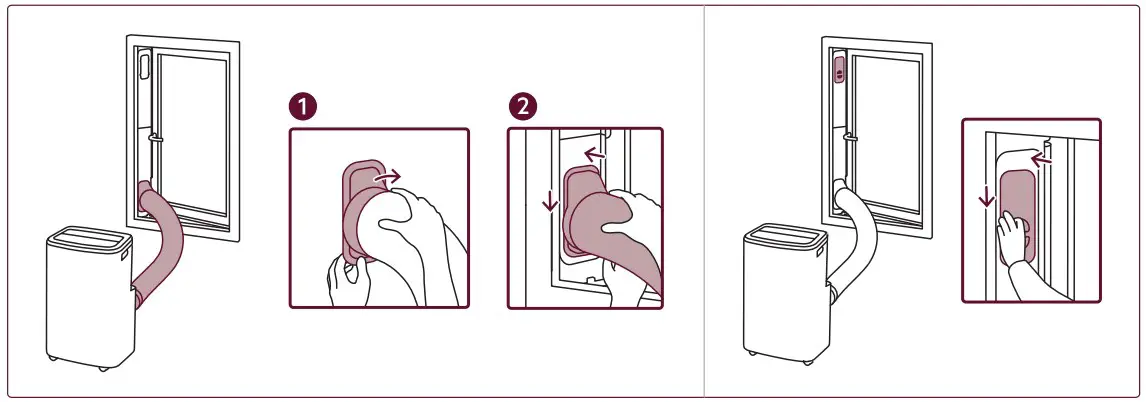

Install the hose connector adapter for recessed windows

Fabric cover wash instructions

• Cold wash at or below 40°C
• Don’t bleach.
• Do not tumble dry
• lron at temperature no more than 110 °C
• Dry clean, tetrachloroethylene ( PCE ) only

@ www.aeg.com/shop.aeg.com

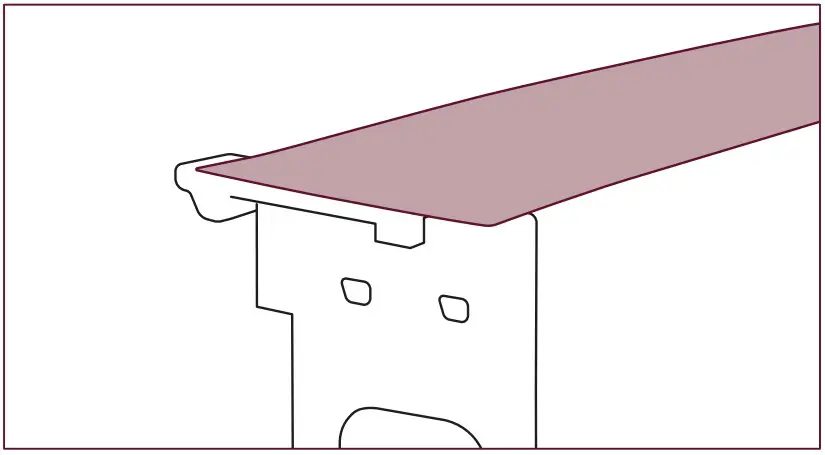

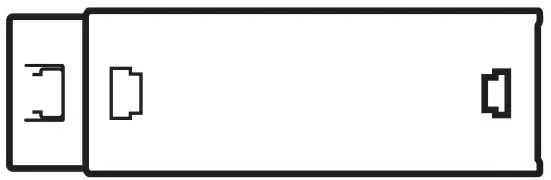

Extension Piece
Erweiterungsstück
REF : EWK EXT1
