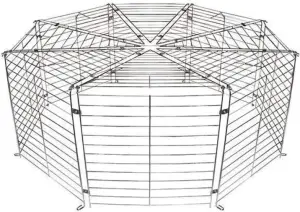

CANARMNA Industrial Ceiling Fan Guard
SAFETY PRECAUTIONS
- TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF WIRE GUARD.
- USE WITH CANARMNA CP56 OR CP60 CEILING FAN
NOTE: Product may not look exactly as shown in figures.
TOOLS AND MATERIALS REQUIRED
PARTS LIST
| AA |  | Downrod Bracket x 2 pcs |

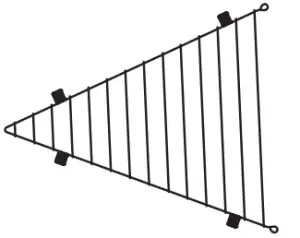

| BB |  | Triangle Wire Guard x 16 pcs |

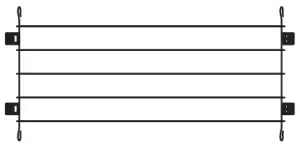

| CC |  | Rectangle Wire Guard x 8 pcs |
| DD |  | M4*12mm Screw, Washer and Nut x 4 sets |
| EE |  | M6*16mm Screw, Washer and Nut x 44 sets |
| FF |  | M6mm Hook, Washer and Nut x 4 sets |

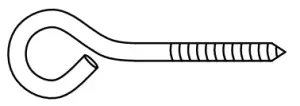

| GG |  | Closed Hook x 4 pcs |
| HH |  | 5’ Cable x 4 pcs |
| II |  | Wire Rope Clamp x 8 pcs |
INSTALLATION

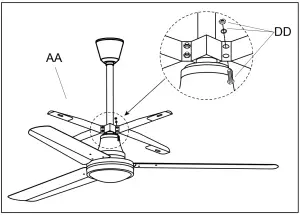

- Secure the 2 downrod brackets (AA) to the DD fans downrod using supplied screw,washer and nut (DD) as shown.
(Note – Downrod brackets lower edge should be touching top of motor assembly Downrod brackets are only suitable for 1 inch diameter downrod.) - Install 2 triangle wire guards (BB) to the downrod brackets (AA) by screws, washers and nuts (EE). Install the hook, washers and nuts (FF) on the end of the triangle wire guards (BB).

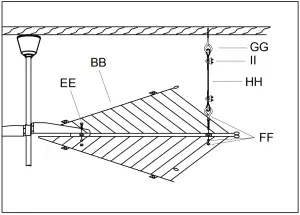

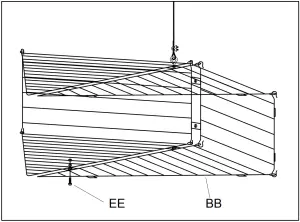

- Install closed hook (GG) using appropriate anchor (not supplied) on the ceiling directly above hook (FF). Connect 2 hooks (FF and GG) with cables (HH) and lock with wire rope clamps (II). Then install triangle wire guards (BB) using screws, washers and nuts (EE). Repeat the above for the 8 triangle wire guards (BB) and form the top of the complete wire guard.

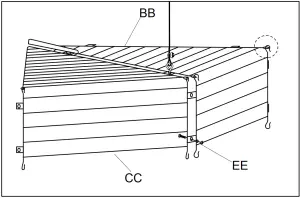

- Place the J hooked wire loop of panel (CC) through the wire end loop of panel (BB) as shown, then connect the adjacent 2 rectangle wire guards (CC) by screws, washers and nuts (EE). Repeat the above for the remaining rectangle wire guards (CC).
(Note – the hook of rectangle wire guard (CC) need to be outward facing.) - To install the bottom of the complete wire guard, connect triangle wire guard (BB) to the hook of rectangle wire guard (CC). Then connect the adjacent 2 triangle wire guards (BB) by screws, washers and nuts (EE). Repeat the above for the rest triangle wire guards (BB).
