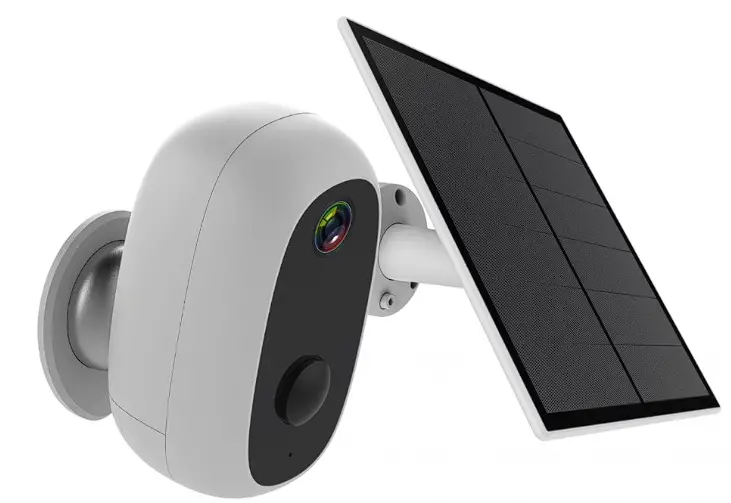

Chacon IPCAM-BE03-PS Battery Operated Camera
Quick start guide

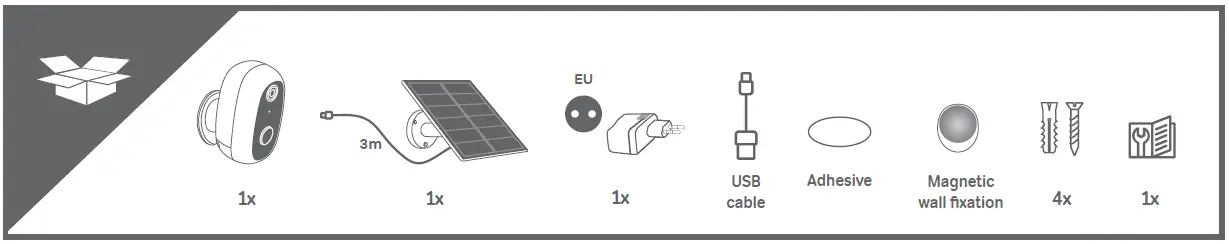

- Product description
- Device configuration
- Legal notice

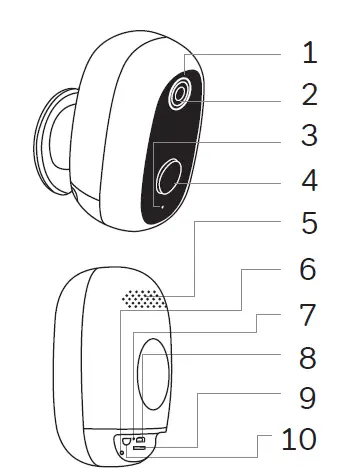

Product overview
- LED indicator
- Lens
- Microphone
- PIR
- Speaker
- Reset button
- LED charging indicator
- DC5V USB port
- Micro SD card slot
- Power key
| Solid red light on | the camera is turning on or malfunctional |
| Blinking red light | «awaiting WiFi connection (slowly blinking) connecting the WiFi (quickly blinking)» |
| Blinking blue light | currently connecting |
| Solid blue light on | the camera runs correctly |
Notice: To reset the device, press and hold the reset button for 5 seconds. The camera beeps when the operation is complete.
Camera configuration
- Step 1 Turn on your camera by plugging in the power adapter or directly to the solar panel (make
sure to plug it through the protection rubber). Ensure the solar panel is turned to the sun direction to maximize product efficiency.. Then press and hold the power key during 5 sec. - Step 2 Connect your smartphone to the Wi-Fi network.
- Step 3 Download My Chacon app from the Apple Store or Android Play Store depending on your
device. This camera is also compatible with the DiO One app. - Step 4 Launch My Chacon app and sign up for the first use.

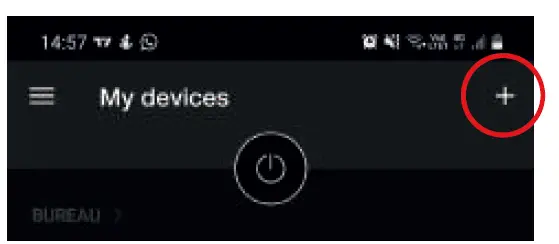

- Step 5 Tap «+» in the top right corner and select the product type you want to add from the list.
Then follow the on-screen instructions.
Note:
- If you have multiple cameras, please follow step 5 again to add devices one by one.
- To change Wi-Fi network, please restore the camera to factory settings and follow
- step 5 to add the camera. For more information, please download the user manual at www.chacon.com
Specifications
Camera
| Sensor type | 1/3″ CMOS |
| Min. Brightness | Color 0.01L[email protected] |
| Black and white 0.001L[email protected] | |
| Resolution | 2 Mega pixels |
| Lens | 3.6mm F2.0 |
| Shutter | 1/25~1/100,000 per second |
| Infrared | High power LED with ICR |
| Infrared distance | 10 mètres |
| Wide Angle | 120° |
| Video compression | H.264 |
| Bit rate | 32Kbps~2Mbps |
| Max resolution | 1920 × 1080 |
| Framerate | 1~25 per second |
| Picture settings | Support HD/SD;support flip; |
| Storage | SD card(Max 128G) |
| Audio | Two-way audio |
| Protocols | HTTP,DHCP,DNS,RTSP |
| WiFi standard | IEEE802.11b/g/n |
| Frequency | 2.4 GHz ~ 2.4835 GHz |
| Bandwidth | 20/40MHz |
| WiFi encryption | WPA-PSK/WPA2-PSK |
| Security | AES128 |
| Working temperature | -20°C~50°C |
| Power | DC5V,1A |
| Consumption | 4,5W MAX |
| Size(mm) | 55,1X61,9X101,2 |
| IP Protection | IP65 |
| Battery | 3,6V – 5200mAh |
| Max EIRP | <100mW |
| Model | GTA92-0501000EU |
| Input voltage | 100-240Vac |
| input frequency | 50-60Hz |
| Output voltage | +5Vdc |
| Output current | 1A |
| Output power | 5W |
| Efficiency | 74,13% |
| No-load Consumption | < 0.1W |
Solar panel
| Minimum output power | 5W |
| Open circuit voltage | 7.2V |
| Standard working voltage | 6.0V |
| Standard working current | 830mA |
| Short circuit current | 900mA |
| Solar cell conversion efficiency | ≥ 20% |
| Connection | 3m USB C cable |
| Dimensions | 174 x 163 x 12,5 mm |
Support
www.chacon.com/support
