DESIGNED TO WORK FOR YOU
Rain Gauge
At AcuRite®, we know life moves pretty fast. That’s why we design our products to clearly display time, temperature, and weather, so you get the information you want at a glance and keep moving.
- Measure Rainfall and Monitor Lawn & Garden Watering
- Measures in Inches or Centimeters
To Measure Rainfall:
Place the rain gauge in an open area away from trees, buildings, etc.

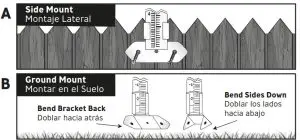

Side Mount: (A)
Mount rain gauge on a level surface. Anchor with 2-in nails.
Ground Mount: (B)
To mount in-ground, bend bracket back and bend sides down. Place into level ground.
Helpful Hints:
DO insert a glass tube into the top of a metal base with a slight twisting motion. DO NOT snap the glass tube into the base. DO NOT let the water freeze in a glass tube. Ice may crack the tube.
Limited One Year Warranty
Go to www.AcuRite.com or see retailer for details.
Customer Care Hotline: 877-221-1252
Email: [email protected]
AcuRite® is a registered trademark of the Chaney Instrument Co.
Lake Geneva, WI 53147 • www.AcuRite.com
REV0316 ©2012 Chaney Instrument Co.
Made in China
