GoXLR MIC, GoXLR MIC-WH Dynamic
Broadcast Microphone with
Integrated Pop Filter
User Guide
Safety Instruction
- Read these instructions.
- Keep these instructions.
- Heed all warnings.
- Follow all instructions.
- Do not use this apparatus near water.
- Clean only with dry cloth.
- Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Use only attachments/accessories specified by the manufacturer.
Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
Correct disposal of this product: This symbol indicates that this product must not be disposed of with household waste, according to the WEEE Directive (2012/19/EU) and your national law. This product should be taken to a collection center licensed for the recycling of waste electrical and electronic equipment (EEE). The mishandling of this type of waste could have a possible negative impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE. At the same time, your cooperation in the correct disposal of this product will contribute to the efficient use of natural resources. For more information about where you can take your waste equipment for recycling, please contact your local city office, or your household waste collection service.- Do not install in a confined space, such as a book case or similar unit.
- Do not place naked flame sources, such as lighted candles, on the apparatus.
Correct disposal of this product: This symbol indicates that this product must not be disposed of with household waste, according to the WEEE Directive (2012/19/EU) and your national law. This product should be taken to a collection center licensed for the recycling of waste electrical and electronic equipment (EEE). The mishandling of this type of waste could have a possible negative impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE. At the same time, your cooperation in the correct disposal of this product will contribute to the efficient use of natural resources. For more information about where you can take your waste equipment for recycling, please contact your local city office, or your household waste collection service.Features
- Professional dynamic XLR microphone
- Highly directional to capture you and not the room
- Prevent problematic Ps with built-in adjustable height pop filter
- Get the perfect mic placement with dual articulated joints
- Personalize with anodized silver/rose gold or 9 other colored rings

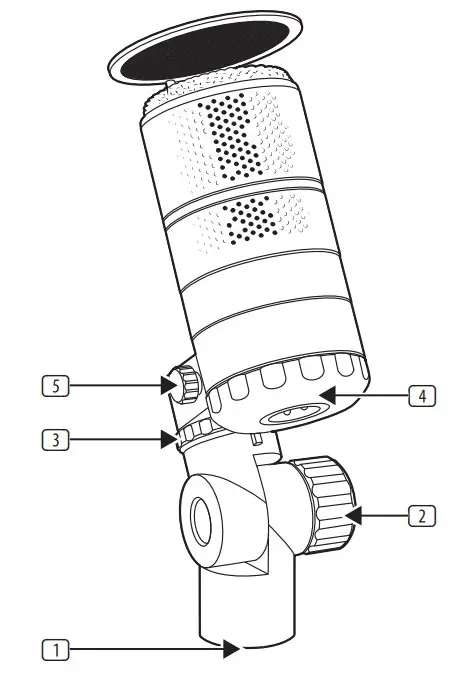

Switch Function
- GoXLR MIC can attach to any standard microphone stand thread, 5/8″ or 3/8″ with threaded adapter.
- Toothed pivot locks in the perfect angle while not requiring over tightening.
- Loosen locking nut to swivel mic around base, tighten nut to lock in place.
- To swap the color ring, remove the pop filter, unscrew the base of the mic (found around the XLR jack) and slide the mic out of the mic mount. Replace the ring with desired color and reattach to mic mount.
- To remove or adjust the pop filter, loosen the small knob on the mic clip. Slide the filter to the desired position and tighten the knob.

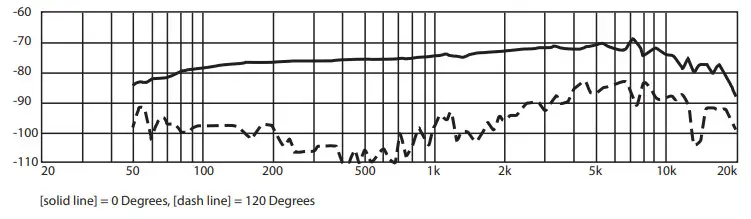

Frequency Response Curve

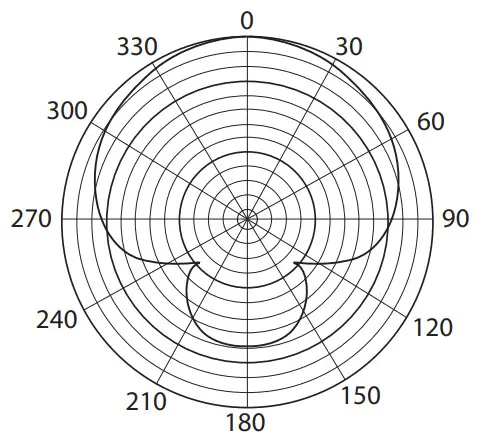

Polar Pattern
Specifications
| Type | Super-Cardioid Dynamic Microphone |
| Frequency response | 50 Hz to 18 kHz |
| Impedance | 300 Ohms |
| Connector | Gold-Plated XLR |
| Sensitivity | -74 db |
| Weight | 485 g |
TC Helicon is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance may differ from those listed or illustrated.
