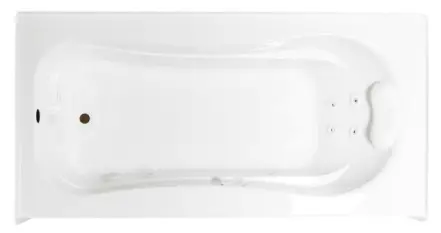

Laurel Mountain RAPHINE 72 X 36 Inch Skirted Acrylic Whirlpool
Model Number
7236RWSR064
Right Hand Drain Whirlpool in White
7236RWSL064
Left Hand Drain Whirlpool in White
Features
- Color-matched jet trim included
- 10 Self draining, adjustable hydrotherapy jets
- 3-Speed control for the 13 Amp pump
- Constructed of high-gloss durable acrylic
- Pre-leveled base for easy installation
- Radiant Heat & Inline Heater available
- Mood lights & Music system available
- Silent Pump upgrade available
- Can be installed as an undermount
- Made in the USA

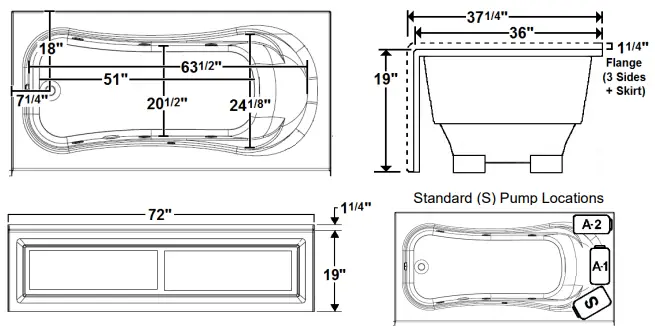

*All dimensions are +/- 1/2” and subject to change without notice* Confirm specifications before installation
Technical Information
- Weight: 151 lbs.
- Water Depth to Overflow: 13 1/2”
- Operating Capacity: 50 gal.
- Water Capacity: 68 gal.
- Sump Dimension: 51” x 20 1/2”
Electrical Requirements
- Standard Pump: 13 Amps
- (Optional) LM300 Heater: 12 Amps
- (Optional) LM320 Silent Pump: 11 Amps
- Dedicated GFCI’s required for each option
RAPHINE
AVAILABLE OPTIONS & UPGRADES
For current pricing, pictures, and descriptions of the Laurel Mountain options listed below, go to www.lowes.com. Enter the model number of the option into the search bar at the top right of the page next to the magnifying glass. For additional information, visit www.laurelmountainbath.com or call Laurel Mountain customer service at 800-930-0050.
Therapeutic
- HEATERS (select one)
- LM300 Inline Heater
- LM320 Whisper Flow Silent Pump & Heater
- LM302 Warm Comfort Radiant Heat *can be ordered w/ the Inline Heater or Silent Pump
- OTHER THERAPIES (select one)
- LM522 Chromatherapy Mood Light
- LM525 Wāv Music. Vibe. Lights
Accessories
| WHIRLPOOL TRIM KITS | CABLE OPERATED DRAINS | 8” GRAB BARS |
| LM101 Chrome | LM200 Chrome | LM230 White |
| LM102 Brushed Nickel | LM201 Brushed Nickel | LM231 Biscuit |
| LM103 Bronze | LM202 Bronze | |
| LM210 White | LM335 Ozonator | |
| LM211 Biscuit | (Sanitizing System) |
Design / Construction
LM542 Plastic Flange
INSTALLATION
Install this unit according to the Owner’s Manual. The Owner’s manual can be found at www.laurelmountainbath.com. Select “Resources” at the top of the homepage, then click on “Literature and Manuals”. Scroll down the page to the Owner’s Manual section then click on the “Whirlpool, Air Bath, Combo Bath” document
Laurel Mountain Customer Service: 1-800-930-0050
